Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case

Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case

Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case

  • SKU : #2XCKEVOKE 1200 FL-KIT | MFR : #EVOKE 1200 FL-KIT
Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case
Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case
Features
  • Evoke 1200 Daylight LED Light
  • Flight Case
  • Fresnel Lens
  • 18,400 Lux at 9.8'
  • Color Temperature: 5600K
  • AC Power, Optional Battery
  • 45° Reflector
  • Bluetooth, Wired or Wireless DMX Control
  • 11 Special Effects
  • IP54 Weatherproof

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 15,040.93
VAT Excl.

Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case

The Nanlux Evoke 1200 LED Daylight Spot Light Kit with Fresnel Lens and Case packs the 5600K light with a dedicated F-35 10° Fresnel attachment and a flight case that fits the entire kit. The Evoke 1200 comes with a 45° reflector, a ballast with two cables, a yoke, and a flash drive. The Fresnel attachment narrows the beam spread from 45 to 10°.

Nanlux Evoke 1200 LED Daylight Spot Light

Adopting a popular, easy-to-use form factor, this Evoke 1200 LED Daylight Spot Light from Nanlux has a daylight color temperature of 5600K and a high CRI/TLCI rating of 96/97 to indicate precise accuracy in color rendition. The fixture with yoke measures 19.8 x 14.5 x 8.3" and will give you 18,400 Lux with the included 45° reflector, rivaling the output of a 1.2K incandescent fixture. It is dimmable from 0 to 100% and you can make power adjustments and turn the unit on and off locally on the light as well as from a remote console or wirelessly via 2.4 GHz signal, Bluetooth, DMX/RDM, or LumenRadio. You can turn the quiet fan off for in sound-sensitive situations.

One of the many benefits is a library of special effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its universal power supply, but it can also run on optional batteries when mains current is unavailable. Optional accessories include a variety of softboxes and the FL-35 Fresnel lens.

Design

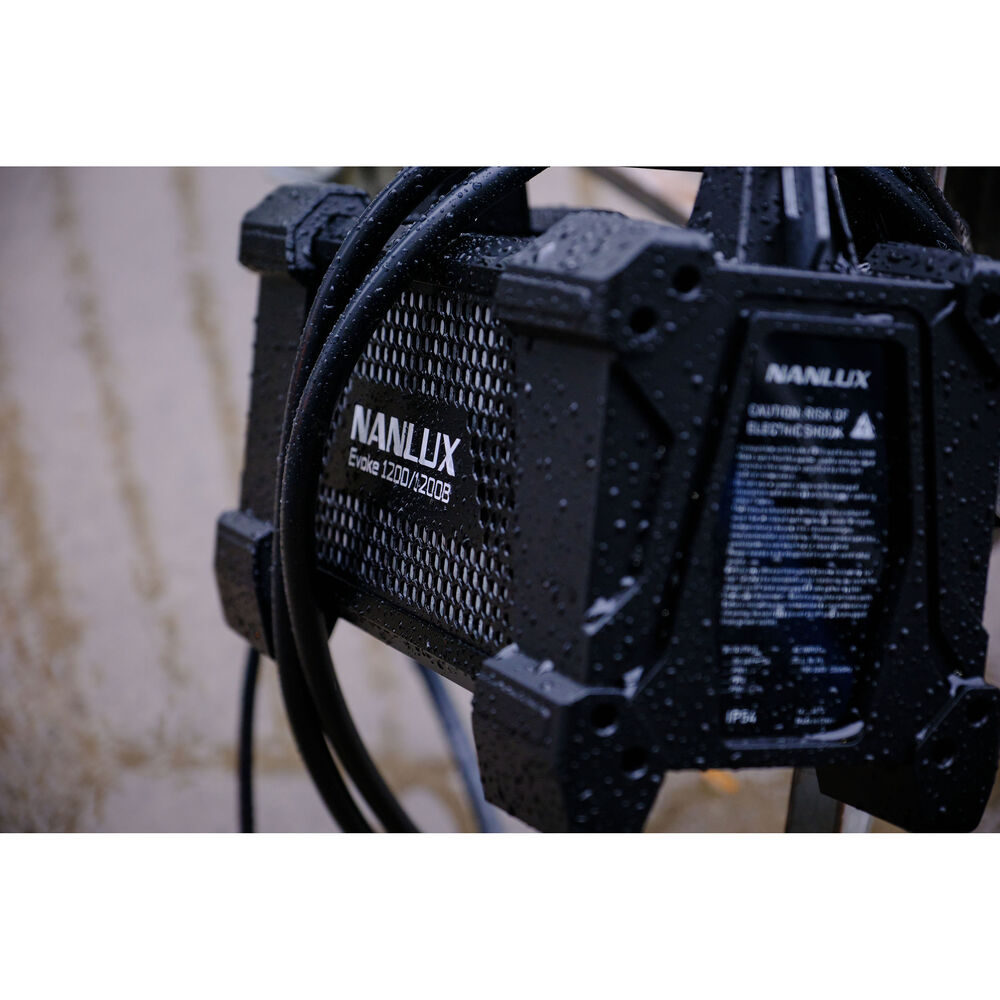

Robust construction, a practical design, and an IP54 rating make the Evoke ideal for use in almost any conditions

Precision Performance

The highly accurate user interface with its 0.1% precision allows for pinpoint accuracy in both output and intensity

Ultimate Control

Supporting both wired and wireless control via Nanlink APP, DMX/RDM, Bluetooth, and Lumenradio Timo 2

Nanlux F-35 10° Fresnel Attachment for Evoke 1200 LED Light

The F-35 Fresnel Attachment for Evoke LED Light from Nanlux attaches to the light's NLM200 front accessory mount, allowing the image maker to narrow the beam spread from 45 to 10°.

Nanlux Flight Case for Evoke 1200 and FL-35 Lens

This Flight Case from Nanlux is a sturdy case made for safe and secure transportation and storage of your Evoke 1200 and FL-35 lens.

Padded interior

Custom fit

Robust construction

Included wheels for transport

Maximum protection

Interior compartments

IN THE BOX

    • Nanlux Evoke 1200 LED Daylight Spot Light
      • Yoke
      • Power Supply
      • Reflector
      • Connecting Cable (16.4')
      • Power Cable (15')
      • USB Flash Drive
      • Limited 3-Year Manufacturer Warranty
    • Nanlux F-35 10° Fresnel Attachment for Evoke 1200 LED Light
      • Limited 3-Year Manufacturer Warranty
    • Nanlux Flight Case for Evoke 1200 and FL-35 Lens
      • Wheels for Transport

Key Specs

Item Type1 x LED Spot Light
Included Light Modifier1 x Reflector
Photometrics

5600K:
4625 fc / 49,788 Lux at 3.3' / 1 m*
513 fc / 5532 Lux at 9.8' / 3 m
1714 fc / 18,460 Lux at 9.8' / 3 m (with Reflector)
220 fc / 2373 Lux at 16.4' / 5 m
611 fc / 6583 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance

Show More

Color Temperature5600K
Color ModesDaylight
Color Accuracy StandardCRI 96
TLCI 97
DimmingYes, Built-In Dimmer
0 to 100%
Front Accessory MountProprietary
Wireless Remote Control TypeBluetooth
Radio/RF *Remote Not Included
Wireless CRMX
Power Source

AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)

Show More

AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power48 VDC at 25 A
Power Consumption1200 W
Fixture Mounting1 x 1-1/8" Stud (Via Yoke Mount)

Light Fixture

Item Type1 x LED Spot Light
Included Light Modifier1 x Reflector
Included Storage CaseNone
Photometrics5600K:
4625 fc / 49,788 Lux at 3.3' / 1 m*
513 fc / 5532 Lux at 9.8' / 3 m
1714 fc / 18,460 Lux at 9.8' / 3 m (with Reflector)
220 fc / 2373 Lux at 16.4' / 5 m
611 fc / 6583 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature5600K
Color ModesDaylight
Color Accuracy StandardCRI 96
TLCI 97
Cooling SystemFan
DimmingYes, Built-In Dimmer
0 to 100%
Built-In FlashNo
Umbrella MountNo
Front Accessory MountProprietary

Connectivity

Wireless Remote Control TypeBluetooth
Radio/RF *Remote Not Included
Wireless CRMX
Mobile App CompatibleYes: Android & iOS
App Name: NANLINK
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility

Power & I/O

Power SourceAC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)
AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power48 VDC at 25 A
Included Adapter / CableYes
Inline SwitchNo
Power Pass-ThruNo
Power Consumption1200 W

Mounting

Yoke TypeManually-Operated Yoke
Fixture Mounting1 x 1-1/8" Stud (Via Yoke Mount)

Environmental

Environmental ProtectionAdvertised as Dust Resistant/Water Resistant
*Manufacturer Testing: IP54

General

Dimensions14.8 x 9.7 x 7.1" / 37.6 x 24.6 x 18 cm (Power Supply/Controller)
19.8 x 14.6 x 8.3" / 50.3 x 37.1 x 21.1 cm (Fixture with Yoke)
Weight15.3 lb / 6.94 kg (Fixture with Yoke)
22 lb / 10 kg (Power Supply/Controller)

Packaging Info

Package Weight56.1 lb
Box Dimensions (LxWxH)21.5 x 20.7 x 20.7"

Nanlux F-35 10° Fresnel Attachment For Evoke 1200 LED Light Specs

Beam Spread10°

Packaging Info

Package Weight35.7 lb
Box Dimensions (LxWxH)25.2 x 19.1 x 19"

Nanlux Flight Case For Evoke 1200 And FL-35 Lens Specs

Key Specs

ColorBlack
Carry/Transport OptionsHandle, Wheels (Built-In)
Carry/Transport OptionsHandle, Wheels (Built-In)

Features

Bottle PocketNo
Hydration Bladder CompatibleNo
Monopod/Tripod HolderNo
RFID-Blocking PocketsNo

General

MaterialsExterior: Laminate (Wood)
Padded InteriorYes
