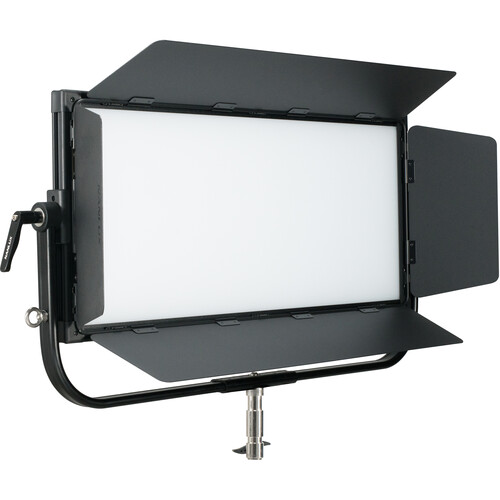

This TK-200 Daylight Soft Panel LED Light from Nanlux is 0 to 100% dimmable, measures 35 x 21.3 x 3.4", and has a wide beam spread. The panel also has a solid 5600K color temperature with a high CRI/TLCI rating of 96/98 to indicate superior accuracy in the rendering of color.
The panel has numerous control options including wired DMX, wireless Bluetooth, Lumenradio, and CRMX. The light's 11 built-in Special FX include INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its 100 to 240V power supply, but will also run on V-Mount batteries in situations where AC power is unavailable.
Multiple Control Options
The TK Series supports on-board control, DMX wired control with wireless control options via built-in Bluetooth, 2.4G, Lumenradio, and CRMX
Take TK Anywhere
Lightweight and portable with a choice of power options, using either the AC adapter provided, or an optional 14.8V / 26V battery, the TK-200 gives you light in the studio, on set, or even in the most remote locations
Upgraded On-Board Control
The easy access menu allows you to compose, select, and store lighting effects, all at the touch of a button
11 Built-In Lighting FX
The TK-200 has 11 built-in lighting effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. Fully customizable with instant store and playback function, settings can be used to deliver a broad range of practical, creative effects
Ultra-Slim, Silent Design
The TK series features a compact, lightweight, ultra-slim housing. The passive air-cooling design makes it perfect for use in completely silent shooting environments
Naturally Soft
Advanced LED technology and high-quality diffusion panels combined with a generous surface area, create a beautiful, naturally soft yet powerful light with no sharp edges or shadows
Key Specs
Item Type | 1 x LED Light Panel |
Included Light Modifier | 1 x Barndoors |
Photometrics | 5600K: Show More |
Color Temperature | 5600K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 TLCI 98 |
Dimming | Yes, Built-In Dimmer 0 to 100% |
Front Accessory Mount | Proprietary |
Wireless Remote Control Type | Bluetooth Wireless DMX |
Power Source | AC to DC Adapter (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC at 10.4 A |
Power Consumption | 240 W |
Fixture Mounting | 1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
Light Fixture
Item Type | 1 x LED Light Panel |
Included Light Modifier | 1 x Barndoors |
Included Filters | Soft Diffusion |
Included Storage Case | None |
Photometrics | 5600K: 639 fc / 6888 Lux at 3.3' / 1 m 83 fc / 901 Lux at 9.8' / 3 m 34 fc / 374 Lux at 16.4' / 5 m |
Color Temperature | 5600K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 TLCI 98 |
Dimming | Yes, Built-In Dimmer 0 to 100% |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Connectivity
Wireless Remote Control Type | Bluetooth Wireless DMX |
Mobile App Compatible | Yes: Android & iOS App Name: NANLINK *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power & I/O
Power Source | AC to DC Adapter (Included) |
Inputs/Outputs | 1 x XLR 4-Pin Power Input 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC at 10.4 A |
Included Adapter / Cable | Yes |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 240 W |
Mounting
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
General
Display | LCD |
Dimensions | 35 x 21.3 x 3.3" / 89 x 54 x 8.5 cm (Fixture with Yoke) |
Weight | 12.6 lb / 5.7 kg |
