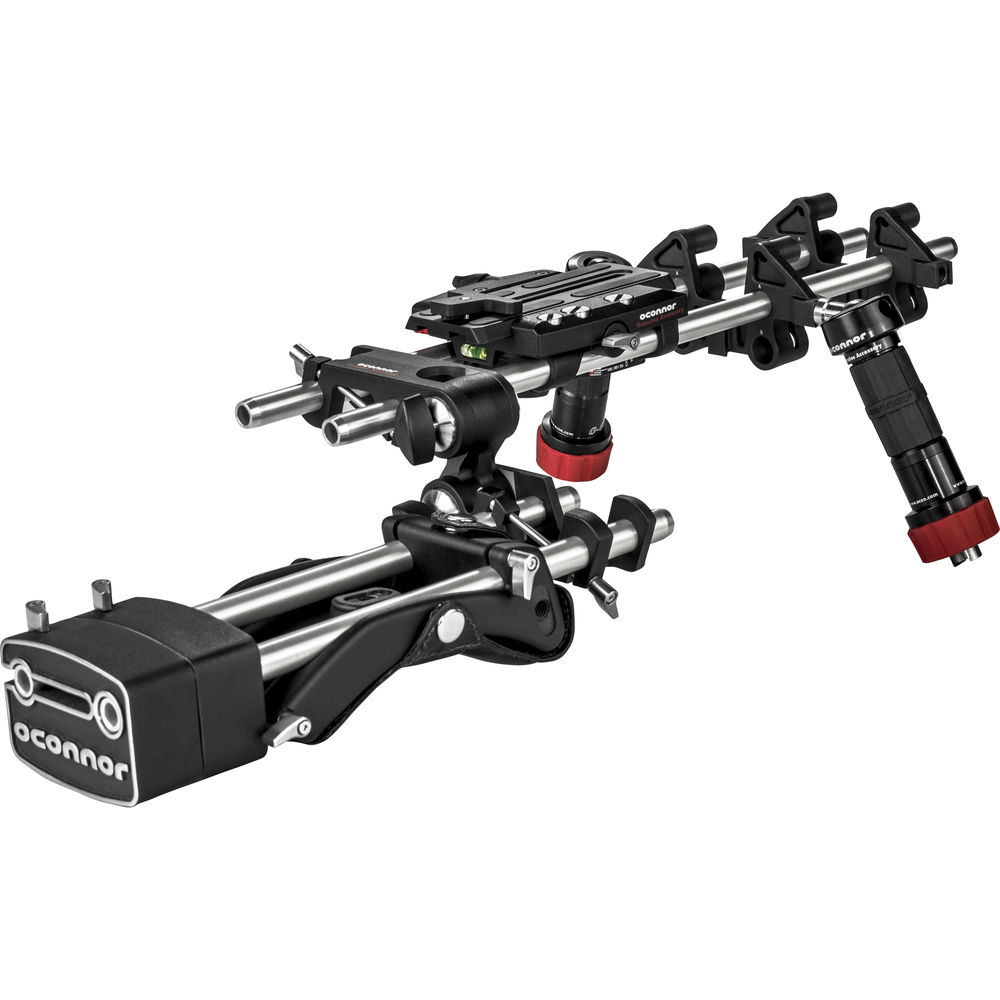

The O-Rig Pro Kit from OConnor is a complete 15mm LWS rod support system designed to work with nearly any camera and lens combination, from compact DSLRs to larger cinema cameras. It features a universal baseplate that enables quick and easy camera and lens changes. A height adapter lets you adjust your camera and lens to the appropriate height for use with follow focuses and matte boxes. Designed for convenient and comfortable operation, the O-Rig system allows users to quickly switch between shoulder-mounted and tripod-mounted shooting.
The O-Rig set features OConnor's O-Grips handgrip system and an adjustable offset adapter, allowing users to easily reposition camera viewfinders and providing comfort adjustments for shoulder-mounted shooting. A rod-mounted shoulder pad with hand-stitched leather construction is included, as well as two counterweights to help balance out your load and reduce strain on your arms. The O-Rig system comes packed in a durable Pelican Storm Case, fitted with custom-cut, high-density foam.
OConnor O-Rig Baseplate Set
The O-Rig Baseplate Set from OConnor is a 15mm LWS rod support system designed to work with nearly any camera and lens combination, from compact DSLRs to larger cinema cameras. It features a universal baseplate that enables quick and easy camera and lens changes. A height adapter lets you adjust your camera and lens to the appropriate height for use with follow focuses and matte boxes. Designed for convenient and comfortable operation, the O-Rig Baseplate set includes an O-Rig Body Mount, which is a rod-mounted shoulder pad with hand-stitched leather construction that lets users to quickly switch between shoulder-mounted and tripod-mounted shooting.
Key Features
OConnor O-Grips Single-Jointed Set
The OConnor O-Grips Single-Jointed Set is a single ball-jointed handgrip set consisting of a solid titanium core that provides durability and reliability. You can use the single-jointed handgrip set for payloads up to 44 lb.
Offering single-handed operation, even while shouldering large camera systems, the single-jointed handgrip provides locking and adjustment in a full hemisphere. With a 3/8"-16 male screw on the top, and a 3/8"-16 female receptacle at the bottom of every single module, you can combine the handgrip with other individual modules to realize different configurations. You can use the single-jointed handgrip with the 15mm and 19mm Studio and 15mm LWS (Lightweight Support) rod systems.
OConnor Offset Adapter for O-Rig
The OConnor Offset Adapter is part of the O-Rig Rod Support System. It allows for the shoulder pad to be moved off-axis from the rest of the rig, allowing the camera to be positioned directly in front of the operator. The Offset Adapter is articulated in two locations for maximizing comfort through adjusting the angle of the shoulder pad.
OConnor Counterweight for O-Rig
Attach this OConnor Counterweight to your 15mm LWS rig to achieve proper front-to-back weight balance. If you already own an O-Rig, an additional counterweight can help balance heavier camera loads.
OConnor 15mm Rods (12")
Mount accessories to your rig with this pair of 12" OConnor 15mm Rods. These rods will attach to rigs, rod clamps, baseplates, or cameras that support the 15mm LWS or 15mm studio standards, allowing the attachments of industry standard equipment including follow focuses, lens supports, lens control motors, and more.
OConnor Pelican Storm Case for O-Rig
The O-Rig Pelican Storm Case from OConnor is a durable protective case designed specifically for the OConnor O-Rig shoulder support. The case features a custom-cut, high-density foam interior which can safely store and protect the components of a disassembled O-Rig. The case's exterior is constructed of durable HPX resin which, when matched with the unique press-and-pull latches, makes the case damage-resistant and watertight. For added security, two padlock-compatible hasps are located on the sides of each latch, great for personal and TSA regulation locks.
Mounting
Rod Standard | 15 mm LWS / 60 mm Spacing |
Included Rods | 2 x 18" / 45.7 cm 15 mm Rod |
Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
Rod Ports | 2 x 15 mm Rod Port |
Rosettes | None |
General
Support Type | Shoulder Support |
Grip Type | Grip Required (Not Included) |
Camera Compatibility | Universal |
Load Capacity | 45 lb / 20.45 kg |
Weight | 2.77 lb / 1.71 kg |
Packaging Info
Package Weight | 4.95 lb |
Box Dimensions (LxWxH) | 19.2 x 7.6 x 3.6" |
Item Type | Dual Handgrips |
Mounting
Attachment Method | Attaches via Rod Ports |
Accessory Mounting | 1 x 3/8"-16 Thread |
General
Load Capacity | 44 lb / 20 kg |
Packaging Info
Package Weight | 2.7 lb |
Box Dimensions (LxWxH) | 9.8 x 9.1 x 2.9" |
General
Rod Standard | 15mm LWS |
Packaging Info
Package Weight | 1.1 lb |
Box Dimensions (LxWxH) | 6.1 x 4.1 x 2.7" |
General
Accessory Type | Mounting adapter |
Accessories
Intended For | Camera rig |
Packaging Info
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 6.3 x 3.1 x 1.7" |
Accessories
Rod System | 15 mm LWS |
Packaging Info
Package Weight | 2.5 lb |
Box Dimensions (LxWxH) | 4.8 x 3.8 x 2.8" |
General
Length | 12" (30.5 cm) |
Diameter | 15 mm |
Packaging Info
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 13.2 x 2.1 x 1" |
Accessories
Material of Construction | HPX resin |
Security Lock Slot | Yes, 2 |
Latches | Press-and-pull |
Watertight | Yes |
Weight | Not specified by manufacturer |
Packaging Info
Package Weight | 9.7 lb |
Box Dimensions (LxWxH) | 19.7 x 15.5 x 7.8" |
