The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.

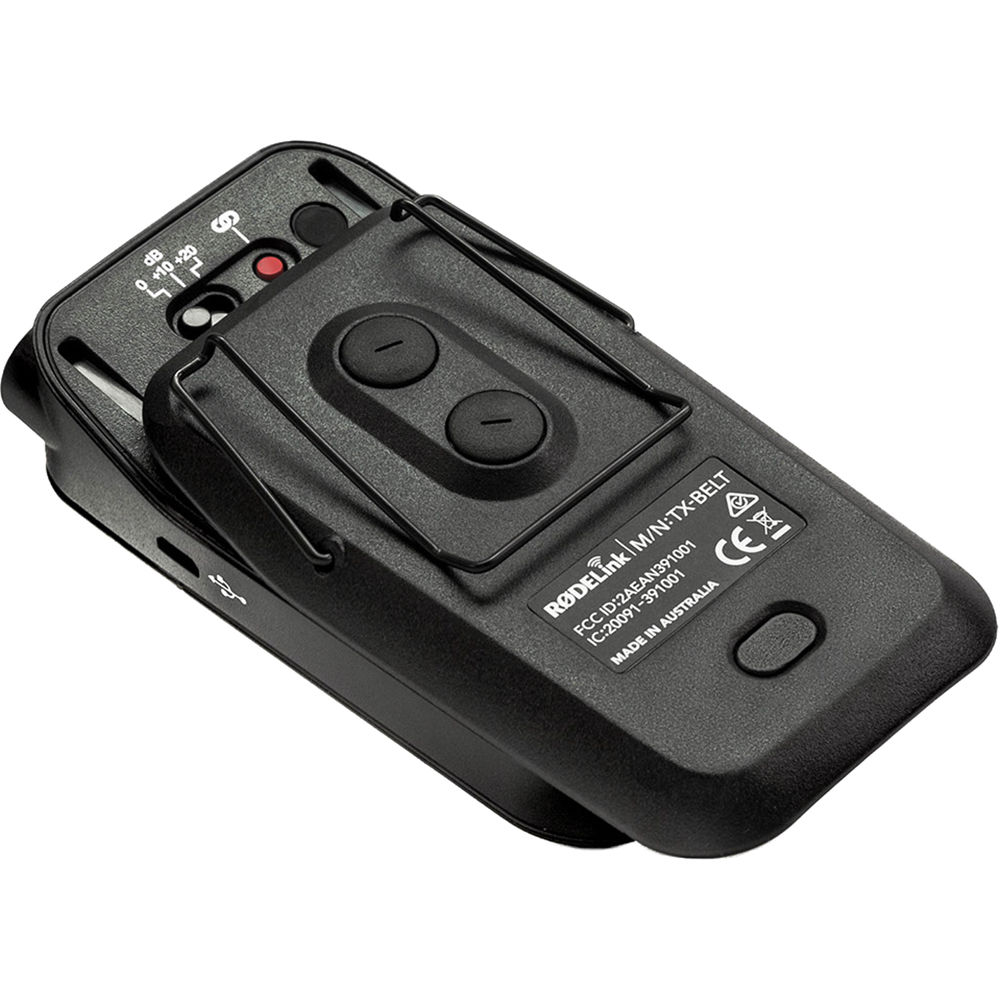

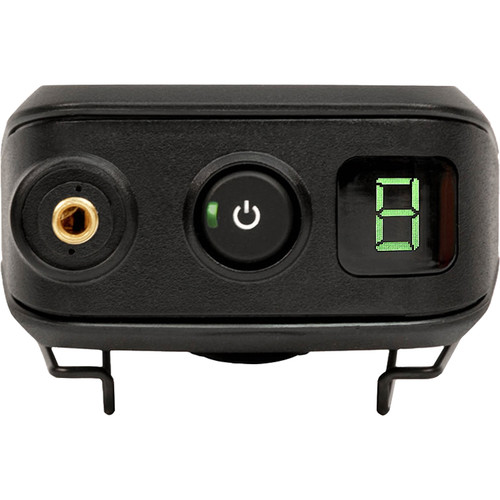

An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable.
Key Specs
Wireless Technology | Digital 2.4 GHz |
Max Operating Range | 328.1' / 100 m |
Transmitter Type | Bodypack |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Microphone Type | Lavalier |
Max Operating Range | 328.1' / 100 m |
Max Transmitters per Band | 1 |
Built-In Recorder | No |
Encryption | 128-Bit |
Transmitter
Transmitter Type | Bodypack |
RF Output Power | Not Specified by Manufacturer |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Included Cable Connector | None |
Auto-Level Control | No |
Antenna | 1 x Internal |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA |
USB/Lightning I/O | 1 x Micro-USB (Bus Power) |
Display & Indicators | 1 x LED (Battery Status, Channel, Power) |
Dimensions | 4.4 x 2.6 x 1.6" / 111 x 65 x 40 mm |
Weight | 6.7 oz / 190 g |
Microphone
Microphone Type | Lavalier |
Color | Black |
Sound Field | Mono |
Capsule | Electret Condenser |
Diaphragm | 0.10" / 2.54 mm |
Equivalent Noise Level | 25 dB A-Weighted |
Maximum SPL | 110 dB SPL |
Impedance | 3000 Ohms |
Output Connector | 1 x 1/8" / 3.5 mm TRS Male (Lockable) |
Cable Length | 3.9' / 1.2 m |
Length | 0.5" / 12 mm |
Diameter | 0.2" / 4.5 mm |
Weight | 0 oz / 1 g |
Packaging Info
Package Weight | 0.58 lb |
Box Dimensions (LxWxH) | 6.95 x 5 x 2.6" |
