Sennheiser G4 EW-D ASA Active Antenna Splitter Bundle 3 Kit
Sennheiser G4 EW-D ASA Active Antenna Splitter Bundle 3 Kit
- SKU : #A6PWG4OMNIKIT4 | MFR : #G4OMNIKIT4
Features
- EW-D ASA 4-Way Active Antenna Splitter
- GA 3 Rackmount Kit for G3/G4 100/300/500
- 2 x A1031U Omnidirectional UHF Antennas
- Includes NT 1-1 Power Supply
- 8 x BNC Cables
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 3,452.44
VAT Excl.
VAT Excl.
Sennheiser G4 EW-D ASA Active Antenna Splitter Bundle 3 Kit
The Sennheiser G4 EW-D ASA Active Antenna Splitter Bundle 3 Kit from B&H includes a Sennheiser EW-D ASA 4-way active antenna splitter with DC power distribution, a Sennheiser GA 3 rackmount kit for G3/G4 100, 300, and 500 series wireless systems, two Sennheiser A1031U omnidirectional UHF antennas for evolution series, an NT 1-1 power supply, and eight BNC cables. This kit can be used in live stage, theater, and rehearsal applications to receive multiple wireless frequencies through a pair of antennas, split and amplify those signals, and route them to their receiver units via coaxial cables.
Sennheiser EW-D ASA 4-Way Active Antenna Splitter with DC Distribution for EW-D Wireless Systems (470 to 694 MHz)

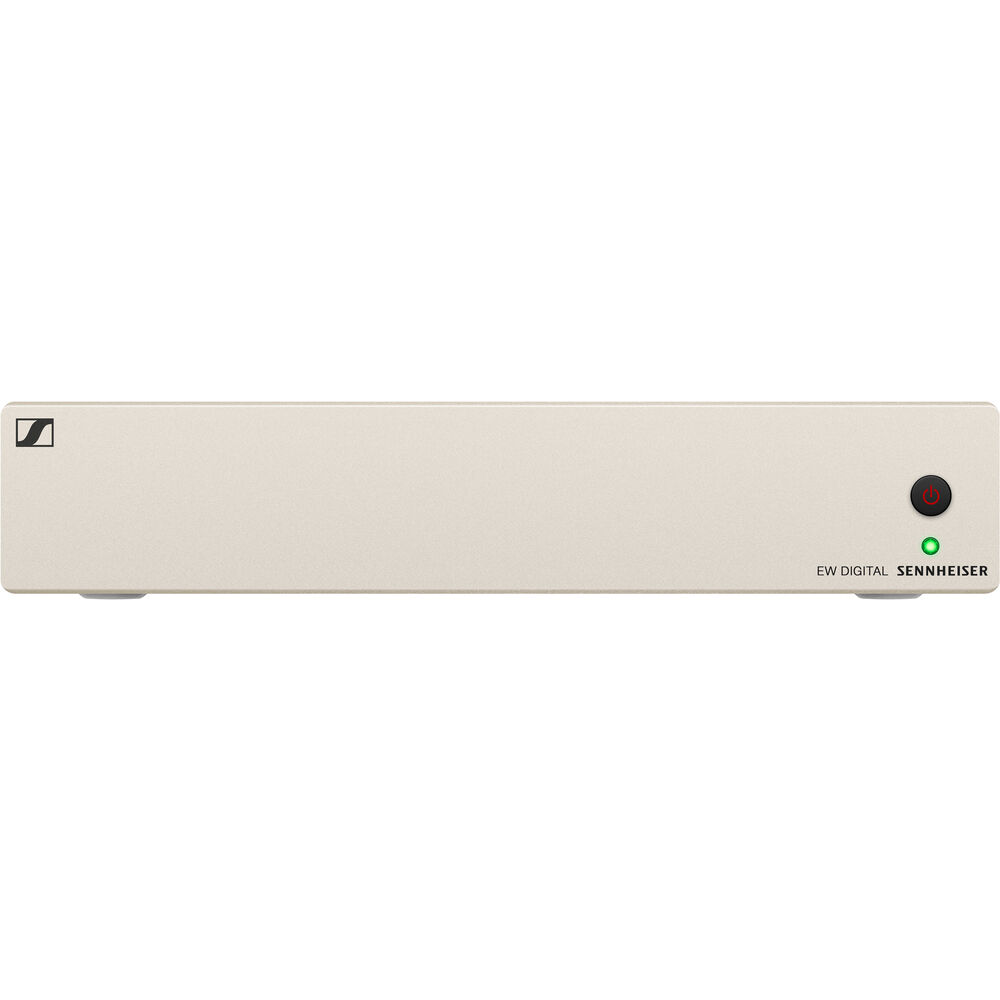

The rugged, all-metal Sennheiser EW-D ASA is a 4-way active antenna splitter that delivers diversity wireless signal distribution for up to four EW-D EM wireless receivers. It also provides DC power to the four receivers, for less clutter in your rack. The unit covers the Q, R, and S frequency ranges, from 470 to 694 MHz.
The EW-D ASA receives up to four wireless microphone signals through a single pair of antennas, split and amplifies these signals, and send each signal to their respective receiver via the included BNC cables.
You can either use a pair of 1/4 wave antenna (provided with one of the receivers) or upgrade to longer, 1/2-wave dipole antennas (available separately) for added range and reliability.
Adding the ADP UHF passive/directional remote antennas (available separately) to your system enables you to position the antennas closer to your transmitters and orient them for maximum coverage, achieving professional-quality RF signal reliability with virtually no dropouts.
Included is the NT 12-35 CS universal power supply with EU, UK and US adapters.
Sennheiser GA 3 Rackmount Kit for EW G3 and G4 Series Wireless Receivers
Robust, tour ready, and easy to install, the Sennheiser GA 3 Rackmount Kit lets you mount one or two Sennheiser Evolution Wireless (EW) G3 or G4 Series wireless receivers into 1 RU of space in any standard 19" equipment rack. It even accommodates mounting antennas on the front instead of the rear.

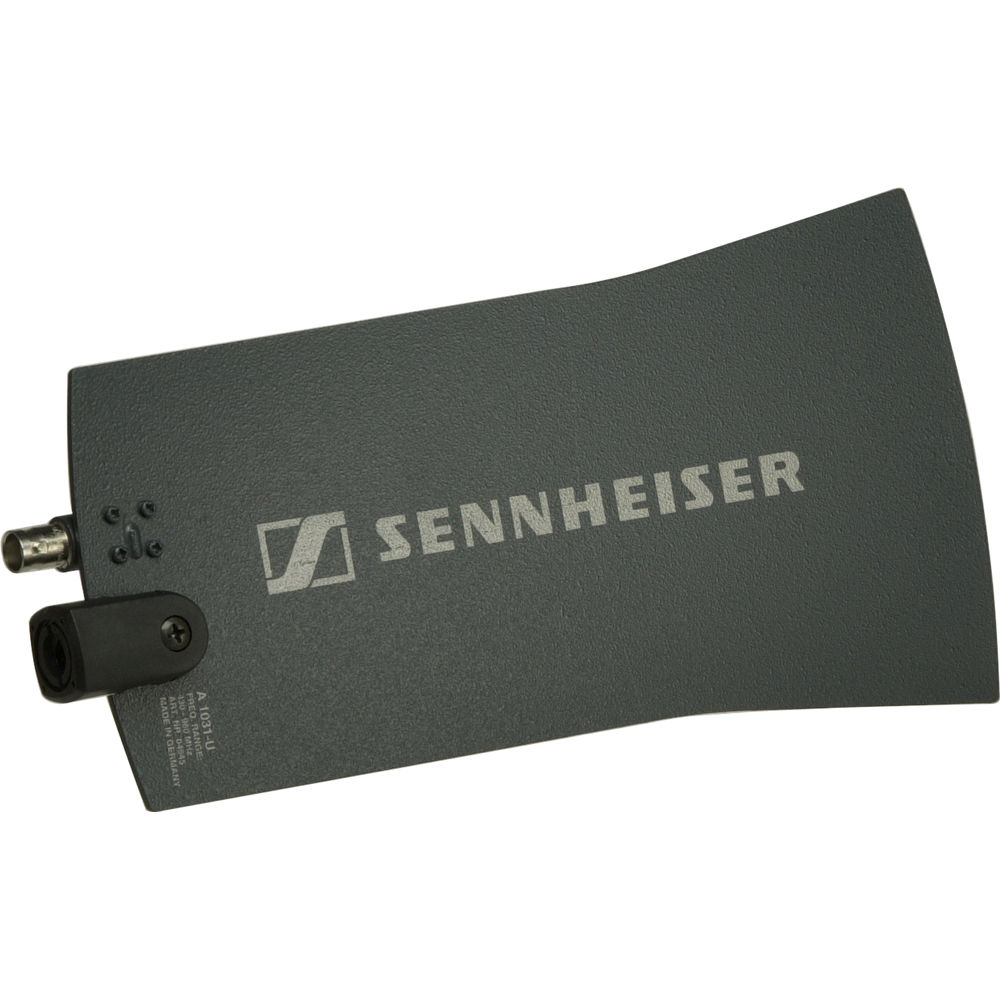

Sennheiser A 1031-U Omnidirectional UHF Antenna for Evolution Series
The A 1031-U Sennheiser Omnidirectional Antenna is designed for use with the G2 series rack-mount receivers or RF distribution amplifiers. The omnidirectional RF pick up enables use in applications where the transmitters are constantly in motion, and RF signal is generated from various directions within a room.
IN THE BOX
- Sennheiser EW-D ASA 4-Way Active Antenna Splitter with DC Distribution for EW-D Wireless Systems (470 to 694 MHz)
- 8 x BNC Interconnect Cables
- Sennheiser NT 12-35 CS Universal Power Supply for EW-D ASA Antenna Splitter
- Limited 2-Year Manufacturer Warranty
- Sennheiser GA 3 Rackmount Kit for EW G3 and G4 Series Wireless Receivers
- Limited 2-Year Manufacturer Warranty
- 2 x Sennheiser A 1031-U Omnidirectional UHF Antenna for Evolution Series
- 3/8" Thread Adapter
- Limited 2-Year Manufacturer Warranty
| Frequency Range | (Q-R-S): 470 to 694 MHz |
| Antenna Splitter | 2 x 1:4 or 1 x 1:8, Active |
| Amplification | In A/Out A: 0 ± 1 dB
In A/Out A1, A2, A3, A4: 0 ± 1 dB In B/Out B1, B2, B3, B4: 0 ± 1 dB |
| Isolation | Output Connector: > 25 dB |
| Reflection Loss | 10 dB (All RF Ports) |
| Input Voltage | NT 12-35 CS Power Supply: 100 to 240 VAC, 50/60 Hz |
| Operating Voltage | 12 VDC |
| Current Consumption | Typical: 210 mA Total: Max 3 A (with 4 x EW-D EM and EW-D AB Connected) |
| Supplied Power | 12 VDC, 320 mA for Antenna Boosters at ANT RF In A and ANT RF In B
12 VDC, 350 mA (Max 500 mA) at A1 to A4 (Typical) |
| Relative Humidity | 5 to 95% |
| Temperature | Operating Temperature Range: 14 to 131°F / -10 to 55°C
Storage Temperature Range: -4 to 158°F / -20 to 70°C |
| Dimensions | 8.3 x 6.6 x 1.7" / 212 x 168 x 43 mm |
| Weight | 38.8 oz / 1,100 g |
Packaging Info
| Package Weight | 4.89 lb |
| Box Dimensions (LxWxH) | 13.8 x 9.1 x 2.9" |
Sennheiser GA 3 Rackmount Kit For EW G3 And G4 Series Wireless Receivers Specs
| Compatibility | Sennheiser Evolution Wireless (EW) G3 and G4 Series Receivers |
| Dimensions | 19.0 x 1.7 x 8.5" / 48.3 x 4.2 x 21.7 cm (When Assembled) |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 2.235 lb |
| Box Dimensions (LxWxH) | 10.5 x 4.15 x 2.5" |
Sennheiser A 1031-U Omnidirectional UHF Antenna For Evolution Series Specs
| Frequency Range | 430 - 960MHz |
| Angle of Coverage | 360° |
| Gain | 0dB |
| Mount | 5/8" Thread, 3/8" Thread Adapter |
| Connector | BNC Socket, 50 ohms |
| Max Input Signal | 10W |
| Temperature | -20° - +80° C |
| Dimensions | 10.63 x 5.12 x 1.38" (27 x 13 x 3.5cm) |
| Weight | 5.29 oz |
Packaging Info
| Package Weight | 0.625 lb |
| Box Dimensions (LxWxH) | 13.1 x 6.5 x 1.5" |
