The XSW 1-825-B UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
System
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 80 |
Included Transmitters | 1 x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | A: 614 to 638 MHz |
RF Bandwidth | Up to 24 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 100' / 30.5 m |
Max Transmitters per Band | 10 |
Built-In Recorder | No |
Timecode Support | No |
Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Encryption | None |
Modulation | Wideband FM |
Receiver
Receiver Type | Tabletop |
Antenna | 2 x Internal |
Number of Audio Channels | 1 |
Audio I/O | 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TS Unbalanced Mic/Line Output |
Gain Range | 45 dB (5 dB Steps) |
Audio Output Level | XLR Output: +12 dB (Balanced) 1/4" Output: +6 dB (Unbalanced) |
Frequency Response | 50 Hz to 16 kHz -3 dB |
Network I/O | None |
USB/Lightning Connectivity | None |
RF Principle | Double Superheterodyne |
Squelch | Adjustable, 3 to 28 dBmV |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
Display & Indicators | 1 x LCD (Channel, Frequency) |
Housing | ABS |
Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
Weight | 12 oz / 340 g |
Transmitter
Transmitter Type | Handheld |
RF Output Power | 10 mW |
Audio I/O | None |
Pad | None |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | 0 to -30 dB (10 dB Steps) |
Signal Processing | None |
Frequency Response | 80 Hz to 14 kHz |
Sync Method | 2.4 GHz QPSK |
Antenna | Internal |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) |
Approx. Battery Life | 10 Hours |
USB/Lightning I/O | None |
Display & Indicators | 1 x LCD (Battery Status, Channel, Power) |
Housing | ABS |
Dimensions | 10.2 x 2" / 260 x 50 mm |
Weight | 8.6 oz / 245 g |

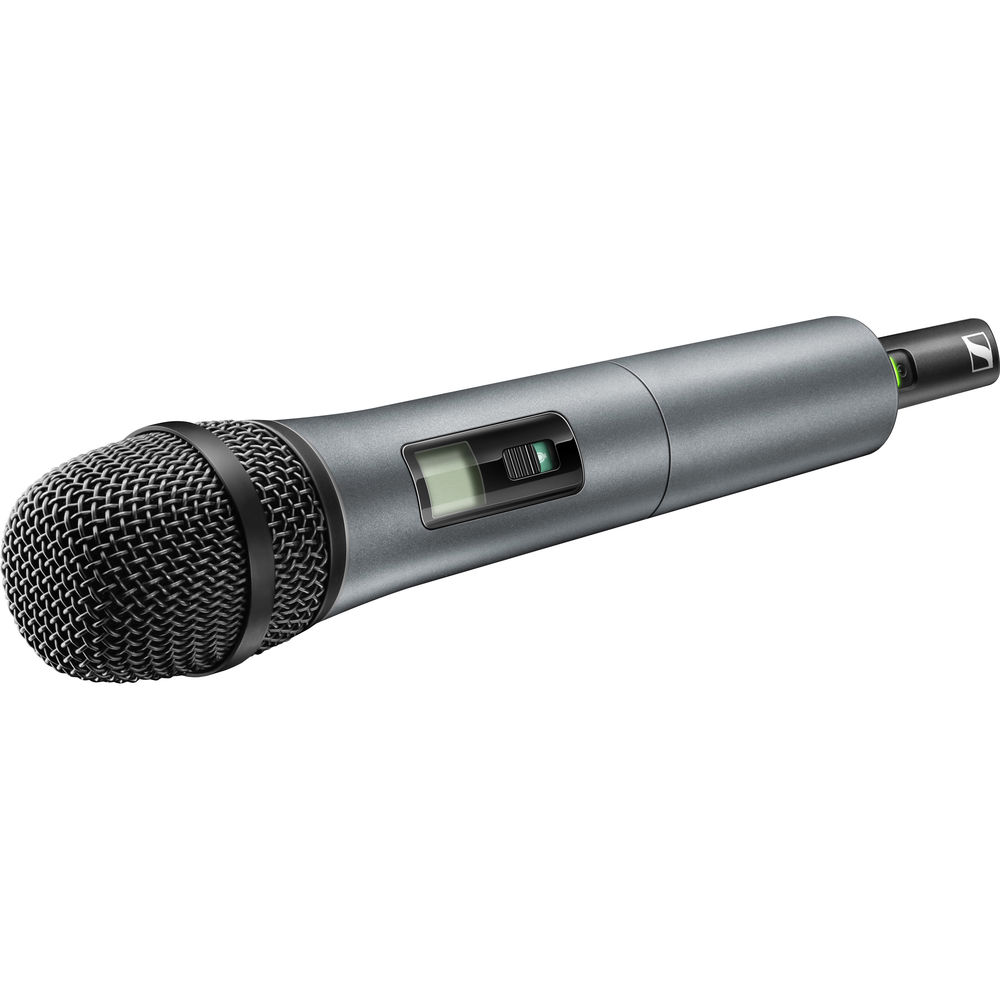

Microphone
Microphone Type | Handheld |
Color | Black |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 80 Hz to 14 kHz |
SNR | 103 dB A-Weighted |
THD | < 0.9% |
Sensitivity | 1.5 mV/Pa |
Length | 10.2" / 260 mm |
Diameter | 2.0" / 50 mm |
Weight | 8.6 oz / 245 g |
Packaging Info
Package Weight | 3.11 lb |
Box Dimensions (LxWxH) | 13.8 x 12.7 x 3.5" |
