Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)

Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)

Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)

  • SKU : #0XKDXSW 1-ME2-BC | MFR : #XSW 1-ME2-BC
Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)
Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)
Features

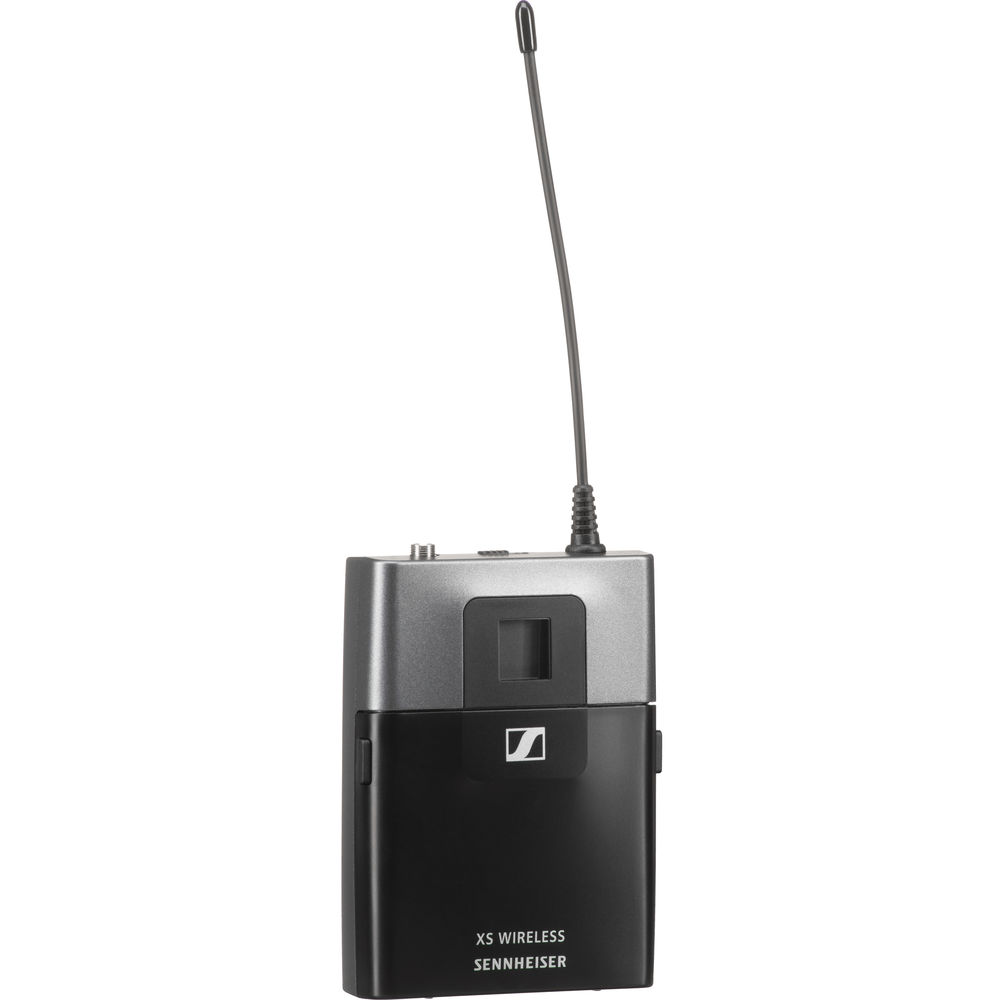

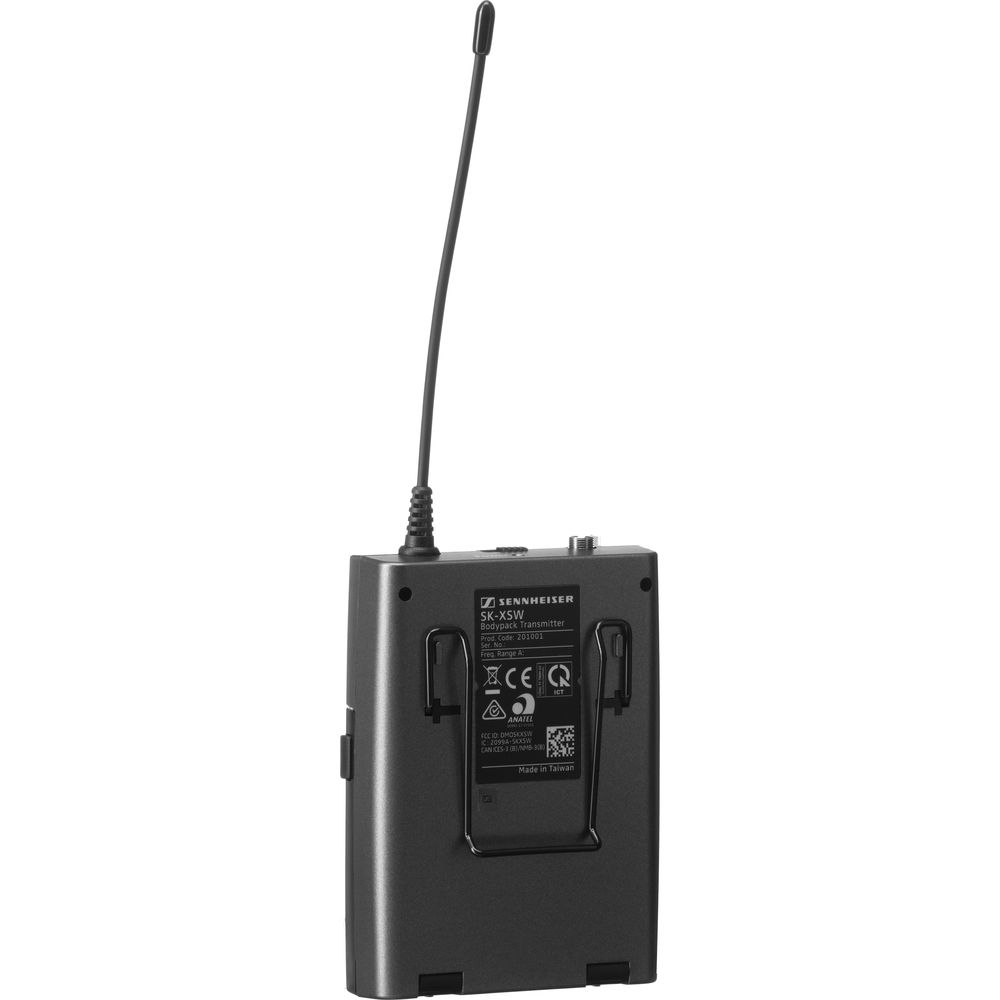

  • SK-XSW Bodypack Transmitter
  • EM-XSW 1 UHF Receiver
  • ME2-II Lavalier Microphone
  • Antenna-Switching Diversity Reception
  • Automatic Frequency Management
  • Selectable UHF Frequencies
  • Up to 10 Compatible Channels
  • Integrated Antennas
  • 2 x AA Batteries are Included
  • NT 12-5 CT Power Supply

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 1,395.76
VAT Excl.

Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)

The XSW 1-ME2-BC UHF Lavalier Microphone Set from Sennheiser is an easy to use all-in-one wireless system for presenters and moderators. It can be used to capture audio for speech, interviews, and presentations.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a bodypack transmitter and a lavalier microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

  • Featuring Sennheiser's evolution Lavalier ME 2-II
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
  • Diversity reception

IN THE BOX

    • Sennheiser XSW 1-ME2-BC UHF Lavalier Microphone Set BC (670-694 MHz)

    • ME 2-II Lavalier Microphone
    • NT12-5 CW Power Supply
    • 2 x AA Batteries
    • Limited 2-Year Manufacturer Warranty

System

ModulationWideband FM
Frequency RangeBC (670-694 MHz)
Switching BandwidthUp to 24 MHz
Signal to Noise Ratio≥ 103 dBA
Total Harmonic Distortion≤ 0.9%
Temperature RangeOperation: 32 to 104°F (0 to +40°C)
Storage-4 to 158°F (-20 to 70°C)
Transmitter Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)

Receiver

PrincipleDouble superheterodyne
DiversityAntenna switching diversity via internal antennas
Sensitivity< 3 μV at 52 dBA RMS S/N (at peak deviation)
Frequency Response50 Hz to 16 kHz (-3 dB)
Max Output VoltageAt Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment RangeAudio: 45 dB, adjustable in 5-dB steps
Power Supply12 VDC nominal, 300 mA
SquelchAdjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level20 dB, switchable
Material of ConstructionABS housing
Dimensions7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight12 oz (340 g)

Bodypack Transmitter

Output Power10 mW
Frequency ResponseLine: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input1/8" (3.5 mm) jack socket
Input VoltageMic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply2 x AA batteries, 1.5 V
Operating TimeApproximately 10 hours
Adjustment RangeTransmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of ConstructionRugged ABS housing
Dimensions2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight3.4 oz (95 g)

Lavalier Microphone Specs

Microphone TypeCondenser, pre-polarized
Sensitivity20 mV/Pa
Polar PatternOmnidirectional
Max SPL130 dB

Packaging Info

Package Weight2.675 lb
Box Dimensions (LxWxH)13.8 x 13.65 x 3.4"
