SmallRig 15mm Dovetail Baseplate

SmallRig 15mm Dovetail Baseplate

SmallRig 15mm Dovetail Baseplate

  • SKU : #N1U14002 | MFR : #4002
SmallRig 15mm Dovetail Baseplate
SmallRig 15mm Dovetail Baseplate
Features
  • Compatible with ARRI-Style Dovetail
  • Supports up to 44 lb
  • 15mm LWS Rod Support
  • 1/4"-20 & 3/8"-16 Camera Screws
  • 1/4"-20 & 3/8"-16 Threads on Bottom
  • Aluminum & Stainless Steel Construction

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 363.60
VAT Excl.

SmallRig 15mm Dovetail Baseplate

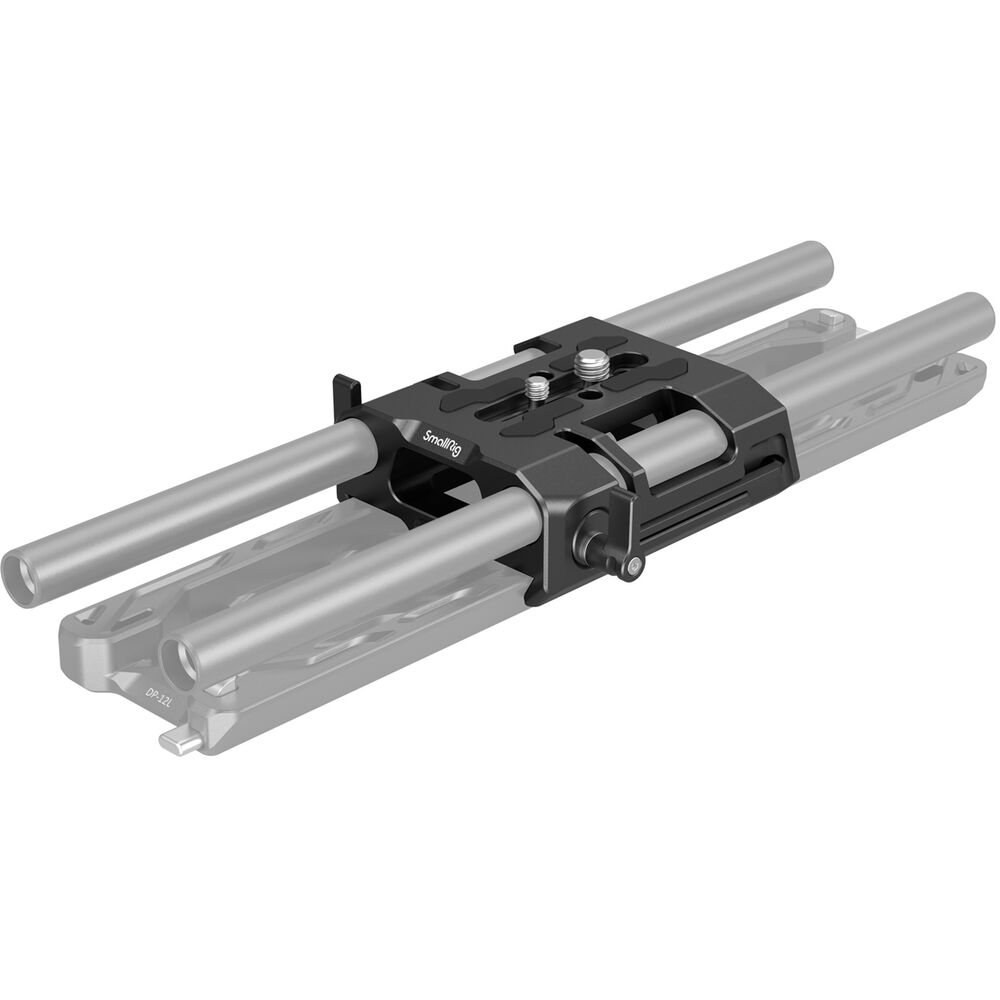

Mount your rig on an ARRI-style dovetail with this 15mm Dovetail Baseplate from SmallRig. The durable aluminum and stainless steel baseplate mounts onto a standard, separately available ARRI-style baseplate, and it features 1/4"-20 and 3/8"-16 tripod threads on the bottom to mount on a variety of plates and rigs. The 1/4"-20 and 3/8"-16 screws are included to mount your camera rig on top.

The baseplate features 15mm LWS rod support for optional 15mm rods to add accessories to your rig. The plate measures 1.5" in height, allowing room for your lens to be at rod height, but certain cameras may require an additional riser plate for cameras with a lower optical center.

IN THE BOX

    • SmallRig 15mm Dovetail Baseplate
    • 1/4"-20 Screw
    • 3/8"-16 Screw
    • Wrench
    • Limited 2-Year Manufacturer Warranty
Support TypeBaseplate
Grip TypeNo
Camera CompatibilityUniversal

Mounting

Rod Standard15 mm LWS / 60 mm Spacing
Battery Plate TypeNo
Accessory MountingNo
Camera MountingARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod MountingBaseplate: 1/4"-20 Female Thread, 3/8"-16 Female Thread
Rod Ports2 x 15 mm Rod Port
Shoe MountingNo
RosettesNo

General

MaterialsAluminum, Steel
Dimensions4.3 x 3.9 x 1.5" / 109.6 x 99 x 37.5 mm
Weight11.2 oz / 318 g

Packaging Info

Package Weight0.84 lb
Box Dimensions (LxWxH)5.6 x 5.6 x 2.2"
