SmallRig 501PL-Compatible Baseplate for BMPCC 6K and 4K
SmallRig 501PL-Compatible Baseplate for BMPCC 6K and 4K
- SKU : #FKP0DBM2266B | MFR : #DBM2266B
Features
- For BMPCC 6K and 4K Cameras
- Compatible with Manfrotto 501PL Plates
- Standard LWS 15mm Rod Clamp
- 1/4"-20 and 3/8"-16 Mounting Threads
- Quick Release Plate Design
- ARRI-Style Dovetail on Bottom
- Durable Aluminum Construction
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 363.60
VAT Excl.
VAT Excl.
SmallRig 501PL-Compatible Baseplate for BMPCC 6K and 4K

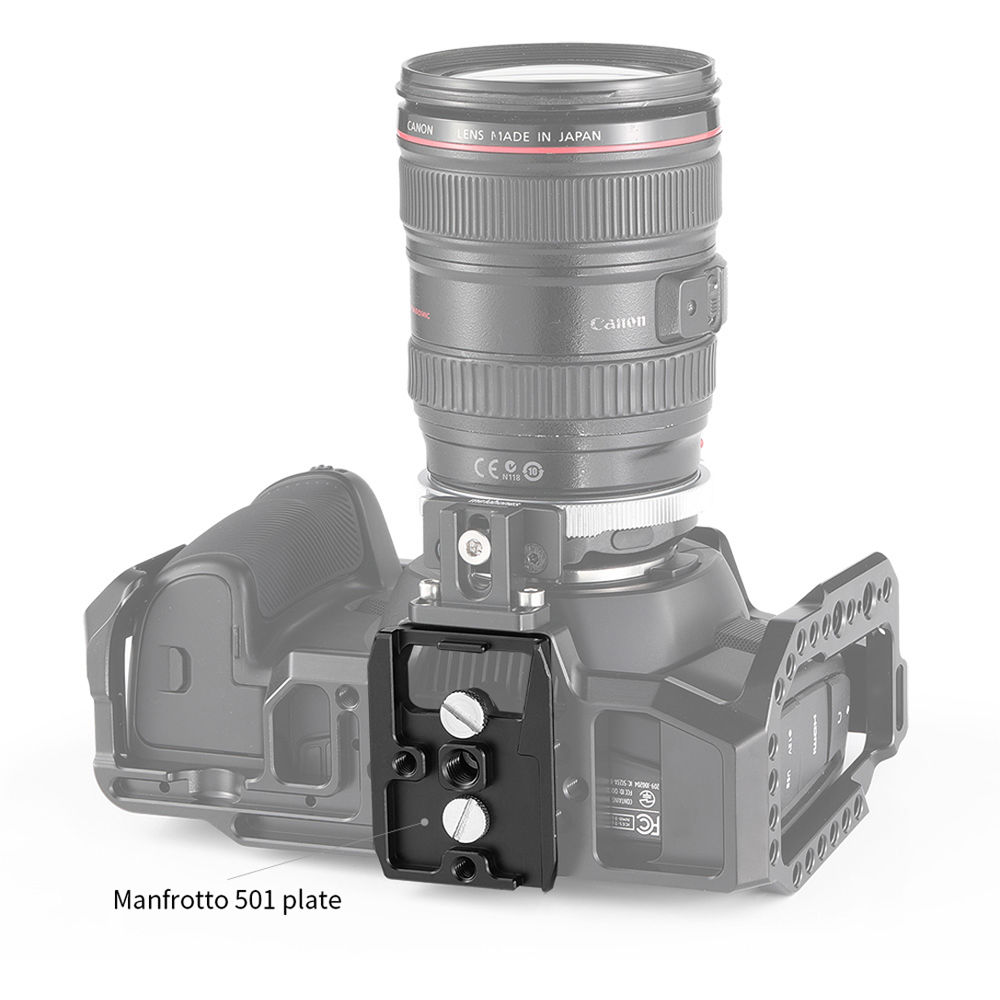

Mount your Blackmagic Pocket Cinema Camera 6K or 4K camera or cage onto a shoulder rig, tripod, or 15mm rod system with this 501PL-Compatible Baseplate from SmallRig.
The top of the aluminum baseplate features a Manfrotto 501PL-compatible quick release plate that provides 1/4"-20 and 3/8"-16 mounting screws. The middle of the baseplate is a standard 15mm LWS rod clamp that secures to a rod system with thumbscrews. The bottom of the mount fits onto any standard ARRI-style dovetail mount, and there are also 1/4"-20 and 3/8"-16 mounting threads on the bottom for additional mounting options. An Allen wrench is included for the adjustment of thumbscrew tension.
Compatibility
Designed for Blackmagic Pocket Cinema Camera 6K and 4K
Manfrotto 501PL quick release plates
ARRI-style dovetail mounts
15mm LWS rod systems
SmallRig cages 2203 and 2254
IN THE BOX
- SmallRig 501PL-Compatible Baseplate for BMPCC 6K and 4K
- Allen Wrench
- Limited 2-Year Manufacturer Warranty
| Support Type | Baseplate |
| Grip Type | No |
| Camera Compatibility | Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K |
Mounting
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Accessory Mounting | Baseplate, Base: Multiple x 1/4"-20 Female Thread, Multiple x 3/8"-16 Female Thread |
| Camera Mounting | Quick Release Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Rosettes | No |
General
| Materials | Aluminum |
| Dimensions | 4.3 x 2.9 x 2" / 10.8 x 7.3 x 5.2 cm |
| Weight | 11.3 oz / 321 g |
Packaging Info
| Package Weight | 0.895 lb |
| Box Dimensions (LxWxH) | 5 x 4.4 x 3.5" |
