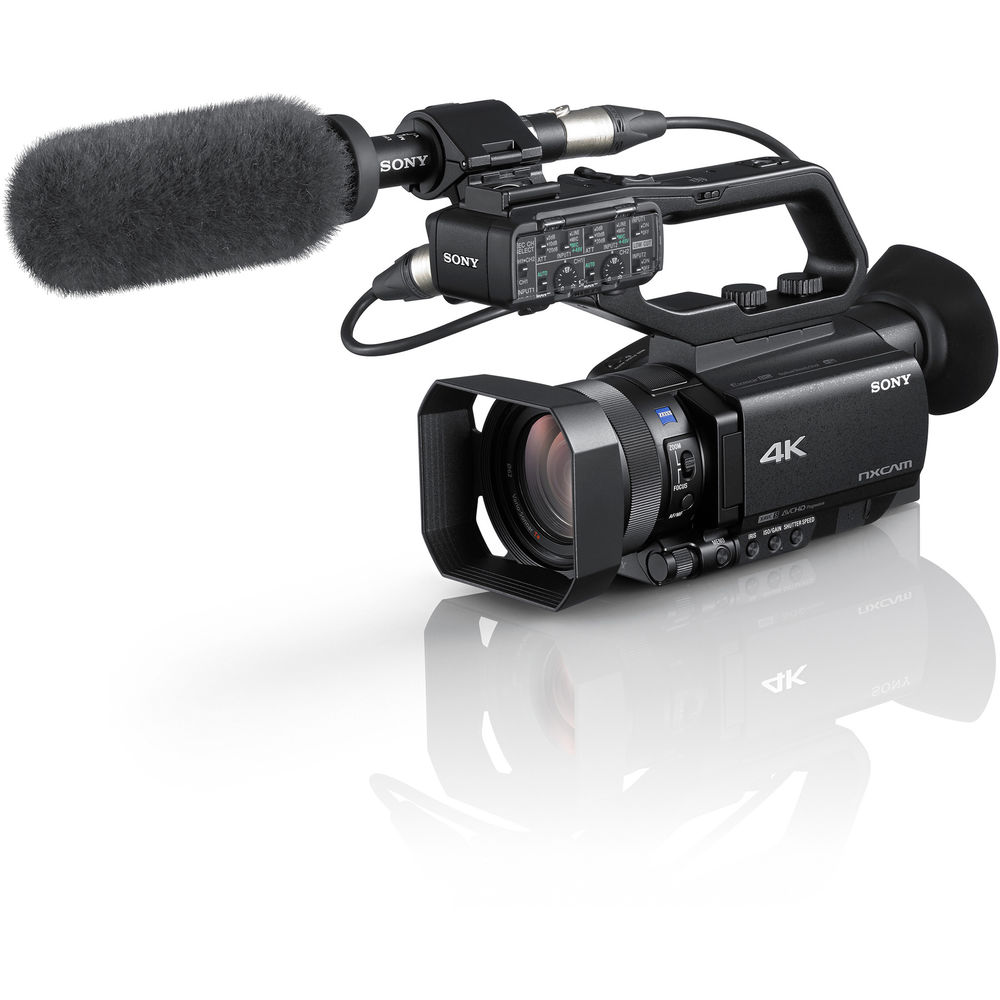

Take the Sony HXR-NX80 4K NXCAM camcorder with you wherever you go to capture rich 4K HDR video. This compact, palm-style camera offers phase-detection Autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the HXR-NX80 camcorder features a stacked 1" Exmor RS CMOS sensor with 14.2MP, a 12x Zeiss optical zoom, an OLED viewfinder, and a 3.5" touchscreen LCD monitor. This camcorder records 4K in XAVC S 4K, and it includes S-Log3/S-Gamut3 functions for additional image control. Additional features include built-in 2.4 GHz for multiple streaming options via RTMP/RTMPS protocols.
The HXR-NX80's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking, especially useful for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus. The HXR-NX80's 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.
Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the HXR-NX80's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.
The HXR-NX80 camera supports Sony's Slow & Quick Motion for shooting HD video at variable frame rates, including 120 fps. Footage is recorded via two SD memory card slots, either simultaneously to both cards, or in relay mode to create a backup.
The HXR-NX80's audio features include two 3-pin XLR audio inputs that support line, mic, and mic +48V (phantom power) for using external microphones; you can also use the HXR-NX80's built-in microphone to record audio when shooting. For multicamera productions, the HXR-NX80 integrates seamlessly with Sony's MCX-500 live switcher (available separately).
Streaming
The camera supports RTMP/RTMPS live streaming protocols. This is included with the camera and as a free upgrade if your camera does not have this functionality. You can stream directly from the camera using Wi-Fi or via Ethernet with optional converters such as the Sony VMC-UAM2 or CBK-NA1. No computer is required for streaming.
1" Exmor RS CMOS Sensor
1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels provides optimal image quality
Fast Hybrid Autofocus
Offers highly accurate focusing and tracking, especially useful when shooting sharp UHD 4K footage
Zeiss T* Lens with 12x Optical Zoom
Fixed 12x optical wide-angle zoom with 18x Clear Image Zoom technology in UHD 4K (24x in HD)
Frame Rate Flexibility
Record up to XAVC S 4K video
Super Slow Motion
Offers slow-motion recording up to 960 fps
Slow & Quick Recording
Uses Sony's Slow & Quick Motion for recording 1080pi60 HD video at 1, 2, 4, 8, 15, 30, 60, and 120 fps
Multiple Codec Choice
XAVC S recording up to 100 Mb/s in 4K mode, and Full HD recording
Image Control Options
S-Gamut3/S-Log3 recording captures a wide range of colors, highlights, and shadows
Built-In ND Filters
Incorporated ND filter function with Clear, 1/4, 1/16, and 1/64 ND for optimal exposure and depth-of-field control
Dual Media Slots
Dual memory card slots, one for SDHC/SDXC cards only, and one compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2) / Memory Stick PRO-HG Duo cards
Wi-Fi/NFC
Built-in capability to send FTP files directly from the camcorder or live stream via the Ustream platform over 2.4 GHz Wi-Fi
Multi-Interface (MI) Shoe
The multi-interface shoe enables you to connect power, signal, and on/off functions for select Sony accessories
Please note: The XLR adapter handle must be removed to use the MI shoe
Sensor Resolution | Actual: 21 Megapixel Effective: 14.2 Megapixel |
Sensor Type | 1"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Video Only |
Exposure Control
Shutter Speed | 1/10000 to 1/6 Second |
Gain | -3 to 33 dB |
Minimum Illumination | 3 Lux at 1/50 Shutter Speed |
White Balance | 2300 to 15,000K |
Lens
Recording Modes | XAVC S 4:2:0 3840 x 2160 at 23.98p/25p/29.97p [60 to 100 Mb/s] 1920 x 1080 at 100p/119.88p [60 to 100 Mb/s] 1920 x 1080 at 50p/59.94p [25 to 50 Mb/s] 1920 x 1080 at 29.97p [16 to 50 Mb/s] 1920 x 1080 at 23.98p [50 Mb/s] XAVC S 1280 x 720 at 23.98p/25p/29.97p/50p/59.94p [9 Mb/s] 1280 x 720 at 23.98p/25p/29.97p/50p/59.94p [3 Mb/s] AVCHD 1920 x 1080 at 50PsF/59.94PsF [28 Mb/s] 1920 x 1080 at 50i/59.94i [17 to 24 Mb/s] 1920 x 1080 at 23.98p/25p/29.97p [24 Mb/s] 1440 x 1080 at 50i/59.94i [5 Mb/s] 1280 x 720 at 50p/59.94p [9 Mb/s] |
Variable Frame Rates | UHD: 1 to 29.97 fps 1080p: 1 to 119.88 fps 1080p: 240 to 960 fps 1080p: 250 to 1000 fps |
Recording Limit | Up to 880 Minutes |
Built-In Microphone Type | Stereo |
Audio Recording | XAVC: 2-Channel 16-Bit 48 kHz LPCM Audio Proxy: 2-Channel 16-Bit 48 kHz AAC Audio AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio 2-Channel 16-Bit 48 kHz AC-3 Audio |
IP Streaming | MPEG2, UDP 1280 x 720 at 24p, 30p (3.0 Mb/s) MPEG2, UDP 640 x 360 at 24p (1.0 Mb/s) |
Interface
Video I/O | 1 x HDMI Output 1 x (Composite) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x 2.5 mm Sub-Mini (LANC) Control |
Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 3.5" |
Resolution | 1,560,000 Dot |
Display Type | Articulating LCD |
Viewfinder
Type | Built-In Electronic (OLED) |
Size | 0.39" |
Resolution | 2,360,000 Dot |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Battery Type | Sony V-Series |
Power Consumption | 6.1 W |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Intelligent Hot Shoe |
Built-In Video Light | Yes (Infrared) |
Weight | 2.2 lb / 1 kg |
Imaging
Sensor Resolution | Actual: 21 Megapixel Effective: 14.2 Megapixel |
Sensor Type | 1"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Video Only |
Exposure Control
Shutter Speed | 1/10000 to 1/6 Second |
Gain | -3 to 33 dB |
Minimum Illumination | 3 Lux at 1/50 Shutter Speed |
White Balance | 2300 to 15,000K |
Lens
Recording Modes | XAVC S 4:2:0 3840 x 2160 at 23.98p/25p/29.97p [60 to 100 Mb/s] 1920 x 1080 at 100p/119.88p [60 to 100 Mb/s] 1920 x 1080 at 50p/59.94p [25 to 50 Mb/s] 1920 x 1080 at 29.97p [16 to 50 Mb/s] 1920 x 1080 at 23.98p [50 Mb/s] XAVC S 1280 x 720 at 23.98p/25p/29.97p/50p/59.94p [9 Mb/s] 1280 x 720 at 23.98p/25p/29.97p/50p/59.94p [3 Mb/s] AVCHD 1920 x 1080 at 50PsF/59.94PsF [28 Mb/s] 1920 x 1080 at 50i/59.94i [17 to 24 Mb/s] 1920 x 1080 at 23.98p/25p/29.97p [24 Mb/s] 1440 x 1080 at 50i/59.94i [5 Mb/s] 1280 x 720 at 50p/59.94p [9 Mb/s] |
Variable Frame Rates | UHD: 1 to 29.97 fps 1080p: 1 to 119.88 fps 1080p: 240 to 960 fps 1080p: 250 to 1000 fps |
Recording Limit | Up to 880 Minutes |
Built-In Microphone Type | Stereo |
Audio Recording | XAVC: 2-Channel 16-Bit 48 kHz LPCM Audio Proxy: 2-Channel 16-Bit 48 kHz AAC Audio AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio 2-Channel 16-Bit 48 kHz AC-3 Audio |
IP Streaming | MPEG2, UDP 1280 x 720 at 24p, 30p (3.0 Mb/s) MPEG2, UDP 640 x 360 at 24p (1.0 Mb/s) |
Interface
Video I/O | 1 x HDMI Output 1 x (Composite) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x 2.5 mm Sub-Mini (LANC) Control |
Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 3.5" |
Resolution | 1,560,000 Dot |
Display Type | Articulating LCD |
Viewfinder
Type | Built-In Electronic (OLED) |
Size | 0.39" |
Resolution | 2,360,000 Dot |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Battery Type | Sony V-Series |
Power Consumption | 6.1 W |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Intelligent Hot Shoe |
Built-In Video Light | Yes (Infrared) |
Weight | 2.2 lb / 1 kg |
