The TASCAM TM-90BM is a boundary condenser microphone designed to deliver low-profile vocal and instrument reproduction for speakers, musicians, and audio engineers in conference and office rooms, recording studios, and live stage applications. Its half-supercardioid polar pattern aids in rejection of off-axis sounds and a maximum SPL of 140 dB allows distortion-free capture of loud sources such as drums.
The 50 Hz to 18 kHz frequency response is well-suited to speech and many musical instruments due to its natural attenuation of sub-low frequencies. Further control of the low end is provided via a 3-position Bass Tilt switch. The supplied patch cable, which is terminated with an XLR 3-pin male jack, allows for easy connection to a mixer or microphone preamp. Mic preamps that supply 9 to 52V phantom power are sufficient for operation of the mic.

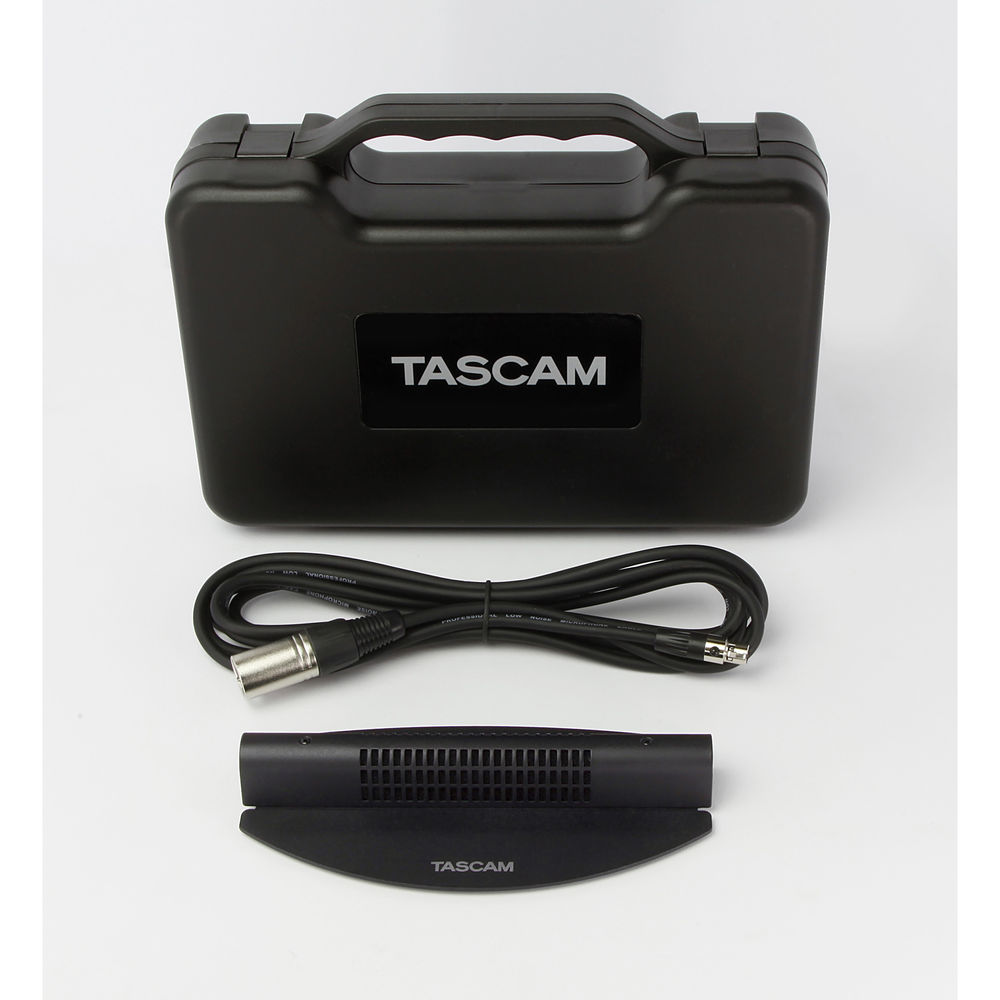

The TM-90BM ships with a hardshell carry case for safe transport between gigs.
Analog Performance
Sound Field | Mono |
Operating Principle | Pressure Gradient |
Element Type | Electret Condenser |
Circuitry | Solid-State |
Polar Pattern | Unidirectional |
Frequency Range | 50 Hz to 18 kHz |
Signal-to-Noise Ratio | 68 dB |
Maximum SPL | 140 dB SPL RMS |
Pad | No |
Impedance | 150 Ohms |
Load Impedance | 1 Kilohms |
Sensitivity | -35 dB at 1 kHz |
Low-Cut Filter | @ 100 Hz |
General
Output Connectors | 1 x XLR 3-Pin |
Operating Voltage | 9 to 52 V |
Dimensions (W x H x D) | 6.7 x 0.9 x 3.2" / 170 x 24 x 81.5 mm |
Weight | 9.17 oz / 260 g |
Packaging Info
Package Weight | 1.75 lb |
Box Dimensions (LxWxH) | 10.2 x 7.6 x 3" |
