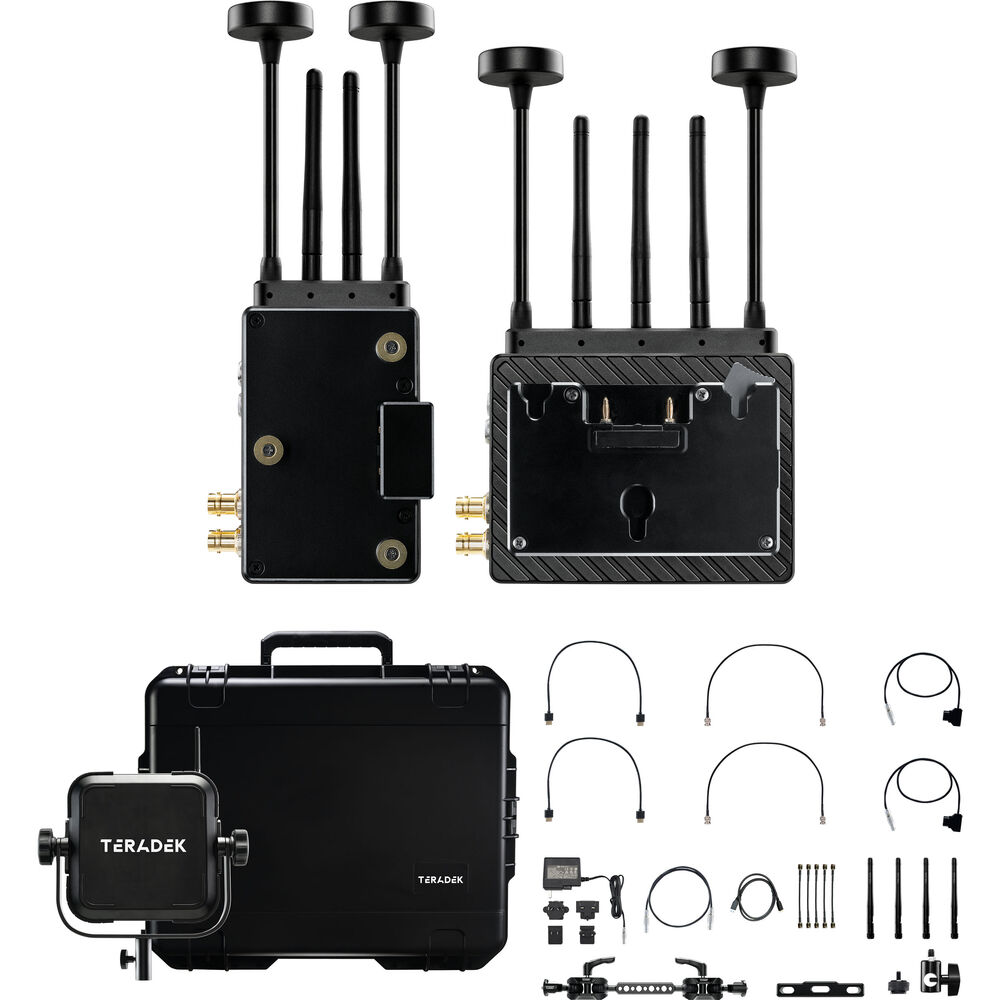

Transmit and receive lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A Gold mount battery plate is included to power each unit with a professional Gold mount battery.
The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The Deluxe kit includes a carry case as well as multiple cables and mounting options.
Inputs / Outputs
Antenna I/O | Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female |
Video I/O | Transmitter: 1 x HDMI 2.0 Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Output Receiver: 1 x BNC (12G-SDI) Output |
Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
Audio I/O | None |
Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output |
Encryption | 256-Bit AES |
Wireless
Wireless Range | 5000' / 1524 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz |
Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
Latency | < 0.01 ms |
RF Power | 23 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support
Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
Audio Format | 2-Channel 24-Bit 48 kHz |
Timecode Support | Yes |
Power
DC Input Power | 6 to 28 VDC |
Power Consumption | Transmitter: 20 W Receiver: 18 W |
Environmental
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General
Material of Construction | Aluminum, Polycarbonate |
Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm |
Weight | Transmitter: 12.1 oz / 344 g, Excluding Battery Plate Receiver: 15.2 oz / 430 g, Excluding Battery Plate |
