Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.

An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 oz and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.

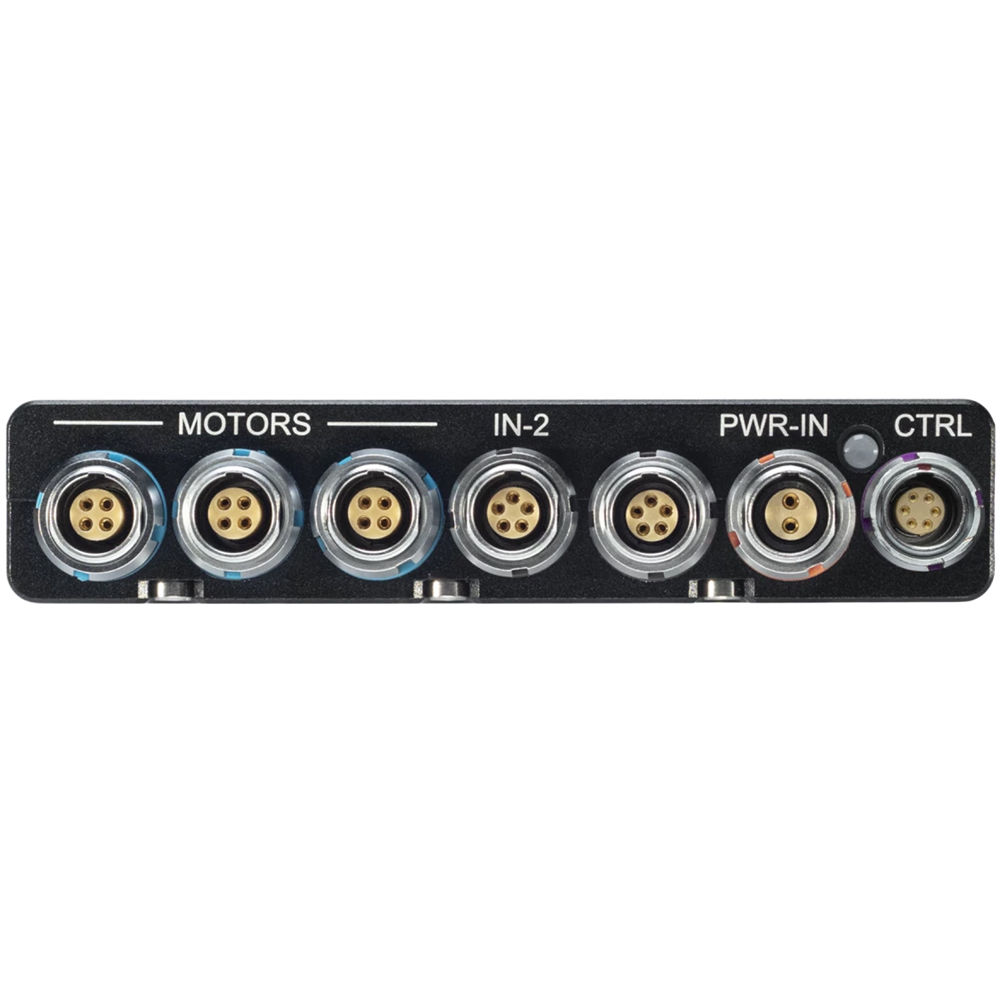

Multiple Inputs/Outputs

• Three motor ports for focus, iris, and zoom
• Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)
• One cam output for RED DSMC2 camera control

Camera Control

Run/Stop control, including but not limited to:

• ARRI ALEXA, ALEXA Mini, AMIRA, etc.
• Blackmagic
• Canon C100, C300 (MkII+), C500
• Panasonic VariCam
• Phantom
• RED DSMC2, DSMC, ONE
• Sony F5, F55, FS7 (MkII+)

RED DSMC/DSMC2 camera control:

• EF/AF focus/iris
• Shutter
• ISO
• Button features 2x magnification, edge, and focus assist

Compact and Lightweight

The unit's small form factor makes it perfect for all camera setups, especially those on gimbals, handheld rigs, cranes, drones, and other movement rigs.

OLED Display

Each receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.

Wireless Range

RT FHSS


• Line-of-sight: Up to 5000' (in USA/FCC mode)
• Indoors: Up to 492'

Bluetooth 5

• Theoretical maximum range of 800' (actual range will vary)

Teradek RT App

Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.
