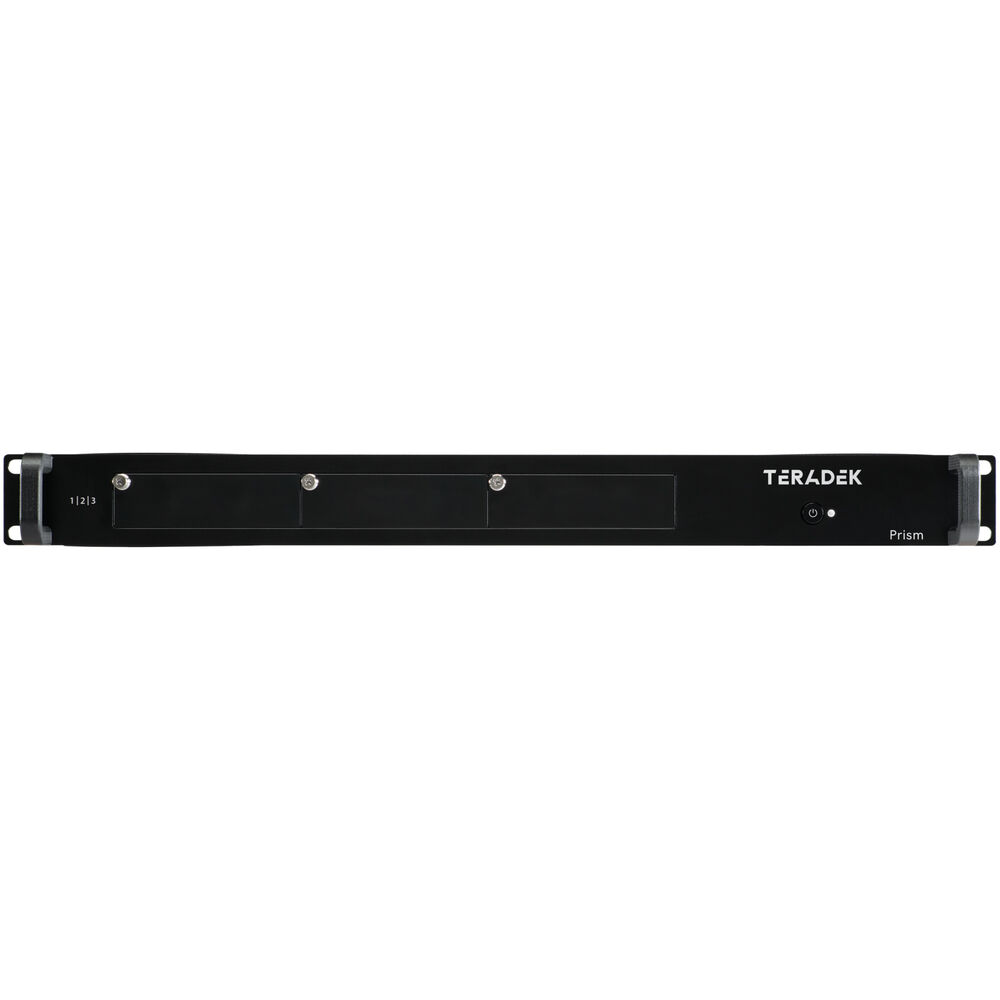

Add encoder and decoder cards that support IP video streaming and conversion with resolutions and codecs up to 4K HEVC with this Prism 801 Rackmount System Base Chassis from Teradek. The 801 model supports up to three separately available Prism encoder and decoder cards, and it features two RJ45 Gigabit Ethernet ports for low-latency streaming and configuration.
The chassis features an internal 250 power supply, and a power cable is included. It provides up to 15W of power to each card. The chassis is made from durable aluminum and can be rack-mounted in a standard 1 RU rack.
Material of Construction | Aluminum |
Card Compatibility | Up to 3 x Prism Encoder/Decoder Cards |
Power Supply | 250 W |
Power Input | 110 to 240 VAC |
Power Consumption | 10W + 15W per Codec Card |
Rackmount | 1 RU |
Connectivity | 2 x RJ45 1000/100/10BASE-T Ethernet |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Dimensions | 17 x 12.1 x 1.75" / 431.8 x 307.3 x 44.5 mm |
Weight | 5.4 lb / 2.5 kg |
