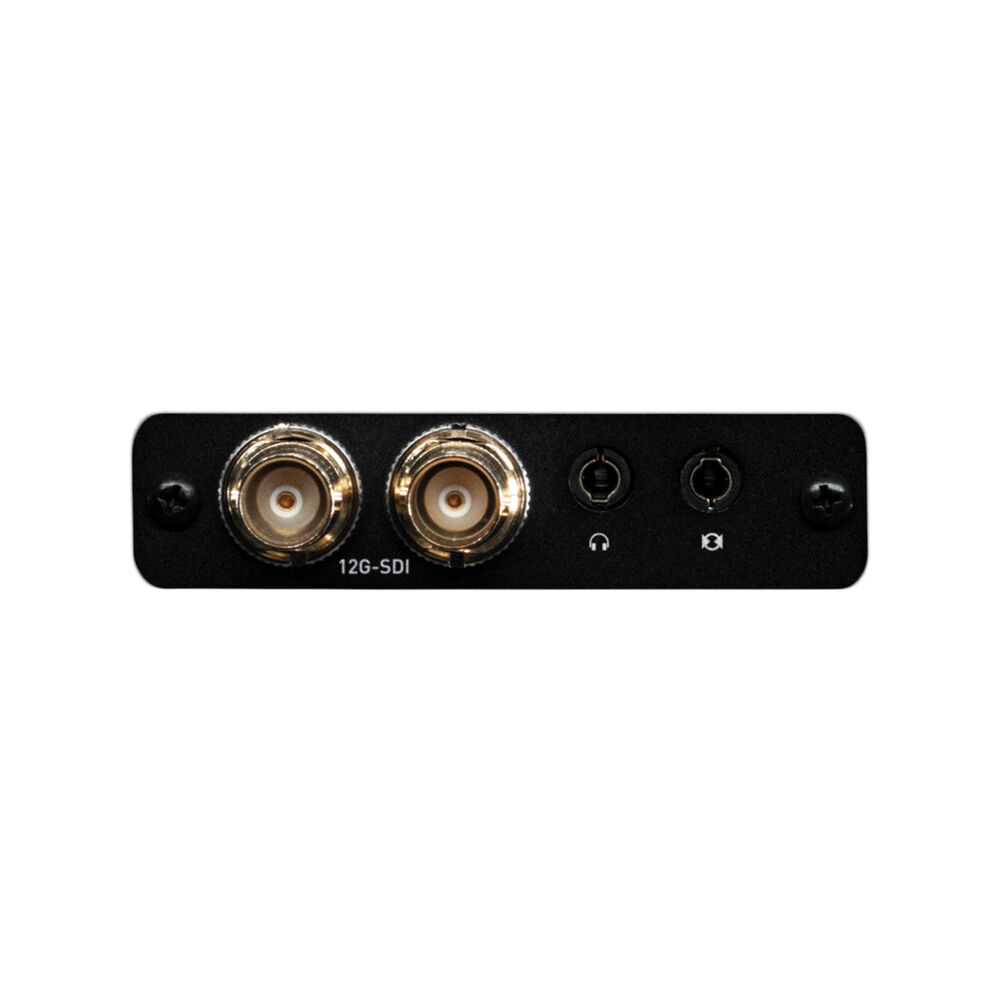

Teradek Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card
Teradek Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card
- SKU : #YR9Z10-2873 | MFR : #10-2873 | UPC : #818264026588
Features
- Designed for Prism Rackmount Base System
- 2 x BNC 12G-SDI Outputs, 10-Bit 4:22 HDR
- Supports Resolutions up to 4K60
- MPEG-4, AVC, H.265, HEVC Encoding
- AAC-LC Audio Compression
- RTMP/RTMPS, MPEG-TS, SRT Streams
- Embedded Audio Input
- Built-In Scaler and Deinterlacer
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
You Pay:
AED 10,247.95
VAT Excl.
VAT Excl.
Teradek Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card
This Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card from Teradek is a rackmount chassis card designed for use in the 1 RU or 2 RU Prism Rackmount Base System. The decoder card features one 12G-SDI input that supports 10-bit 4:2:2 video up to 4K60, decodes RTMP/RTMPS, MPEG-TS, and SRT streams using MPEG-4, AVC, H.265, and HEVC high-resolution compression, and supports two channels of embedded audio with AAC-LC compression.
The card also features a built-in video scaler and deinterlacer to support a wide variety of resolutions, genlock signaling from the chassis, and it features 3.5mm audio line input and output jacks. The video is received for decoding from optional Prism, Cube, Slice, Core, and T-Rax encoder cards in the Prism Rackmount Base System.
Compatibility
Teradek 1 RU or 2 RU Prism Rackmount Base System
Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders
Key Features
- Two 12G-SDI outputs support up to 4K60 video
- 10-bit 4:2:2 support
- MPEG-4, H.264, AVC, H.265, HEVC video compression
- Bitrates from 250 Kb/s to 85 Mb/s
- Built-in video scaler and deinterlacer
- RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT) streaming protocols
- AAC-LC audio compression
- Up to 2 channels of audio
- 3.5mm line-level analog audio input/output
- Genlock signaling from chassis
- 15W power
IN THE BOX
- Teradek Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card
- Audio/Video Backplate
- Limited 1-Year Warranty
Teradek Prism 873 Specs
| System Connection | Proprietary |
| Other I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output |
| Input Video Format | SDI (10-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Input Audio Format | Analog |
| Output Video Format | SDI (10-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio | SDI: 2-Channel |
Hardware
| Power Consumption | Device: 15 W |
