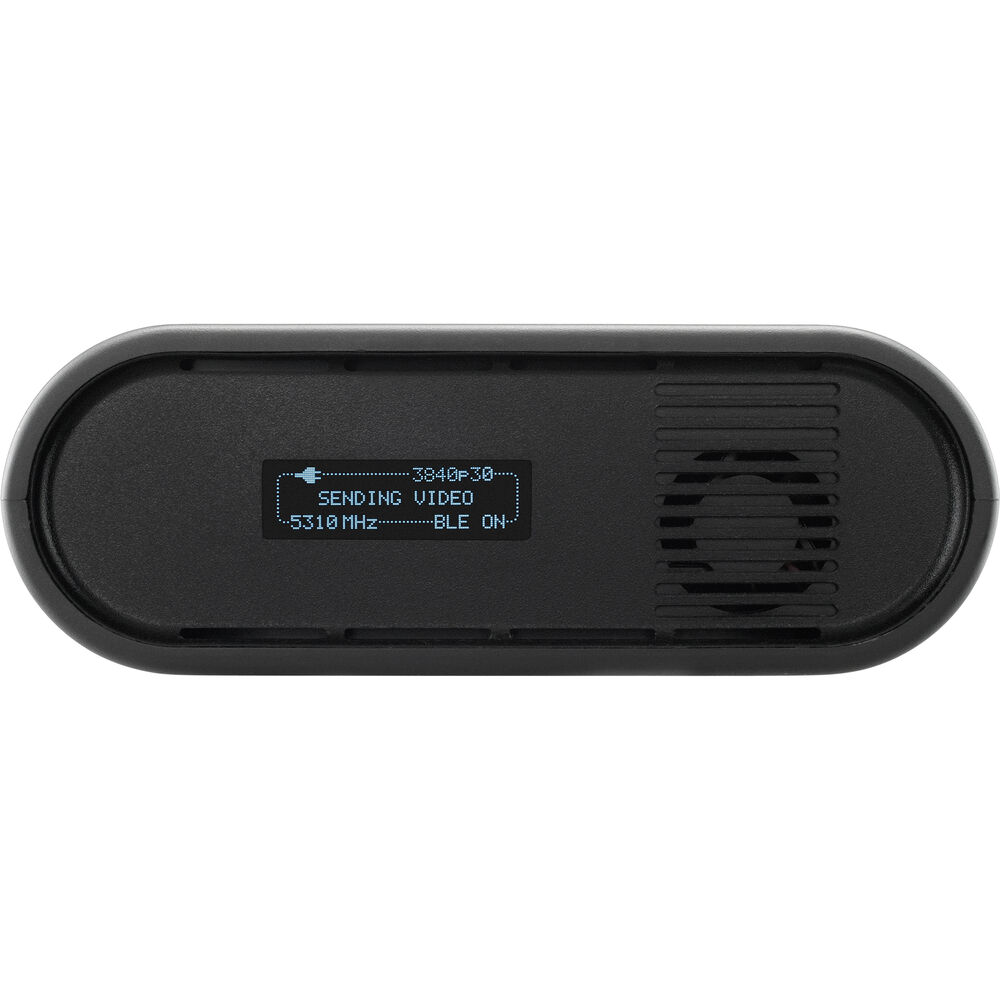

Teradek Spark 4K Transmitter

Teradek Spark 4K Transmitter

Teradek Spark 4K Transmitter

  • SKU : #E33Q10-1856 | MFR : #10-1856 | UPC : #818264027066
Teradek Spark 4K Transmitter
Teradek Spark 4K Transmitter
Features
  • Transmit Video up to 500' Line of Sight
  • Supports up to 4K30 HDMI, 10-Bit 4:2:2
  • Transmits to up to 2 x Receivers
  • Operates on Free 5 GHz Band, Zero Delay
  • Portable Design, Internal Antennas
  • Controlled with Launchpad App
  • AES-128 Encryption, OLED Display

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

You Pay:
AED 2,751.15
VAT Excl.

Teradek Spark 4K Transmitter

Transmit lossless HD video up to 500' to monitor video wirelessly using the Spark 4K Transmitter from Teradek. The Spark 4K transmitter can input up to 4K30 10-bit 4:2:2 HDR video via HDMI and transmit visually lossless video to up to two Spark 4K receivers with zero delay. The transmitter unit provides a powerful signal that can travel up to 500' line of sight and features a bright OLED display to view the unit status.

The Spark 4K transmitter features internal antennas, which makes it ultra portable, and it allows you to extend video to a display without any cabling. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the 5 GHz wireless spectrum.

The Teradek Launchpad app for iOS or Android that easily connects to the transmitter via Bluetooth, which provides channel-selection tools, monitoring, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. It's powered using a separately available USB Type-C power source.

IN THE BOX

    • Teradek Spark 4K Transmitter
    • Shoe Adapter
    • Ultra Thin HDMI Cable (18")
    • 30W USB Type-C Power Adapter
    • Limited 1-Year Warranty

Teradek Spark 4K Specs

Antenna PortsNone
Video I/O1 x HDMI 1.4b Input
Embedded AudioHDMI: 2-Channel
Audio I/ONone
Power I/O1 x USB-C Input
Other I/O1 x Micro-USB Input
Encryption128-Bit AES

Wireless

Wireless Range500' / 152.4 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power19 dBm
Wi-FiNone
BluetoothNone

Format Support

Video FormatHDMI (10-Bit 4:2:2)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60/59.94
576p: 50
Audio Format2-Channel 24-Bit 48 kHz PCM Audio
Wireless Video CompressionUncompressed
Timecode SupportYes

Power

Power Consumption5 W

Environmental

IP RatingNone
Operating Temperature32 to 72°F / 0 to 40°C

General

Material of ConstructionPlastic
Dimensions3.4 x 2.7 x 0.05" / 87 x 68 x 1.22 mm
Weight5.6 oz / 158 g
