Create a high-definition video live stream from anywhere your production leads you for your viewers on a variety of web services using the compact VidiU X Video Streaming System from Teradek. The VidiU X allows you to input an HDMI video signal from your HD camera and then broadcast it in up to 1080p60 resolution to the Internet using Ethernet, Wi-Fi, or even an optional 4G/3G modem when a LAN isn't available. It is also Wi-Fi 6 and 5G capable, so it is ready for super-fast data rates and future compatibility.

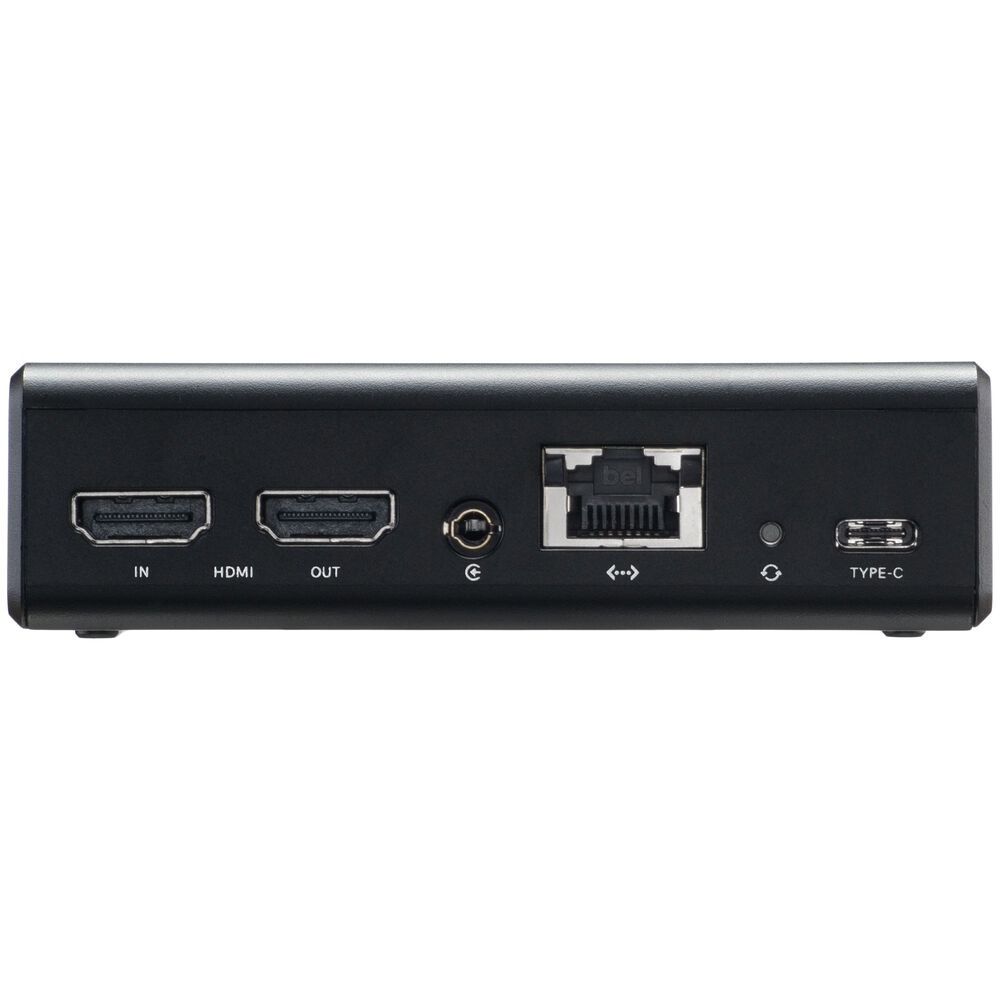

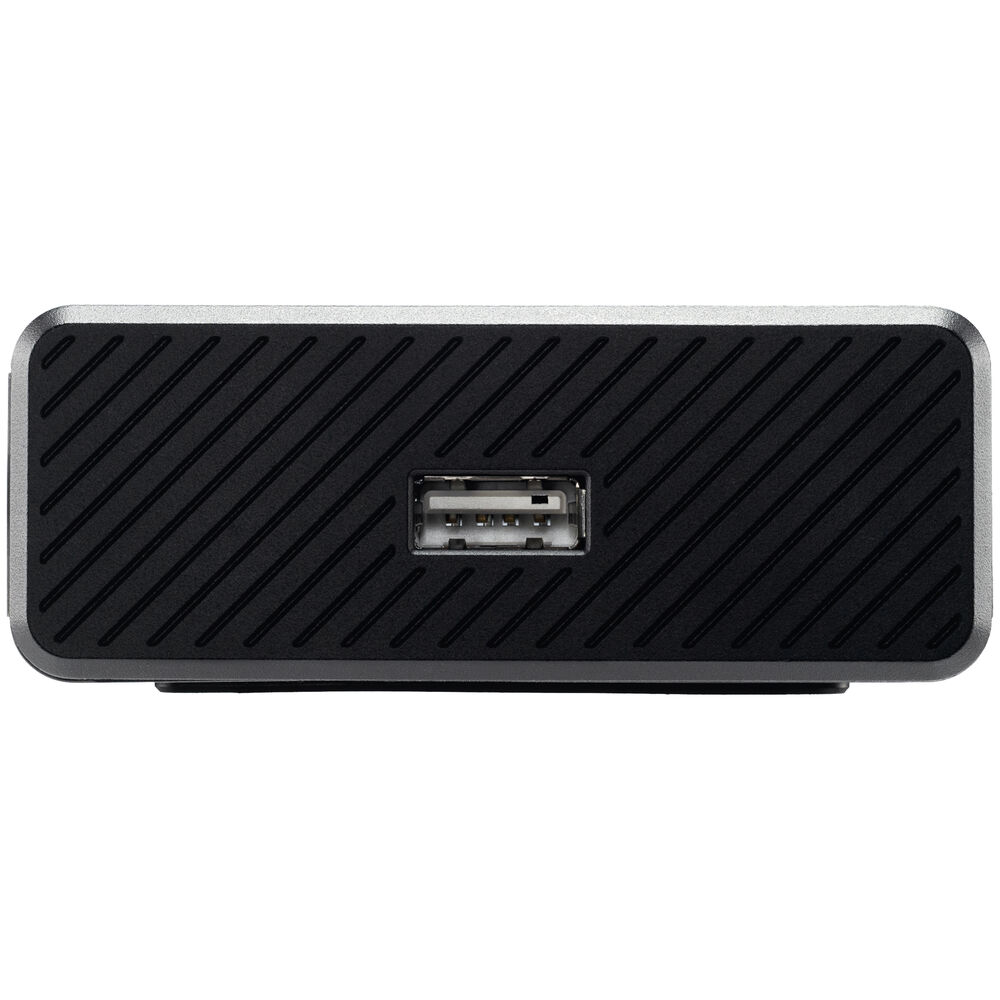

In addition to the HDMI input, The VidiU X features an HDMI output for local preview on a monitor. Using an optional modem (separate service required) plugged into the USB Type-A input, you can broadcast using the optional Sharelink cloud service (subscription required) and bond your stream over three sources of your choice. The unit supports high-quality, low-latency AVC H.264 compression for compatibility with a wide variety of streaming applications and platforms such as Facebook, YouTube, Vimeo, and other RTMP/RTMPS web services. The downloadable VidiU App for iOS and Android allows you to configure your streams remotely, so you can remain fully mobile.

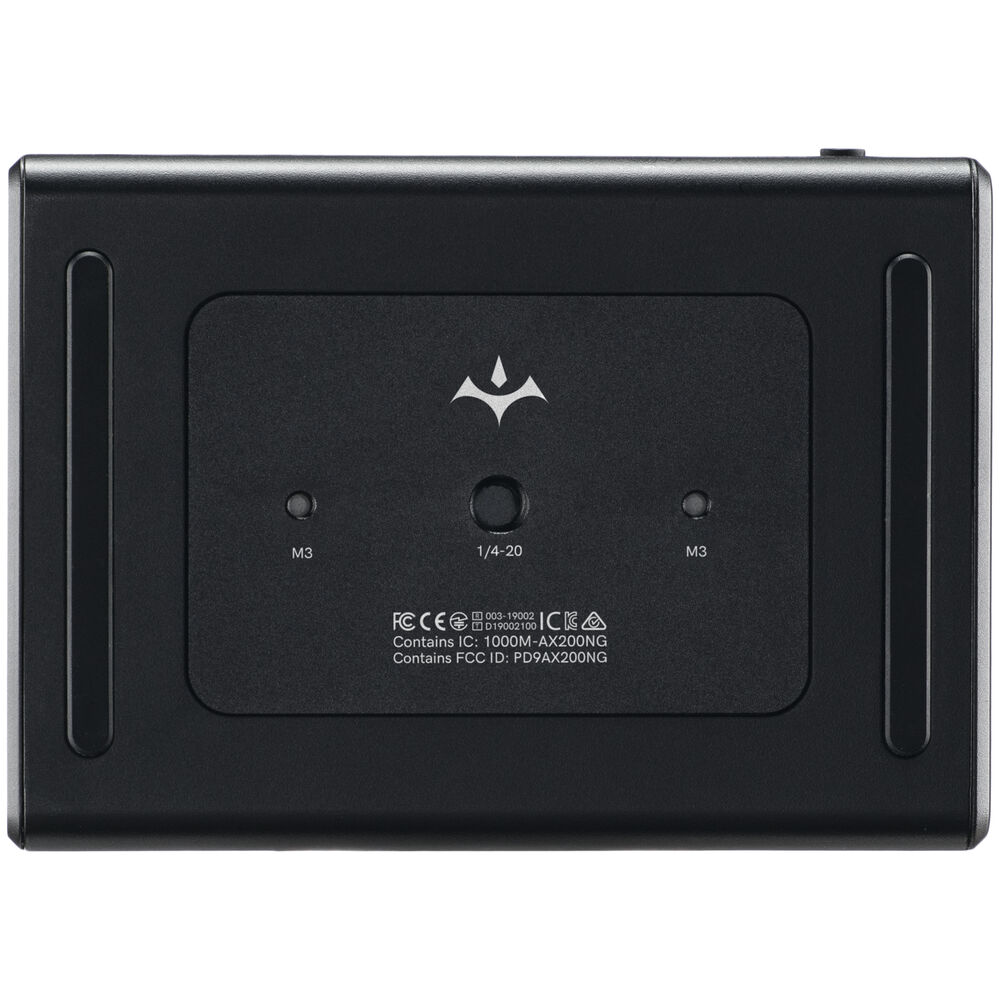

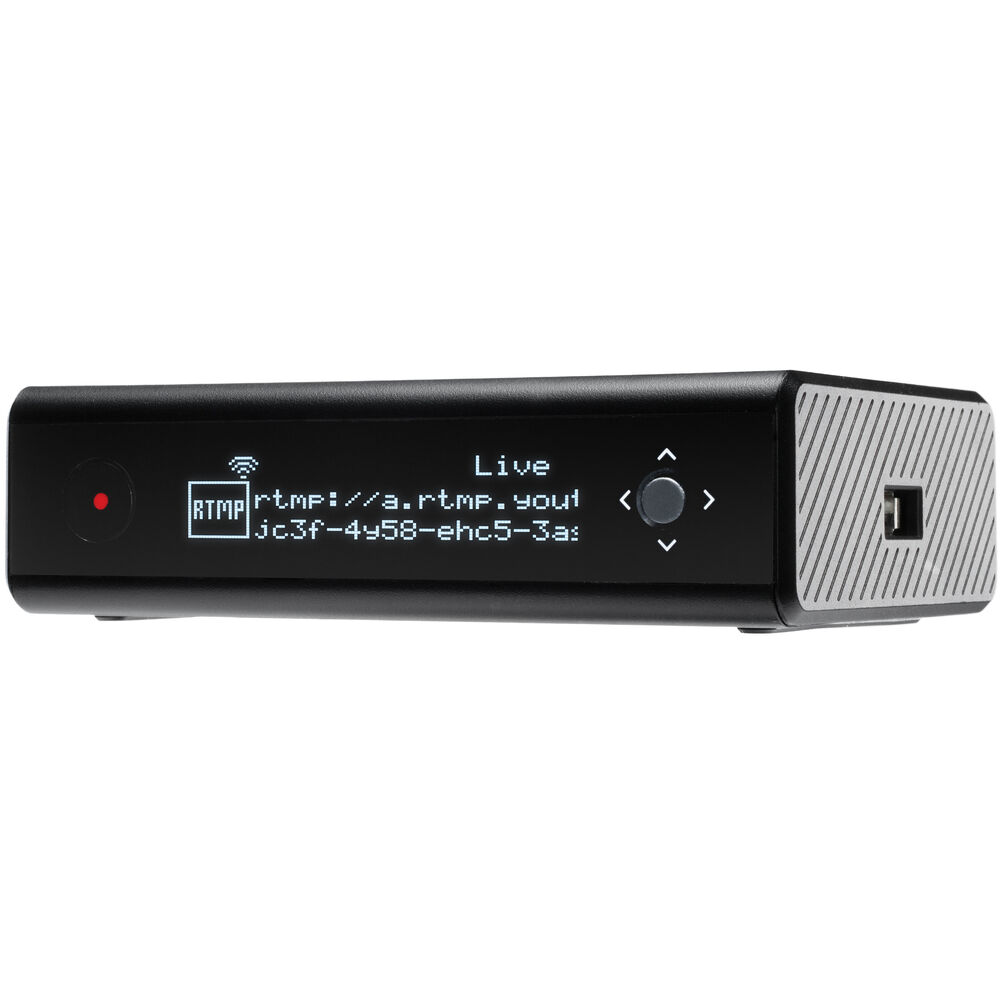

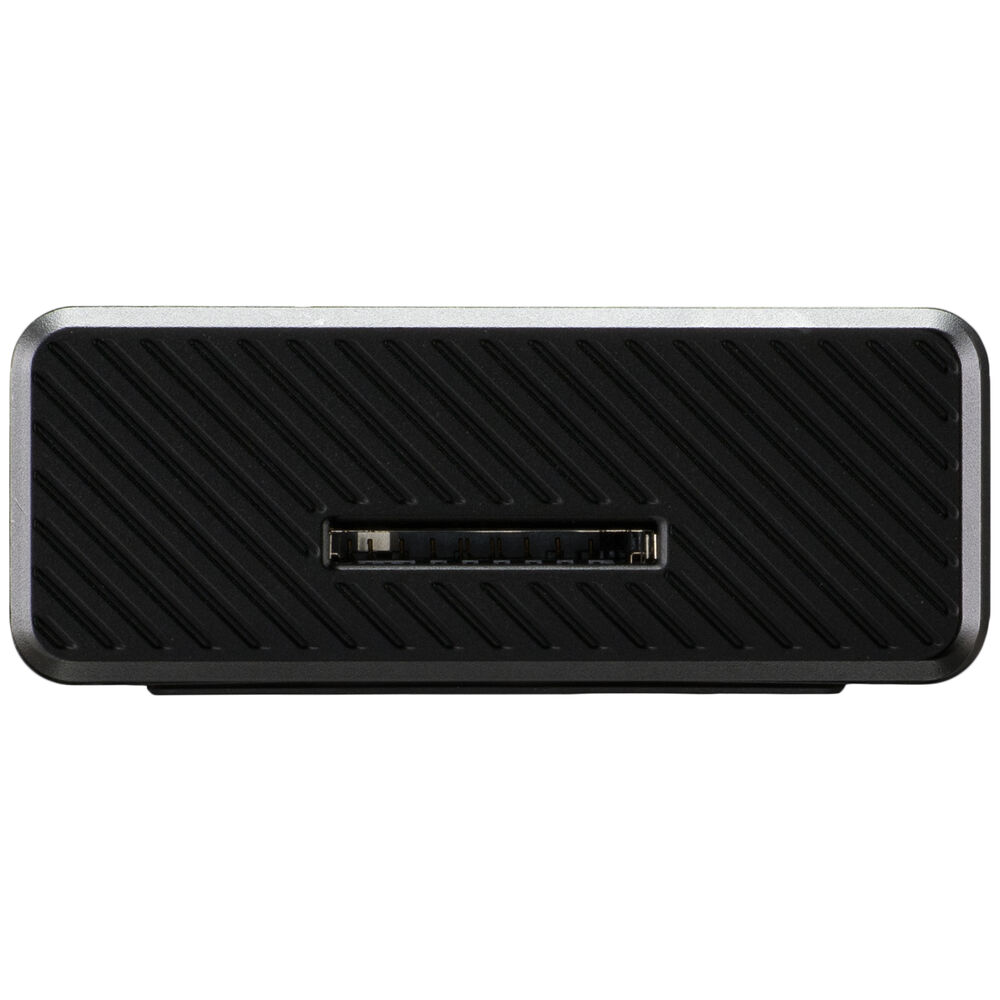

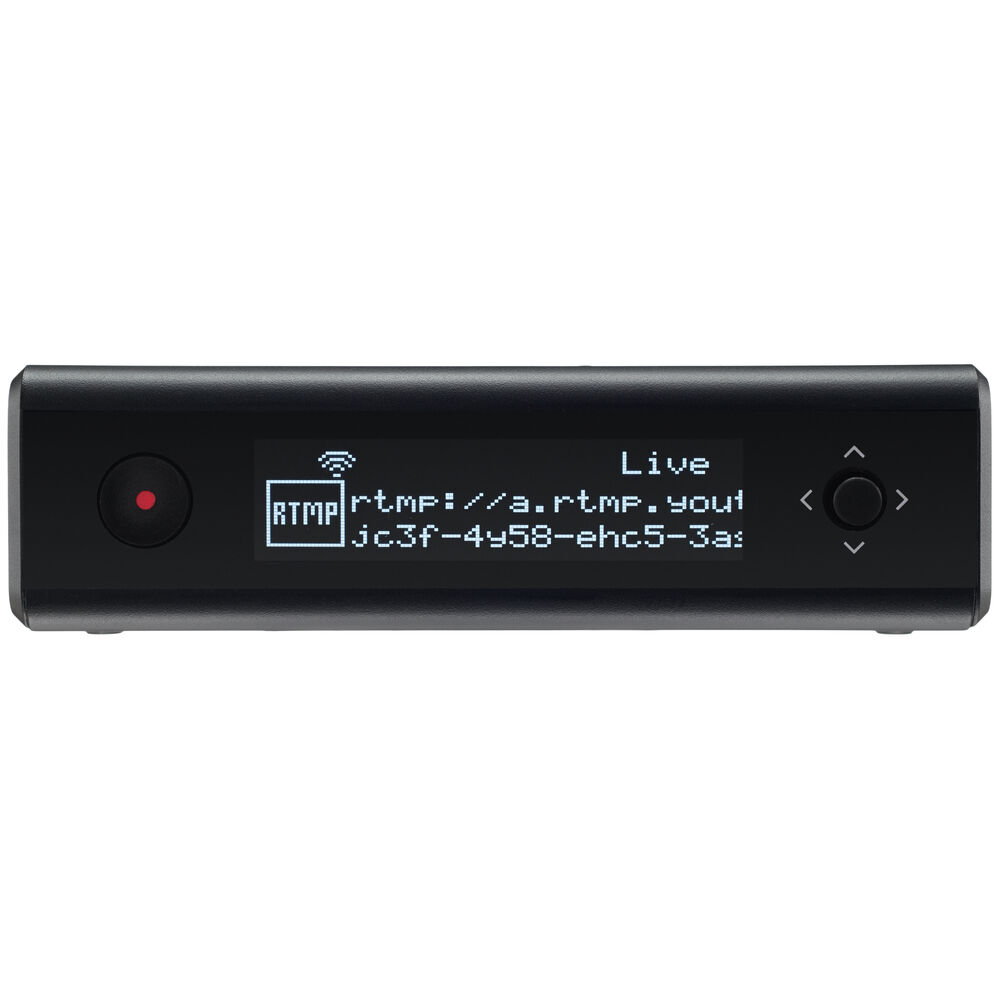

The VidiU X features an SD/SDXC card slot that allows you to save configurations and to record video. Its bright OLED screen shows the status of the ports, power, and stream information so you can see it in bright daylight as well as in dark conditions. The unit is small and light and it features 1/4"-20 and M3 threads allow you to mount it right onto a camera or rig without adding too much bulk. Its USB Type-C power input allows you to power it using a variety of mobile power options such as your laptop or a portable power bank. The unit boots up in less than 10 seconds so you can get right to streaming, and it is made from ABS plastic and aluminum for durability on your mobile broadcasts.

Live Streaming

Stream in AVC H.264 high-quality compression format

Compatible with Facebook Live, YouTube Live, Vimeo, Airmix, and various RTMP/RTMPS online video platforms

Streaming video resolution up to 1080p60

Configure remotely from the VidiU App

Stream to multiple destinations via Sharelink (subscription required)

Network

USB Type-A for 3G/4G modem support

Compatible with Wi-Fi 6 and 5G for high-speed data rates and future applications

Bonding over three simultaneous ports via Sharelink cloud service (with required subscription)

10/100/1000 Ethernet for LAN streaming and web management

VidiU app for iOS and Android for configuration

2.4 and 5 GHz Wi-Fi for LAN streaming and management

Hardware

One HDMI input, one HDMI output for local preview

Fast bootup time in less than 10 seconds

Bright OLED status screen

SD/SDXC card slot for recording and storage

USB Type-C power input supporting a variety of mobile power sources

One 3.5mm audio input to add stereo audio to your broadcast

Video Bitrate/Resolution Presets

Max: 12 Mb/s + 256 kb/s audio 1920 x 1080
HD+: 8 Mb/s + 256 kb/s audio 1920 x 1080
HD: 5 Mb/s + 192 kb/s 1920 x 1080
High: 3 Mb/s + 192 kb/s 1280 x 720
Medium: 1.5 Mb/s + 128 kb/s 960 x 540
Low: 800 kb/s + 128 kb/s 736 x 414
Mobile: 500 kb/s + 96 kb/s 480 x 270

AAC-LC Audio Bitrate Support

HD: 256 kb/s
High: 192 kb/s
Medium: 128 kb/s
Low: 96 kb/s
Mobile: 48 kb/s
