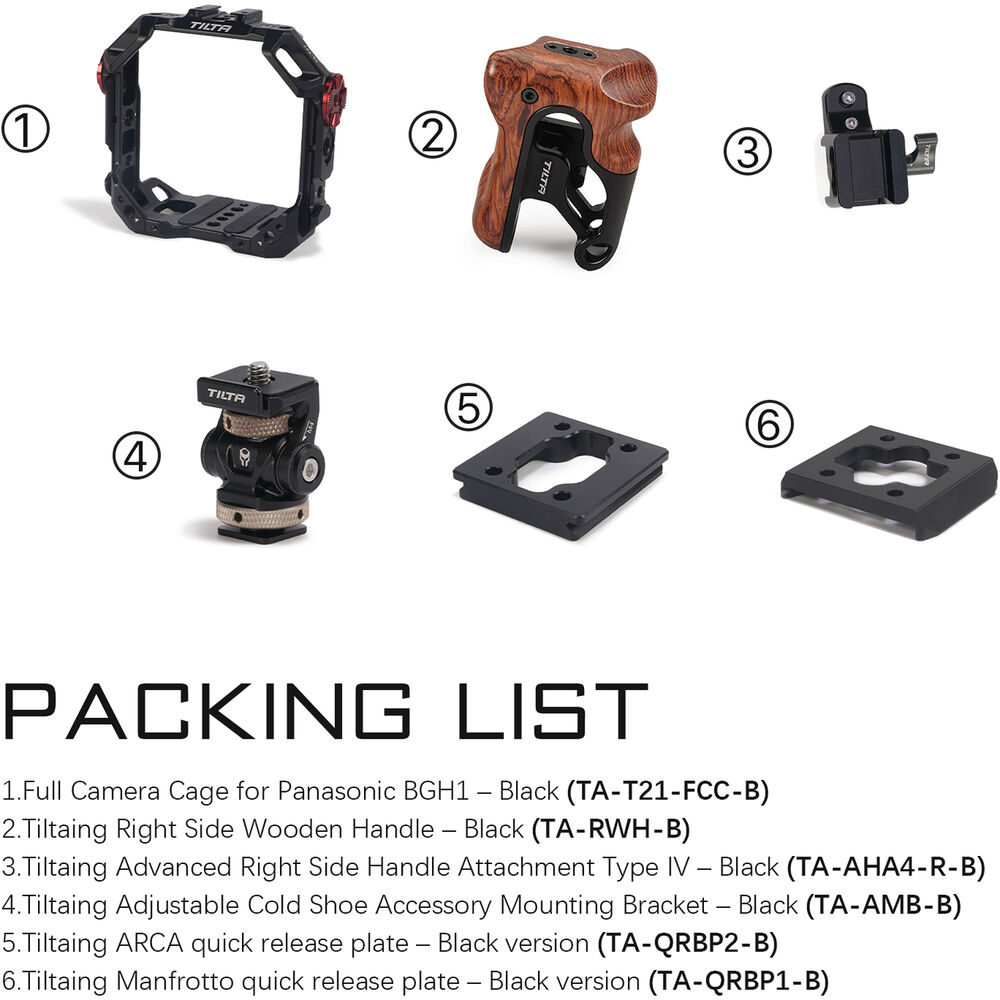

The Tilta Camera Cage Kit A for the Panasonic Lumix BGH1, in black, bundles the BGH1 cage with a wooden side handle and a tension-adjustable monitor mount. A NATO rail adapter is also included for attaching the wooden grip to the cage by quick release.
The cage comes with a quick release plate for direct attachment to the optional Tilta 15mm LWS Baseplate for RED KOMODO Cage. Additionally, the kit includes Arca and Manfrotto quick release plates that attach to the bottom of the cage.

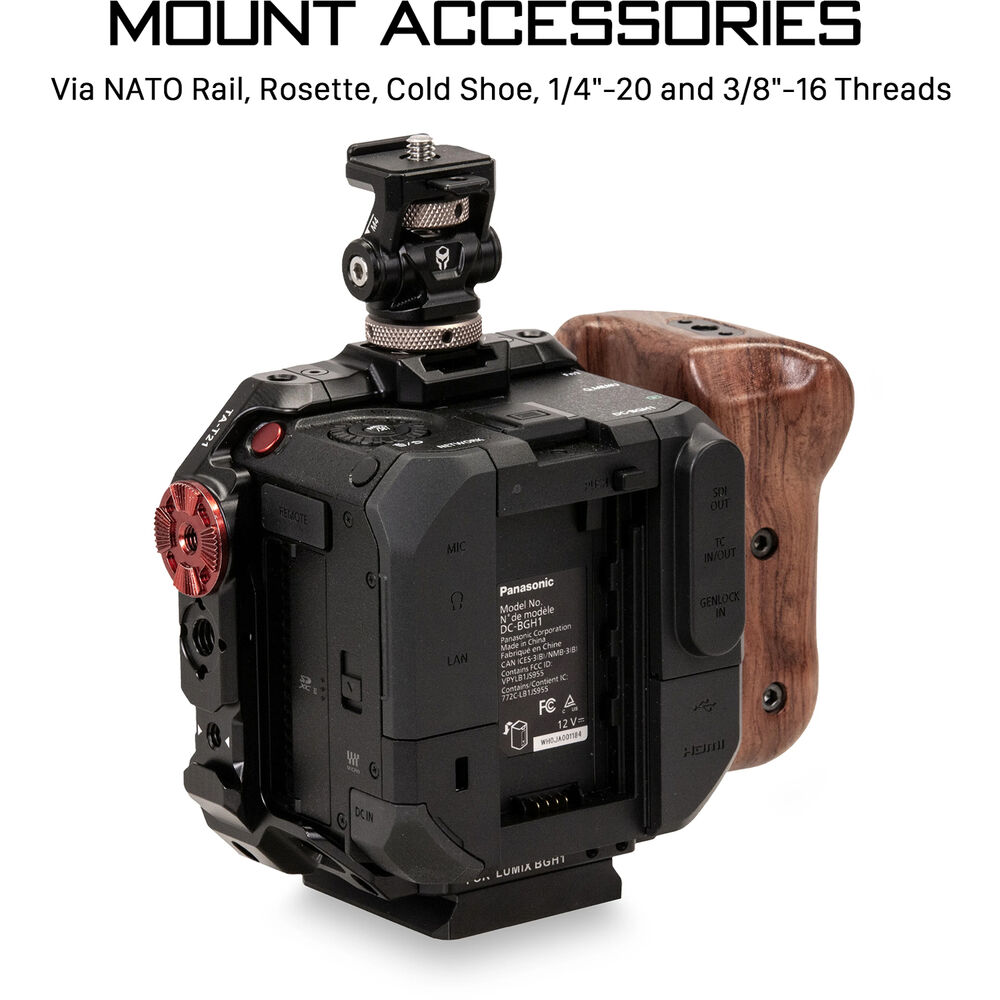

The Full Camera Cage for the BGH1 has a formfitting front-of-camera design and offers shoe mounts, ARRI rosettes, NATO rails, and anti-twist mounting threads for further expansion with dedicated Tilta or various third-party accessories.
Tilta Full Camera Cage for Panasonic BGH1/BS1H (Black)
In a minimalist form that attaches mainly around the front of the camera, allowing for a sleek look and lightweight design, Tilta's Full Camera Cage for Panasonic BGH1/BS1H packs three shoe mounts, two NATO rails, two rosettes, and two ARRI anti-twist threads. Besides these, there are standard 1/4"-20 and 3/8"-16 accessory threads and seven tripod mount threads for optimal placement on a gimbal. An adapter is also included for attaching the cage to an optional 15mm LWS baseplate from Tilta for rod support and further expanding the cage.
One cold shoe is provided on top for top handles and one on each side arm. Each of the side arms also features one of the NATO rails, ARRI M6 handgrip rosettes, and 3/8"-16 anti-twist threads.

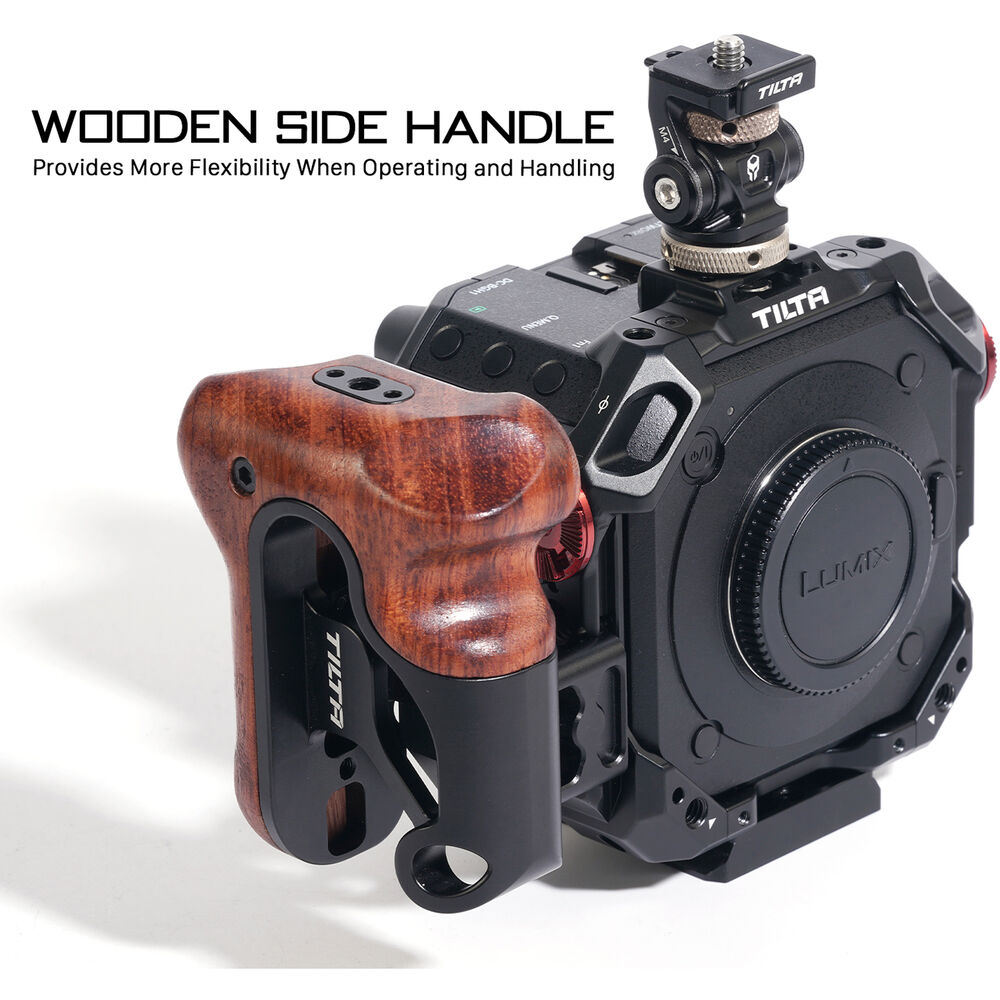

Tiltaing Right-Side Wooden Handle (Black)
This Black Tiltaing Wooden Handle from Tilta is a contoured handle designed to mount onto the right side of your Tiltaing camera cage. Made with a comfortable wooden grip, this legacy handle requires a separately available adapter to mount onto your cage.
Note:Requires a separately available handle adapter to attach to your cage.
Compatibility
Ergonomic Right-Side Design
Contoured handle provides an ergonomic right grip
Wooden Grip
Made with a comfortable wooden grip
Tilta Advanced Right-Side Handle Adapter Type IV (Black)
The Advanced Handle Adapter Type IV from Tilta enables you to attach a Tiltaing Right-Side Wooden Handle to select Tilting camera cages. This black Type IV adapter features a locking NATO rail mount and is constructed of aluminum and stainless steel.
Compatibility
Tilta Adjustable Cold Shoe Accessory Mounting Bracket (Black)
Made of robust aluminum and stainless steel, Tilta's Adjustable Cold Shoe Accessory Mounting Bracket, in black, is used to attach a monitor or other accessory to a camera's hot shoe or a camera cage shoe mount. Featuring tension-based tilt adjustment and a separate thumbwheel for the top 1/4"-20 screw and bottom cold shoe, the bracket allows for efficient, tool-free attachment and adjustment of your accessories. The mounting platform is padded and also has an edge lip to better hold your accessory and prevent twisting and scratching.
Tilta Arca-Swiss Quick Release Plate for Tiltaing Camera Cages (Black)
Custom build your Tiltaing camera rig with this Arca-Swiss–compatible Quick Release Plate from Tilta. Attach this black plate directly to the bottom of your compatible Tiltaing camera cage to quickly mount and detach the cage from an Arca Swiss support system.
Note:Not compatible with the Tiltaing BMPCC 4K/6K cage.
Compatibility
Note:Not compatible with the Tiltaing BMPCC 4K/6K cage
Tilta Manfrotto Quick Release Plate for Tiltaing Camera Cages (Black)
Custom build your Tiltaing camera rig with this Manfrotto-compatible Quick Release Plate from Tilta. Attach this black plate directly to the bottom of your compatible Tiltaing camera cage to quickly mount and detach the cage from a Manfrotto 577, 500, or 701 support system.
Note:Not compatible with the Tiltaing BMPCC 4K/6K cage.
Compatibility
Support Type | Cage |
Grip Type | None |
Mounting
Battery Plate Type | None |
Accessory Mounting | Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread, 2 x ARRI Anti-Twist 3/8"-16 Thread |
Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
Shoe Mounting | 3 x Cold Shoe |
Rosettes | 2 x ARRI Rosette w/ M6 Thread |
Rail Mounting | 2 x NATO Rail |
General
Materials | Aluminum, Steel |
Dimensions | 4.8 x 4.4 x 2.5" / 121 x 111 x 64 mm |
Weight | 0.5 lb / 230 g |
Packaging Info
Package Weight | 0.715 lb |
Box Dimensions (LxWxH) | 7.2 x 6.1 x 4.1" |
Item Type | Single Handgrip |
Rotation | No |
Built-In Controls | None |
Mounting
Attachment Method | Not Specified by Manufacturer |
Shoe Mounting | None |
Rosettes | None |
Rail Mounting | None |
General
Materials | Metal, Wood |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Packaging Info
Package Weight | 0.385 lb |
Box Dimensions (LxWxH) | 4.2 x 3.5 x 2.6" |
General
Compatibility | Tilta Advanced Side Handle |
Physical
Mounting | 1 x NATO Rail Clamp |
Color | Black |
Material of Construction | Aluminum Alloy, Stainless Steel |
Dimensions | 1.8 x 1.6 x 0.5" / 45.3 x 40.4 x 13 mm |
Weight | 1.01 oz / 28.62 g |
Packaging Info
Package Weight | 0.08 lb |
Box Dimensions (LxWxH) | 4.65 x 3.2 x 0.65" |
Top Mount | 1/4"-20 Male |
Bottom Mount | Cold Shoe |
Material of Construction | Aluminum, Stainless Steel |
Packaging Info
Package Weight | 0.125 lb |
Box Dimensions (LxWxH) | 4.05 x 2.65 x 1.25" |
Materials | Aluminum Alloy, Stainless Steel |
Dimensions | 4 x 4 x 3" / 10.2 x 10.2 x 7.6 cm |
Weight | 3.2 oz / 91 g |
Packaging Info
Package Weight | 0.1 lb |
Box Dimensions (LxWxH) | 3.4 x 2.75 x 0.45" |
Materials | Aluminum Alloy, Stainless Steel |
Dimensions | 4 x 4 x 3" / 10.2 x 10.2 x 7.6 cm |
Weight | 3.2 oz / 91 g |
Packaging Info
Package Weight | 0.06 lb |
Box Dimensions (LxWxH) | 3.6 x 2.8 x 0.6" |
