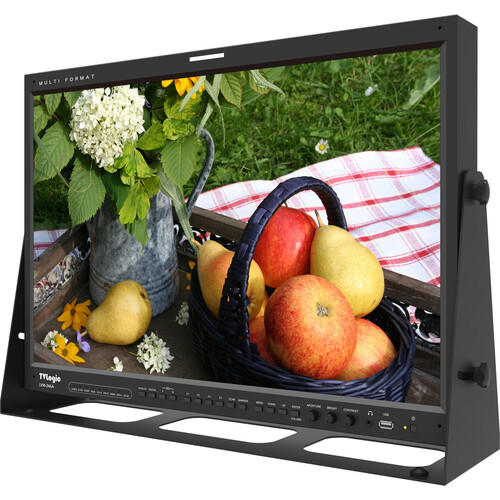

This 24" Full HD 3G-SDI IPS LCD Monitor from TVLogic is designed for field monitoring applications thanks to its various input connections and full HD 24" display. Various input connectors, two SDI, one HDMI, three analog BNC, and one DVI-I, support up to 1080p full HD video. The LVM-246A has a maximum brightness of 600 cd/m² and monitor resolution of 1920 x 1200 for improved visibility.
Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control.
Features at a Glance
Display
Panel Type | IPS-Type LCD |
Display Size | 24.00" / 61.0 cm |
Screen Area | 20.4 x 12.8" / 518.4 x 324 mm |
Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | No |
Maximum Brightness | 600 nits / cd/m2 |
Contrast Ratio | 1000:1 |
Dot Pitch | 0.27 x 0.27 mm |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
HDR Compatibility | None |
Pixels Per Inch (ppi) | 94 ppi |
Image Controls | Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform |

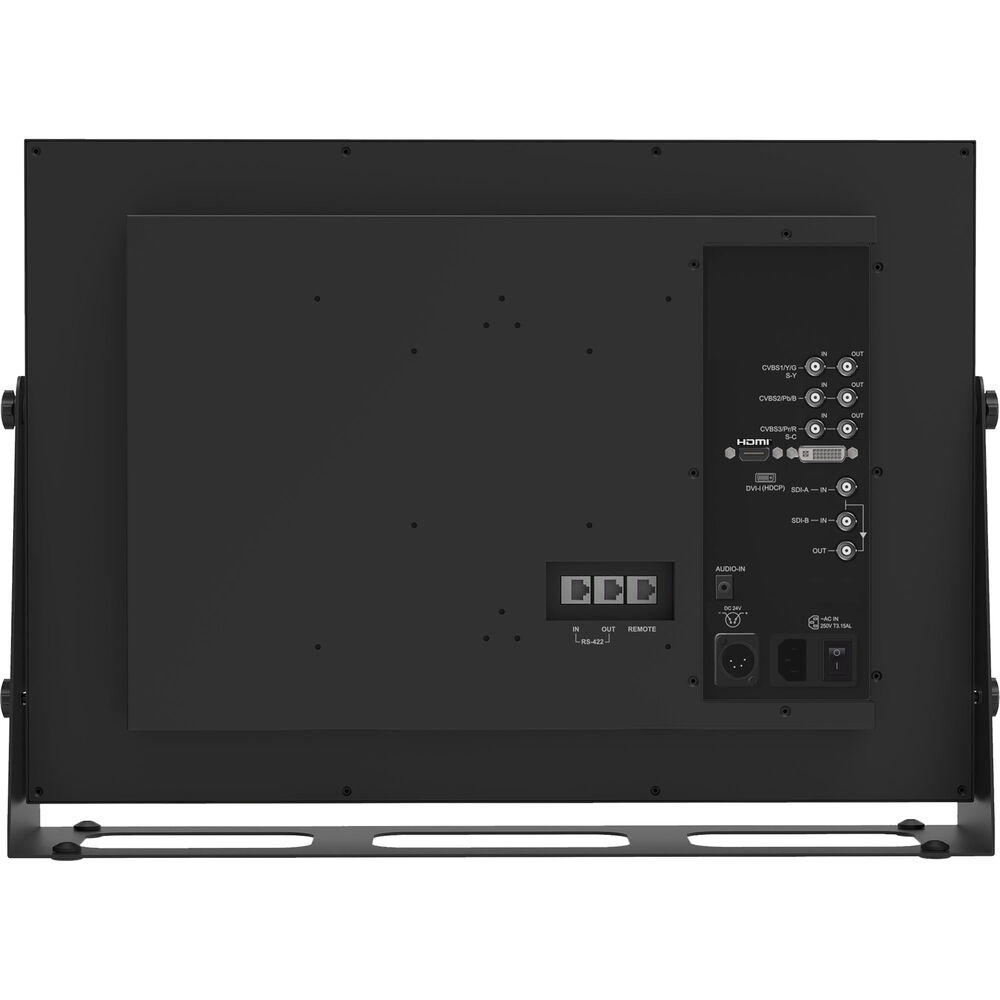

Inputs / Outputs
Video I/O | 2 x BNC (3G-SDI) Input 1 x 3BNC (Component) Input 1 x DVI-I Input 1 x HDMI Input 1 x BNC (3G-SDI) Output 1 x 3BNC (Composite) Output |
Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x XLR 4-Pin Input 1 x IEC Input |
Other I/O | 1 x RJ45 (RS-422) Input 1 x RJ45 (RS-422) Output 1 x RJ45 (GPI) 1 x USB-A (Firmware) |
Media/Memory Card Slot | None |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
Video Format | HDMI 1080p: 60 1080i: 60 720p: 60 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 1035i: 60/59.94 720p: 60/59.94/50 576i: 50 480i: 59.94 |
Video Standard Compliance | SMPTE 125M/260M/274M/296M/425M-A/425M-B ITU -R BT.656 |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 to 24 VDC |
Power Consumption | 115 W |
General
Dimensions | 21.8 x 15.3 x 3.8" / 552.5 x 389 x 95.9 mm 23.1 x 16.4 x 5.9" / 586.1 x 416.8 x 150 mm, Including Stand |
Weight | 23.8 lb / 10.8 kg |
Packaging Info
Package Weight | 31.11 lb |
Box Dimensions (LxWxH) | 26.5 x 21.4 x 13" |
