TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle

TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle

TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle

  • SKU : #C5M2LXM-240P-FM | MFR : #LXM-240P-FM
TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle
TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle
Features
  • 23.8" Display, 3840 x 2160 Resolution
  • 4 x 3G/12G-SDI I/O, 1 x HDMI Input
  • 1000 cd/m² Bright, 1000:1 Contrast
  • Wide Color Gamut, Quad/Dual-View Tools
  • HDMI/SDI Cross Conversion
  • HDR/SDR Comparison
  • Quad-Link 3G-SDI Input/Output
  • Speaker & Headphone Output
  • Waveform, Vectorscope, Histogram
  • Multi-Mount Cage-Type Housing & Handle

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 30,320.00
VAT Excl.

TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle

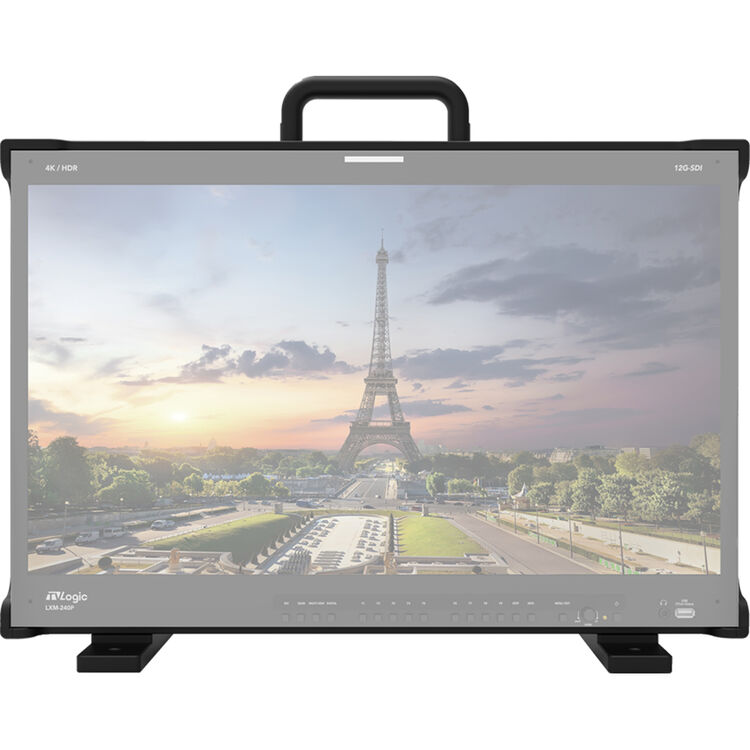

Add a professional field monitor to your production with the LXM-240P-FM 23.8" DCI/UHD 4K Monitor from TVLogic. This bright, 3840 x 2160 monitor features HDR support, wide dynamic range, PQ, HLG, SLog3 gamma, 10-bit color, and up to 4K input. It comes in a cage-type housing with a top handle that provides multiple mounting options.



UHD 4K 12G-SDI Field Monitor

The LXM-240P-FM monitor accepts up to UHD 4K video signals via its HDMI 2.0 input or four 12G-SDI inputs and quad-link 3G-SDI inputs. It also features 12G-SDI and 3G-SDI quad-link loop outputs to send the signals to additional monitors or switchers for quad-view or dual-view displays.



Bright Display with Multiple Tools

The monitor has 1000 cd/m² brightness for clear viewing in daylight conditions, a wide 178° angle of view, and a sharp 1000:1 contrast ratio. Its internal tools and features include closed caption support, SFP-to-SDI conversion, a color calibration utility, 3D LUT support, waveform, vectorscope, timecode display, markers, check field, and many other image monitoring tools. The monitor also supports control via GPI and Ethernet, and it can have its firmware updated using a USB flash drive.

Cage-Type Housing

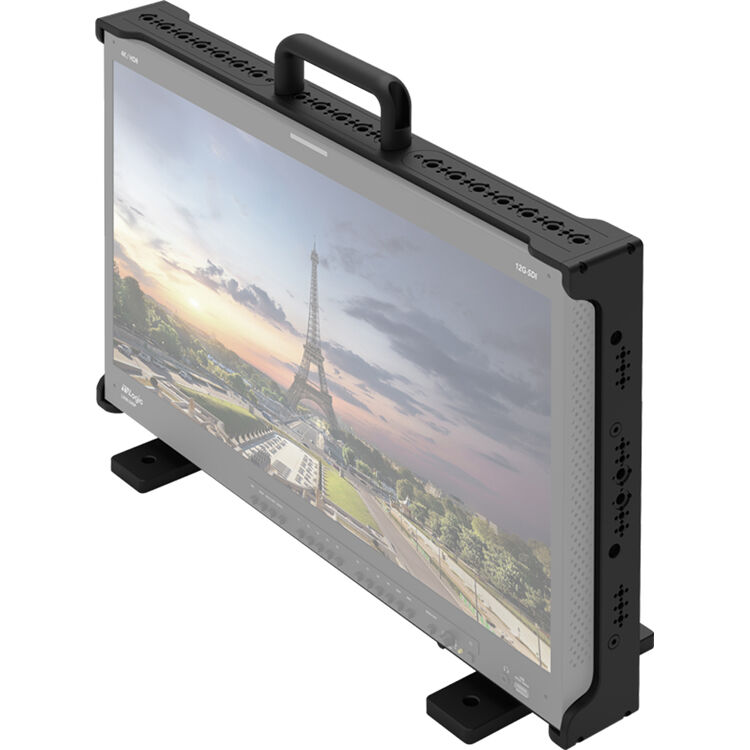

The LXM-240P-FM monitor comes in a cage-type housing that features a top handle, wide fixed feet, and multiple anti-twist 1/4"-20 and 3/8"-16 threads that provide a variety of mounting options.



Additional Details

  • Four 12G-SDI input and loop output
  • 3G-SDI quad-link input and loop output
  • Reference input
  • Dual SFP input
  • HDMI 2.0 input
  • Quad- and dual-view display
  • Processed monitor output
  • Various conversion output
  • Quad link 12G input to single-link 12G output
  • Firmware update by Ethernet
  • 3840 x 2160 display resolution
  • 1000 cd/m² peak luminance
  • 1.073 billion colors
  • HDR (PQ, HLG)
  • HDR vs SDR comparison
  • Wide color gamut
  • Custom 3D LUT import by USB flash drive
  • Auto-detection of SDI payload ID
  • Fast mode
  • Waveform, vectorscope, histogram
  • Audio phase meter
  • Closed captioning (CC-608, CC-708)

IN THE BOX

    • TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor with Cage-Type Housing and Handle
    • Power Cord
    • Cage-Type Stand with Top Handle
    • Limited 1-Year Manufacturer Warranty

Display

Panel TypeIPS-Type LCD
Display Size23.8" / 60.5 cm
Native Resolution3840 x 2160
Aspect Ratio16:9
Viewing AngleHorizontal: 178°
Vertical: 178°
TouchscreenNo
Maximum Brightness1000 nits / cd/m2
Contrast Ratio1000:1
Color Support1.07 Billion Colors (10-Bit)
HDR SupportYes, Hybrid Log Gamma
Color Gamut98% DCI-P3
LUT SupportYes
Image ControlsHistogram, Vectorscope, Waveform

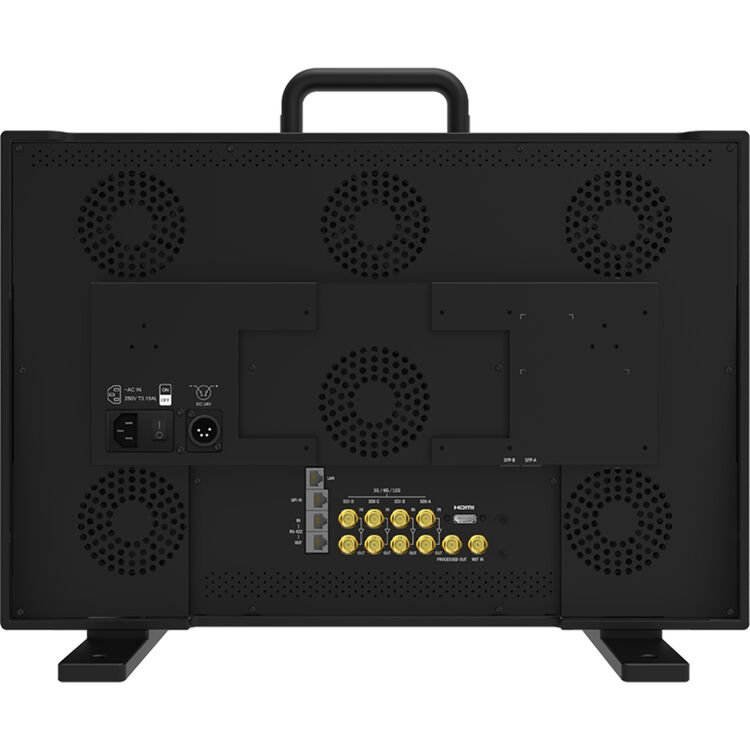

Inputs/Outputs

Video I/O4x BNC (12G-SDI) Input
1x HDMI 2.0 Input
4x BNC (12G-SDI) Loop Output
1x BNC (Unspecified SDI) Output
Embedded AudioHDMI/SDI
Audio I/O1x 1/8" / 3.5 mm Line Input
Built-In SpeakerStereo
Power I/O1x XLR 4-Pin (12 VDC) Input
1x IEC Input
Other I/O1x BNC (Reference) Input
1x RJ45 (LAN)
1x RJ45 (GPI) Input
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
1x USB-A (Firmware)
Expansion Slots2x SFP Slot
Media/Memory Card SlotNo

Wireless

Wi-FiNo
BluetoothNo
Mobile App CompatibleNo

Format Support

Video FormatSDI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 60
HDMI
DCI 4K
UHD 4K
1080p
1080i
720p
Video Signal ConversionHDMI to SDI

SFP+ to SDI


Power

Input Power12 to 24 VDC
100 to 240 VAC, 50 / 60 Hz
BatteryNo
Power Consumption145 W

Mounting

VESA Mounting-Hole Pattern100 x 100 mm
Tripod/Accessory MountingTop
12x Anti-Twist 1/4"-20 Female
14x Anti-Twist 3/8"-16 Female
Bottom
3x 3/8"-16 Female
5x 1/4"-20 Female
Left
2x Anti-Twist 3/8"-16 Female
10x Anti-Twist 1/4"-20 Female
Right
2x Anti-Twist 3/8"-16 Female
10x Anti-Twist 1/4"-20 Female

General

Operating Conditions32 to 95°F / 0 to 35°C
Storage Conditions-4 to 140°F / -20 to 60°C
Dimensions225.4 x 150.4 x 26.8" / 572.4 x 382 x 68 cm
225.4 x 180.1 x 70.5" / 572.4 x 457.5 x 179 cm (Including Handle, Stand)
Weight29.1 lb / 13.2 kg
