Advanced UHD 4K Quad-View Monitor

Get high-quality image control for your next production using the LXM-550U 55" UHD 4K 12G-Quad Multiview Monitor from TVLogic. This broadcast monitor features a 16:9 3840 x 2160 LCD panel with 1100:1 contrast ratio, 700 cd/m² brightness, and both HDMI 2.0 input and four SDI inputs and outputs with support for up to UHD 4K video signals. It offers HDR compatibility, a wide color space, side-by-side SDR and HDR viewing, and multiple imaging tools. Import your own custom 3D LUTs and view the processed output on another monitor.

HDR Monitoring

• The LXM-550U monitor supports multiple HDR (high dynamic range) functions.
• HDR produces a range of accurate, nuanced colors.
• Supports PQ, HLG, and S-Log3.

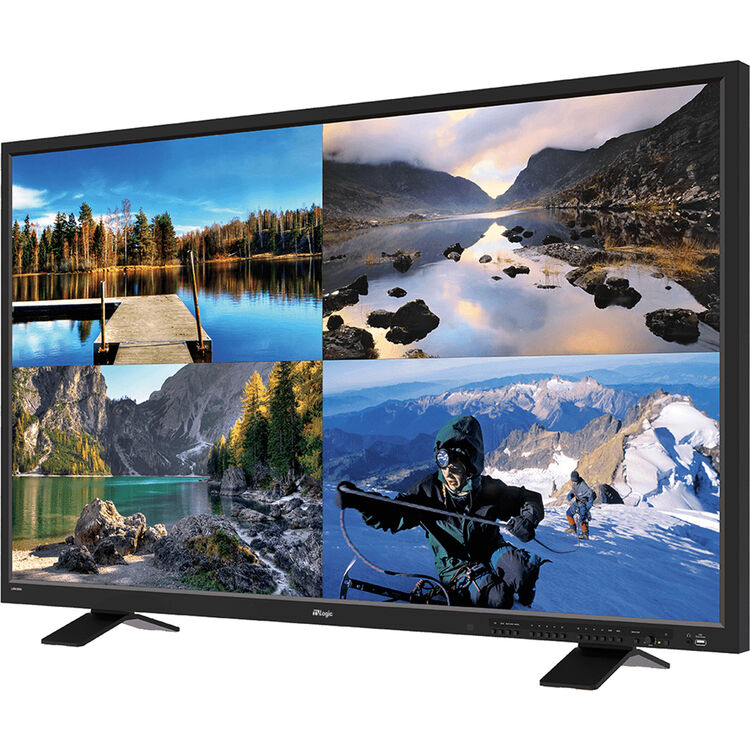

Quad-View Display

• Display up to four inputs simultaneously on a single screen.

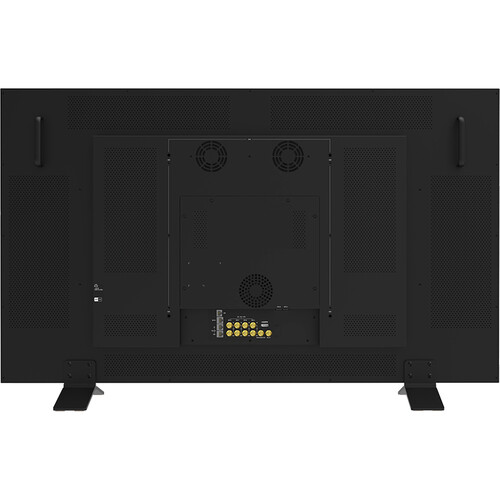

• Includes SDI (BNC), HDMI, and SFP ports.

Side-by-Side Viewing

• View a single source in both SDR and HDR simultaneously.
• Use waveforms and vectorscopes for each side.

Import 3D LUTs and View the Processed Output

• Apply your own 3D LUTs to create custom looks.
• View the processed image using the dedicated SDI output and an additional monitor.

Imaging Tools

• Tweak your image using the LXM-550U monitor's multiple imaging tools.
• Tools include waveforms, vectorscopes, audio metering, and more.
