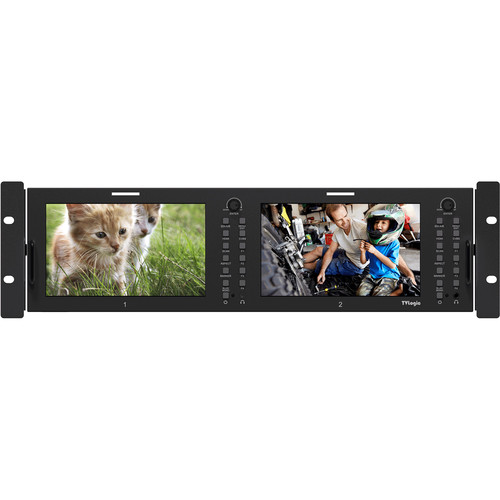

The TVLogic RKM-270A HD/SD Multichannel LCD Rack Monitor features two 7" IPS LCD screens with a 1024 x 600 resolution. Both screens offer wide viewing angles of 170° (horizontal and vertical) with a maximum brightness of 400 cd/m² and contrast ratio of 800:1. The screens support multiple formats including 3G, HD-SDI, SD-SDI, and HDMI. Each screen features a built-in internal speaker and supports stereo audio out using a phone jack. This dual monitor can be VESA or rack-mounted.
Key Features
Panel Type | LCD |
Display Size | 7.0" / 17.8 cm |
Native Resolution | 1024 x 600 |
Aspect Ratio | 16:9 |
Viewing Angle | 170° |
Touchscreen | No |
Maximum Brightness | 400 nits / cd/m2 |
Contrast Ratio | 800:1 |
Color Support | 16.7 Million Colors (8-Bit) |
HDR Support | No |

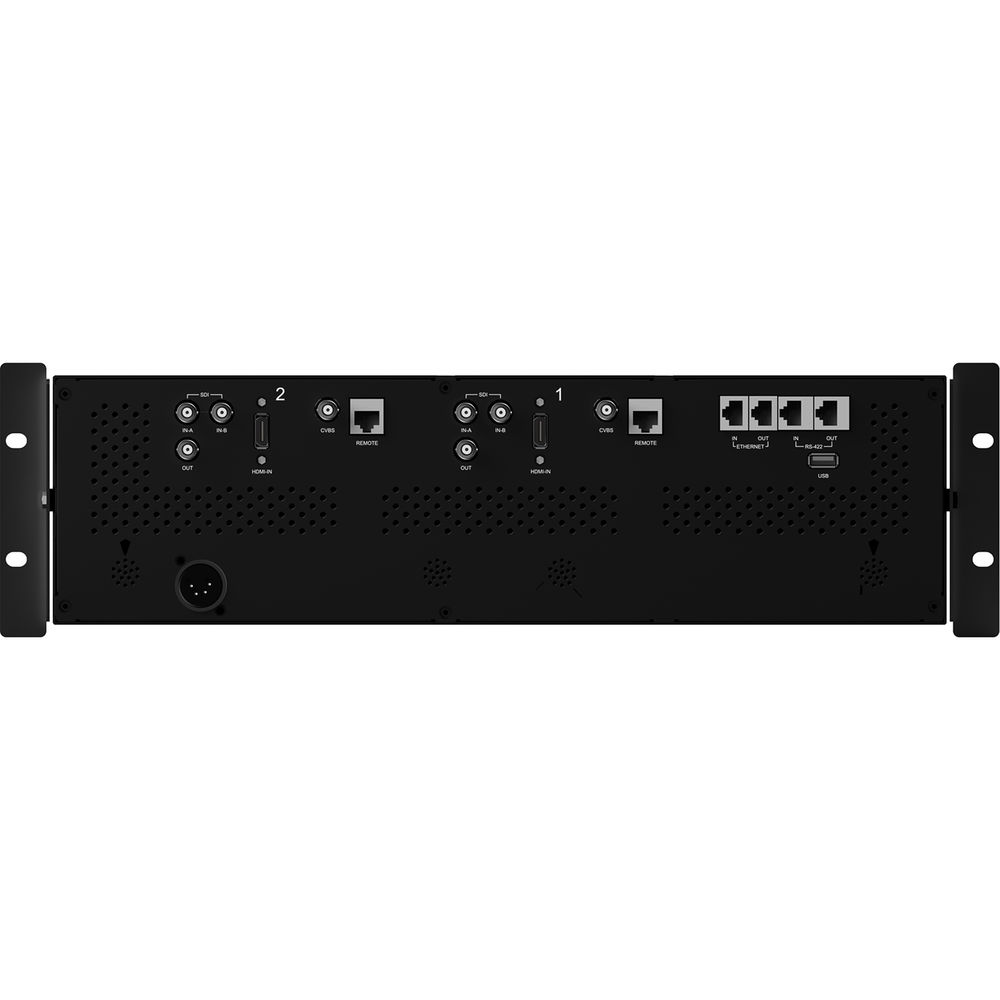

Inputs/Outputs
Video I/O | 1x HDMI (Unspecified Signal) Input 2x BNC (3G-SDI) Input 1x BNC (Composite) Input 1x BNC (3G-SDI) Output |
Audio I/O | 1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Output |
Built-In Speaker | Mono |
Power I/O | 1x XLR 4-Pin Input |
Other I/O | 1x USB-A (Firmware) 2x RJ45 (RS-422) 2x RJ45 (10/100 Mb/s Ethernet) 2x RJ45 (Serial Remote) |
Media/Memory Card Slot | No |
Wireless
Wi-Fi | No |
Bluetooth | No |
Mobile App Compatible | No |
Format Support
Video Format | HDMI 1080p: 59.94/50/29.97/25/23.98 1080i: 59.94/50 720p: 59.94/50 576i: 50 480i: 59.94 SDI DCI 2K: 24/23.98 DCI 2K PsF: 24/23.98 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 1035i: 60/59.94 720p: 60/59.94/50 576i: 50 480i: 59.94 |
PC Resolutions | 1366 x 768 1280 x 1024 1024 x 768 800 x 600 720 x 400 640 x 480 |
Power
Input Power | 12 to 24 VDC |
Battery | No |
Mounting
Rack Form Factor | 3 U |
General
Environmental Resistance | No |
Operating Conditions | 32 to 95°F / 0 to 35°C |
Storage Conditions | -4 to 140°F / -20 to 60°C |
Dimensions | 18.9 x 5.2 x 2" / 48 x 13.2 x 5.1 cm |
Weight | 8.8 lb / 4.0 kg |
Packaging Info
Package Weight | 8.96 lb |
Box Dimensions (LxWxH) | 22 x 10 x 7" |
