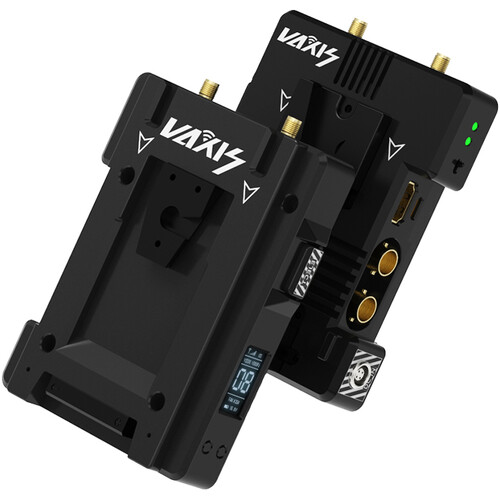

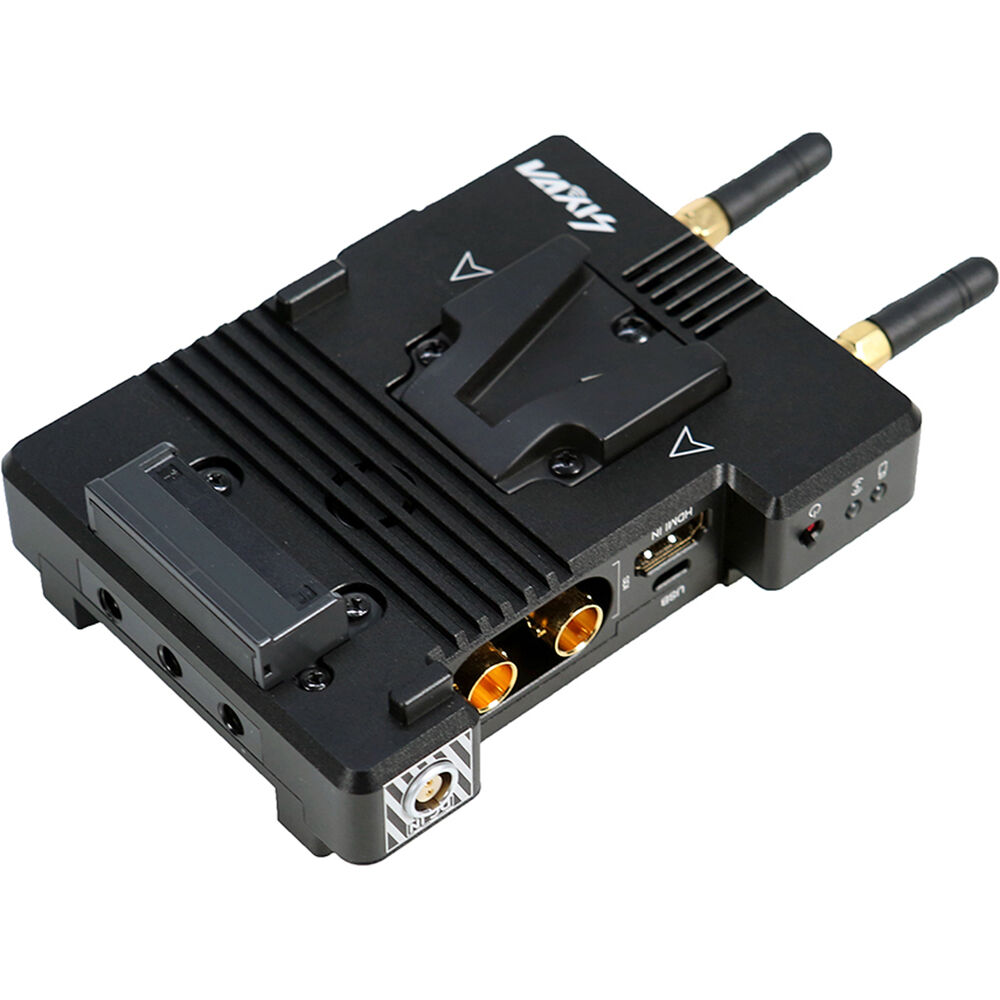

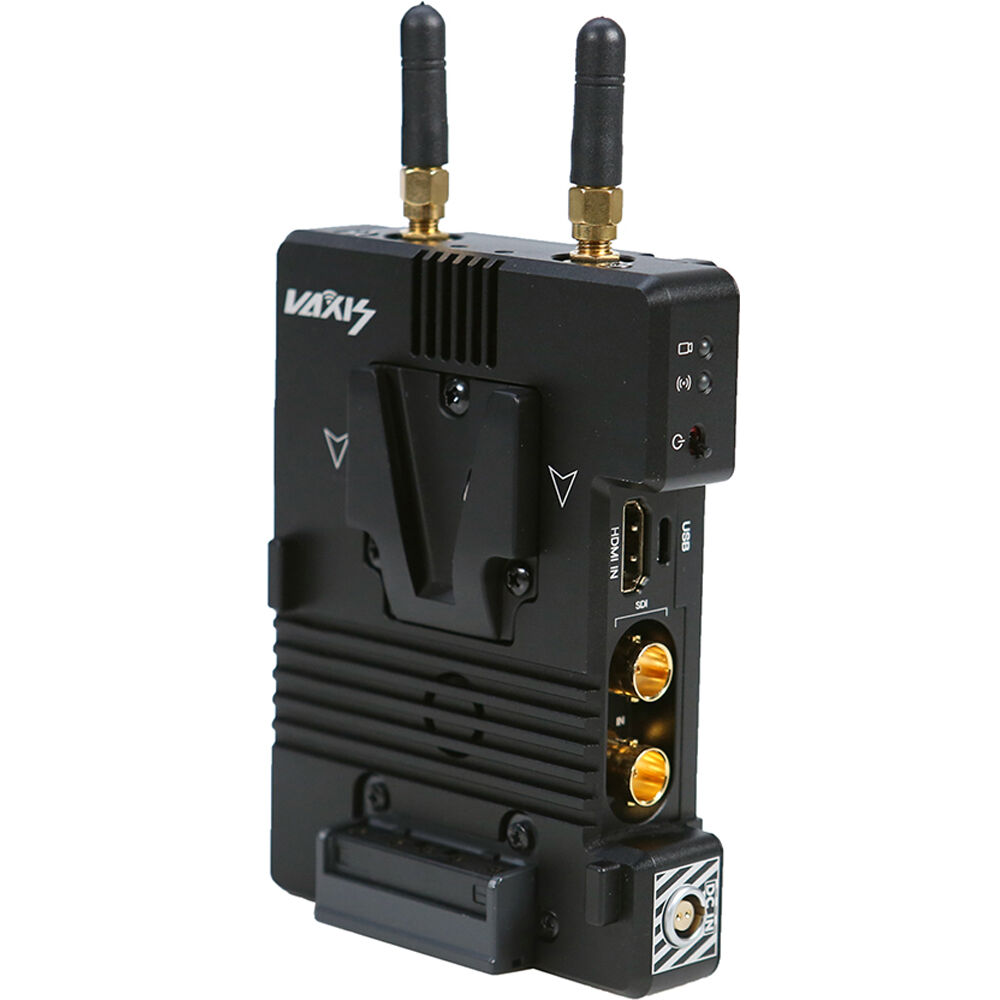

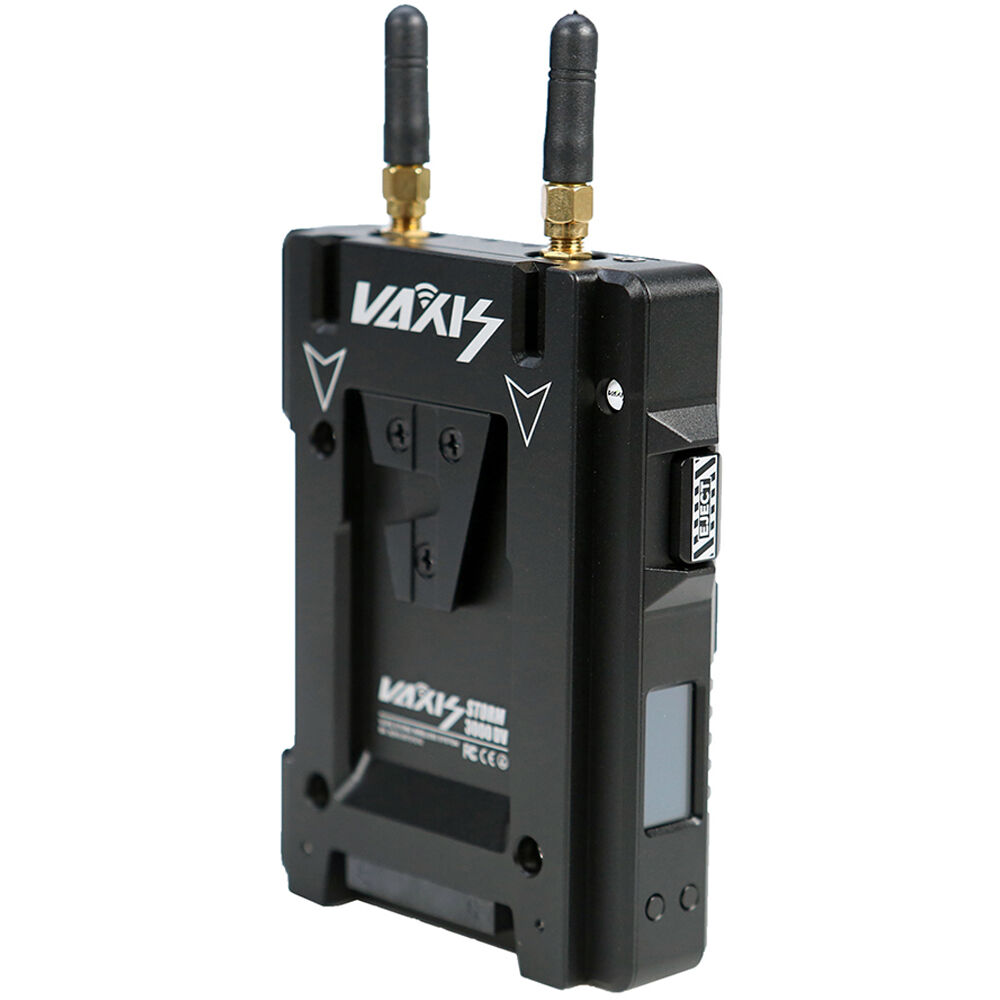

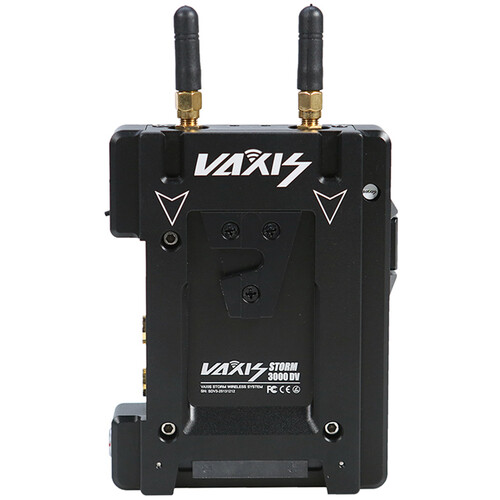

Use the Storm 3000' DV Wireless Video Transmitter from Vaxis to transmit visually lossless, uncompressed video signals to any Vaxis Storm receiver. This zero-latency unit features a dual V-mount plate which provides pass-through power to the transmitter and the camera simultaneously. The transmitter features one HDMI input, one SDI input and one SDI loop output, and it supports input up to 4K and up to 1080p60 video transmissions. This unit also supports cross conversion from HDMI input to SDI loop output.
Up to 3000' Transmission Range

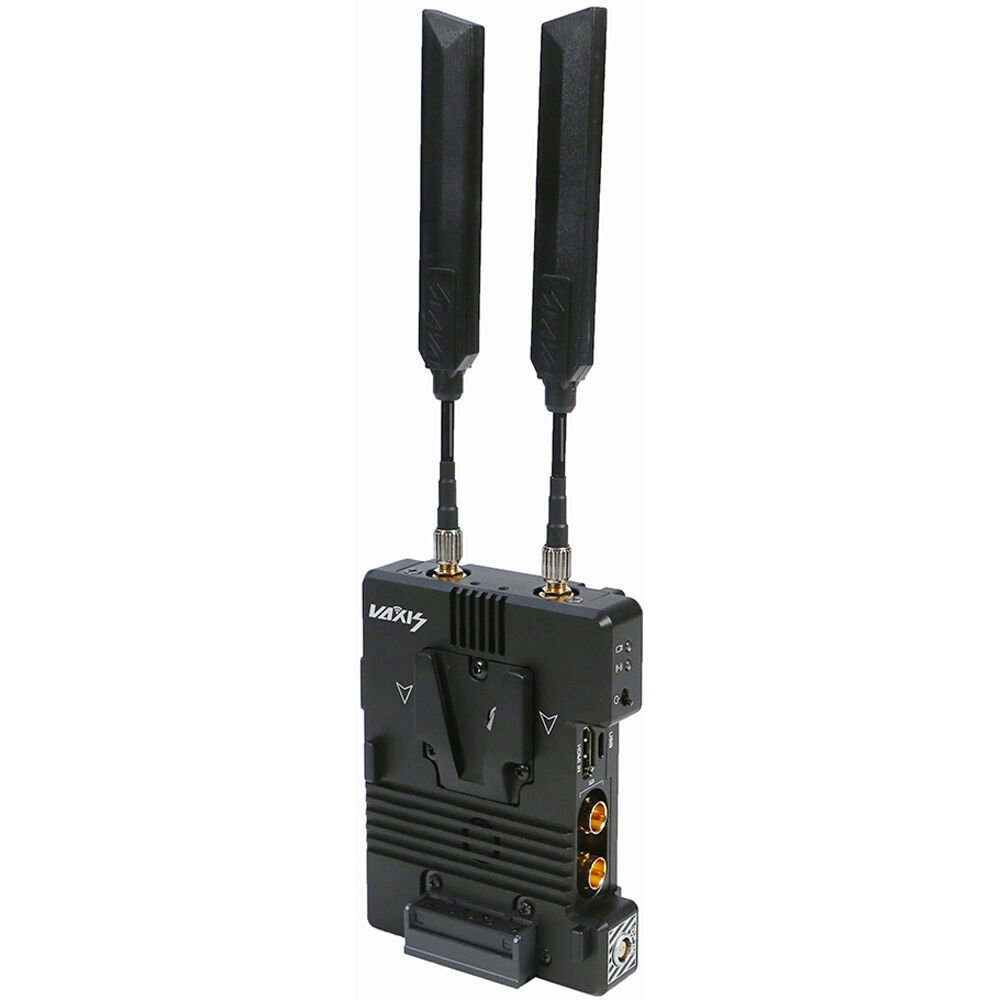

The included short antennas provide connectivity for short distances of a few hundred feet, while the larger blade antennas transmit a powerful line-of-sight signal up to 3000'. This unit also supports the transmission of timecode, metadata, and timecode trigger information.
20 Selectable Channels
The Storm 3000 transmitter features 20 selectable 40 MHz channels and a 5.1 to 5.9 GHz wireless frequency range, and on the side is a bright LED display showing your connection status and channel information. The unit can be powered using its 2-pin LEMO port using a D-Tap or AC source with a separately available cable. A standard BNC cable is included so you can plug in right out of the box.

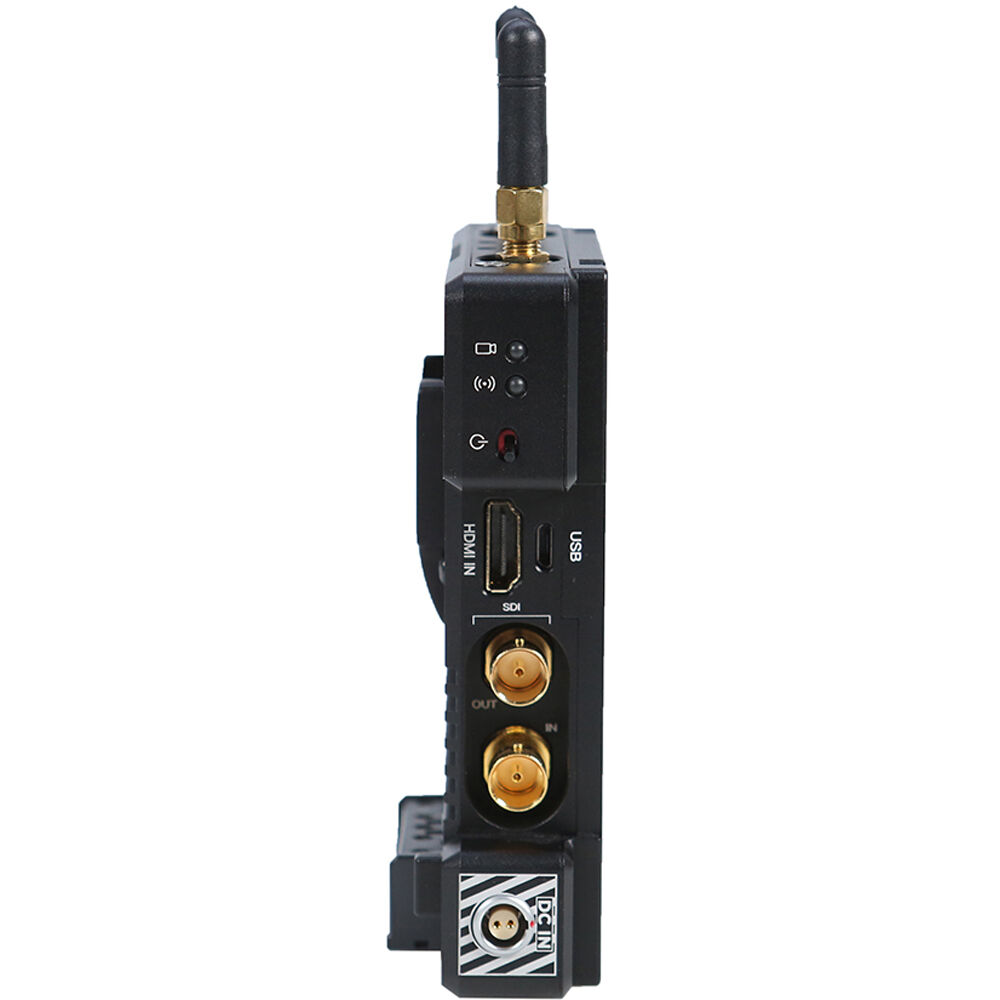

SDI and HDMI Input
One SDI (BNC) and one HDMI input; one SDI (BNC) loop output
Display Screen
Bright LCD screen for settings, status, and scanning for open frequencies on 5.1 to 5.9 GHz range
Key Specs
Touchscreen | No |
Video I/O | 1 x HDMI Input 1 x BNC (HD-SDI) Input 1 x BNC (HD-SDI) Loop Output |
Display
Panel Type | LCD |
Display Size | Not Specified by Manufacturer |
Touchscreen | No |
Antenna I/O | 2 x RP-SMA Female |
Video I/O | 1 x HDMI Input 1 x BNC (HD-SDI) Input 1 x BNC (HD-SDI) Loop Output |
Embedded Audio | Not Specified by Manufacturer |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin Input |
SIM Card Slots | None |
Wireless
Wireless Range | 3000' / 914.4 m (Line-of-Sight) |
# of Channels | 20 (40 MHz) |
Channel Bandwidth | 40 MHz |
Frequency Range | US: 5.1 to 5.9 GHz |
Latency | < 1 ms |
Wi-Fi | None |
Bluetooth | None |
Format Support
Video Format | HDMI/SDI UHD 4K 1080p |
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
Power
DC Input Power | 6 to 36 VDC |
Battery Type | 2 x V-Mount |
Mounting
Mounting | 1 x 1/4"-20 Female |
Environmental
Environmental Protection | None |
Operating Temperature | 32 to 104°F / 0 to 40°C |
General
Dimensions | 4.6 x 3.5 x 1" / 118 x 90 x 26 mm |
Weight | 10.4 oz / 296 g |
Packaging Info
Package Weight | 1.28 lb |
Box Dimensions (LxWxH) | 6.9 x 3.8 x 1.8" |
