Vaxis Storm 3000DG Wireless Receiver (Gold Mount)

Vaxis Storm 3000DG Wireless Receiver (Gold Mount)

Vaxis Storm 3000DG Wireless Receiver (Gold Mount)

  • SKU : #OIYYVS19-3000DG-R02 | MFR : #VS19-3000DG-R02
Vaxis Storm 3000DG Wireless Receiver (Gold Mount)
Vaxis Storm 3000DG Wireless Receiver (Gold Mount)
Features
  • Transmits Wireless Video up to 3000'
  • Up to 1080p Uncompressed Video
  • SDI and HDMI Inputs, SDI Loop Output
  • 1/4"-20 Mounting Thread

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 14,322.75
VAT Excl.

Vaxis Storm 3000DG Wireless Receiver (Gold Mount)

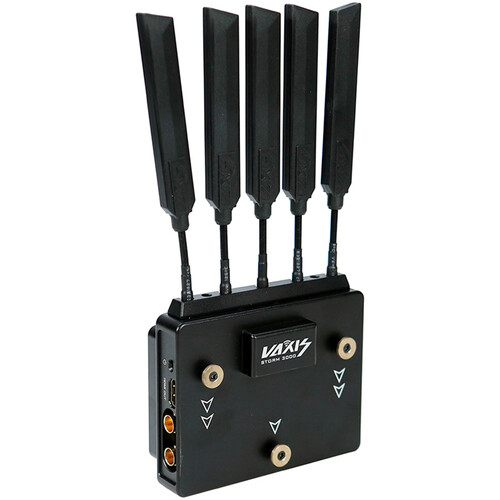

This Gold mount Vaxis Storm 3000DG Wireless Receiver can receive visually lossless, uncompressed video signals from the Vaxis Storm transmitter up to 3000' with zero latency. The receiver features two SDI outputs and one HDMI output, and it supports up to 1080p60 video transmissions. The receiver features an integrated Gold mount battery plate, and it can also be powered using its 2-pin LEMO-type connector with a separately available cable and AC or DC source. The Storm 3000 system features 20 selectable 40 MHz channels, a 5.1 to 5.9 GHz wireless frequency range, and each unit features a bright LED display showing connection status and channel information.

IN THE BOX

    • Vaxis Storm 3000DG Wireless Receiver (Gold Mount)

Key Specs

Video I/O2 x BNC (3G-SDI) Output
1 x HDMI 1.3 Output
Embedded AudioSDI: 4-Channel

Inputs / Outputs

Antenna I/O5 x RP-SMA Male
Video I/O2 x BNC (3G-SDI) Output
1 x HDMI 1.3 Output
Embedded AudioSDI: 4-Channel
Audio I/ONone
Power I/O1 x LEMO 2-Pin Input
Encryption128-Bit AES

Wireless

Wireless Range3000' / 914.4 m (Line-of-Sight)
# of Channels10
Channel Bandwidth40 MHz
Frequency Range5.1 to 5.9 GHz
LatencyNone
RF Sensitivity-75 dBm
Wi-FiNone
BluetoothNone
Mobile App CompatibleNo
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video FormatHDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i
480i
Video Standard ComplianceSMPTE 259M/274M/292M/296M/372M/424M/425M
Wireless Video CompressionUncompressed
Timecode SupportYes

Power

DC Input Power7 to 36 VDC
Battery Type1 x L-Series
Power Consumption6 W (Maximum)

Mounting

Mounting1/4"-20 Female

General

Material of ConstructionMetal
Dimensions5.3 x 3.6 x 1.1" / 135 x 92 x 27 mm, Excluding Antenna
Weight0.90 lb / 0.41 kg

Packaging Info

Package Weight1.855 lb
Box Dimensions (LxWxH)9.5 x 7 x 3.5"
