Categories: Camcorder & Camera Peripherals

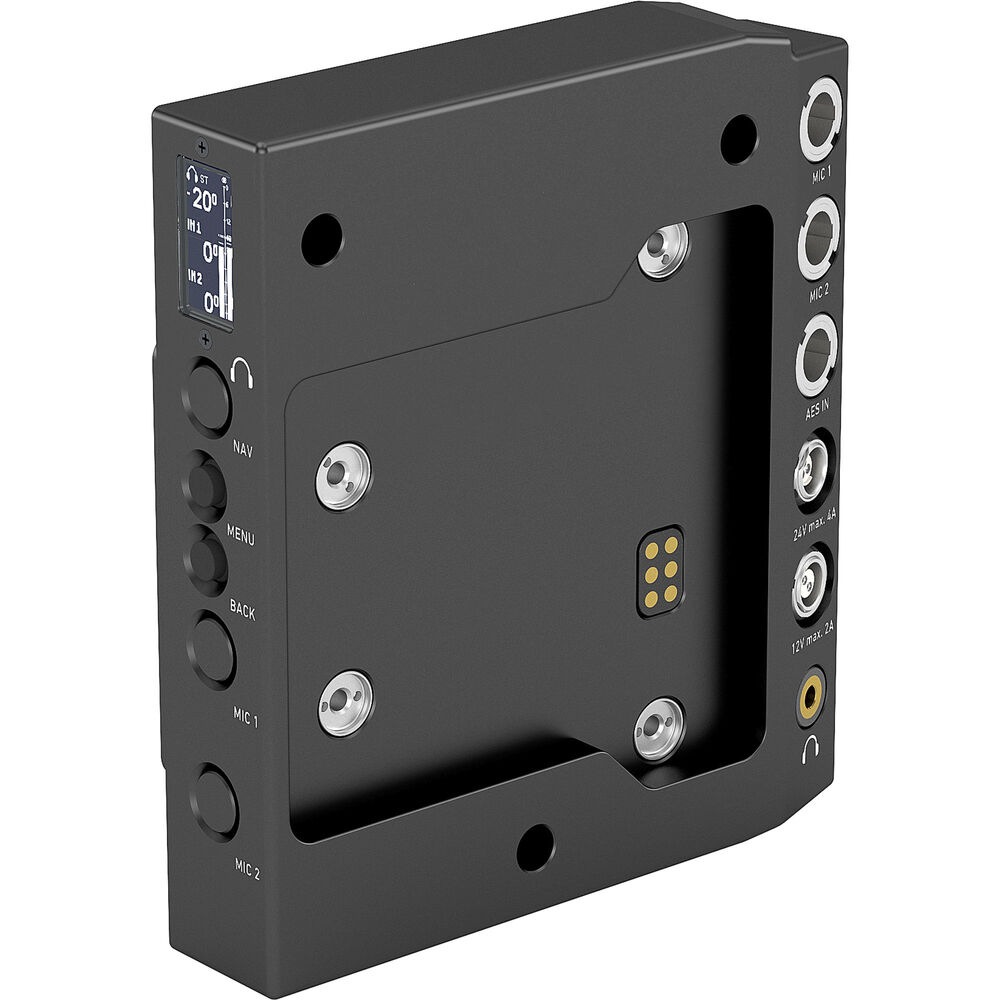

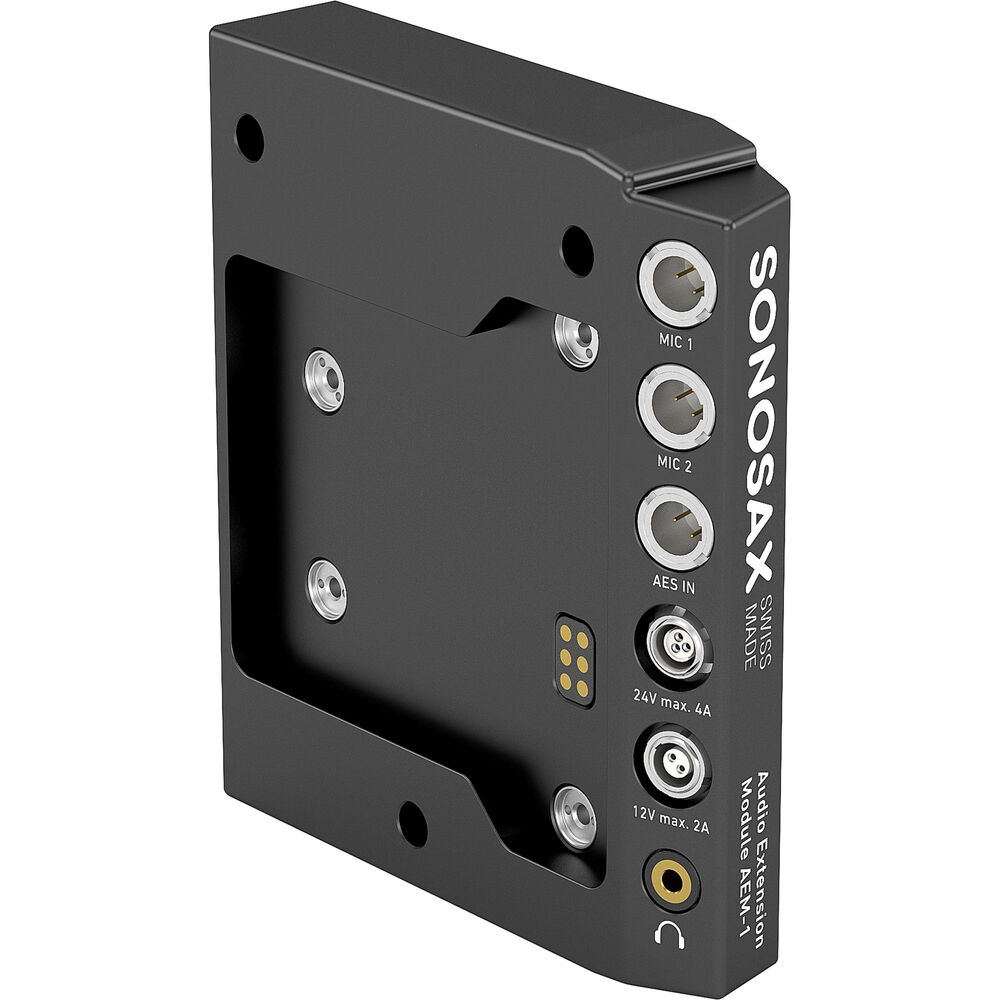

The ARRI Audio Extension Module AEM-1 mounts onto the back of your ALEXA 35 cinema camera and is designed to add mic and line audio inputs with internal electronic controls. The module features two balanced mini-XLR inputs with 48V phantom power, a low-cut filter, and level control. It also features an additional mini-XLR input with AES3/AES42 support with phase reversal and level control. A 3.5mm line/headphone jack with amplifier allows you to monitor and output the audio inputs. The module also features a 12V 2-pin LEMO and a 24V RS power output to provide power and run/stop to accessories.
General
| Compatibility | ARRI ALEXA 35 |
| Inputs | 2 x Mini-XLR Mic/Line (TA3), Balanced 1 x Mini-XLR AES3/AES42 (TA3), Balanced |
| Phantom Power | 48 V |
| Audio Output | 1 x 3.5mm Stereo Line/Headphone |
| Power Outputs | 1 x 12 VDC 2-Pin LEMO 1 x 24 VDC R/S |
Physical
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 1.505 lb |
| Box Dimensions (LxWxH) | 8.4 x 7.7 x 2.2" |
