Astera FP6 HydraPanel LED 4-Light Kit with Charging Case

Astera FP6 HydraPanel LED 4-Light Kit with Charging Case

Name: Astera FP6 HydraPanel LED 4-Light Kit with Charging Case
Brand: ASTERA
SKU: SF-2443-ZBGZ
Availability: InStock

Brand: ASTERA

MFR: FP6-SET-4-US SET

SKU: SF-2443-ZBGZ

Price Available Upon Request

Measures 6.5 x 3.3 x 1.7"
Up to 1300 Lumens Output
1750-20,000K CCT
CRI 96 | TLCI 96

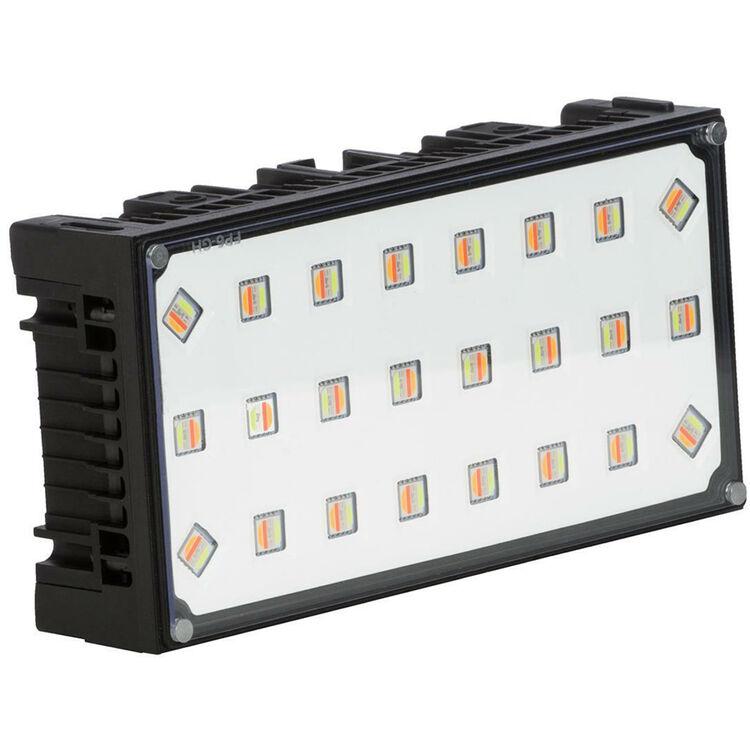

Full-Spectrum Titan LED Engine
Infrared Remote and DMX, App Control
IP65 Rating
Multiple Mounting Options
Modifiers Included

Items Included

Astera FP6 HydraPanel LED 4-Light Kit with Charging Case
4 x FlexBase
4 x Diffuser Sheet 100
4 x Intensifier 80
4 x Soft Frame 100
4 x Egg Crate 40
4 x Egg Crate 60
4 x Gel Holder
3 x Connector Plate
4 x BabyPin 1/4"

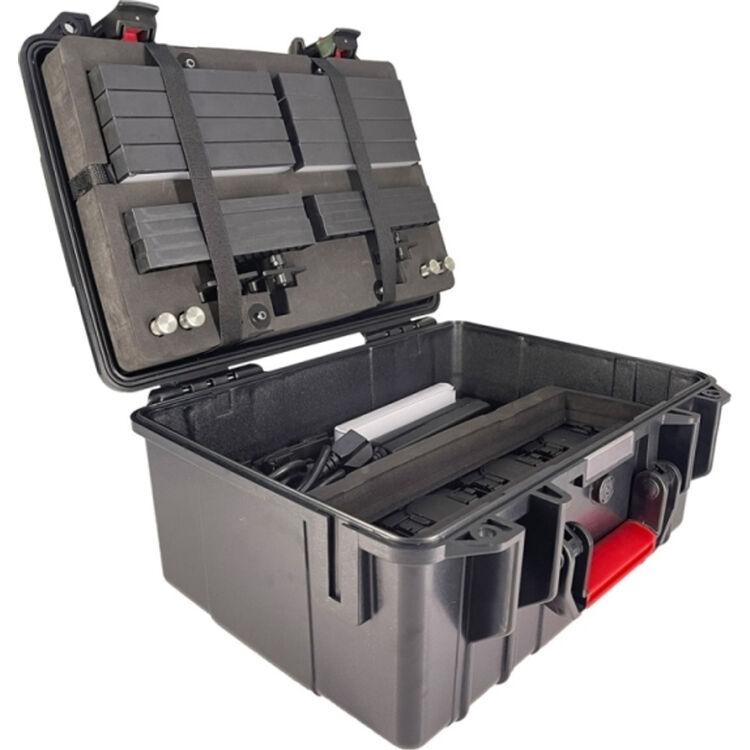

Charging Case

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

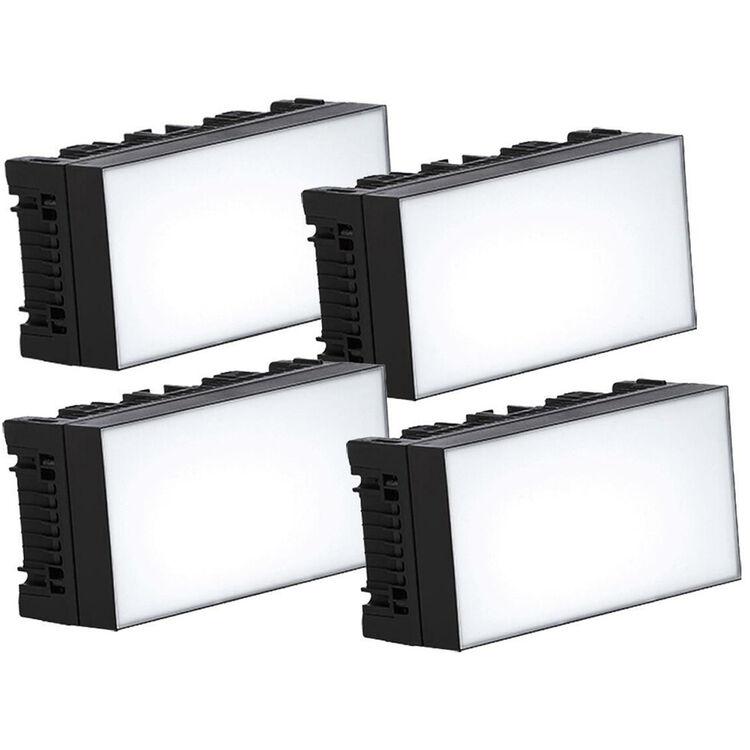

The FP6 HydraPanel LED 4-Light Kit with Charging Case from Astera measures 6.5 x 3.3 x 1.7" and is ideal for studio or location work. Ideal for film and stage applications, it offers direct or indirect illumination of people, objects, or scenery. The adjustable color temperature ranges from a wide 1750 to 20,000K and it has 96 CRI and TLCI to ensure color accuracy. Its full-spectrum titan LED engine generates an impressive output of 1300 lumens and it will run for an hour and 45 minutes at maximum brightness on its built-in battery power.

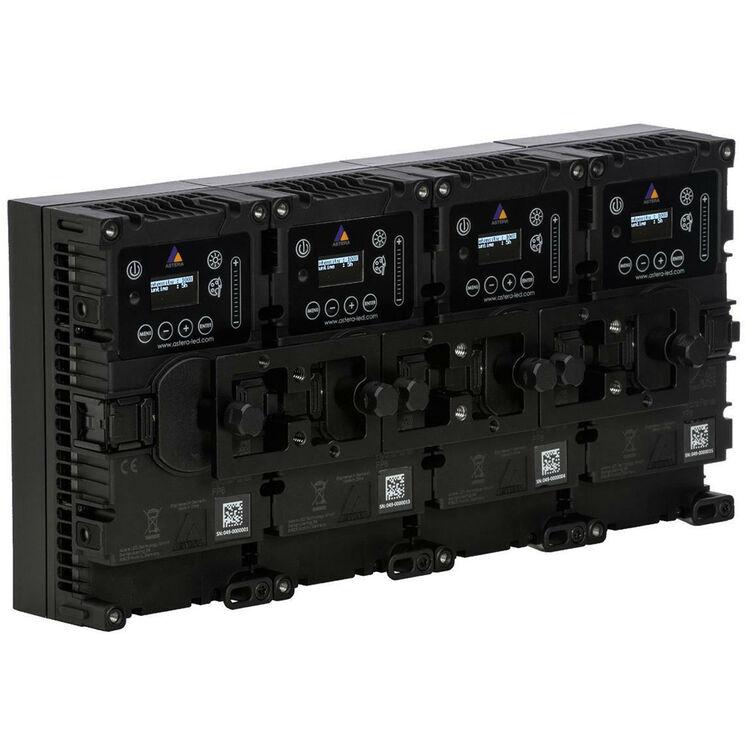

Included are four lightweight panels and various modifiers including four diffusers, egg crates, and gel holders. The HydraPanel can be mounted via its included FlexBase accessory, Baby pin, or rear magnet. The panels come with a power supply for Hyperion tube lights, three 200mm power and data combination cables, plus a convenient charging case for storage and transportation. With the included connector plates, the four panels can be combined for synchronized control.

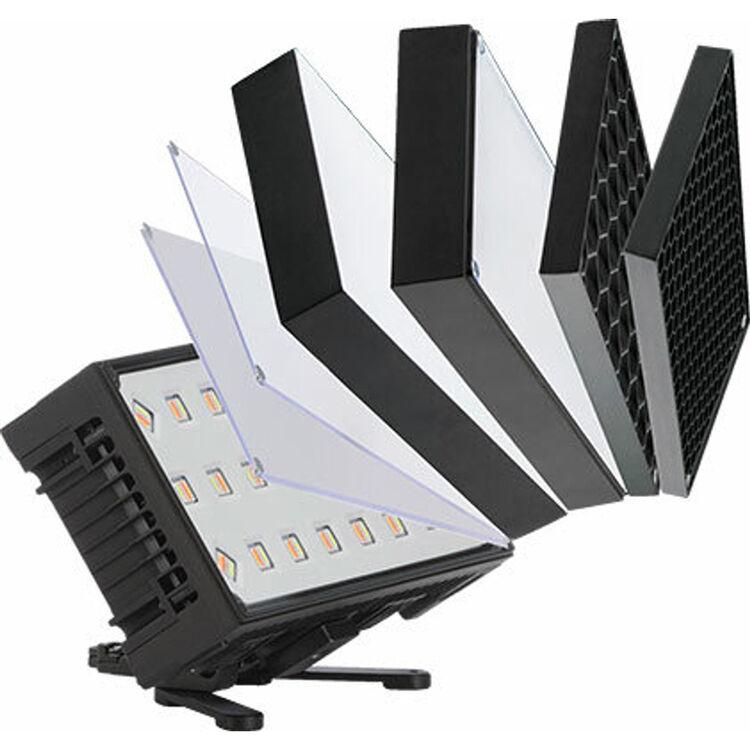

Multiple Light Modifiers

The HydraPanel includes a wide range of light modifiers that can be easily clipped to the surface of the panel via four magnets.

Diffuser sheet 100 softens the beam and can be combined with egg crates
Intensifier 80 creates soft shadows while maintaining brightness and can also be combined with egg crates
Egg crate 40 and egg crate 60 narrow the beam spread and reduce spill light on the side
Soft frame 100 creates soft shadows and gives the HydraPanel a consistent surface

Unique Features

The HydraPanel delivers unique features such as Talkback+, seamless runtime, TruColor calibration, effects, green/magenta correction, scheduled standby, dynamic PowerBoost, emergency lights, anti-theft, DJ, and more available with the Astera app.

Talkback+ detects, sets, and checks the status of your light and configures DMX addresses and profiles.
Seamless runtime sets the length of your production
TruColor calibrates the light for color consistency and exact color reproduction of color temperature and filter gels
Effects quickly build programs from colors and effects
Flicker free so there will be no flickering while filming
Green/magenta correction adjusts green/magenta during content creation to reduce postproduction work
Scheduled standby sets the light to wake up when the production starts
Dynamic PowerBoost displays maximum brightness at all times and intensifies non-white colors
Emergency lights switch to white light when AC power is cut to keep your event safe
Anti-theft feature where the light produces visual and audible alarms and sends a notification to the app if it is being moved during an event
DJ feature analyzes and matches the beat

Smart Control System

The fixture enables infrared remote, wired DMX or wireless CRMX, and app control via Bluetooth to create big setups that can be quickly and conveniently installed, monitored, and adjusted. The device can also be partially controlled by its integrated display with a touch slider. The integrated control panel has buttons so you can directly navigate through the main menu for color adjustments, brightness, and runtime settings.

Light Fixture

Item Type	4x LED Light Panel
Included Light Modifier	8x Grid/Louver 4x Intensifier
Included Filters	Diffusion
Included Storage Case	Yes
Lumens	1102 (at 3200K) 1287 (at 4000K) 1298 (at 5500K)
Photometrics	3200K: 41 fc / 443 Lux at 3.3' / 1 m 4000K: 47 fc / 512 Lux at 3.3' / 1 m 5500K: 47 fc / 516 Lux at 3.3' / 1 m
Color Temperature	1750 to 20,000K
Color Modes	RGB
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	App-Controlled / Built-In Dimmer / DMX
Cooling System	Passive
Beam Angle	Vertical: 100° Horizontal: 110°
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth CRMX
Mobile App Compatible	Yes: Android & iOS App Name: AsteraApp Functionality: Remote Control
Wireless Range	9.8' / 3 m (Bluetooth)

Power & I/O

Power Source	Battery (Built-In) AC to DC Adapter (Included)
Inputs/Outputs	1x Barrel / Coax (2.1 x 5.5 mm) Power Input (24 VDC) 1x Barrel / Coax (2.1 x 5.5 mm) Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Battery	1x Rechargeable (Built-In) • Up to 20-Hour Runtime • 3-Hour Charge Time
Battery Charging	1x AC to DC Adapter (Included)
Input Power	24 VDC at 0.8 A 90 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B to Barrel / Coax AC to DC Adapter 3x Barrel / Coax (2.1 x 5.5 mm) to Barrel / Coax (2.1 x 5.5 mm) Cable
Inline Switch	No
Power Pass-Thru	Yes
Power Consumption	17 W

Mounting

Fixture Mounting	3x M5 Female Thread 2x 1/4"-20 Female Thread (Via Hardware) 1x 3/8"-16 Female Thread (Via Hardware) 1x M5 Female Thread (Via Hardware) Magnetic
Included Adapter	1x 5/8" Stud with 1/4"-20 Male Screw

General

Display	Yes
Environmental Resistance	Dust/Water-Resistant (IP65)
Materials	Metal, Polymer (Housing)
Dimensions	6.5 x 3.3 x 1.7" / 16.51 x 8.38 x 4.32 cm (Fixture)
Weight	1.3 lb / 0.6 kg
