Astera PixelBrick Wireless Multi-Purpose LED Light

Astera PixelBrick Wireless Multi-Purpose LED Light

Name: Astera PixelBrick Wireless Multi-Purpose LED Light
Brand: ASTERA
SKU: SF-2443-0MYX
Availability: InStock

Brand: ASTERA

MFR: PB15

SKU: SF-2443-0MYX

Price Available Upon Request

2700-6500K Uplight / Spotlight
RGB + Mint + Amber Full Spectrum Colors
RGB, HSI, and CCT Control
Connects to Additional PixelBricks Units
AsteraApp Remote Control (Bluetooth)
Wired and Wireless DMX
5 Beam Options
Built-In Battery
IP65-Rated Weatherproof
Stand and Hanging Mount Included

Items Included

Astera PixelBrick Wireless Multi-Purpose LED Light
BrickBracket
BrickConnect
17° BeamSoftener
30° Flood Filter
2 x DC Socket Cover

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

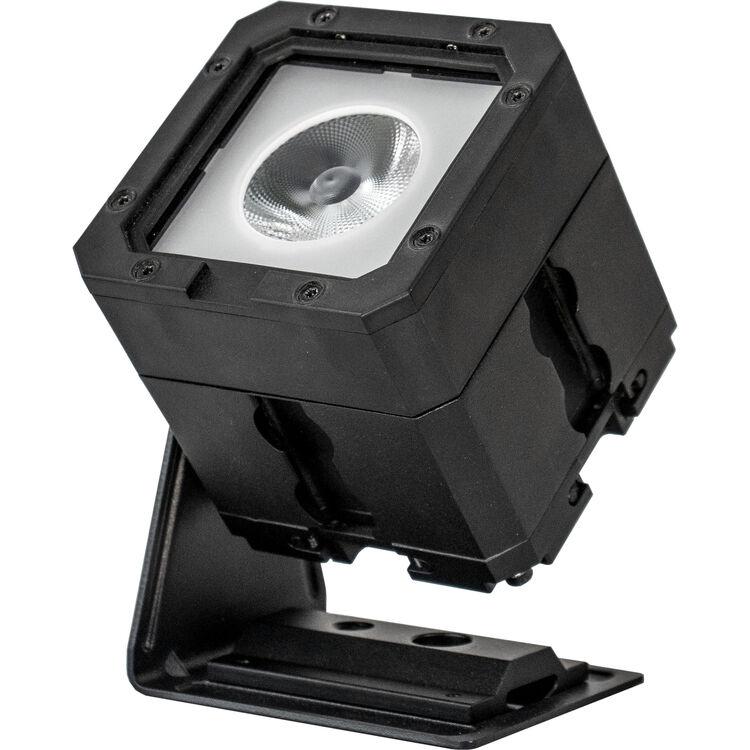

The Astera PixelBrick is a compact, battery-powered multi-function LED light with a high-quality 2700 to 6500K output for film, TV, and stage production. It can be used as an uplight and spotlight with 5 different beam options. Featuring RGB (+ mint + amber), HSI, and CCT control, PixelBrick can add standout colors and white tones to any wall or object. Its native 13° beam can be modified with up to several filters, such as the included 30° flood filter.

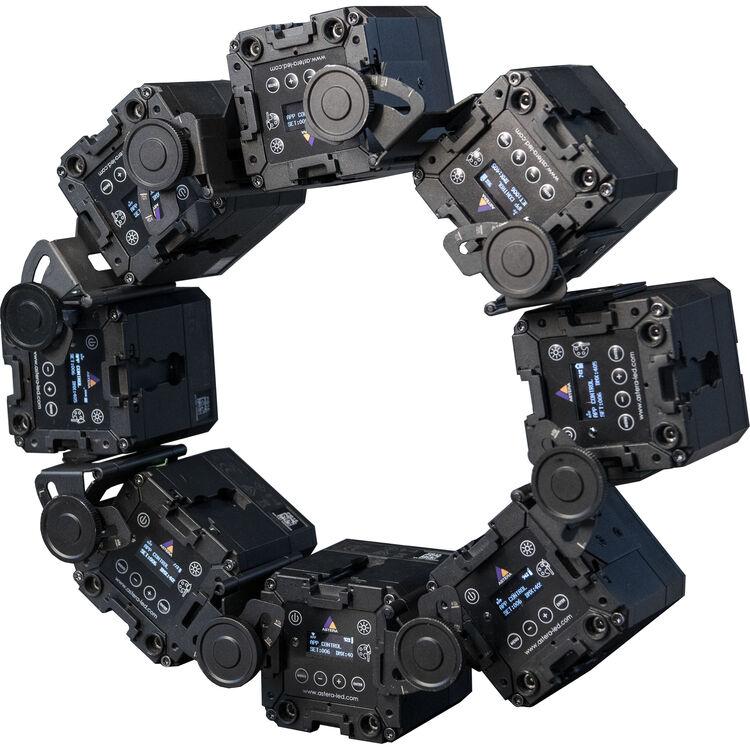

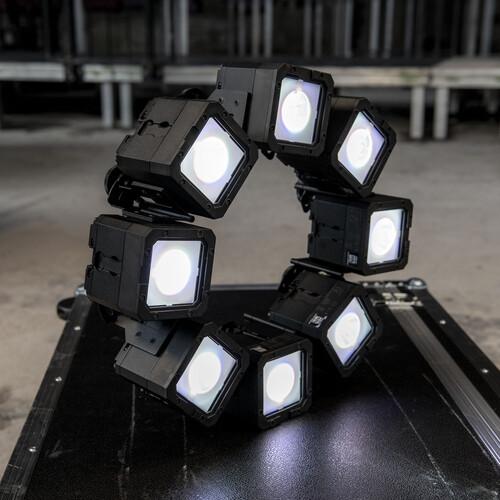

Multiple PixelBrick units can be connected to form clusters and shapes. You can arrange several or more PixelBricks in geometrical shapes or build a matrix. Each PixelBrick comes with the connectors necessary to link an additional unit. Moreover, you can add domes to change the output from a beam to a pixel look.

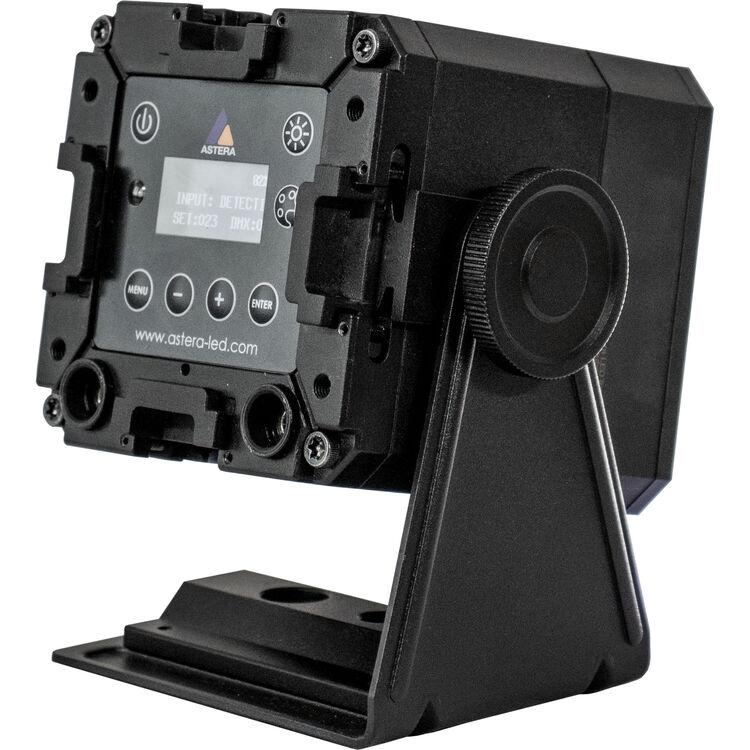

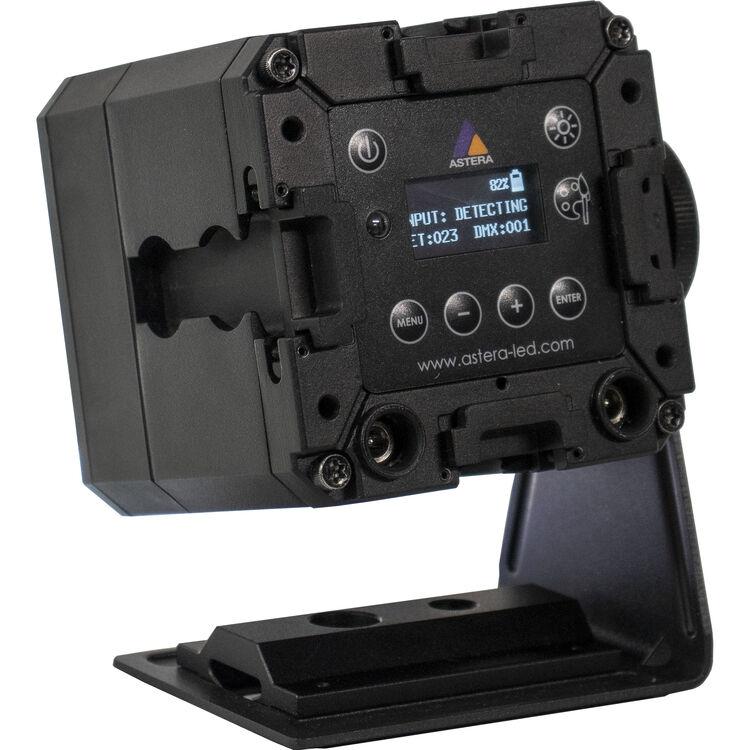

Dedicated onboard buttons allow easy control over brightness and HSI colors. Additionally, featuring built-in Bluetooth, the PixelBrick can be operated remotely with the AsteraApp for iOS and Android. AsteraApp offers intuitive and fast control of complex lighting setups and is also used for monitoring the PixelBrick. The light also features a wireless DMX module made by LumenRadio, allowing it to be controlled by CRMX and W-DMX transmitters alongside other wireless fixtures.

PixelBrick is IP65 waterproof and dustproof. The battery is built-in and runs up to 20 hours on a three-hour charge. A charging cable for the battery is sold separately. You can use the optional Astera Charger (FP1-CHR), or any standard power supply with a 2.1 x 5.5mm barrel plug.

Included Accessories

BrickBracket

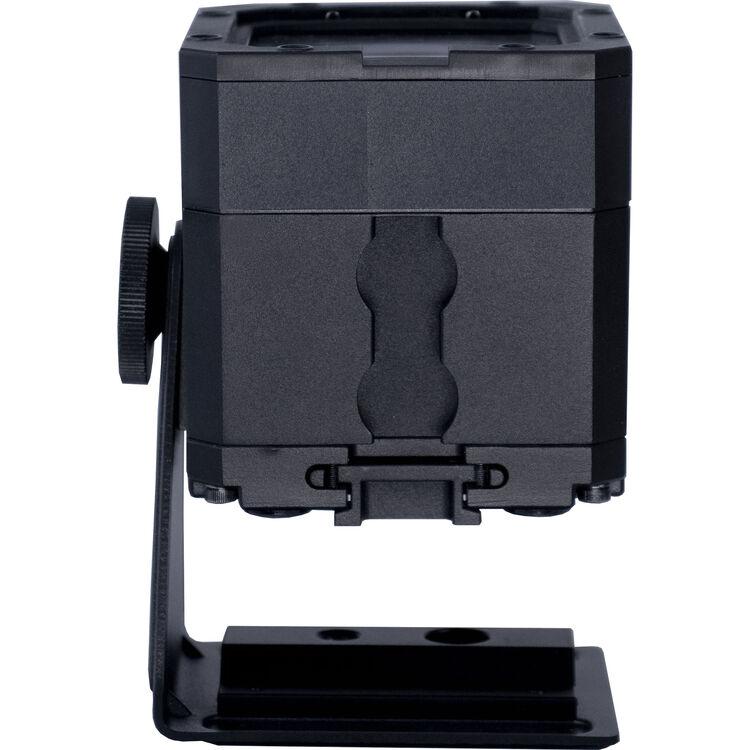

Functions as a stand and hanging mount with an airline track and 1/4"-20 thread.

BrickConnect

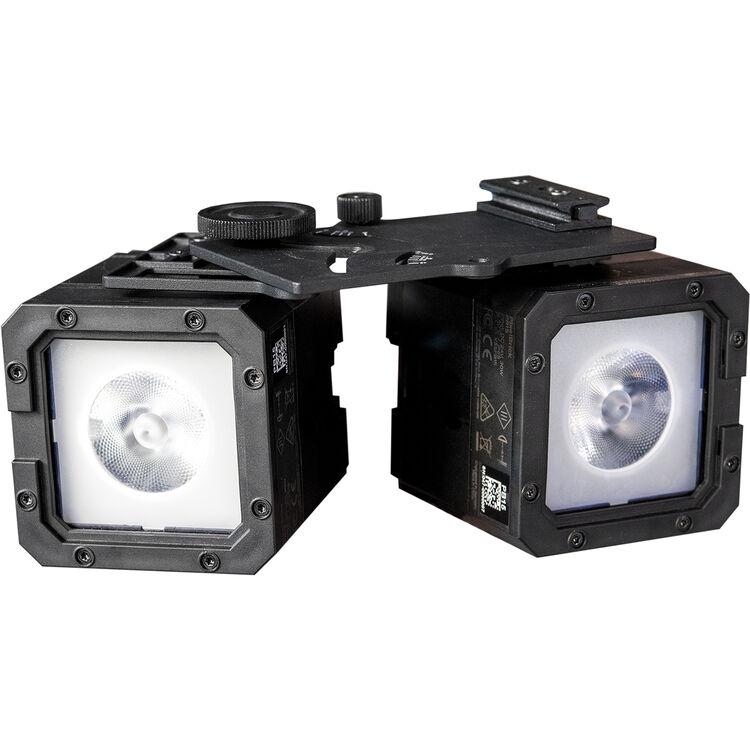

Connect two PixelBricks side by side.

17° BeamSoftener

Inserts into the PixelBrick and functions as a softlight.

30° Flood Filter

Increases the beam angle for larger areas.

Additional Features

Seamless Runtime

To ensure that your light's battery lasts throughout your entire production, you can select how many hours you want it to last. This results in limiting the light's output to a maximum brightness level that achieves the selected runtime.

Effects

Quickly build programs out of colors and effects, and trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Anti-Theft

When enabled, the integrated theft alarm gives a visual and audible alarm if the light is being moved. In addition, the AsteraApp also shows the alarm.

Emergency Light

With this innovative feature, the PixelBrick can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

Light Fixture

Item Type	1x LED Light Cube / Spot Light
Included Storage Case	No
Lumens	450 (at 2700K) 475 (at 3200K) 395 (at 5500K)
Photometrics	13° at 2700K: 574 fc / 6178 Lux at 3.3' / 1 m 13° at 3200K: 664 fc / 7144 Lux at 3.3' / 1 m 13° at 5500K: 556 fc / 5985 Lux at 3.3' / 1 m
Color Temperature	2700 to 6500K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	App-Controlled / Built-In Dimmer / DMX
Cooling System	No
Beam Angle	13°
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth CRMX
Mobile App Compatible	Yes: Android & iOS App Name: AsteraApp Functionality: Remote Control
Wireless Range	984.3' / 300 m 9.8' / 3 m (Bluetooth)

Power & I/O

Power Source	Battery (Built-In) AC to DC Adapter (Not Included)
Inputs/Outputs	Light Fixture 1x Barrel / Coax (2.1 x 5.5 mm) Power/Remote Input (24 VDC at 0.8 A) 1x Barrel / Coax (2.1 x 5.5 mm) Power/Remote Output
Battery	1x Rechargeable (Built-In) • Up to 20-Hour Runtime • 4-Hour Charge Time
Battery Charging	1x AC to DC Adapter (Not Included)
Input Power	24 VDC at 0.8 A 100 to 240 VAC, 50 / 60 Hz
Inline Switch	No
Power Pass-Thru	Yes
Power Consumption	20 W

General

Display	Yes
Environmental Resistance	Dust/Water-Resistant (IP65)
Operating Conditions	32 to 104°F / 0 to 40°C
Certifications	CE, EU, IC, PSE, REACH, RoHS
Materials	Aluminum (Housing)
Dimensions	3.7 x 3.6 x 3.6" / 9.4 x 9.1 x 9.1 cm (Fixture)
Weight	2.47 lb / 1.12 kg
