Astera QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery

Astera QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery

Name: Astera QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery
Brand: ASTERA
SKU: SF-2443-TC30
Availability: InStock

Brand: ASTERA

MFR: QUIKBEAM WITH BATTERY

SKU: SF-2443-TC30

Price Available Upon Request

For Studio & Film/TV Production
Output: 20,646 Lux at 3.3'
2700-6500K Color Temperature
RGB, Mint & Amber Colors
Beam Angle: 13 to 60°
Onboard, DMX, CRMX & App Control
CRI 96 | TLCI 96
Power over Ethernet (PoE+/PoE++)
Battery Powered
Multiple Mounting Options

Items Included

Astera QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

The QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery is a zoomable, Fresnel-based LED fixture designed for film, broadcast, and event lighting applications. It delivers high-quality white and full-color output with excellent color rendering and precise beam shaping through its integrated Fresnel optical system, enabling flexible use as a key light, accent light, or theatrical spotlight.

Color Accuracy & Control

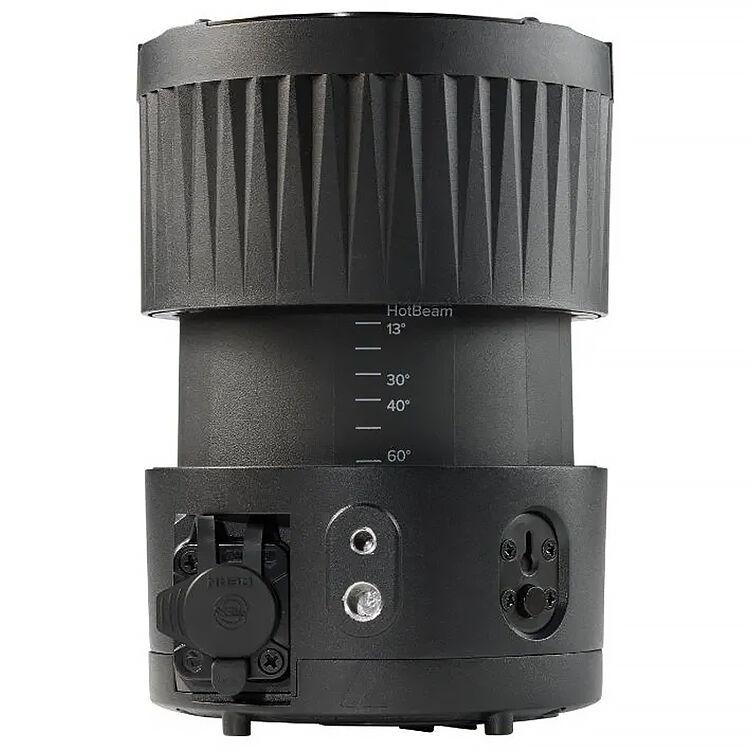

Powered by the Titan LED Engine, the RGB (+ mint + amber) color mixing produces accurate white light and saturated colors across a wide spectrum. The CRI and TLCI ratings of 96 or higher offer professional color fidelity in film and broadcast workflows. Its Fresnel lens provides a continuously adjustable beam angle from 13 to 60°, allowing precise shaping for focused highlights or wide-area coverage depending on application requirements.

Fixture Control and Connectivity

The QuikBeam integrates comprehensive wired and wireless control systems for professional production environments. Supported control methods include:

Wireless CRMX for cable-free DMX control
Art-Net and sACN over Ethernet
Bluetooth connectivity via AsteraApp
Infrared remote control
Integrated display with onboard controls
Wireless RDM monitoring and configuration

Wireless CRMX and UHF control provide reliable operation at distances up to 330 yd, supporting large-scale productions and complex lighting systems. The fixture can also function as a Bluetooth Bridge, enabling communication with other Astera lighting devices in networked environments.

Rugged Build and Mounting Flexibility

The QuikBeam can be used in a standing or hanging position. It features durable construction designed for professional rigging and field use. It includes:

Removable yoke with a 3/8"-16 thread and a 1/2" hole for attaching suitable mounting accessories
Built-in kickstand for ground placement
1/4"-20 and 3/8"-16 mounting threads
Airline track compatible mounting options

Multiple Powering Options

The QuikBeam can be powered by:

Power over Ethernet (PoE+/PoE++): Power over Ethernet (PoE) combines power and data in a single cable, simplifying setups, reducing clutter, and giving you more flexibility. With it, cables can reach up to 328', standard sACN and ArtNet signals are supported, and the swappable battery can charge while connected. PoE also enables bi-directional communication, so IP or DMX addresses can be set remotely even after installation.
QuikBrick battery: The QuikBrick battery enables wireless operation and supports up to 20 hours of runtime depending on the output level with 80 minutes of of runtime at maximum brightness. It is a swappable battery that becomes fully waterproof when inserted into QuikBeam, designed for uninterrupted workflows and fast rental turnaround. It charges via PoE while docked in the back of QuikBeam

Light Fixture

Item Type	1x LED Spot Light
Included Storage Case	No
Lumens	1124 (at 2700K) 1190 (at 3200K) 1239 (at 4000K) 1285 (at 5500K) 1224 (at 6500K)
Photometrics	13° at 3200K: 1721 fc / 18,531 Lux at 3.3' / 1 m* 191 fc / 2059 Lux at 9.8' / 3 m 13° at 5500K: 1918 fc / 20,646 Lux at 3.3' / 1 m* 213 fc / 2294 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	3200 to 6500K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	App-Controlled / Built-In Dimmer / DMX / RDM (Continuous) • 0 to 100%
Cooling System	No
Beam Angle	13 to 60°
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	CRMX Bluetooth Wi-Fi IR *Remote Not Included
Mobile App Compatible	Yes: Android & iOS App Name: AsterApp Functionality: Firmware Update, Remote Control, Setup
Wireless Range	984.3' / 300 m (Radio/RF) 9.8' / 3 m (Bluetooth)

Power & I/O

Power Source	Battery (Included) Power Over Ethernet (PoE)
Inputs/Outputs	1x RJ45 Network/PoE Input
Battery Plate Type	1x Proprietary (Built-In)
Battery	1x Proprietary Rechargeable Lithium-Ion, 3200 mAh, 35 Wh (Included) • Up to 80-Minute Runtime at Maximum Brightness • Up to 20-Hour Runtime • 180-Minute Charge Time
Battery Charging	Charging Cable (Not Included)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	40 W (Maximum)

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 1/4"-20 Female Thread 1x 3/8"-16 Female Thread 1x Unthreaded Hole (Via Yoke Mount)

General

Display	Yes
Environmental Resistance	Dust/Water-Resistant (IP65)
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	ø: 4.75 x H: 5.35" / ø: 12.06 x H: 13.59 cm 9.48 x 6.84 x 4.93" / 24.08 x 17.37 x 12.52 cm (Fixture with Yoke)
Weight	3.17 lb / 1.44 kg (Fixture without Battery) 3.56 lb / 1.61 kg (Fixture with Battery)
