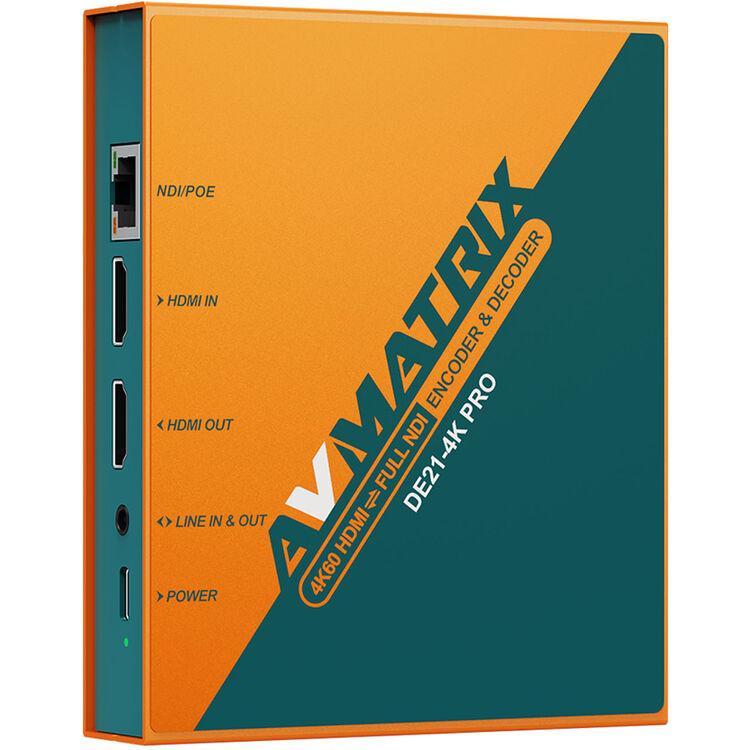

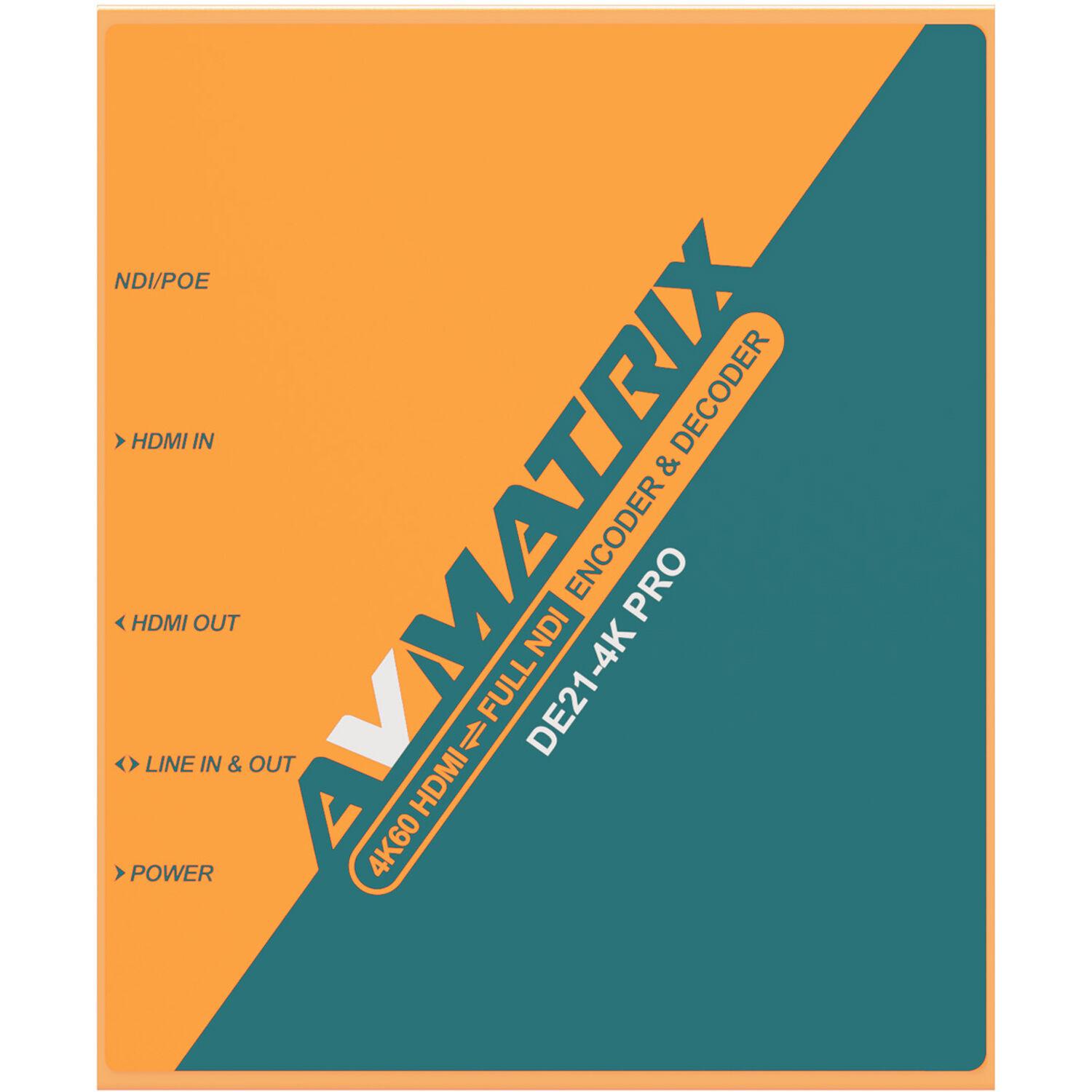

AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder
AVMATRIX 4K HDMI/NDI Encoder & Decoder

AVMATRIX 4K HDMI/NDI Encoder & Decoder

Brand: AVMATRIX

MFR: DE21-4K PRO

SKU: SF-2443-SWJD

2,800.00 ﾹ

  • Live Stream or Decode up to 4K60 Video
  • Front Touch Panel and Web Control
  • HDMI/NDI Bidirectional Conversion
  • USB-C and PoE Dual Power Supply
  • Audio Embedding and De-Embedding
  • Tally Indicator

Items Included

  • AVMATRIX 4K HDMI/NDI Encoder & Decoder
  • Power Adapter (5V, 2A)
  • USB-A to USB-C 2.0 Power Cable
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Signal Processing & Distribution

Encode HDMI video to an NDI network or decode NDI video to an HDMI setup with the 4K HDMI/NDI Encoder & Decoder from AVMATRIX. This compact unit provides bidirectional encoding or decoding from HDMI to NDI or from NDI to HDMI. Features include PoE power, tally, web and touch control, audio embedding/de-embedding, and support for up to 4K60 video.
Bidirectional Video Conversion

The DE21-4K Pro provides conversion between full NDI and HDMI in either direction, and it supports up to 4K60 4:2:2 video resolution. The HDMI output port can also serve as a loop output for the encoded video.



NOTE: The encoding/decoding operates in only one direction at a time, not simultaneously.

Status Display with Tally

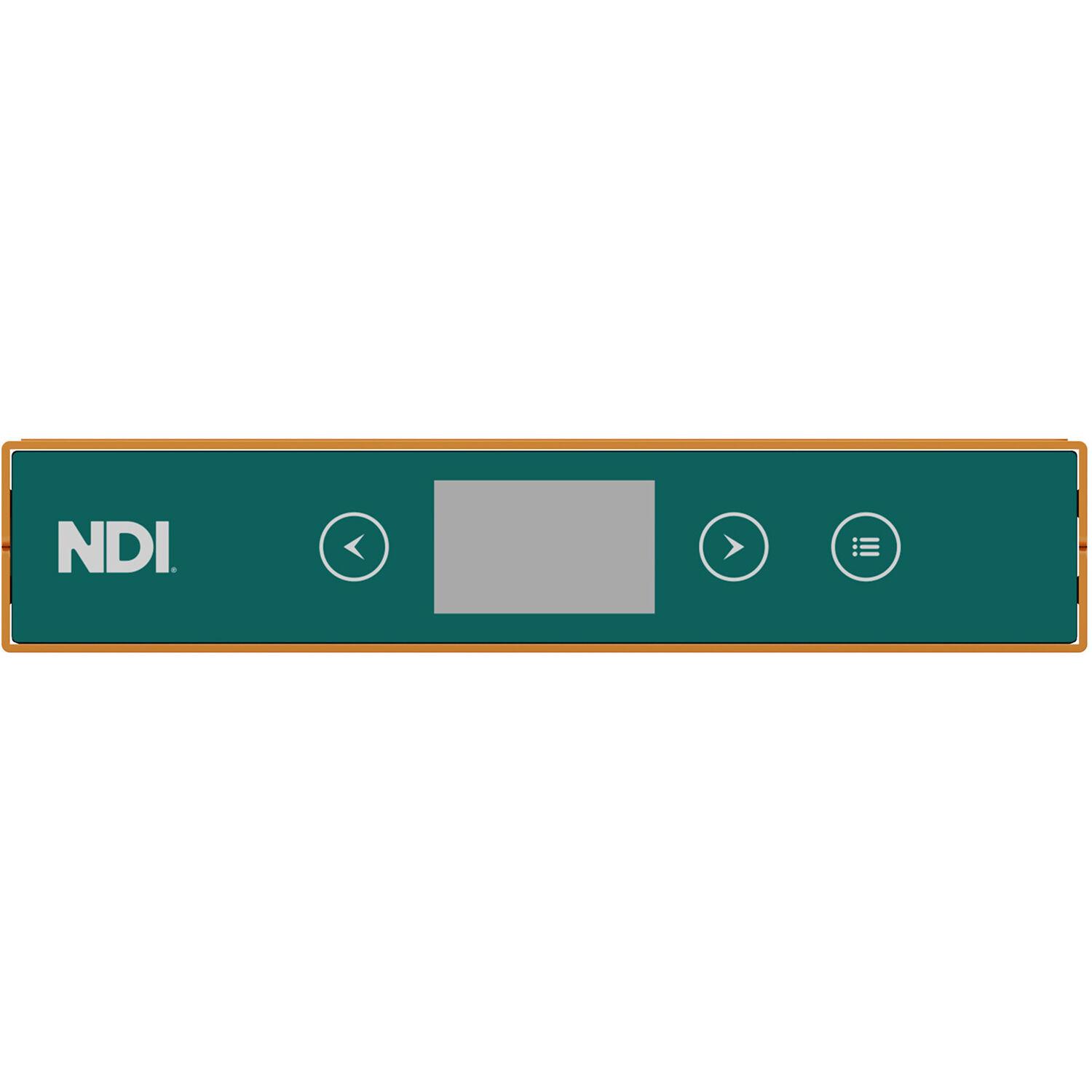

The front panel features an LCD that features real-time tally lights, network status, and various stream statistics. There are touch buttons that provide fast selection and adjustment.
Dual Power Options
The unit can be powered using either USB-C with a power supply, or it can be powered via PoE over the Ethernet connection used for NDI.
Audio Embedding and De-Embedding
The encoder/decoder supports embedded audio, and you can also embed analog audio via a 3.5mm input into your stream, or you can de-embed from the stream to a 3.5mm analog output.
Web-Based Management
A built-in web server allows you to configure and control the encoder/decoder from a web browser.

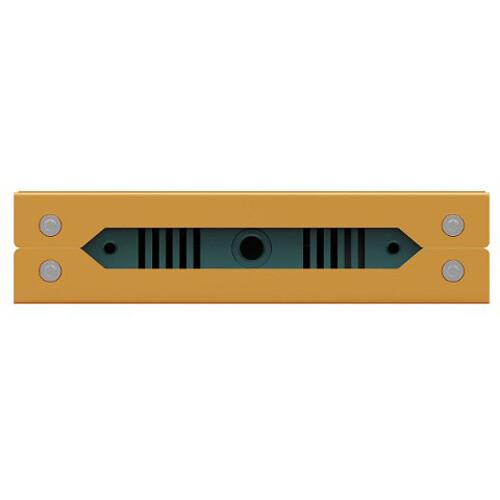

Mounting Options
You can mount the compact unit using separately available cold shoe or rackmount kits to accommodate racks, camera rigs, or production vans.






Inputs/Outputs
Video I/O
Input
1x HDMI
1x RJ45 (NDI)
Output
1x HDMI
1x RJ45 (NDI)
Audio I/O
Input
1x 1/8" / 3.5 mm TRS Stereo Analog Female (Switchable)
Expansion Slots
No
Format Support
Video Resolution
HDMI Input/Output
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2560 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
RJ45 Input/Output
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2560 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Embedded Audio
HDMI/NDI
Reclocking
No
Standards
HDR Support
No
IP Streaming
IP Video
Encoding via H.264/H.265
4096 x 2160 (250 Mb/s)
Transport Protocols
NDI
Hardware
Wireless
No
Power
Power I/O
1x USB-C (12 VDC at 4 A) Input
PoE Support
Yes: PoE 802.3af
Power Consumption
Device: 5 to 18 VDC (5 W)
General
Operating Conditions
-22 to 140°F / -30 to 60°C
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
4.9 x 4.1 x 1" / 125.5 x 104 x 24.5 mm
Weight
17.7 oz / 501 g
