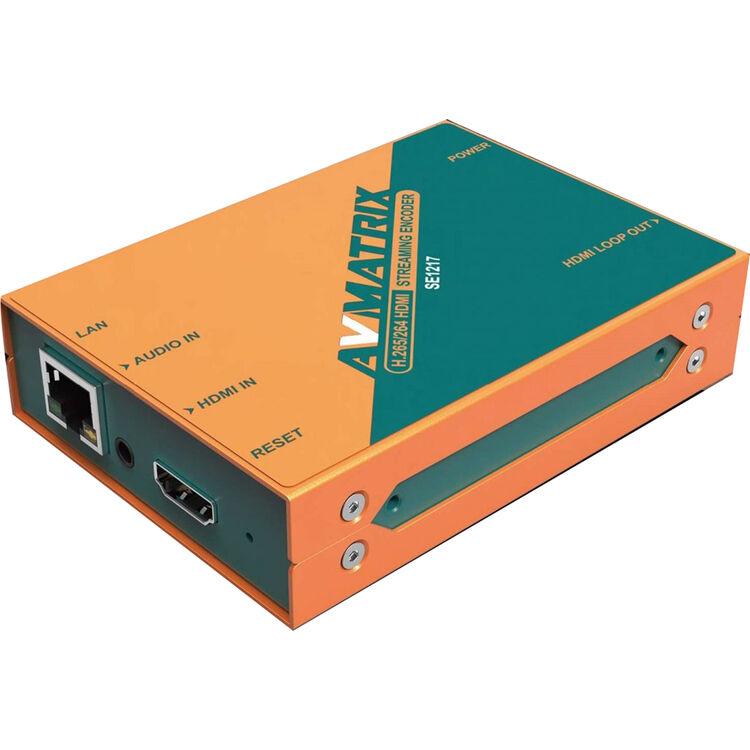

Designed for both unicast and multicast use, the SE1217 H.265/264 HDMI Streaming Encoder from AV Matrix supports both LAN and WAN streaming. This encoder features simultaneous main– and sub–streaming and compatibility with all major streaming platforms.
The SE1217 encoder supports a variety of video resolutions up to 1080p60 and features image and text overlay and mirror image and flip functions. It can be used for streaming without requiring the use of a computer and comes with a power supply.
| Video Inputs | 1x HDMI |
| Audio Inputs | 1x 1/8" / 3.5 mm TRS Stereo Analog |
| Video Outputs | 1x HDMI (Loop Output) |
| Audio Outputs | No |
| Other I/O | 1x RJ45 LAN |
| Expansion Slots | No |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps |
| Input Audio Format | Analog |
| Output Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps |
| Embedded Audio | HDMI |
| HDR Support | Not Specified by Manufacturer |
| Video IP Encoding | H.264, H.265: 640 x 360 to 1920 x 1080 at 60p |
| Audio IP Encoding | AAC, G.711, MPEG Layer 2 |
| Wireless | No |
| Power I/O | 1x Barrel (12 VDC at 2 A) Input |
| Power Consumption | 5 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Dimensions | 4.1 x 3 x 1" / 104 x 75.5 x 24.5 mm |
| Weight | 10.9 oz / 310 g |
| Package Weight | 1.425 lb |
| Box Dimensions (LxWxH) | 5.5 x 5.45 x 3" |
