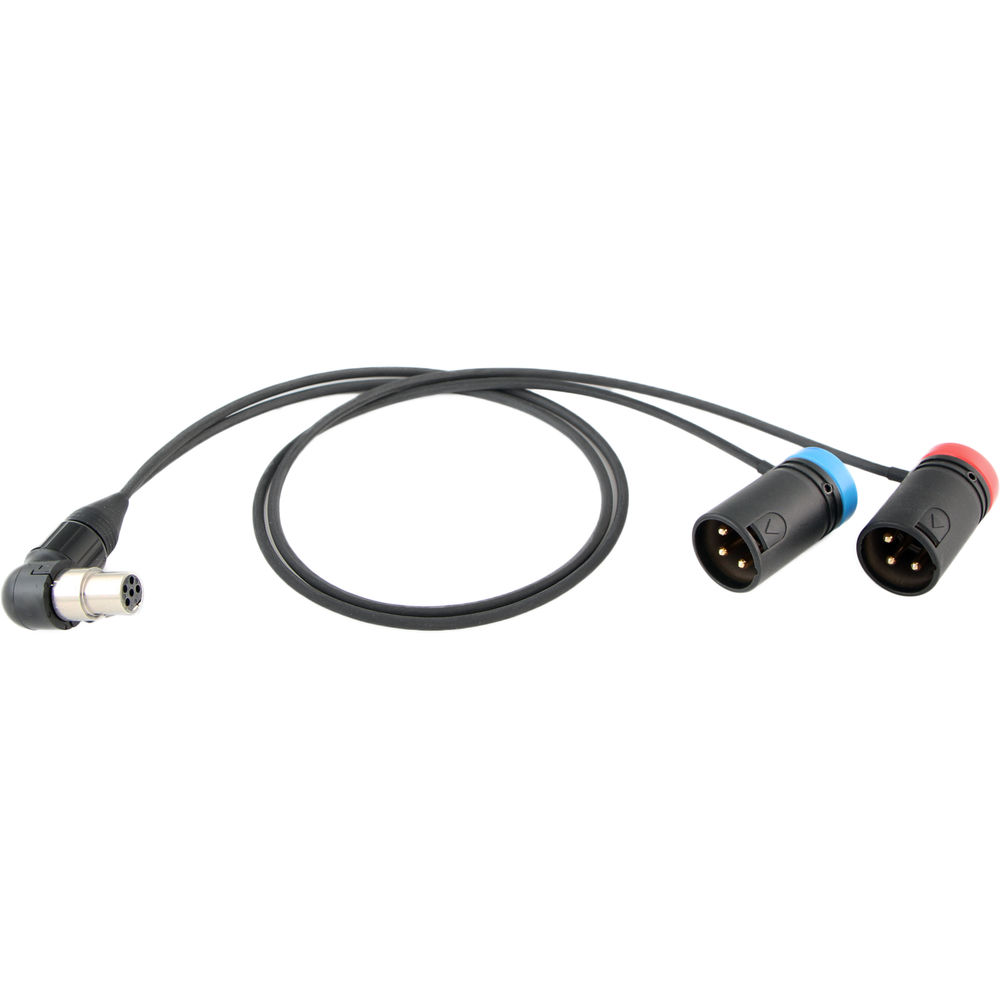

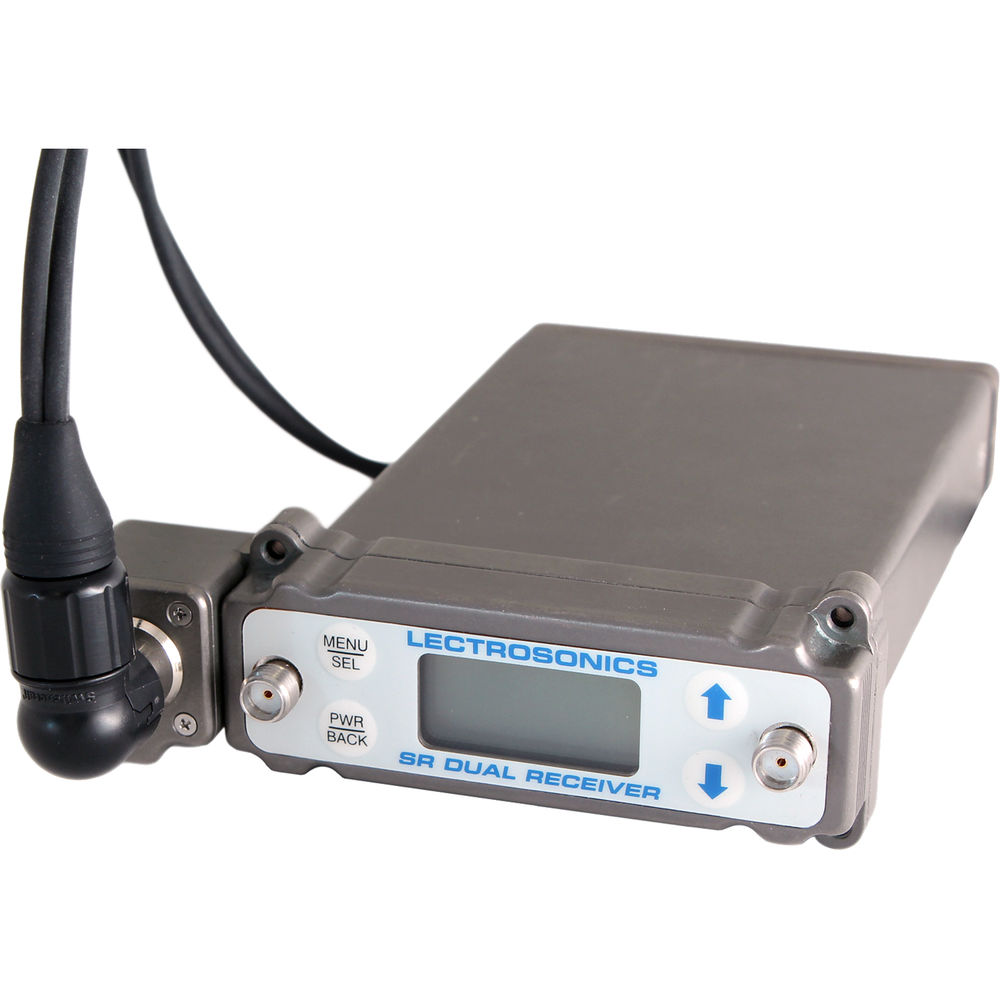

This Cable Technologies CT-LP-SR5P-RR-24 is a low-profile Y cable designed to connect Lectrosonics SRc5P/SRb5P receivers into Sound Devices mixer/recorders like the 633, 688, 788T, and more. It also works with compatible Zaxcom, Zoom, and Tascam recorders.
The cable uses low-profile connectors. At one end, you'll find one TA5F connector for your Lectrosonics receiver. At the other end, you'll see two 3-PIN XLR male connectors. The TA5F termination is adjustable in four positions at 0, 90, 180, and 270°. You can also adjust the outlet orientation of both XLR connectors at set positions of 30 to 150° and 210 to 330°. These features allow for multiple placement possibilities, all while reducing the visible profile of interconnections. This results in a less cluttered look all around.
The cable diameter is relatively slim at 2.7mm, though its flexible polyurethane jacket is crush resistant, tear-resistant, and resistant to cold weather. This cable measures 24" in length.
| Connections | 1 x TA5F 2 x XLR male (3-pin) |
| Cable Jacket | Polyurethane |
| Cable O.D. | 0.1" / 2.7 mm |
| Cable Length | 24" / 609.6 mm |
Packaging Info
| Package Weight | 0.165 lb |
| Box Dimensions (LxWxH) | 5.6 x 4.7 x 1.1" |
