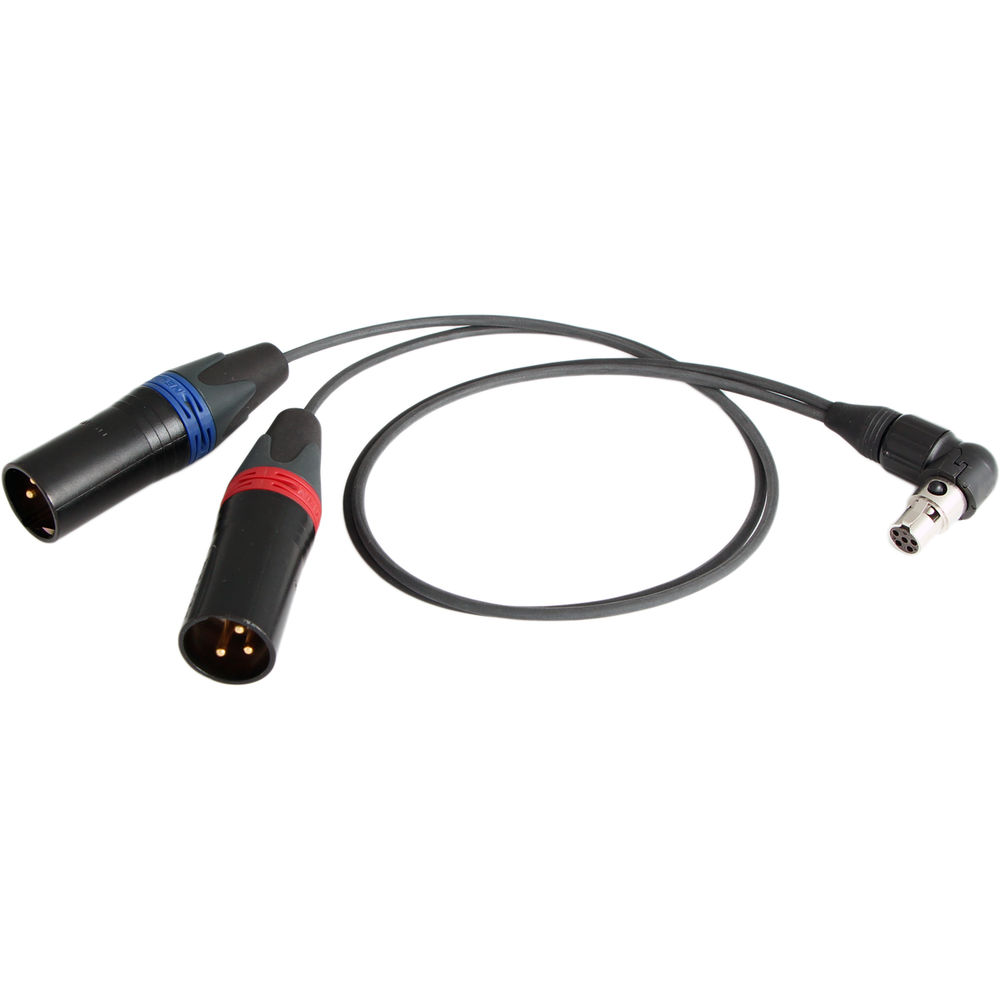

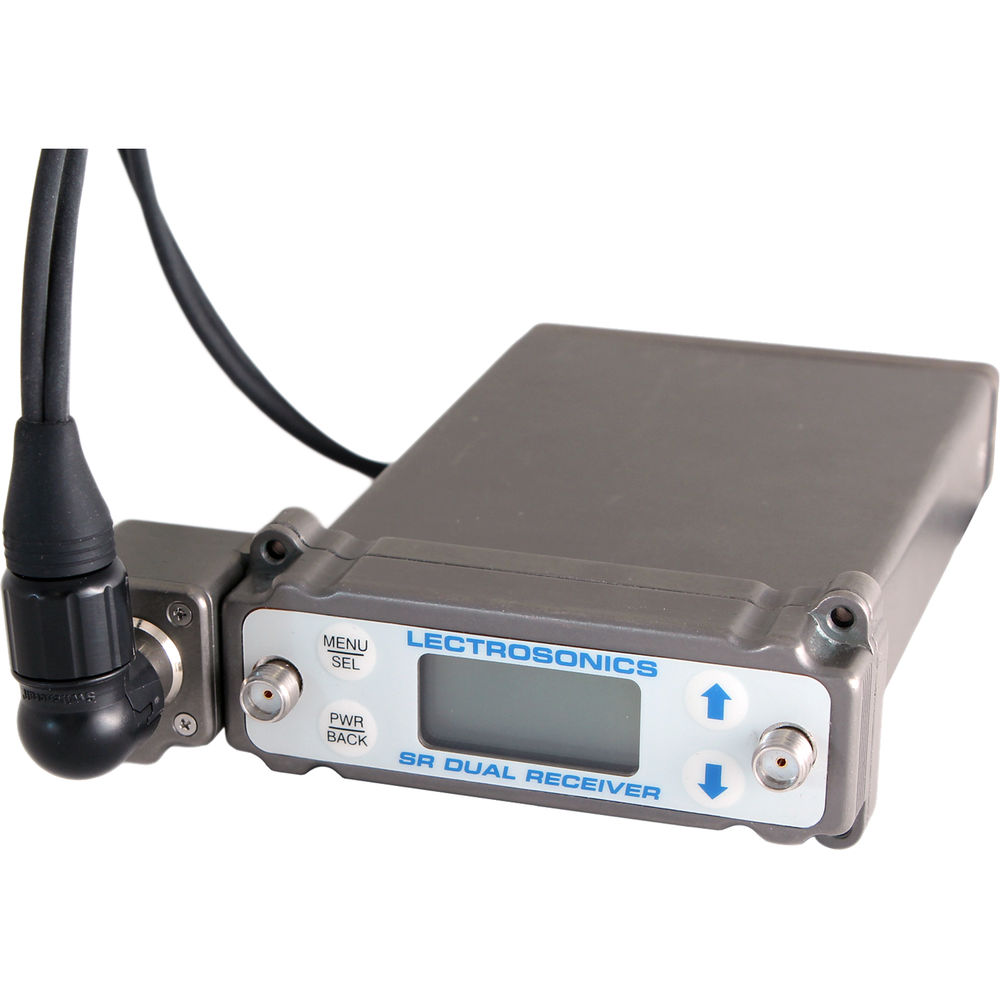

This Cable Technologies CT-LP-SR5P-RS-24 is a low-profile Y cable designed to connect Lectrosonics SRc5P/SRb5P receivers into Sound Devices mixer/recorders like the 633, 688, 788T, and more. It also works with compatible Zaxcom, Zoom, and Tascam recorders.
The cable uses low-profile connectors. At one end, you'll find one right-angled TA5F connector for your Lectrosonics receiver. At the other end, you'll see two straight 3-PIN XLR male connectors. The TA5F termination is adjustable in four positions at 0, 90, 180, and 270°.
The cable diameter is relatively slim at 2.7mm, though its flexible polyurethane jacket is crush- and tear-resistant, and it's also resistant to cold weather. This cable measures 24" in length.
Interface
| Connector 1 | 1 x TA5 / Mini XLR 5-Pin Female Right-Angled |
| Connector 2 | 2 x XLR 3-Pin Male Straight |
Electrical
| Wire Gauge | 12 AWG |
General
| Environmental Protection | None |
| Cable Length | 24" / 60.96 cm |
Packaging Info
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 6 x 6 x 0.7" |
