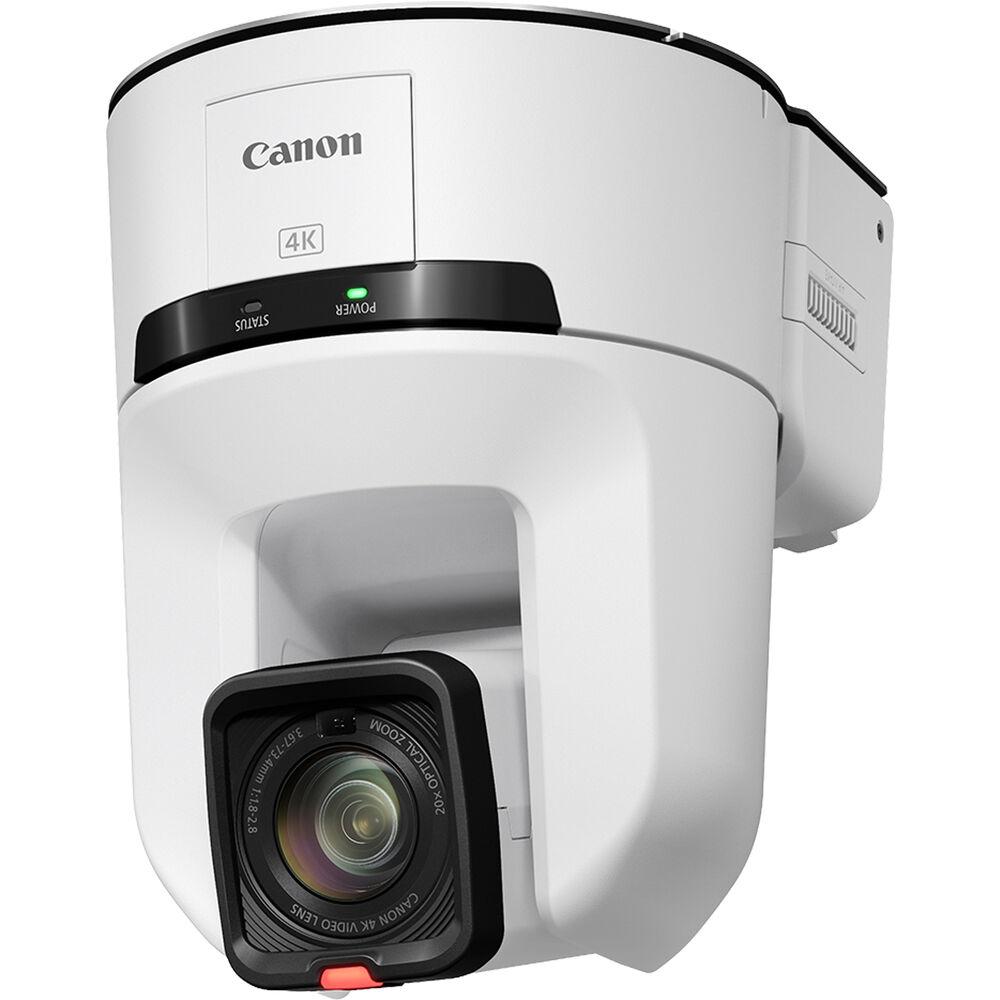

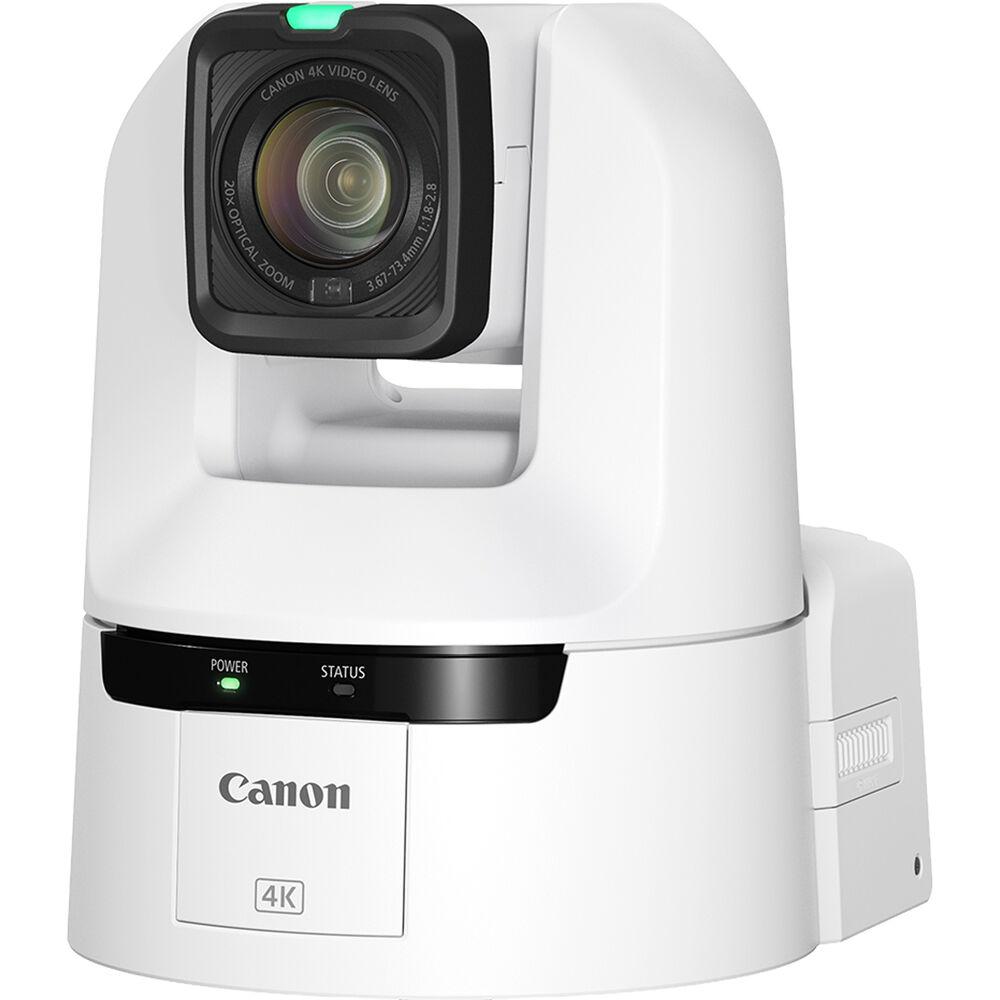

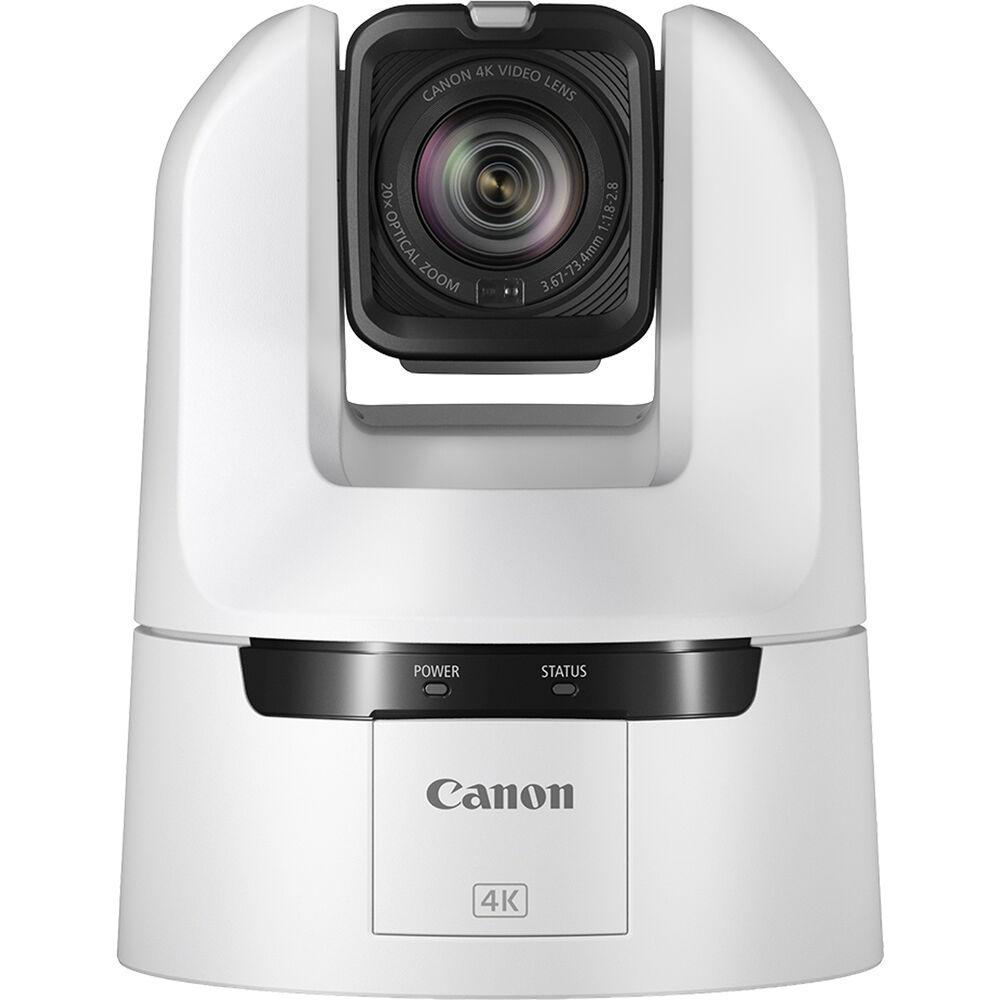

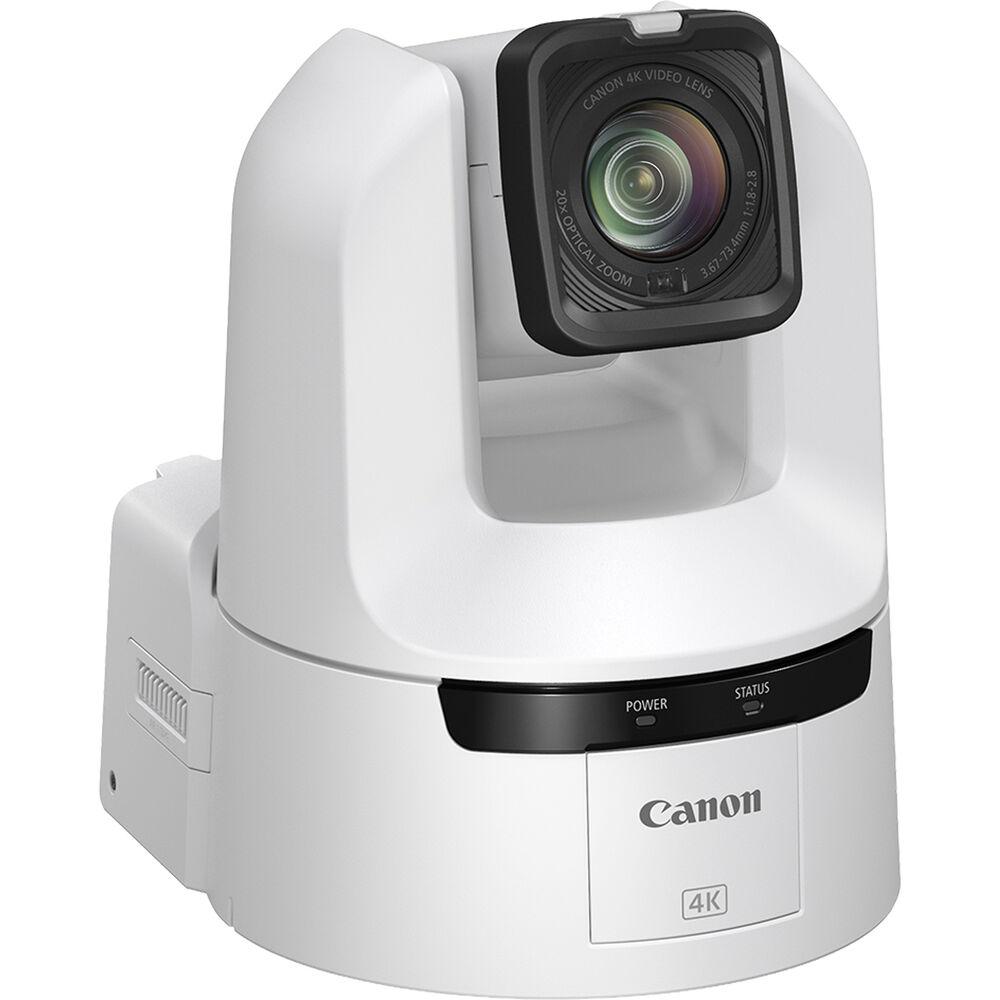

Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)

Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)

Brand: Canon

MFR: 7506C004

SKU: SF-2443-WWFA

Price Available Upon Request
  • 1/2.3" CMOS Sensor with Hybrid Autofocus
  • High-Quality UHD 4K60 Video Output
  • 20x Optical, 40x Advanced Zoom Lens, OIS
  • Renowned Canon Color Science, Wide DR
  • Canon Log 3, HDR HLG/PQ, EOS Image Modes
  • 3G-SDI, HDMI, and IP Video Output
  • Built-In NDI HX2, Adaptive Bit Rate SRT
  • Built-In Auto Tracking Lite, PoE++
  • FreeD Multi-Destination AR/VR Support
  • Serial/IP Control, Canon XC Protocol

Items Included

  • Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Titanium White)
  • IR Remote Control
  • Mounting Bracket with Screw
  • Safety Wire with Screw
  • Camera-to-Mount Safety Wire with Screw
  • IR Remote Controller
  • 2 x AAA Battery
  • AC Adapter
  • Power Cable
  • Limited 1-Year Manufacturer Warranty
New Item - Coming Soon
Request Now

Categories: PTZ Cameras & Solutions

Outstanding UHD 4K Imagery
Capture outstanding quality UHD 4K or HD imagery for your video productions using the titanium white CR-N350 4K NDI PTZ Camera with 20x Zoom from Canon. Designed to fit right into your educational, corporate, broadcast, or house of worship workflow, the CR-N350 features a 1/2.3" sensor, Canon DIGIC DV7 image processor, Hybrid AF, 20x optical zoom, and 40x Advanced Zoom in HD.
Professional Interfaces
The CR-N350's professional interfaces include 3G-SDI, HDMI, and single-cable PoE++ connectivity, letting you use NDI HX2 for video and audio streaming, IP control, tally, and power via one cable. Streaming to social media platforms is supported using protocols like SRT, RTSP/RTP, and RTMP/RTMPS. Remote control options include IP, Serial, or IR with support for multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of compatible third-party hardware controllers.
High-Quality 4K60p Video Output
  • 1/2.3"-Type CMOS Sensor—the CR-N350 incorporates a Canon 1/2.3" UHD 4K CMOS image sensor capable of UHD 4K video capture at 60p, suiting it for professional production.
  • DIGIC DV 7—this PTZ camera incorporates Canon's DIGIC DV 7 Image Processor, an essential component in providing advanced performance, convenient operability, and the image-processing power and speed that enables features like 4K UHD video and precise Hybrid AF.
  • Hybrid AF—this autofocus system combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm autofocus from the camera. This hybrid system helps attain autofocus faster and more reliably compared to contrast autofocus alone.
Crop for Social Media While Broadcasting
In addition to a standard video crop, the CR-N350 also includes a vertical crop mode that enables users to have a separate, real-time 9:16 stream of the main video.
Stunning Optical Precision
The CR-N350's high-performance lens has a 20x optical zoom, with a 35mm-equivalent 29.3-601mm in 23.98/29.97 fps plus a 40x Advanced Zoom 35mm-equivalent 29.3-1202mm when shooting in HD. When your shooting conditions are unstable, Canon's renowned Optical Image Stabilization enables you to still capture steady footage. A built-in, motorized ND filter provides variable exposure control.
Oversampling HD Processing
The full HD capture and output (oversampling HD processing) take full advantage of the image information acquired by the 4K sensor to generate beautiful, stunningly detailed, high-definition full HD video using the CR-N350.
Face, Eye, and Head Detection Autofocus
The CR-N350's outstanding Hybrid Autofocus supports face, eye, and head focusing, ensuring highly accurate focus, even when your subject turns around.
Powerful HDR imagery
The versatile CR-N350 lets you capture stunning HDR imagery with direct recording in either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match the look of other Canon cameras.
Smooth and Responsive Pan/Tilt Performance
The CR-N350 incorporates a drive mechanism that can change the pan/tilt speed in incremental steps. This lets the operator set the speeds to the desired preference to enable smooth pan/tilt movements. The CR-N350 supports a variable pan speed of 0.1 to 100°/second or 200° with presets and a variable tilt speed of 0.1 to 100°/second or 180°/second with presets.
Thumbnail Display for Presets and Recorded Trace Movement
Easier operation and shot recall are enabled by the ability to add thumbnail images for camera presets and for recorded trace movement in the user interface, in the Remote Camera Control Application (RCCA), and on supported hardware controllers.
Add-On Applications
  • Canon's Add-On Application System will enable the installation of paid applications directly onto your CR-N350 camera. These apps can then be run without requiring a computer, simplifying operation and setup.
  • The Auto Tracking Application enables the camera to automatically track the speaker or other specified people during commercial presentations, lectures, and other live events. This system uses in-camera visual analysis to produce excellent tracking capability. In addition to framing your subject, the CR-N350 camera, aided by its high-performance pan/tilt mechanism and the auto tracking application, smoothly captures people's movements with satisfying quality.
  • The Auto Loop Application empowers the camera to automatically repeat pan/tilt/zoom (PTZ) movements ordinarily performed by camera operators during event broadcasts, TV commercials, and movie productions. The “fade mode” adjusts the acceleration and deceleration of the camera motions as the motions begin and end, enabling the automated camera system to mimic professional camera operating.
Built-In Auto Tracking Lite
A free version of Auto Tracking Lite is built into the CR-N350, providing smooth and precise auto tracking in a basic configuration with the option to quickly and easily upgrade to the paid version for more advanced, customized auto tracking.
NDI HX2 and SRT Open Source
The CR-N350's multiple protocols include adaptive bitrate SRT and NDI HX2 choices that help produce high-quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP, and Canon XC protocols are also included as well as FreeD with support for up to four destinations for virtual production integration.
Webcam via USB Connection
The CR-N350 supports UVC (USB Video Class) in addition to IP, SDI, and HDMI. This enables the camera to be used as a webcam by connecting it via the USB-C port to a PC with a web conferencing application installed. The CR-N350 delivers up to 1080p60 video for high-quality web conferencing.
Remote Camera Control Application
The free RCCA (Remote Camera Control Application) software controller application lets you take control of up to 20 PTZ and professional video cameras over IP. Preview up to nine cameras on screen and adjust focus, pan, zoom, tilt, and exposure in real time, directly from your computer.
Multi-Camera Management Application
The MCMA (Multi-Camera Management Application) lets you monitor and manage up to 200 cameras directly from your PC and perform key tasks lie multiview monitoring, device backup, assignment, and registration as well as update the firmware of linked cameras simultaneously.
Camera Color Matching Application
With the ability to color match the CR-N350 PTZ camera to your primary production camera, the Camera Color Matching application lets you easily add PTZ cameras to your existing camera environment. This application supports any Canon or third-party cameras that supports 1080p HD or UHD 4K.
Webcam Driver
Use Canon's Webcam Driver to turn the CR-N350 into a super webcam. The Webcam Driver is a virtual USB driver that enables the CR-N350 to be used as a powerful webcam over a network.

Imaging
Image Sensor
1/2.3"-Type CMOS
Sensor Resolution
Actual: 21.14 Megapixel
Effective: 8.29 Megapixel (3840 x 2160)
Actual: 21.14 Megapixel
Effective: 7.88 Megapixel (3744 x 2104)
IR Cut Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/3 to 1/2000 Second
Minimum Illumination
3 Lux at 1/60 Shutter Speed
1.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Range: 2000 to 15,000K
Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten
Lens
Focal Length
3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Max Optical Zoom
20x
Max Digital Zoom
20x ( in UHD 4K)
40x ( in 1080p)
Field of View
Horizontal: 63.3 to 3.5°
Vertical: 38.9 to 2°
Horizontal: 65.6 to 3.6°
Vertical: 39.8 to 2°
Maximum Aperture
f/1.8 to 2.8
Minimum Focus Distance
0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele)
Video Capture
Video Output
4:2:0 8-Bit via RJ45
3840 x 2160 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps
1920 x 1080 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps
1280 x 720 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps
640 x 360 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
720 x 576 at 50 fps
720 x 480 at 59.94 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Embedded Audio
HDMI/IP/NDI/SDI
Audio Recording
Yes
Broadcast Output
NTSC/PAL
Supported Protocols
Camera Control Protocol
Canon XC/FreeD/NDI|HX2
IP Streaming
H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT
640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p
Control
Presets
100 via IP, IR, RS-422
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.1 to 200°/s
Tilt: 130° (-30 to 100°) at 0.1 to 180°/s
Tally Light
Yes
Interface

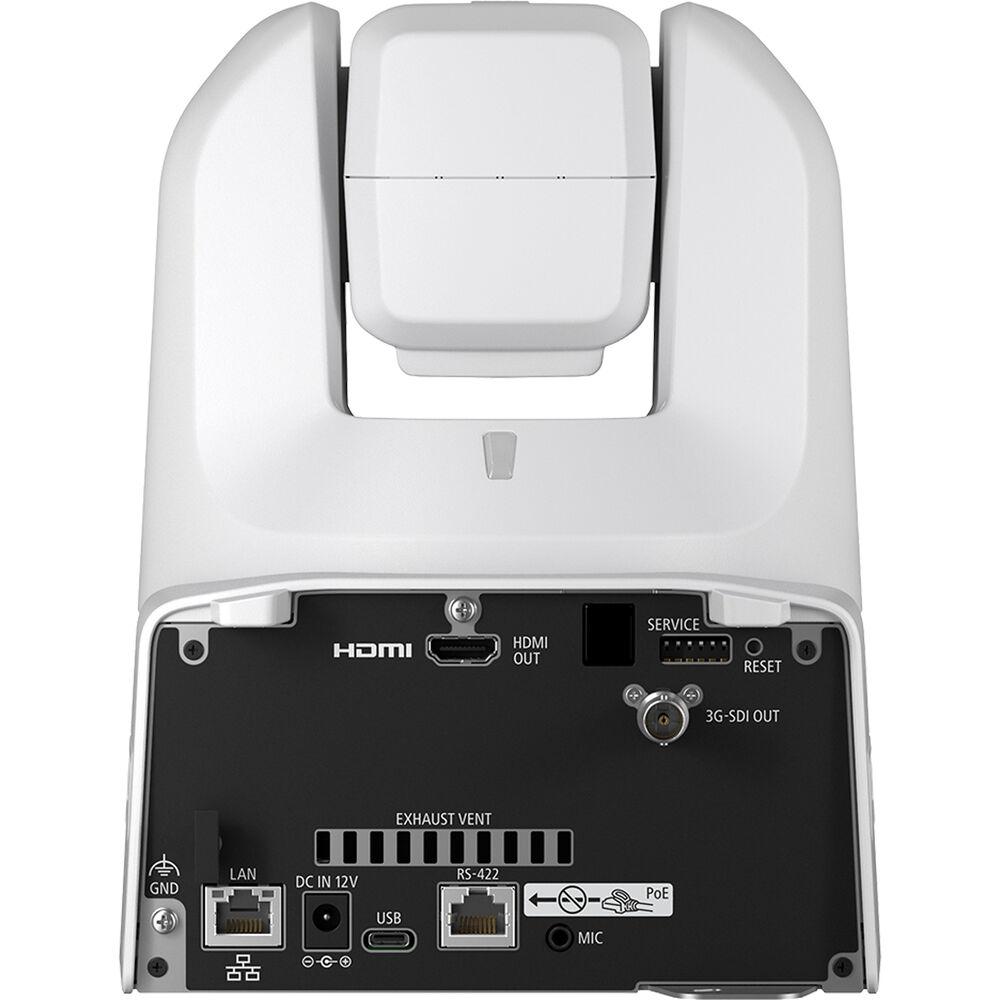

Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
1x RJ45 (NDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
1x RJ45 (RS-422) Control
1x USB-C
1x BNC (Timecode) (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE++ 802.3bt
Power I/O
1x Barrel (12VDC) Input
Power Consumption
PoE: 26.1 W
Device: 24 VDC 23.6 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Impact Resistance
No
Environmental Resistance
No
General
Mounting
1x 1/4"-20 Female for Tripod
OS Compatibility
Computer: Windows 10 or Later / macOS 11 Only
Mobile: Android/iOS
Dimensions (W x H x D)
8.7 x 7.6 x 6.9" / 220 x 194 x 176 mm (Without Protrusions)
Weight
6.6 lb / 3 kg (Body Only)
