Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)

Name: Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
Brand: Canon
SKU: SF-2443-G8G4
Availability: InStock

Brand: Canon

MFR: 7505C004

SKU: SF-2443-G8G4

Price Available Upon Request

1/2.3" CMOS Sensor with Hybrid Autofocus
High-Quality UHD 4K60 Video Output
20x Optical, 40x Advanced Zoom Lens, OIS
12G-SDI, 3G-SDI, HDMI, and IP Video Out
Renowned Canon Color Science, Wide DR
Canon Log 3, HDR HLG/PQ, EOS Image Modes
Built-In NDI HX2, Adaptive Bit Rate SRT
Built-In Auto Tracking Lite, PoE++
3.5mm and Two XLR Audio Inputs
FreeD AR/VR, Serial/IP Control, Canon XC

Items Included

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
IR Remote Control
Mounting Bracket with Screw
Safety Wire with Screw
Camera-to-Mount Safety Wire with Screw
IR Remote Controller
2 x AAA Battery
AC Adapter
Power Cable
Limited 1-Year Manufacturer Warranty

New Item - Coming Soon

Request Now

Categories: PTZ Cameras & Solutions

Outstanding UHD 4K Imagery

Capture outstanding quality UHD 4K or HD imagery for your video productions using the titanium white CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Zoom from Canon. Designed to fit right into your educational, corporate, broadcast, or house of worship workflow, the CR-N400 features a 1/2.3" sensor, Canon DIGIC DV7 image processor, Hybrid AF, 20x optical zoom, and 40x Advanced Zoom in HD.

Professional Video & Audio Interfaces

The CR-N400's professional interfaces include 12G-SDI, 3G-SDI, HDMI, genlock, timecode, and single-cable PoE++ connectivity, letting you use NDI HX2 for video and audio streaming, IP control, tally, and power via one cable. Streaming to social media platforms is supported using protocols like SRT, RTSP/RTP, and RTMP/RTMPS.
Remote control options include IP, Serial, or IR with support for multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of compatible 3rd party hardware controllers.
Audio inputs comprise one 3.5mm and dual 3-pin XLR inputs.

High-Quality 4K60p Video Output

1/2.3"-Type CMOS Sensor—the CR-N400 incorporates a Canon 1/2.3" UHD 4K CMOS image sensor capable of UHD 4K video capture at 60p, suiting it for professional production.
DIGIC DV 7—this PTZ camera incorporates Canon's DIGIC DV 7 Image Processor, an essential component in providing advanced performance, convenient operability, and the image-processing power and speed that enables features like 4K UHD video and precise Hybrid AF.
Hybrid AF—this autofocus system combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm autofocus from the camera. This hybrid system helps attain autofocus faster and more reliably compared to contrast autofocus alone.

Crop for Social Media While Broadcasting

In addition to a standard video crop, the CR-N400 also includes a vertical crop mode that enables users to have a separate, real-time 9:16 stream of the main video.

Stunning Optical Precision

The CR-N400's high-performance lens has a 20x optical zoom, with a 35mm-equivalent 29.3-601mm in 23.98/29.97 fps plus a 40x Advanced Zoom 35mm-equivalent 29.3-1202mm when shooting in HD. When your shooting conditions are unstable, Canon's renowned Optical Image Stabilization enables you to still capture steady footage. A built-in, motorized ND filter provides variable exposure control.

Oversampling HD Processing

The full HD capture and output (oversampling HD processing) take full advantage of the image information acquired by the 4K sensor to generate beautiful, stunningly detailed, high-definition full HD video using the CR-N400.

Face, Eye, and Head Detection Autofocus

The CR-N400's outstanding Hybrid Autofocus supports face, eye, and head focusing, ensuring highly accurate focus even when your subject turns around.

Powerful HDR imagery

The versatile CR-N400 lets you capture stunning HDR imagery with direct recording in either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match the look of other Canon cameras.

Smooth and Responsive Pan/Tilt Performance

The CR-N400 incorporates a drive mechanism that can change the pan/tilt speed in incremental steps. This lets the operator set the speeds to the desired preference to enable smooth pan/tilt movements. The CR-N400 supports a variable pan speed of 0.1 to 100°/second or 200° with presets and a variable tilt speed of 0.1 to 100°/second or 180°/second with presets.

Thumbnail Display for Presets and Recorded Trace Movement

Easier operation and shot recall are enabled by the ability to add thumbnail images for camera presets and for recorded trace movement in the user interface, in the Remote Camera Control Application (RCCA), and on supported hardware controllers.

Add-On Applications

Canon's Add-On Application System will enable the installation of paid applications directly onto your CR-N400 camera. These apps can then be run without requiring a computer, simplifying operation and setup.
The Auto Tracking Application enables the camera to automatically track the speaker or other specified people during commercial presentations, lectures, and other live events. This system uses in-camera visual analysis to produce excellent tracking capability. In addition to framing your subject, the CR-N400 camera, aided by its high-performance pan/tilt mechanism and the auto tracking application, smoothly captures people's movements with satisfying quality.
The Auto Loop Application empowers the camera to automatically repeat pan/tilt/zoom (PTZ) movements ordinarily performed by camera operators during event broadcasts, TV commercials, and movie productions. The “fade mode” adjusts the acceleration and deceleration of the camera motions as the motions begin and end, enabling the automated camera system to mimic professional camera operating.

Built-In Auto Tracking Lite

A free version of Auto Tracking Lite is built into the CR-N400, providing smooth and precise auto tracking in a basic configuration with the option to quickly and easily upgrade to the paid version for more advanced, customized auto tracking.

NDI HX2 and SRT Open Source

The CR-N400's multiple protocols include adaptive bitrate SRT and NDI HX2 choices that help produce high-quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP, and Canon XC protocols are also included, as well as FreeD with support for up to four destinations for virtual production integration.

Webcam via USB Connection

The CR-N400 supports UVC (USB Video Class) in addition to IP, SDI, and HDMI. This enables the camera to be used as a webcam by connecting it via the USB-C port to a PC with a web conferencing application installed. The CR-N400 delivers up to 1080p60 video for high-quality web conferencing.

Remote Camera Control Application

The free RCCA (Remote Camera Control Application) software controller application lets you take control of up to 20 PTZ and professional video cameras over IP. Preview up to nine cameras on screen and adjust focus, pan, zoom, tilt, and exposure in real time, directly from your computer.

Multi-Camera Management Application

The MCMA (Multi-Camera Management Application) lets you monitor and manage up to 200 cameras directly from your PC and perform key tasks lie multiview monitoring, device backup, assignment, and registration as well as update the firmware of linked cameras simultaneously.

Camera Color Matching Application

With the ability to color match the CR-N400 PTZ camera to your primary production camera, the Camera Color Matching application lets you easily add PTZ cameras to your existing camera environment. This application supports any Canon or third-party cameras that supports 1080p HD or UHD 4K.

Webcam Driver

Use Canon's Webcam Driver to turn the CR-N400 into a super webcam. The Webcam Driver is a virtual USB driver that enables the CR-N400 to be used as a powerful webcam over a network.

Imaging

Image Sensor	1/2.3"-Type CMOS
Sensor Resolution	Actual: 21.14 Megapixel Effective: 8.59 Megapixel (3840 x 2160) Actual: 21.14 Megapixel Effective: 7.88 Megapixel (3744 x 2104)
IR Cut Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Speed	1/3 to 1/2000 Second
Minimum Illumination	3 Lux at 1/60 Shutter Speed 1.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 2000 to 15,000K Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten

Lens

Focal Length	3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Max Optical Zoom	20x
Max Digital Zoom	20x ( in UHD 4K) 40x ( in 1080p)
Field of View	Horizontal: 63.3 to 3.5° Vertical: 38.9 to 2° Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2°
Maximum Aperture	f/1.8 to 2.8
Minimum Focus Distance	0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele)

Video Capture

Video Output	4:2:0 8-Bit via RJ45 3840 x 2160 at 5/12.50/14.99/23.98/25/29.97/50/59.94 fps 1920 x 1080 at 5/12.50/14.99/23.98/25/29.97/50/59.94 fps 1280 x 720 at 5/12.50/14.99/23.98/25/29.97/50/59.94 fps 640 x 360 at 5/12.50/14.99/23.98/25/29.97/50/59.94 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps 4:2:2 10-Bit via SDI/BNC 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps
Embedded Audio	HDMI/IP/NDI/SDI
Audio Recording	Yes
Broadcast Output	NTSC/PAL
Supported Protocols	Camera Control Protocol Canon XC/FreeD/NDI\|HX2
IP Streaming	H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT 640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p

Control

Presets	100 via IP, IR, RS-422
Pan/Tilt	Pan: 340° (-170 to 170°) at 0.1 to 200°/s Tilt: 130° (-30 to 100°) at 0.1 to 180°/s
Tally Light	Yes

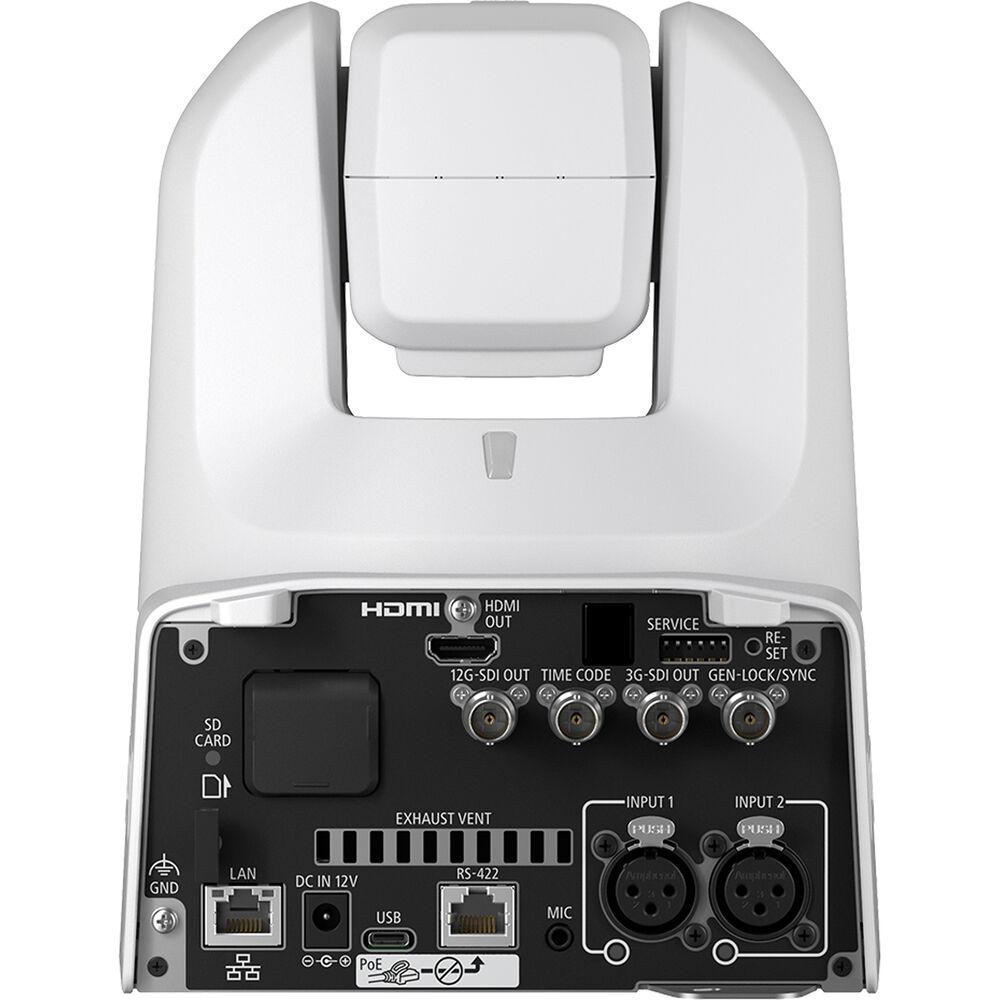

Interface

Media/Memory Card Slot	Single Slot: SD (Unspecified Type)
Video I/O	1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output
Audio I/O	2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O	1x RJ45 (RS-422) Control 1x BNC (Timecode) 1x BNC (Genlock) 1x USB-C Control
Built-In Microphone	Yes
Built-In Speaker	No

Power

PoE Support	PoE++ 802.3bt
Power I/O	1x Barrel (12VDC) Input
Power Consumption	PoE: 34.4 W Device: 12 VDC 33.8 W

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Impact Resistance	No
Environmental Resistance	No

General

Mounting	1x 1/4"-20 Female for Tripod
Dimensions (W x H x D)	8.7 x 7.6 x 6.9" / 220 x 194 x 176 mm (Without Protrusions)
Weight	6.8 lb / 3.1 kg (Body Only)
