CHAUVET DJ GigBAR 2 All-In-One Lighting System

Brand: CHAUVET

MFR: GIGBAR2

SKU: SF-2443-8KSB

1,697.00

  • 2 RGB LED Rotating Derby Effects
  • 2 RGB+UV LED PAR Wash Lights
  • 4 White/UV LED Strobes
  • 1 Red/Green Laser
  • IRC-6 and Footswitch Wireless Remotes
  • Carrying Bags for Tripod and Fixtures
  • Adjustable and Interchangeable Fixtures
  • Automated and Sound-Activated Programs
  • 3 DMX Channel Modes: 3, 11, and 23
  • Universal Autosensing Power Supply

Items Included

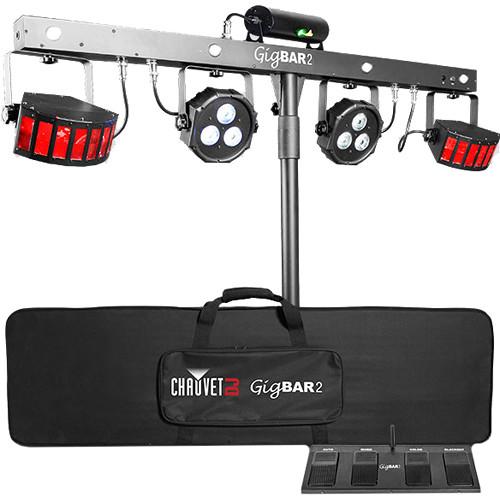

  • CHAUVET DJ GigBAR 2 All-In-One Lighting System
  • Tripod Stand
  • 2 x L-Brackets
  • Wireless Footswitch with Battery
  • IRC-6 Wireless Remote
  • Gear Bag
  • Tripod Carrying Bag
  • Power Cord
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

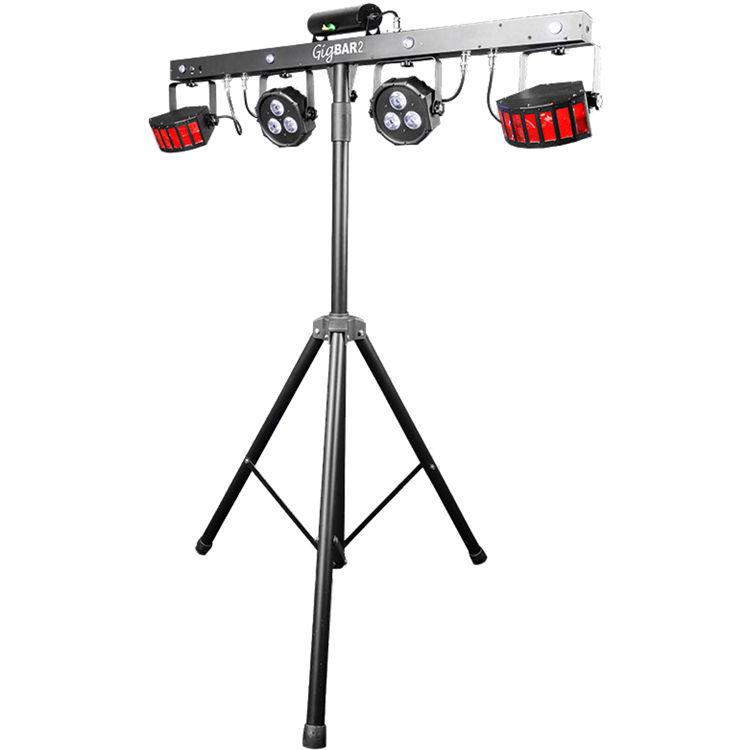

Ideal for the mobile entertainer, the CHAUVET DJ GigBAR 2 is an all-in-one lighting system designed to flood your stage or dancefloor with a variety of exciting lighting effects and beam patterns. It includes a pair of RGB LED derby fixtures, a pair of RGB+UV LED PARs, a laser, and four white/UV strobes, all mounted on a single bar and supported by the included tripod.

The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red and green laser beams that can both rotate and strobe. The included wireless footswitch provides DJs and performers with hands-free activation of preset colors, color-change programs, and sound activation. For full remote control of all features, the unit can also be operated using the DMX mode with a choice of three channel options.

Effects
  • Two derby-effect lights, with two red, two green, and two blue LEDs each—project countless razor-sharp multi-color beams
  • Two color-mixing quad-color RGB+UV LED PARs for blacklight effects and UV-infused washes
  • One laser fixture scatters hundreds of bright red/green dots and beams in multiple directions—use red and green laser beams individually or together
  • Four high-power white/UV LED strobe lights produces eye-catching white or ultraviolet strobe chases and slow-motion effects
Control
  • Three DMX channel modes: 3, 11, and 23 channels
  • Run built-in automatic programs in standalone mode for shows right out of the box
  • Let the environment control the fixture in sound-active mode
  • Use Master/Slave configuration with other fixtures for a coordinated show
  • LED display with 4-button control panel and user-friendly menu structure
  • Use the included IRC-6 wireless remote for quick and simple control
  • Use the included wireless footswitch for hands-free activation of preset colors, color-change programs, and sound activation
Linking
  • DMX-link to other fixtures via the XLR 3-pin DMX input and output connections
  • Power-link up to 8 fixtures at 120V or up to 15 fixtures at 230V
Other Features
  • Includes tripod stand with carry bag
  • Includes gear bag to hold fixtures
  • Includes two L-brackets to attach fixture to truss
  • Multi-voltage operation: 100-240 VAC, autoranging

Light
Fixture Type
Linear/Bar Light / PAR / Special Design
Number of Included Heads/Lights
5
Light Source
Derby:
6x Color LED - 6 W / 1.7 A
PAR:
6x Color/UV LED - 2.5 W / 1.1 A
Strobe:
4x Ultraviolet LED - 1.8 W / 600 mA
Expected Lamp Life
50,000 Hours
Colors
Derby:
Blue, Green, Red
PAR:
Blue, Green, Red, Ultraviolet
Strobe:
Ultraviolet, White
Laser
1x Red: 650 nm / 100 mW
1x Green: 532 nm / 30 mW
Laser Class: 3R
Photometrics
PAR:
112 fc / 1205 Lux at 6.6' / 2 m
Coverage Angle
Laser: 93°
Derby: 114°
Beam Angle
PAR: 13°
Strobe:
Field Angle
PAR: 24°
Strobe: 18°
Shutter / Strobe
Electronic
Iris
No
Focus
Manual
Zoom Adjustment
No
Dimming
Electronic, 0 to 100%
Performance
Operating Modes
Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
Strobe Rate
0 to 18 Hz
Gobos
No
Control
Control Protocols
DMX512
DMX Channel Modes
3 Mode(s):
3 / 11 / 23-Channel
Display / Controls
LED / 4-Button
Remote Control
Footswitch (with Included Equipment)
IR Remote (with Included Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless
IR
Wireless Range
Footswitch:
100' / 30.5 m
Power
AC Power Connector
Input: 1x IEC
Output: 1x Edison
Plug Type: NEMA 5-15
Input Power
100 to 240 VAC, 50 / 60 Hz
Fuse
T 1.6 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 68 W / 1 A
230 VAC, 50 Hz: 64 W / 0.5 A
Power Linking
8 Units at 120 VAC
15 Units at 230 VAC
Total Current: 10.4 A
Physical
Environmental Resistance
No
Mounting
Mounting Bracket, Tripod Stand & Top Bar
Included Accessories
1x Power Cable
1x Tripod Stand
1x Case (Stand/s)
1x Controller
Included Stand Height
4.9 to 8.2' / 1.5 to 2.5 m
Duty Cycle
No
Exterior Color
Black
Max Housing Temperature
95°F / 35°C
Cooling
Fan
Certifications
CE, FCC
Dimensions
46.7 x 15.2 x 4.3" / 1185 x 387 x 110 mm (Light)
4.8' / 1.5 m (Min Stand Height)
8.3' / 2.5 m (Max Stand Height)
Weight
14.4 lb / 6.6 kg
Packaging Info
Package Weight
35.7 lb
Box Dimensions (LxWxH)
57 x 23.5 x 6"
