Name: DATAVIDEO SHOWCAST 100 in a HC-850 case with 3x PTC-280's in a HC-800 case
SKU: SF-2443-EYY5
Price: 32420 AED
Availability: InStock

MFR: BDL-1610

SKU: SF-2443-EYY5

32,420.00 ﾹ

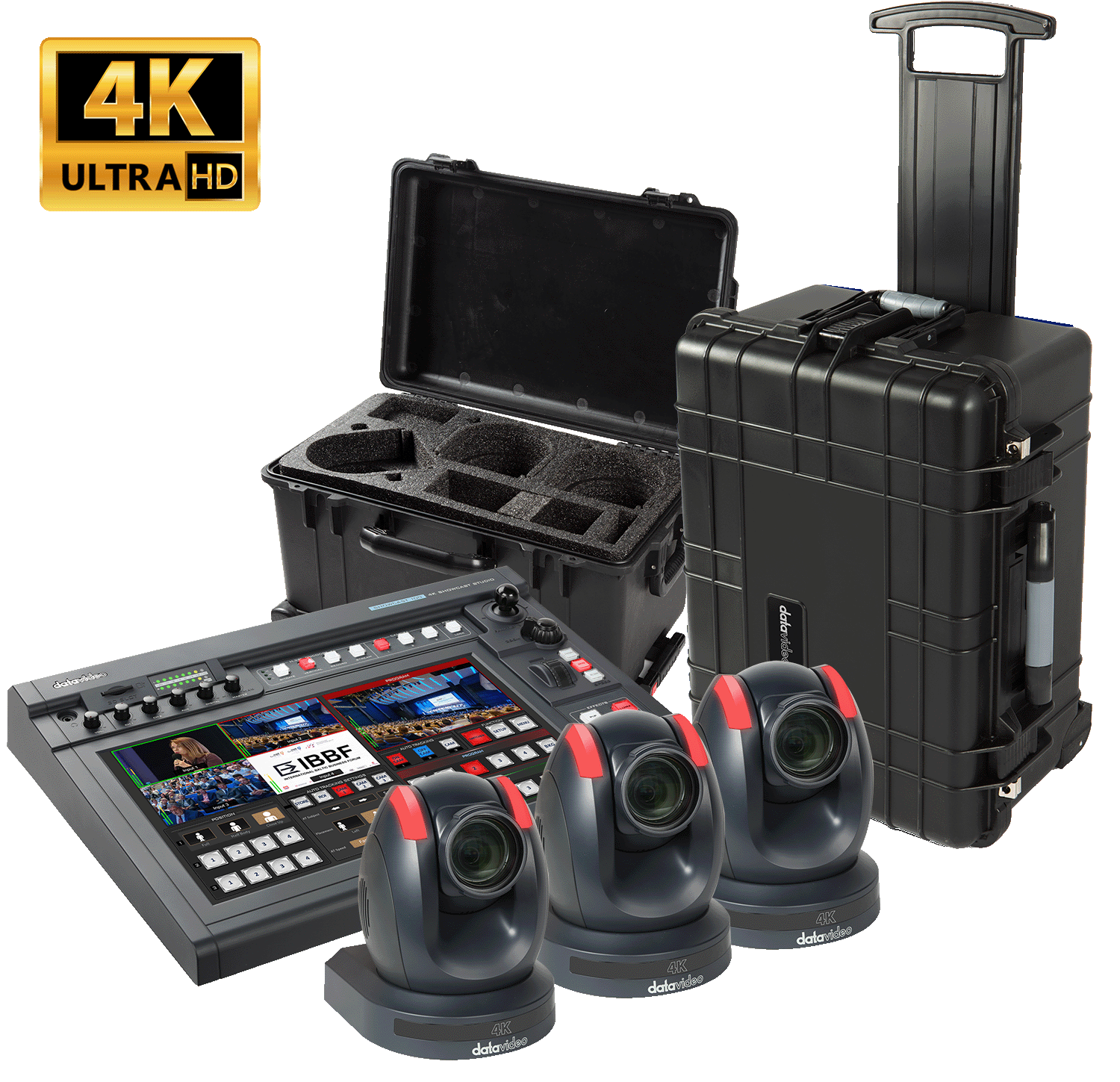

The Datavideo BDL-1610 is a powerful all-in-one production bundle that combines the versatile SHOWCAST 100 Switcher with three PTC-280 4K PTZ Cameras. Housed in durable HC-850 and HC-800 protective cases, this bundle provides a complete, portable production solution for live events, broadcasts, and productions on the go. Experience the future of 4K production with seamless control, crystal-clear visuals, and intuitive operation.

Items Included

3x Datavideo PTC-280 4K PTZ camera

1x Showcast 100 switcher

HC-850 case

HC-800 case

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less

Quantity

Categories: Production Switchers & Controllers

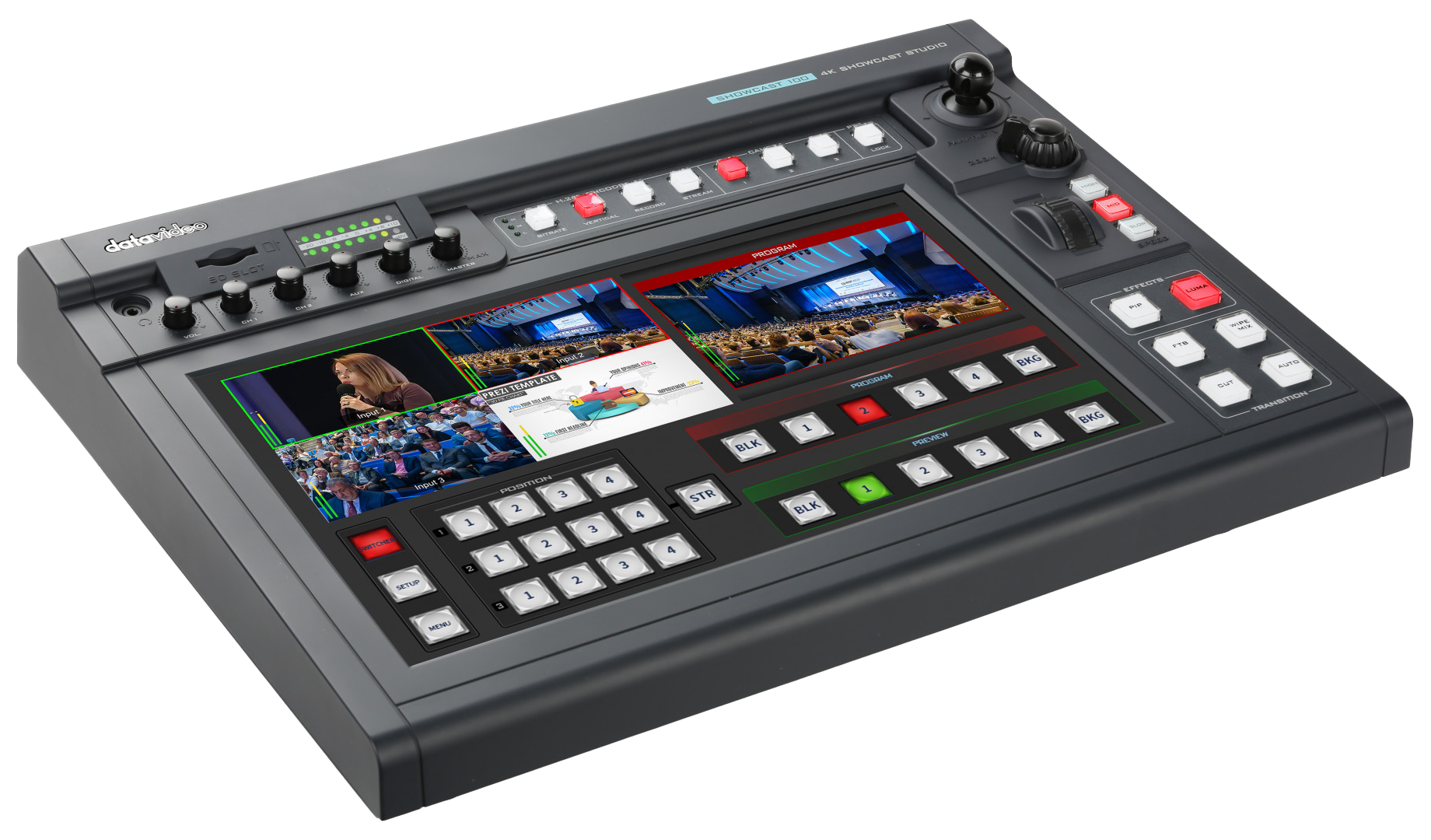

SHOWCAST 100: The All-in-One Production Hub

Compact & Portable: Integrated into a single, transportable unit, the SHOWCAST 100 is built for production teams on the move.
7-in-1 Functionality: Switch video, overlay text and graphics, control PTZ cameras, live stream, record, mix audio, and preview feeds—all from one device.
Intuitive Touch Control: The 14-inch touch panel functions like a tablet, giving users complete control with just a touch, swipe, or tap.
4K 4-Channel Switching: Handle up to four 4K video sources with smooth transitions and advanced effects.

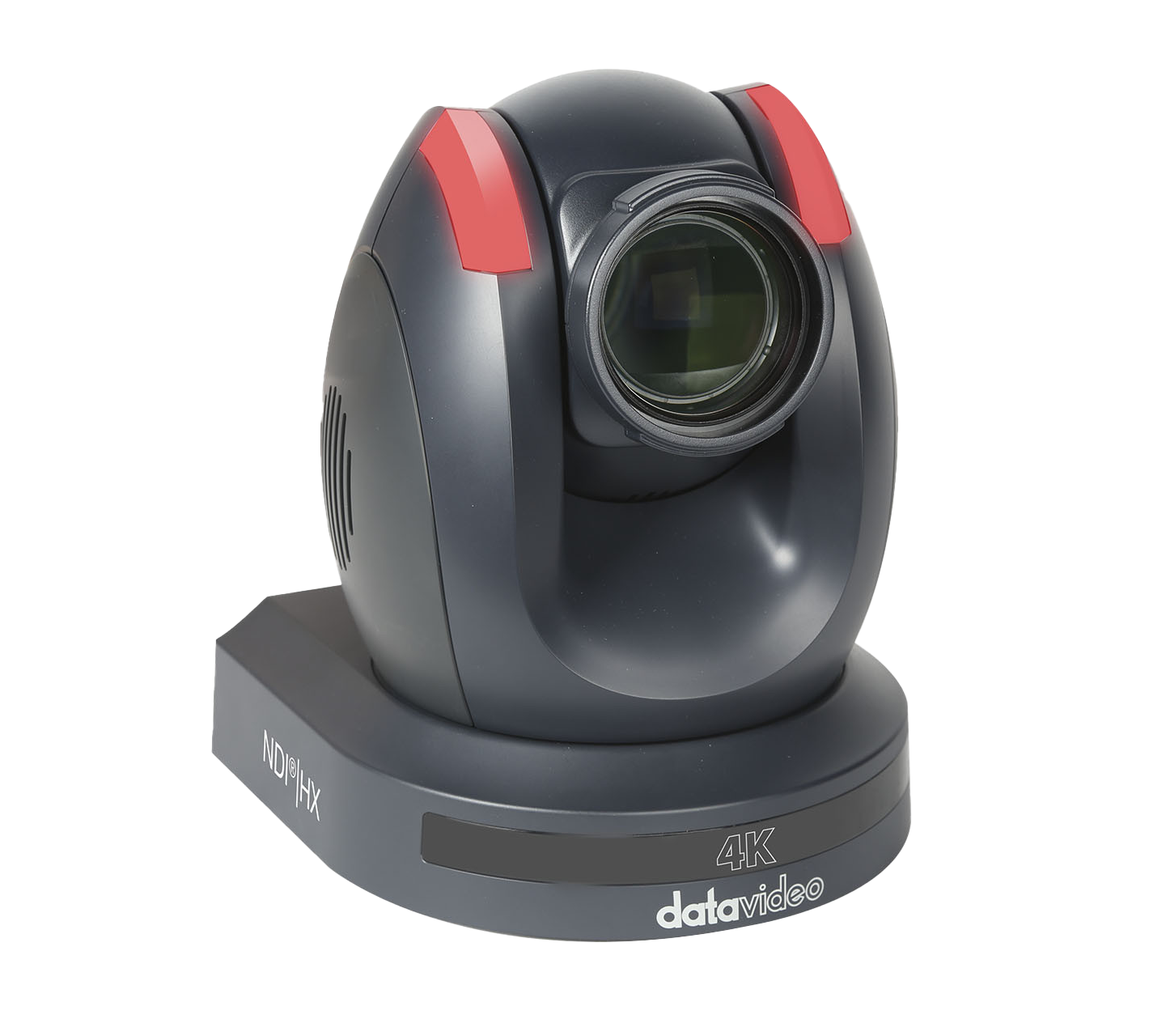

PTC-280: Precision 4K PTZ Cameras

4K 50/60p Ultra HD: Capture crisp, clear video with stunning detail, ensuring every frame is broadcast-quality.
Smooth Pan, Tilt, and Zoom: The PTC-280 offers fluid movement control for capturing every angle with precision.
Multi-Protocol Control: Control via RS-422, DVIP (Datavideo’s proprietary protocol), or Sony VISCA over IP, giving you flexibility in how you manage your cameras.
Remote Control Ready: Manage camera movements from the SHOWCAST 100’s touch panel or through third-party controllers.

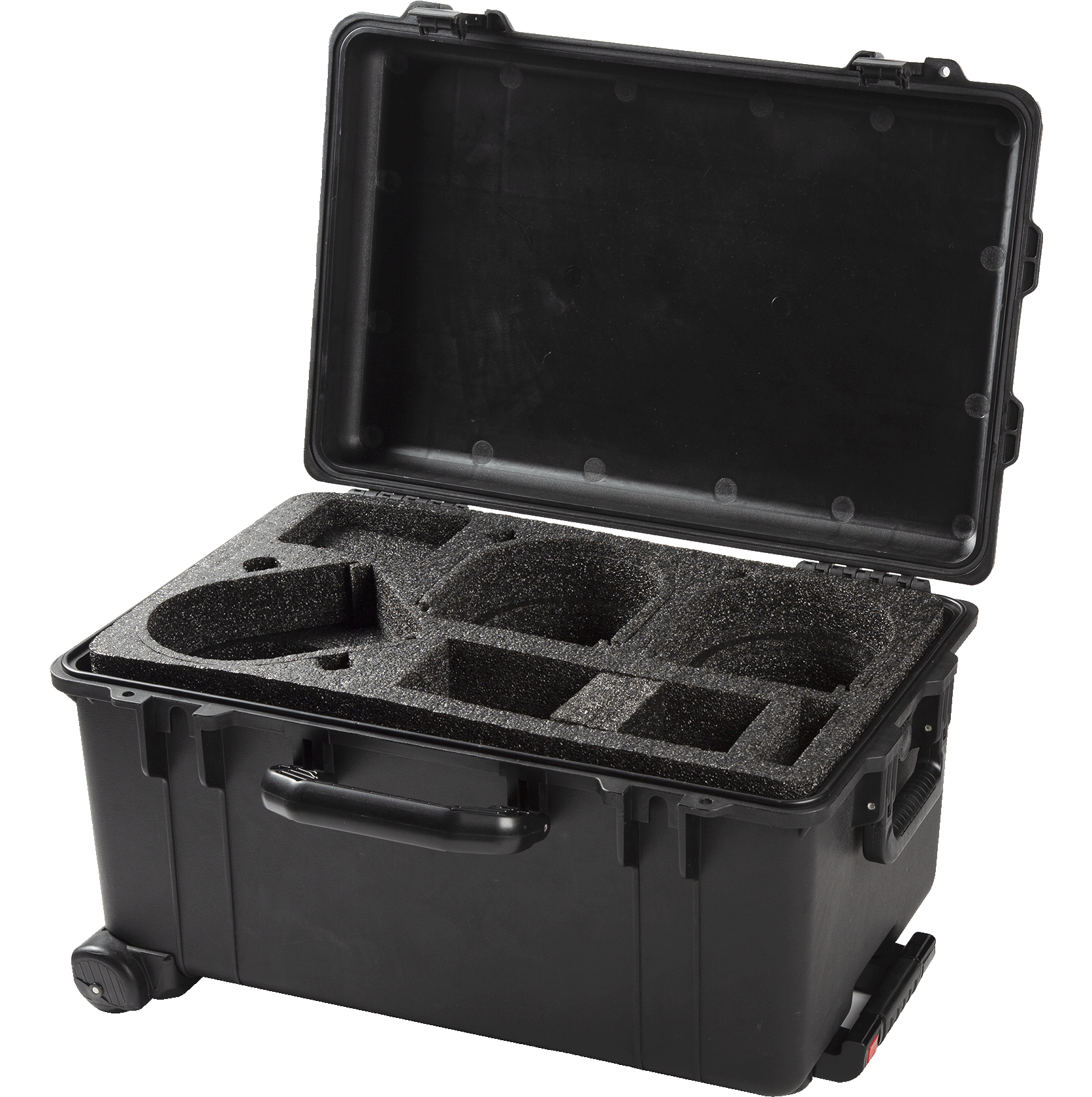

Durable, Travel-Ready Cases

HC-850 & HC-800 Cases: Each component of the BDL-1610 is protected by rugged, shockproof cases designed for travel and on-location production. Keep your equipment safe from impact, moisture, and dust.

Datavideo SHOWCAST 100 4K Switcher with Built-In Streaming Encoder

Processing

Latency

200 ms

Input

Video Inputs	4x HDMI (2.0)
Input Video Format	HDMI UHD 4K at 23.98/24/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps XGA (1024 x 768) SXVGA (1280 x 1024) UXGA (1600 x 1200) WUXGA (1920 x 1200)
Audio Inputs	2x XLR 3-Pin Stereo 1x 2RCA Stereo Female
Embedded Audio Input	HDMI: 2-Channel

Output

Video Outputs	4x HDMI 1x RJ45
Output Video Format	HDMI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Outputs	1x 2RCA Stereo Female 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Female
Embedded Audio Output	HDMI: 2-Channel

Connectivity

Other I/O

1x DE-15/DB-15 Tally Output
1x RJ45 Control
3x RJ45 RS-232, RS-422
1x USB-A Firmware, LAN

IP Encoding/Decoding

IP Video	H.264/H.265: 240 x 320 to 1920 x 1080 at 25p, 30p, 50p, 60p, 15, 20 (0.25 to 10 Mb/s) Encoding
IP Audio	AAC-LC: 32 to 384 Kb/s Encoding
Transport Protocols	HLS, HTTP, RTMP, RTSP, SRT, TCP, TCP/IP, TS-MPEG, UDP

Internal Recording

Recording Media	1x SDXC, SDHC
Recording Modes	1920 x 1080p at 15/20/25/29.97/30/50/59.94/60 fps (MP4)

Display

Display Size

14"

Hardware

OS Compatibility	Windows 7 or Later
Wireless	No

Power

Power I/O	1x XLR 4-Pin (12 VDC ) Input
Power Consumption	Device: 12 VDC (82 W)

General

Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	17.2 x 13 x 3.8" / 437.6 x 330.5 x 96.5 mm
Weight	11.9 lb / 5.4 kg

Packaging Info

Package Weight	13.94 lb
Box Dimensions (LxWxH)	21.9 x 16.3 x 8.1"
