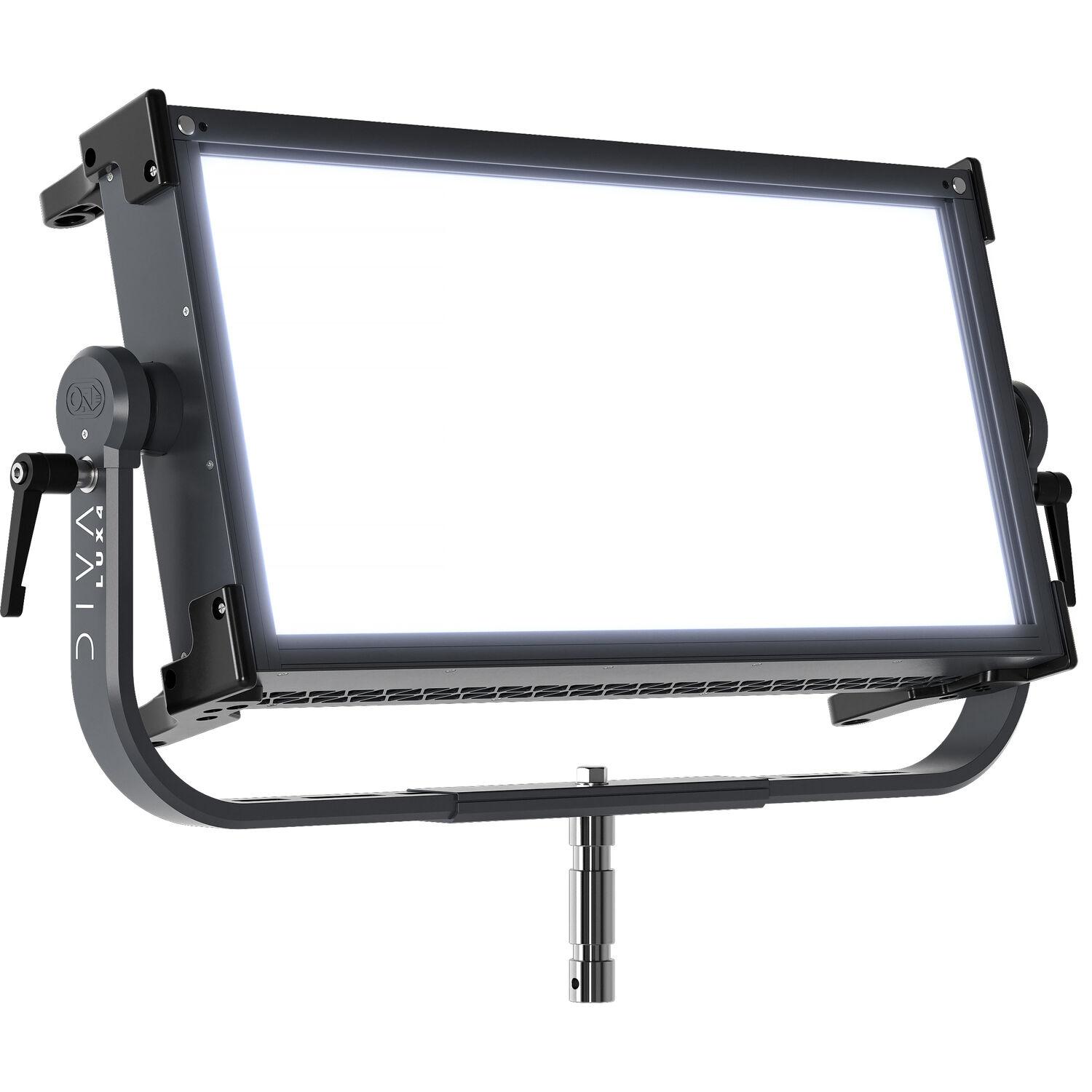

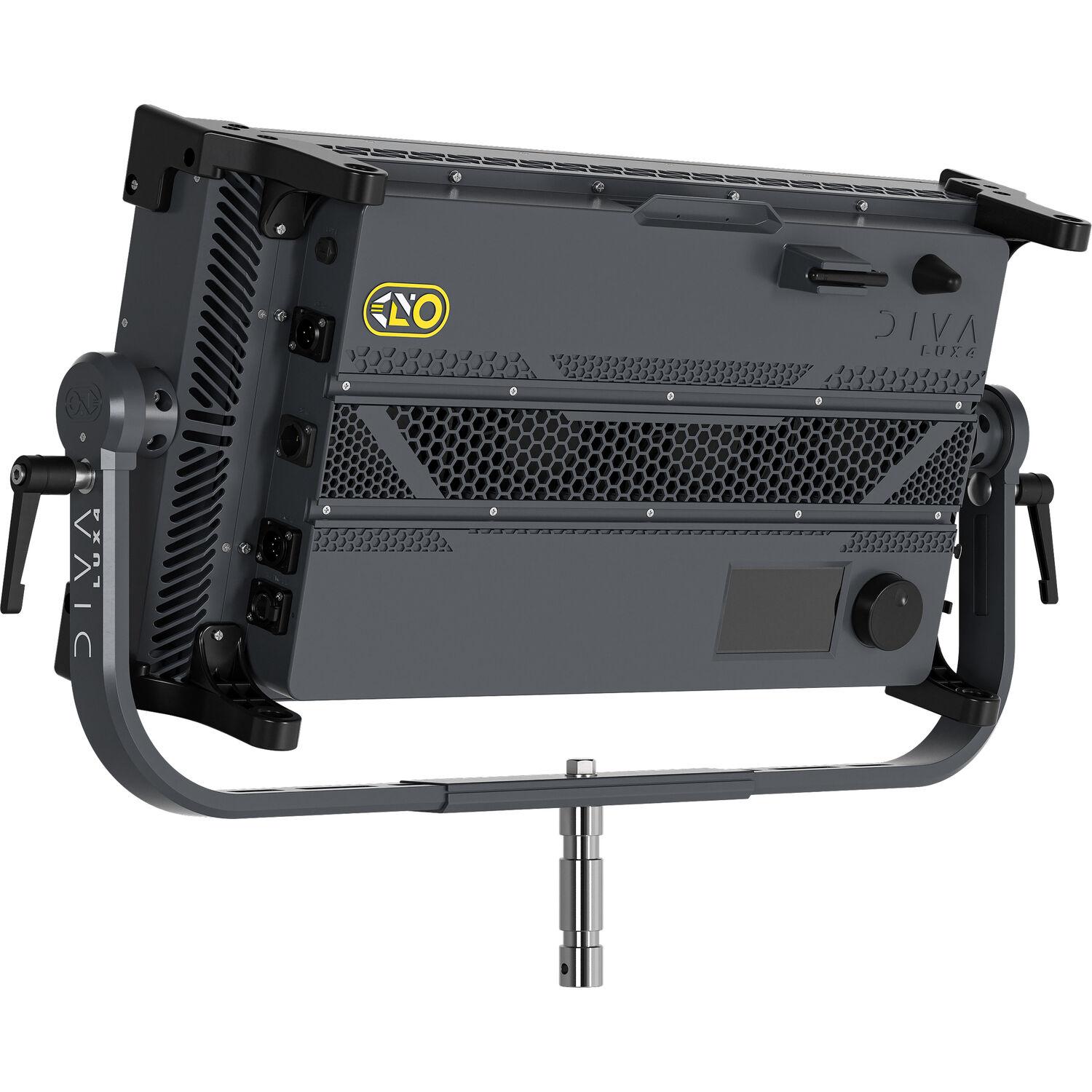

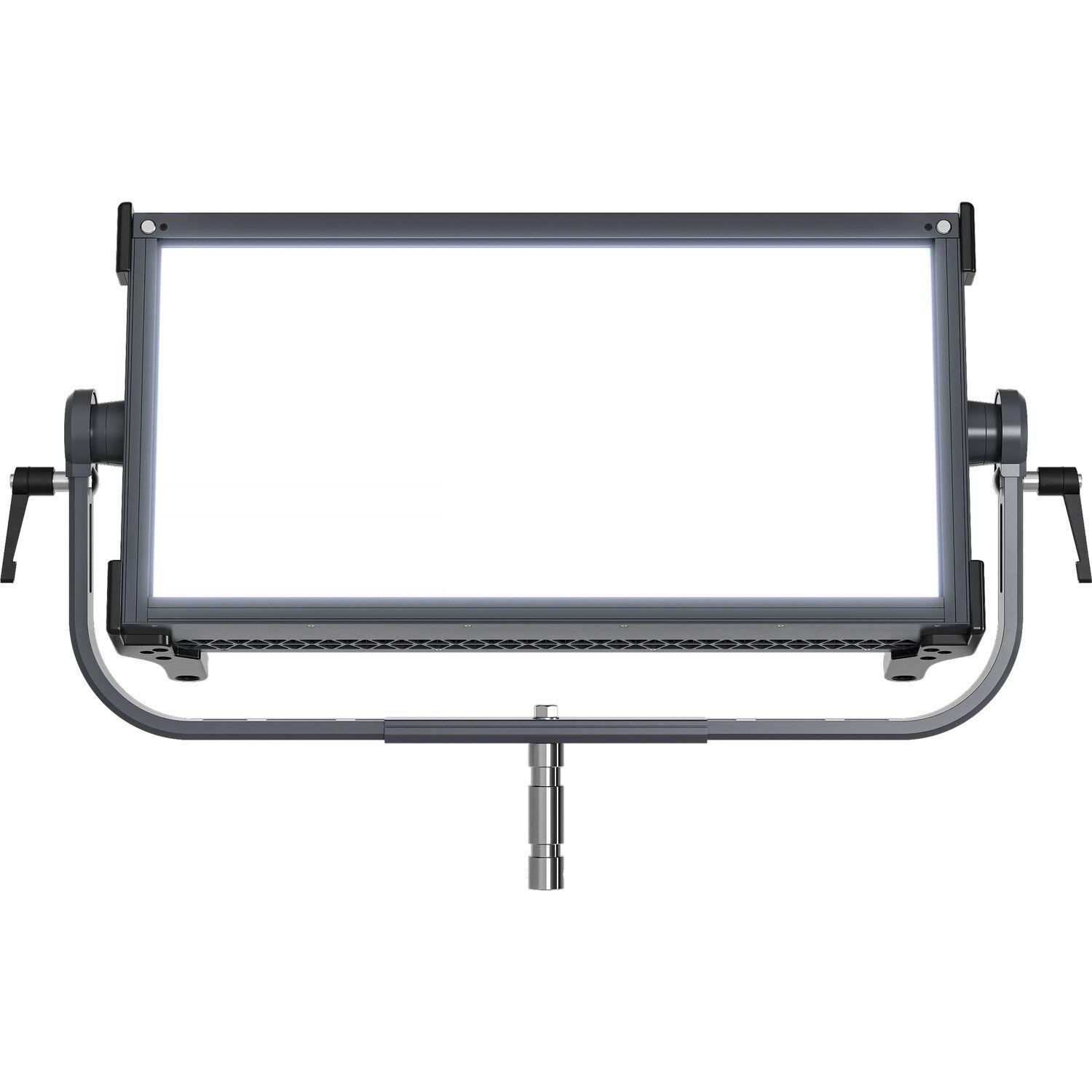

Kino Flo Diva Lux 4 RGB LED Light Panel (Pole-Operated Yoke, Edison)

Kino Flo Diva Lux 4 RGB LED Light Panel (Pole-Operated Yoke, Edison)

Name: Kino Flo Diva Lux 4 RGB LED Light Panel (Pole-Operated Yoke, Edison)
Brand: KINO FLO
SKU: SF-2443-OLUD
Availability: InStock

Brand: KINO FLO

MFR: DI3.00122

SKU: SF-2443-OLUD

Price Available Upon Request

For Film, Broadcast & Video Production
Output: 11,727 Lux at 3.3' (5600K)
2700-9990K; RGBwWcW LED Engine
33 x 20" Panel; AC/DC Operation
TLCI 99 | TM-30 Rf 96
Onboard, DMX/RDM & CRMX Control
Art-Net & sACN Support
4 Independently Controlled Zones
Includes Pole-Operated Yoke
Includes Edison Connector Cable

Items Included

Kino Flo Diva Lux 4 RGB LED Light Panel (Pole-Operated Yoke, Edison)
Yoke (Pole-Operated)
Junior Pin
Diffuser
powerCON TRUE1 Cable (Edison)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

With a notable RGBwWcW LED engine, the Diva Lux 4 RGB LED Light Panel from Kino Flo produces soft lighting at a 106° beam angle, making it ideal for use in broadcast studios, houses of worship, and film/TV productions. The primary feature of the Diva Lux 4 is 400W of power at all its white points, plus four independently controlled zones. The RGBwWcW technology enables two new and improved white light sources for high-quality soft lighting. CCT has an expanded range of 2700-9900K with a high TLCI rating of 99 for notable color accuracy. Control the fixture onboard with a touchscreen and a local dial, or opt for more advanced control methods, including wired and wireless DMX. Additionally, this model has a pole-operated yoke, featuring a powerCON TRUE1 to Edison cable.

Bright, Soft & Energy-Efficient Lighting

Not only a smart solution for white and color spectrums in any indoor setup, the IP20-rated Diva Lux 4 is a very bright 11,729 lux at a distance of 3.3' and 5600K CCT. The panel measures 33 x 20" and is a versatile light for multiple scenarios. The Kino Flo True Match firmware facilitates onboard control, as well as remote configuration and operation via RDM and DMX.

You Have All the Control

In addition to wireless DMX, the unit features wired DMX with 5-pin XLR inputs and outputs along with other advanced options. All control methods include wireless DMX/RDM, sACN and Art-Net support, 5-pin XLR DMX in/out, etherCON in/out, passive Ethernet passthrough, data pass through on both DMX and Ethernet lines, and built-in wireless CRMX. Here, LumenRadio is the standard for wireless DMX, but Kino Flo also offers optional City Theatrical Multiverse compatibility if needed (factory swappable).

Additional Details

The Diva Lux 4 has a 106° beam angle and offers a convenient USB-C interface for firmware updates. Power options include 100-240 VAC and 48 VDC via 3-pin XLR. Besides the light, Kino Flo includes the pole-operated yoke, a Junior pin, and a removable diffuser. Not limited to the included diffuser, the panel is also compatible with optional DoPchoice SNAPBAGs and SNAPGRIDs. Use the included Junior pin or the fixture's feet for staging, mounting, or hanging the light.

Light Fixture

Item Type	1x LED Light Panel
Included Filters	Diffusion
Included Storage Case	No
Photometrics	3200K: 995 fc / 10,715 Lux at 3.3' / 1 m 110 fc / 1191 Lux at 9.8' / 3 m 39 fc / 429 Lux at 16.4' / 5 m 5600K: 1089 fc / 11,727 Lux at 3.3' / 1 m 121 fc / 1303 Lux at 9.8' / 3 m 43 fc / 469 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	TLCI 99 TM-30 Rf 96 TM-30 Rg 100
Dimming	Built-In Dimmer / DMX / RDM • 0 to 100%
Beam Angle	106°
Built-In Flash	No
Pixel Zones	4
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	CRMX
Mobile App Compatible	No

Power & I/O

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	1x powerCON TRUE1 AC Power Input 1x XLR 3-Pin Battery Input (48 VDC) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x etherCON/RJ45 Network Input 1x etherCON/RJ45 Network Output 1x USB-C Firmware Input
Battery	1x Battery Power Station, 48 VDC (Not Included)
Input Power	48 VDC 100 to 200 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B Plug to powerCON TRUE1 Cable
Inline Switch	No
Power Consumption	500 W (Maximum)

Mounting

Yoke Type	Pole-Operated Yoke
Fixture Mounting	1x 1-1/8" Stud (Via Yoke Mount)

General

Display	Yes
Environmental Resistance	Dust-Resistant (IP20)
Certifications	ETL, FCC, cETL
Dimensions	33.7 x 20.89 x 7.14" / 85.6 x 53.06 x 18.14 cm (Fixture with Yoke & Pin)
Weight	32.9 lb / 14.9 kg
