Kino Flo FreeStyle 31 LED Fixture

Name: Kino Flo FreeStyle 31 LED Fixture
Brand: KINO FLO
SKU: SF-2443-FDTA
Availability: InStock

Brand: KINO FLO

MFR: FE1.00105

SKU: SF-2443-FDTA

Price Available Upon Request

40.5 x 10.5 x 3.5" w/ 6.5" Barndoors
Removable LED Panel and Louver
Molded Corners for Rigging Options
Several Optional Mounts
Requires Optional Controller for Use

Items Included

Kino Flo FreeStyle 31 LED Fixture
90-Degree Louver (Grid)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

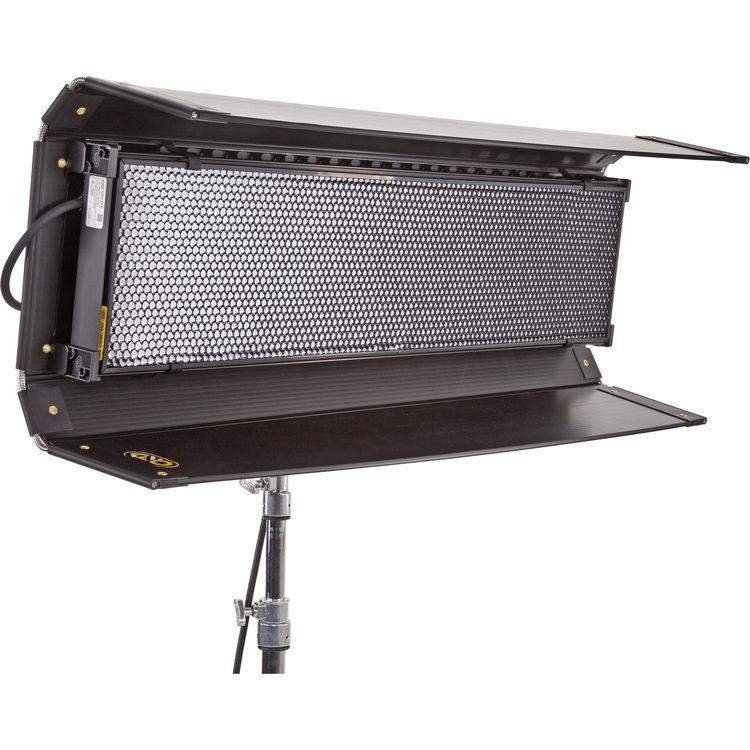

The FreeStyle 31 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that includes the required Select 150 LED DMX Controller. The fixture measures 40.5 x 10.5 x 3.5" w/ 6.5" Barndoors and weighs 15 lb - light enough to hand hold. The fixture comes with a 90-degree removable louver (grid). In fact, the LED panel can also be removed from its housing for mounting options. The fixture runs on 100 to 240 VAC current through its optional controller.

The FreeStyle 31 requires a head cable and controller (which are available separately) for use. The controller offers an extensive 6-channel array of control features and use options. It has 2 menus for color and a "White Menu" for Dimming, Kelvin Temperature and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor and mercury vapor.

A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The required controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The controller runs on 100 to 240 VAC current for worldwide use.

Benefits Using Separately Purchased LED Controller

Kelvin presets
Dial-in color temperature control between 2700-6500K
Extended color palette from 2500-9900K
Green/Magenta Control
Hue angle and Saturation adjustments
RGB control
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings
Light levels do not change when selecting Kelvin settings
No color shift while dimming
Color-correct with high color rendering index (CRI 96)
Universal input 100-240 VAC or 24 VDC
Energy efficient, low electrical draw
Flicker-free, dead quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio)
DMX Auto Terminate
Remote fixture with built-in barndoors

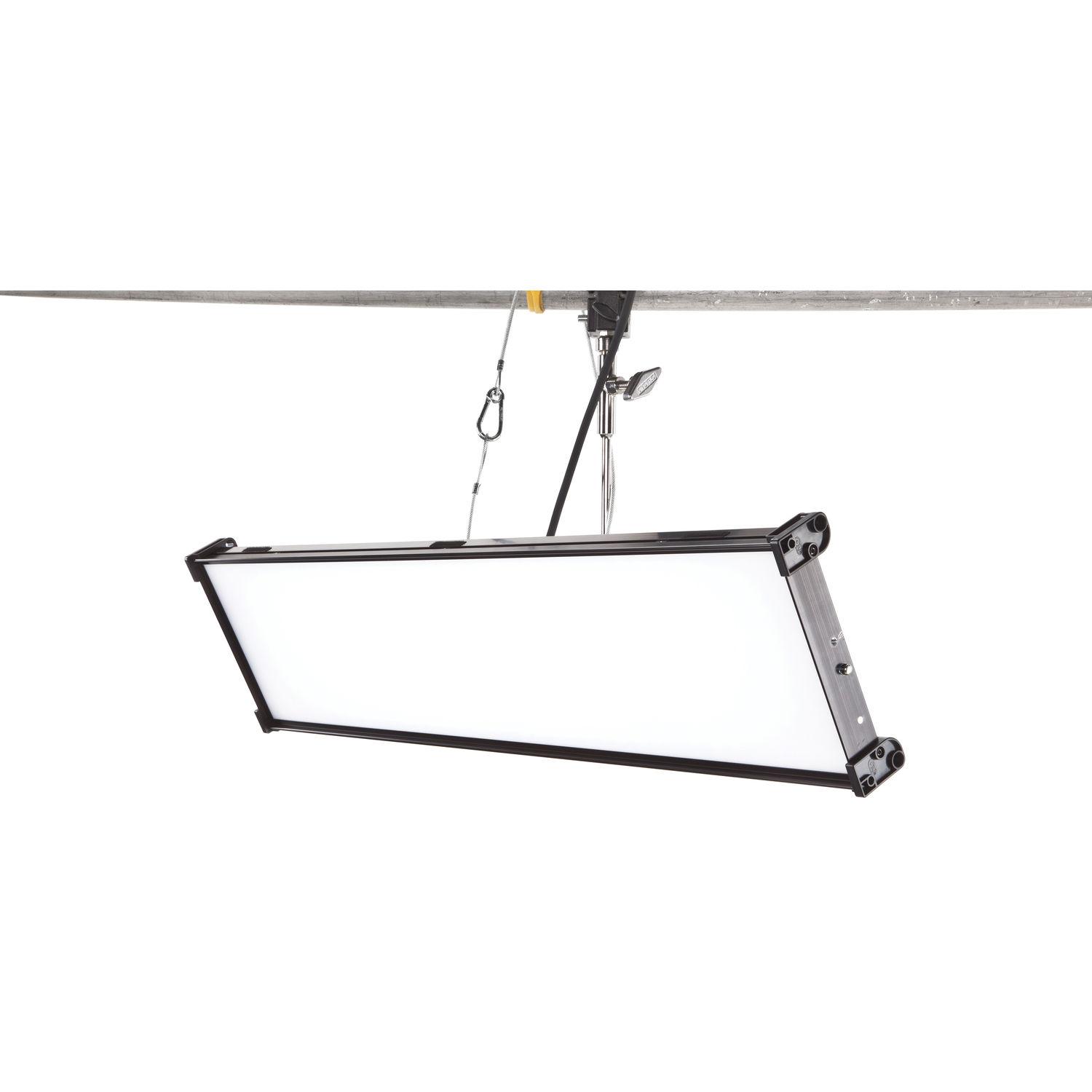

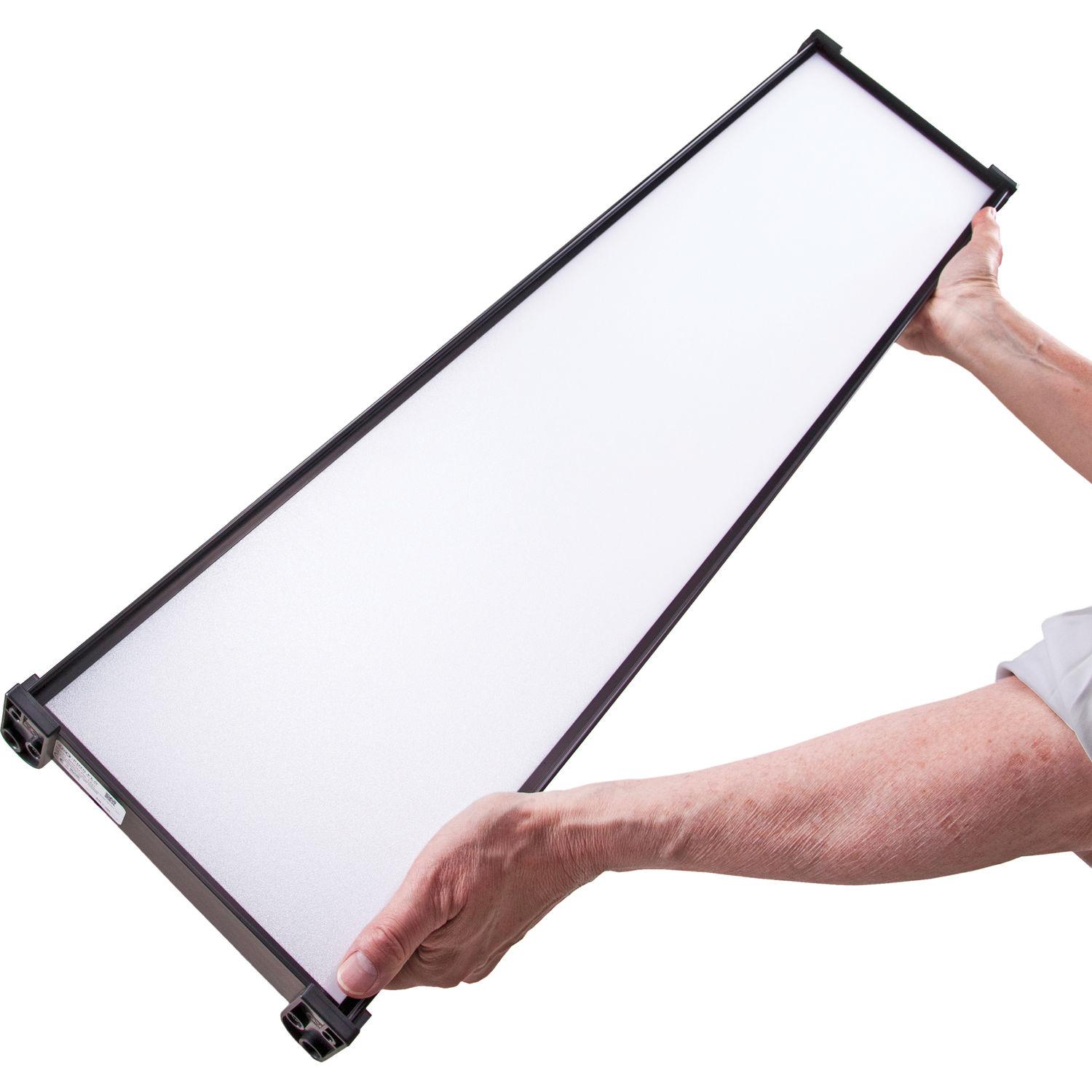

Removable LED panel
Fixture includes removable 90° Honeycomb Louver
Honeycomb louver also available in 60° as accessory
Lightweight, slim profile
Light enough to be handheld
Separately purchased Controller mounts onto fixture or operates remotely with extension cable

Light Fixture

Item Type	1x LED Light Panel
Included Light Modifier	1x Grid/Louver
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	No
Photometrics	224 fc / 2409 Lux at 3.3' / 1 m 675 fc / 7270 Lux at 1.6' / 0.5 m 111 fc / 1190 Lux at 4.9' / 1.5 m 64 fc / 683 Lux at 6.6' / 2 m 41 fc / 445 Lux at 8.2' / 2.5 m 29 fc / 312 Lux at 9.8' / 3 m 22 fc / 233 Lux at 11.5' / 3.5 m 17 fc / 181 Lux at 13.1' / 4 m 14 fc / 146 Lux at 14.8' / 4.5 m 11 fc / 117 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96
Dimming	Built-In Dimmer (Continuous) • 0 to 100%
Cooling System	Passive
Beam Angle	90° with Included Grid
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Wireless DMX *Power Supply/Controller Required (Not Included)
Mobile App Compatible	No

Power & I/O

Power Source	AC Power (Cable Not Included) Requires Power Supply/Controller (Not Included) Battery (Not Included) Requires Power Supply/Controller (Not Included)
Inputs/Outputs	Light Fixture To Power Supply/Controller: 1x Built-In Cable with Unspecified DMX/Power Input Power Supply/Controller To Light Fixture: 1x Unspecified DMX/Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x XLR 3-Pin Power Input 1x IEC Power Input
Input Power	24 VDC 100 to 240 VAC, 50 / 60 Hz
Inline Switch	No
Power Pass-Thru	No
Power Consumption	150 W

Mounting

Fixture Mounting	1x Lollipop Receiver
Included Adapter	1x Lollipop Mount: 5/8" Receiver to Lollipop Ball

General

Display	Yes
Environmental Resistance	No
Dimensions	37.5 x 9.5" / 95.3 x 24.1 cm (Fixture Panel) 40.5 x 11 x 3.5" / 27.9 x 27.9 x 8.9 cm (Fixture)
Weight	9 lb / 4.1 kg 15 lb / 6.8 kg (Fixture with Mount)
