Kino Flo FreeStyle 31 LED Panel

Name: Kino Flo FreeStyle 31 LED Panel
Brand: KINO FLO
SKU: SF-2443-VHSA
Availability: InStock

Brand: KINO FLO

MFR: FE1.00106

SKU: SF-2443-VHSA

Price Available Upon Request

Measures 37.5 x 9.5 x 2.5"
Requires Optional Controller for Use
Variable Color Temperature: 2700-6500K
Extended Range: 2500-9900K
CRI: 95, Multiple Color Presets
Optional Receivers for Stand Mounting

Items Included

Kino Flo FreeStyle 31 LED Panel

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

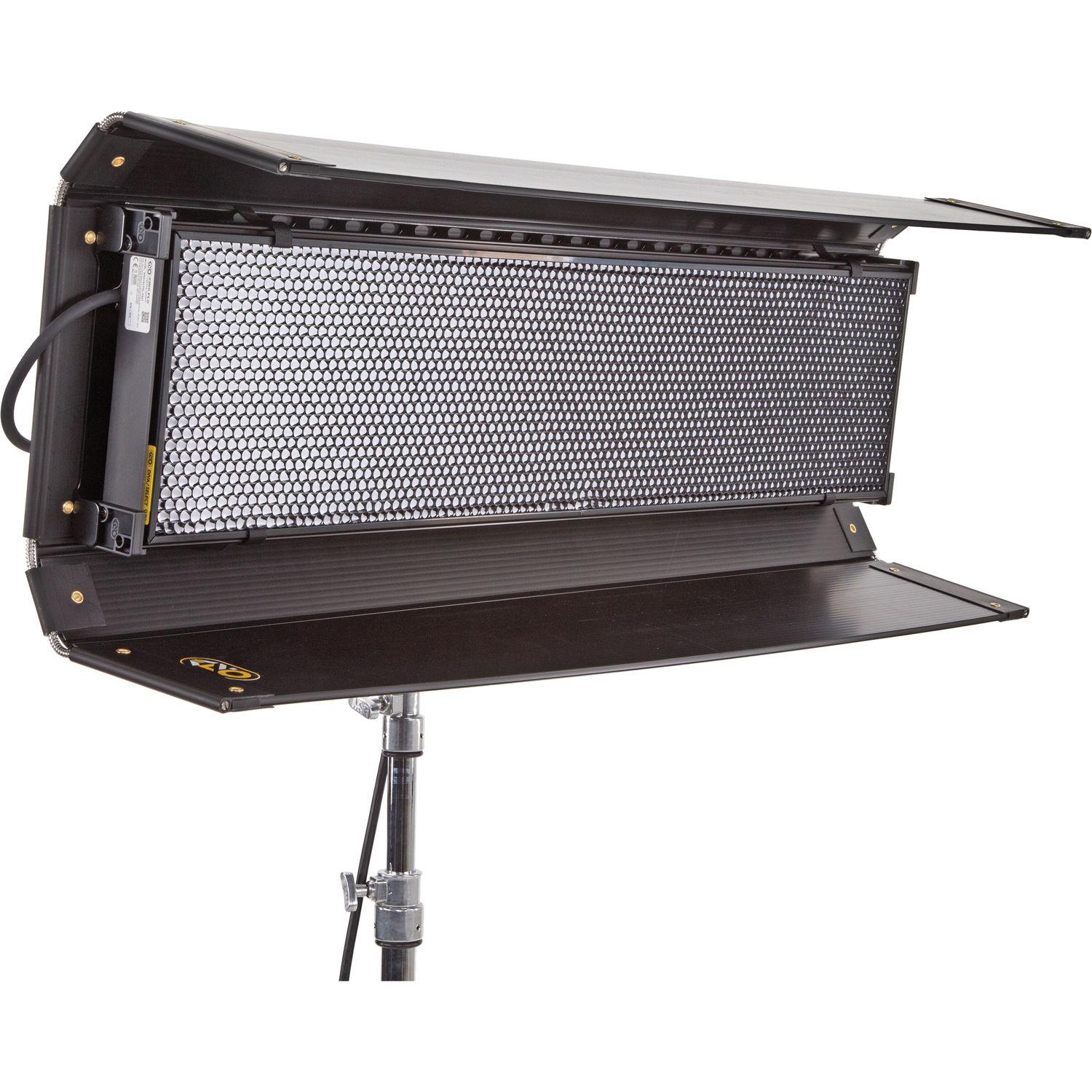

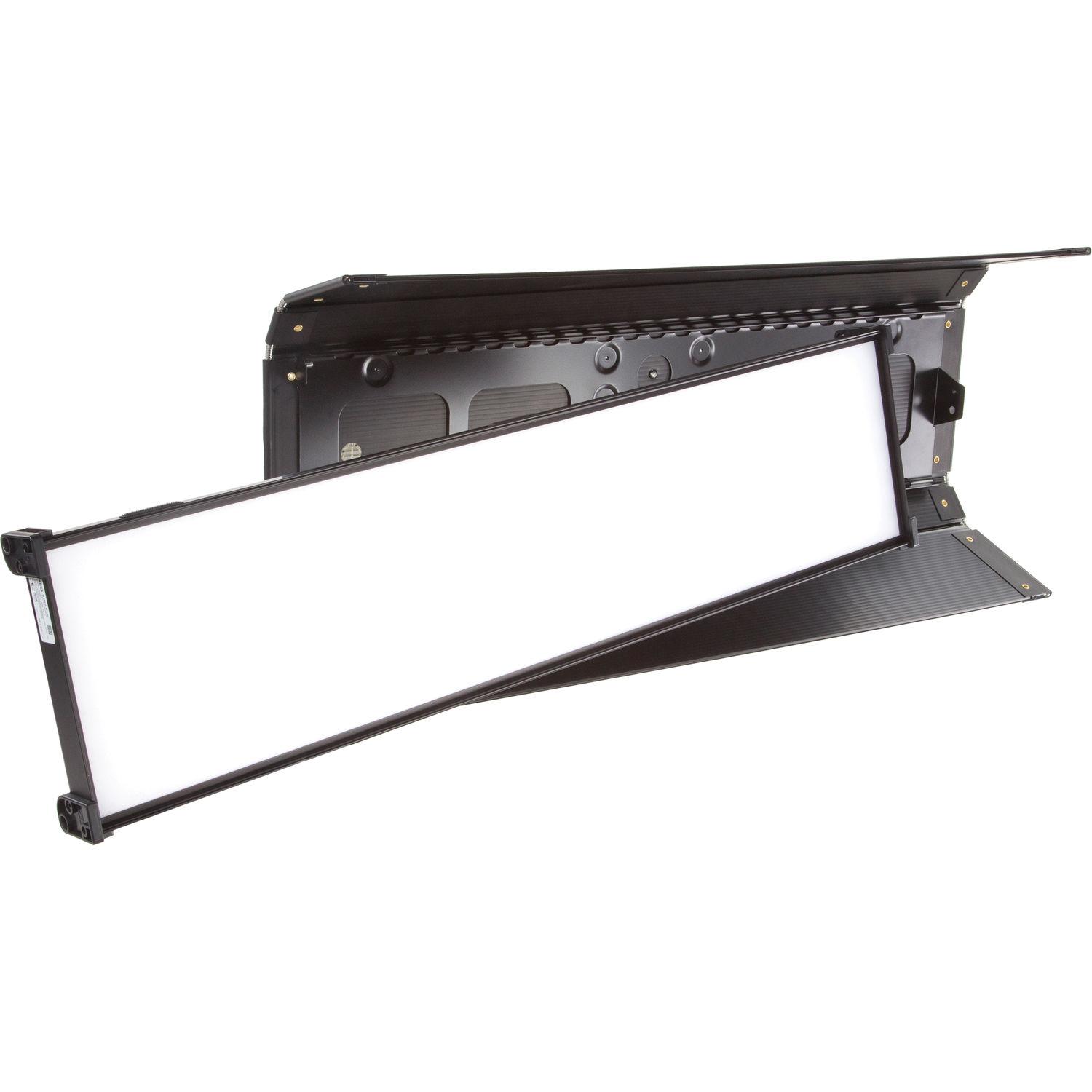

The 37.5 x 9.5 x 2.5" FreeStyle 31 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.

The following description illustrates the capabilities of the panel when used with the optional controller for use:

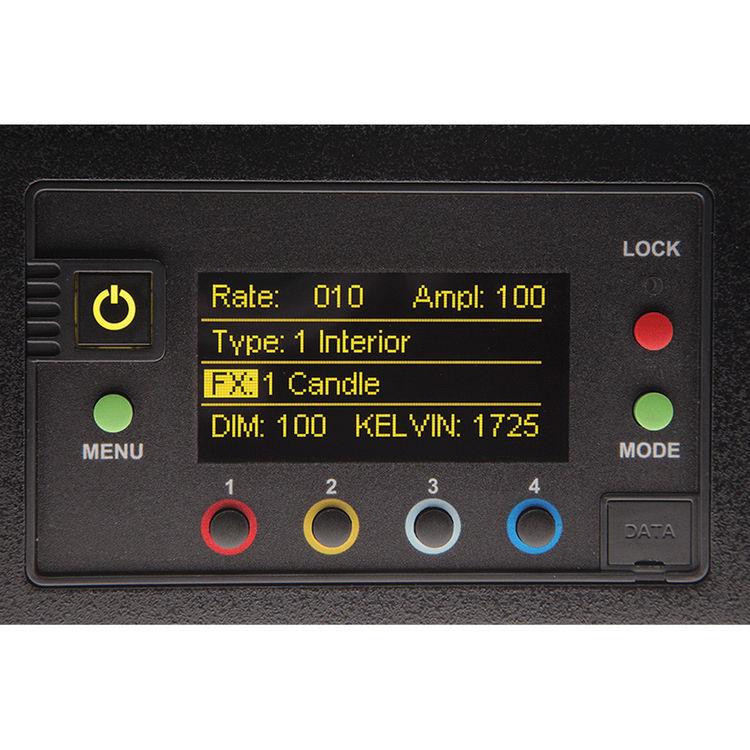

The FreeStyle 31 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.

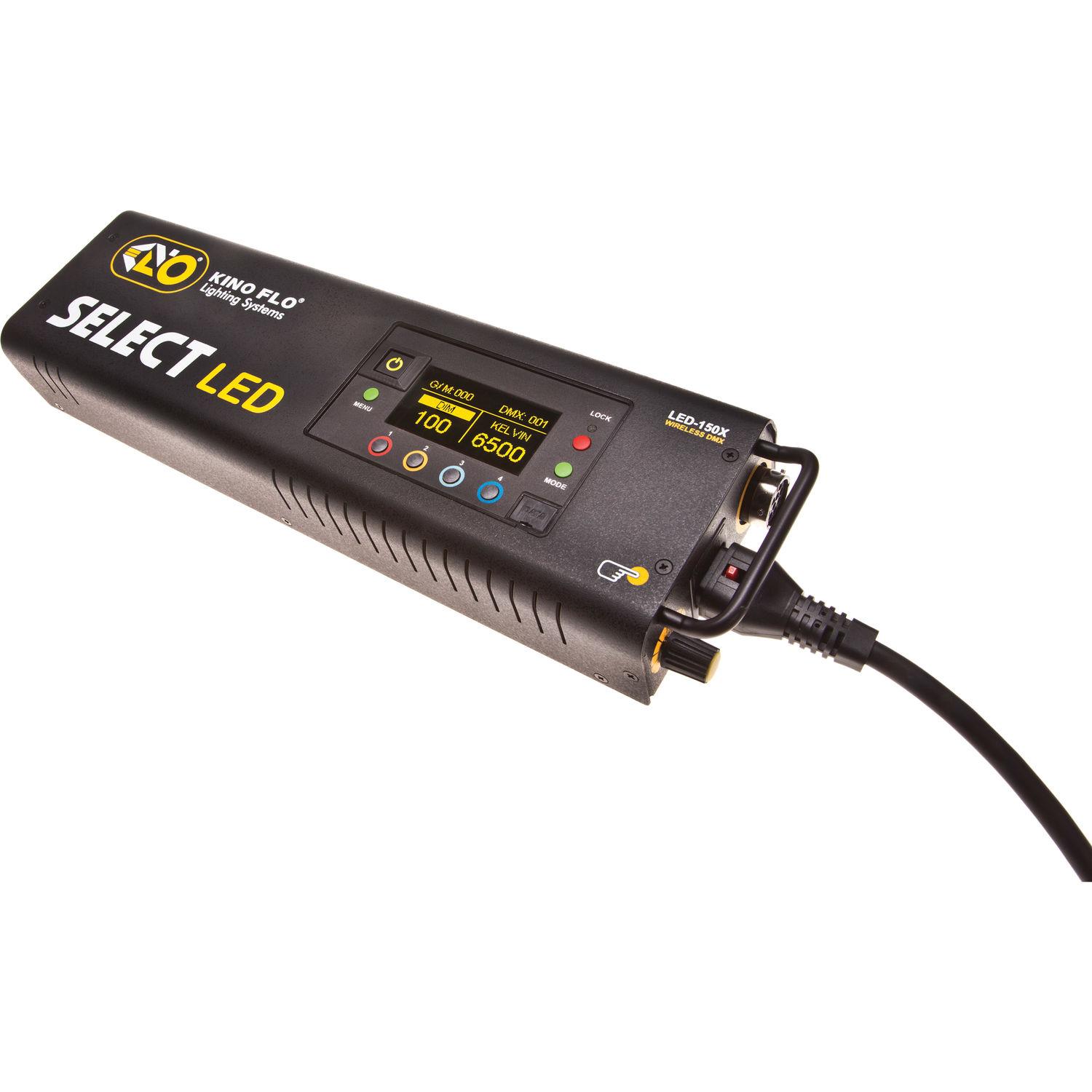

Benefits Using Separately Purchased LED Controller

Kelvin presets
Dial-in color temperature control between 2700-6500K
Extended color palette from 2500-9900K
Green/Magenta Control
Hue and Saturation adjustments
RGB control
Works with Apps with predetermined RGB presets or color wheels
Light levels do not change when selecting Kelvin settings
No color shift while dimming
Color-correct with high color rendering index (CRI 95)
100-240 VAC or 24 VDC
Energy efficient, low electrical draw
Flicker-free, dead quiet operation
Lightweight, slim profile

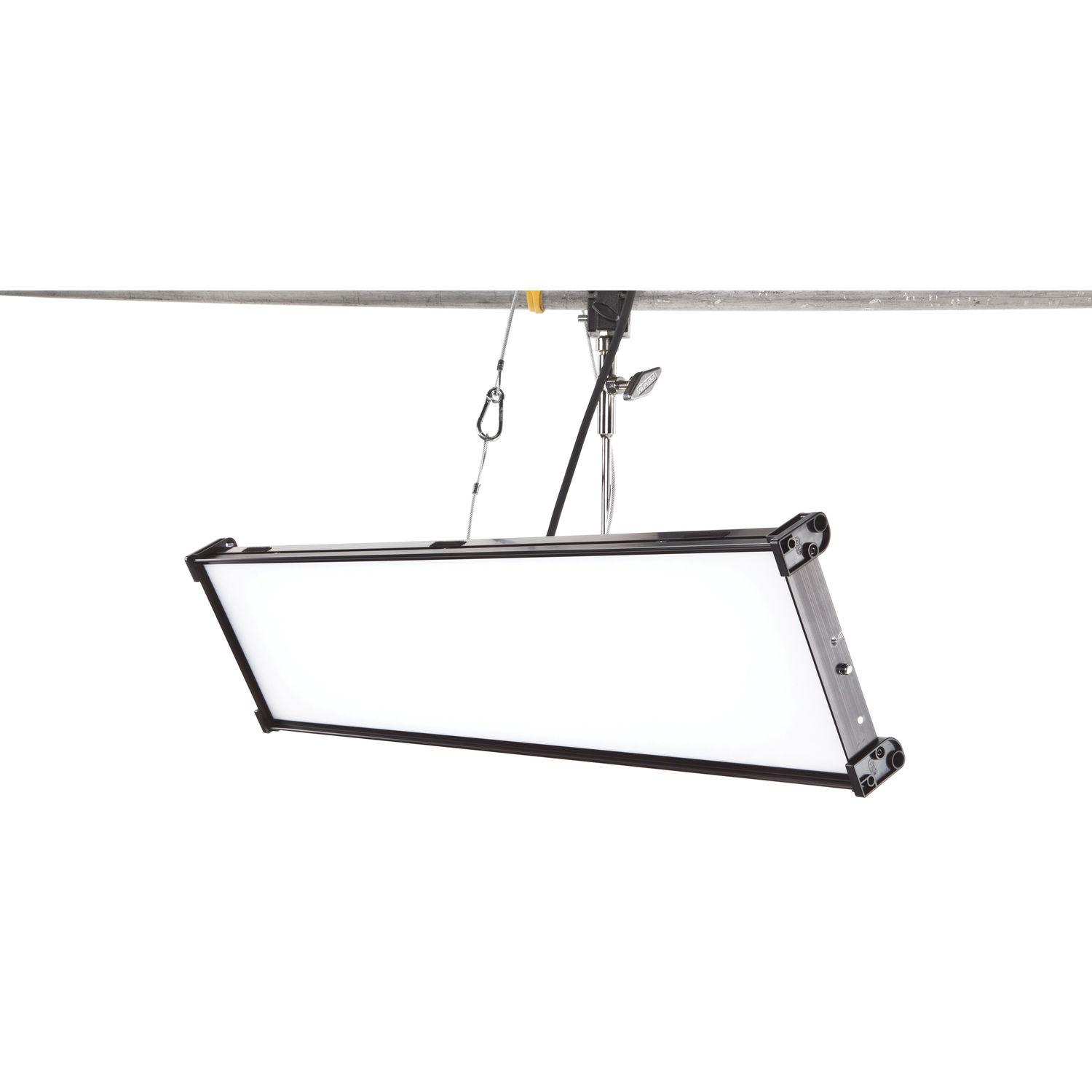

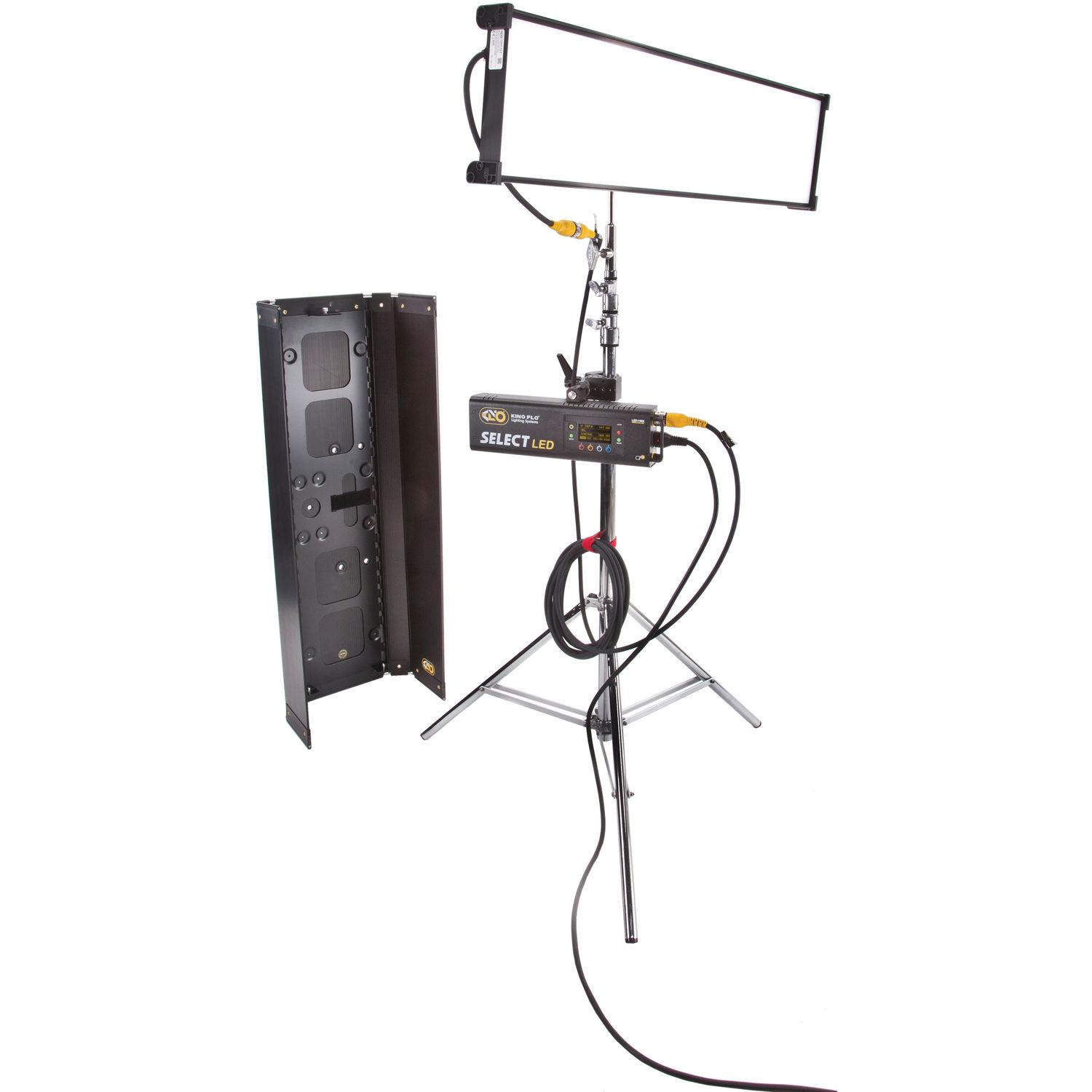

Mounts on stand, light enough to be handheld

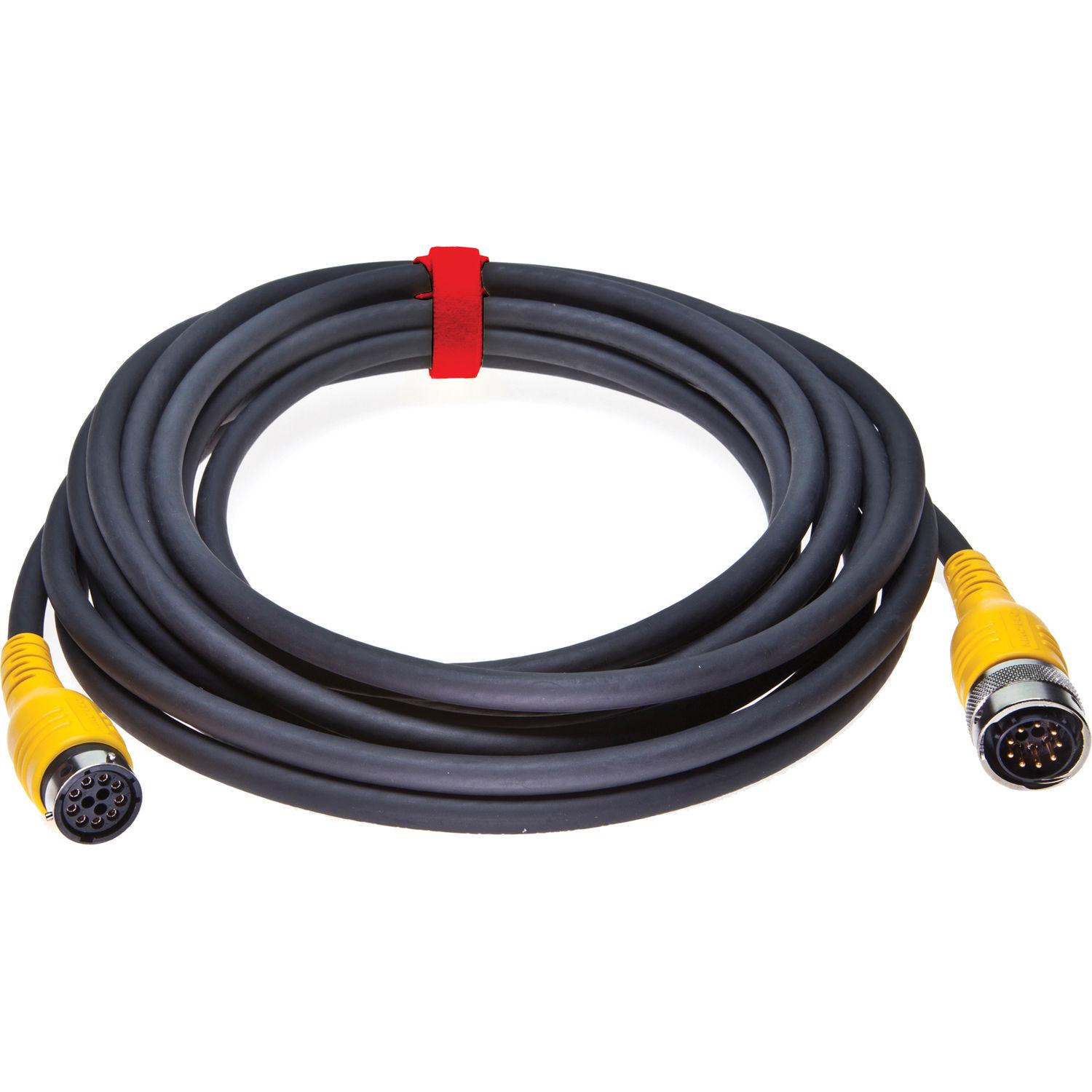

Separately purchased controller mounts onto fixture or operates remotely with extension cable

Light Fixture

Item Type	1x LED Light Panel
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	No
Photometrics	229 fc / 2470 Lux at 3.3' / 1 m 28 fc / 312 Lux at 9.8' / 3 m 10 fc / 117 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95
Dimming	Built-In Dimmer (Continuous) • 1 to 100%
Cooling System	Passive
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Wireless DMX *Power Supply/Controller Required (Not Included)
Mobile App Compatible	No

Power & I/O

Power Source	AC Power (Cable Not Included) Requires Power Supply/Controller (Not Included) Battery (Not Included) Requires Power Supply/Controller (Not Included)
Inputs/Outputs	1x Built-In Cable with Unspecified Power Input
Input Power	100 to 240 VAC, 50 / 60 Hz
Inline Switch	No
Power Pass-Thru	No
