Kino Flo FreeStyle Air Mini RGB LED Light Panel

Kino Flo FreeStyle Air Mini RGB LED Light Panel

Name: Kino Flo FreeStyle Air Mini RGB LED Light Panel
Brand: KINO FLO
SKU: SF-2443-RXHG
Availability: InStock

Brand: KINO FLO

MFR: FE1.00101

SKU: SF-2443-RXHG

Price Available Upon Request

For Film, Broadcast & Video Production
Output: 1970 Lux at 3.3' (6500K)
2500-9900K CCT; RGB Color Control
21 x 13 x 2" Panel; AC/DC Operation
CRI 96 | TLCI 96 | TM-30 Rf 95, Rg 103
Onboard, App, DMX, LumenRadio Control
Multiple Mounting Options
Green-Magenta Adjustment
Flicker-Free, Quiet Operation
Includes Panel Only; Optional Controller

Items Included

Kino Flo FreeStyle Air Mini RGB LED Light Panel

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

Featuring a slim and lightweight profile, the FreeStyle Air Mini RGB LED Light Panel from Kino Flo is a unique "rigid mat" that offers the same Color Science LED technology found in all Kino Flo LEDs. The panel's Kelvin range is expandable from a warm 2500 to an ice-blue 9900K with advanced color adjustments. When used with a separately available controller, the panel offers extended capabilities such as access to the color menu to work with RGB, a real convenience to employ color wheels or RGB presets. This AC-powered panel allows a wide array of control options, including onboard, app, DMX, and wireless DMX LumenRadio. You can mount this 21 x 13 x 2" flat, hard unit on a separately available stand, but it is lightweight enough to be handheld.

Full RGB Control & Output

The FreeStyle Air Mini outputs up to 1970 lux at 3.3' (6500K). A separately purchased controller is required to handle different features: RGB, presets and gels, FX, and many others. In FX mode, you are provided access to effects to simulate lighting scenarios. Hue and saturation adjustments are possible as well.

Green-Magenta Adjustment

Green-to-magenta shift is available for situations when you need color correction to match other light sources or achieve a specific look.

Control & Power

The unit's separately available controller has onboard DMX for making adjustments remotely from a console and is also compatible with LumenRadio wireless DMX. The FreeStyle Air Mini also works with the Luminair and other apps with predetermined RGB presets or color wheels. Designed for worldwide use, the fixture runs on 100 to 240 VAC current.

Cooling System

Usable LED life is extended with a passively cooled design that ensures color and luminosity remain stable over time. The panel features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired if needed.

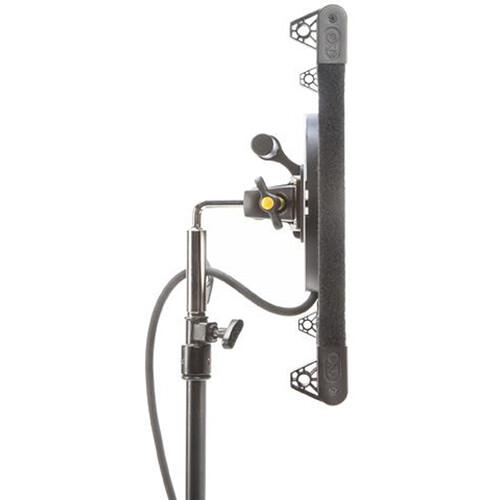

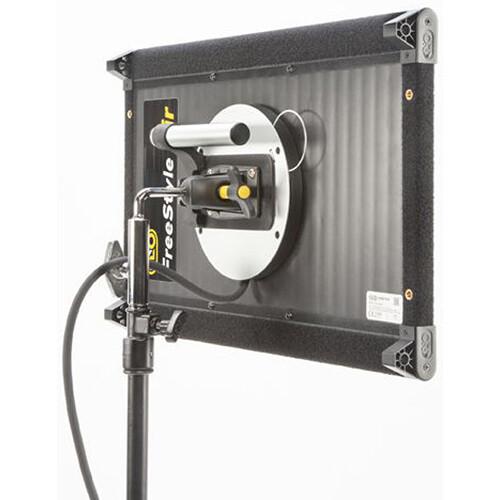

Multiple Mounting Options

Besides an optional twist-on mount for light stands and corner bumpers that offer additional rigging options, the FreeStyle Air Mini's eyelets simplify overhead and other surface attachments. The unit can also be handheld with a separately purchased KinoGrip mount.

Widely Compatible

The FreeStyle Air Mini is highly portable, providing reliable performance with familiar features. It integrates seamlessly with existing FreeStyle systems, optional mounts, extension cables, and the LED-140/LED-150 Series controllers.

Additional Benefits

1 to 100% dimming without color shifts
Flicker-free and quiet operation
Firmware updates via its mini-USB port
Its rigid construction safeguards the integrity of its components

Light Fixture

Item Type	1x LED Light Panel
Included Storage Case	No
Photometrics	6500K: 183 fc / 1970 Lux at 3.3' / 1 m 21 fc / 233 Lux at 9.8' / 3 m 7 fc / 86 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Dimming	Controller Not Included • 1 to 100%
Cooling System	Passive
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Power & I/O

Power Source	AC Power (Cable Not Included) Requires Power Supply/Controller (Not Included) Battery (Not Included) Requires Power Supply/Controller (Not Included)
Inputs/Outputs	1x Built-In Cable with Proprietary Power Input
Input Power	24 VDC
Power Pass-Thru	No
Power Consumption	55 W
