Kino Flo Freestyle Mini LED DMX 2-Light Universal System with Soft Case

Brand: KINO FLO

MFR: FE3.00116

SKU: SF-2443-7V4Y

Price Available Upon Request
  • 2 x Mini LED Panels with Louvers
  • 1 x DMX Controller
  • 2 x K41 Mounts with Baby Receivers
  • 2 x Head Extension Cables (25')
  • 1 x Soft Case with Padded Shoulder Strap
  • Gel Presets, FX and RGB Modes
  • 2500-9900K Adjustable Color Temperature
  • Multi-Voltage: 100-240 VAC

Items Included


  • Kino Flo FreeStyle Mini HP 90° Louver
  • IEC Power Cable (3-Prong US)
  • 2 x Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short
  • 2 x Kino Flo 25' Head Extension Cable for FreeStyle T44
  • Shoulder Strap
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Categories: LED Lights

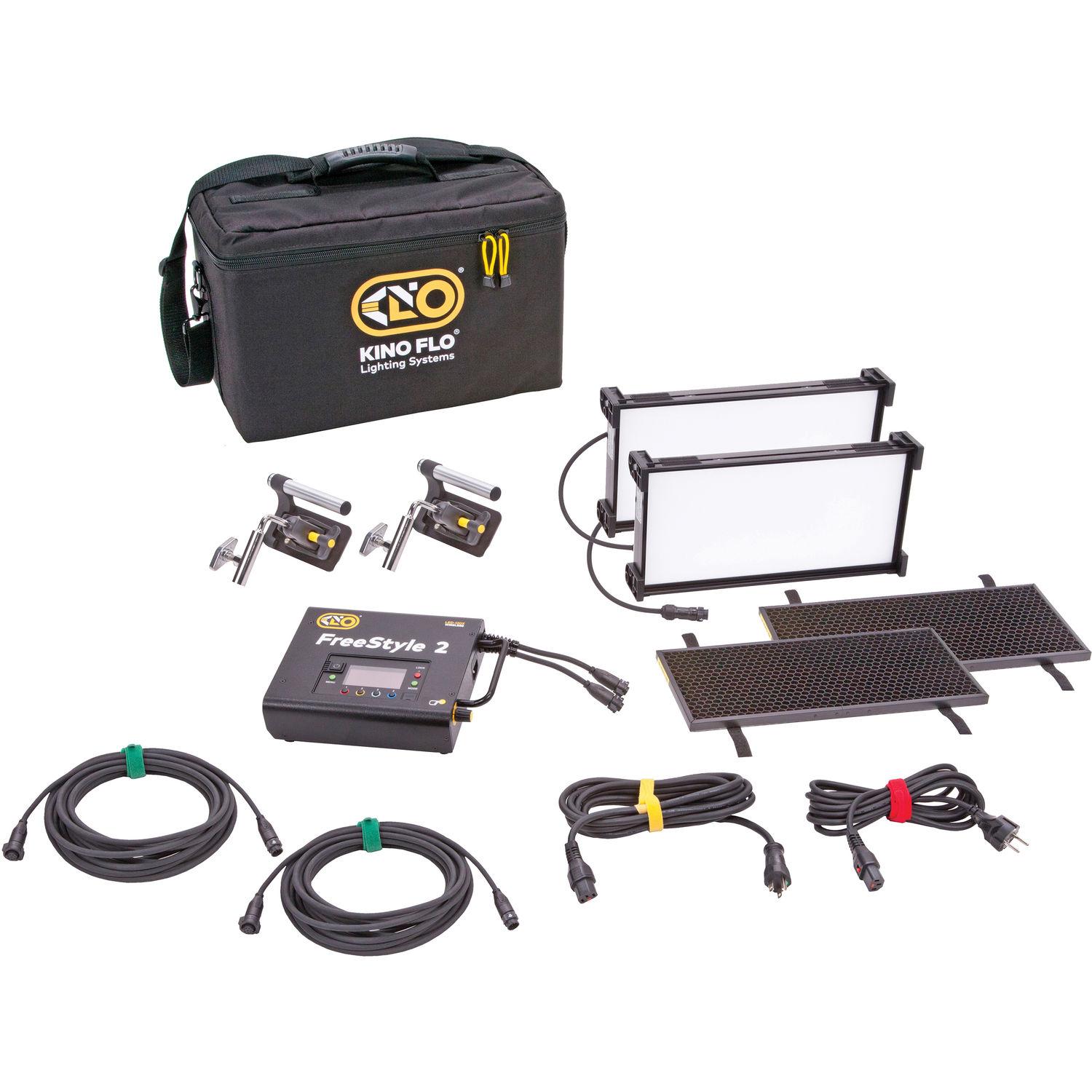

Ideal for the image maker on the road, the Freestyle Mini LED DMX 2-Light Universal System with Soft Case from Kino Flo is built around the Mini and its DMX Controller.

The kit includes two Mini fixtures, one controller, 2 MTP-BG41 mounts with short Baby receivers, and two 25' extension cables. A soft case with a padded shoulder strap is also included for storage and transport.

Kino Flo CFX-F10 FreeStyle Mini RGB LED Panel with Louver

Slim and compact in size, the FreeStyle Mini RGB LED Panel with Louver from Kino Flo offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight LED panel can easily fit into tight locations or can be handheld with a separately purchased KinoGrip 41K Mount. For mounting on light stands, the back of the fixture features a twist-on removable KinoGrip Center Mount, which can be adapted to work with multiple Kino Flo mounting adapters. Molded corners offer additional rigging options, and a louver is included, which is held in place with hook-and-loop fasteners.

This FreeStyle Mini panel requires a separately available head cable and DMX controller. The controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

  • Adjustable color temperature from 2500 to 9900K
  • 1 to 100% dimming without color shifts
  • Flicker-free and quiet operation
  • Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
  • FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
  • Full range onboard and DMX dimming
  • DMX wireless link
Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U)

The Universal 120U Kinoflo FreeStyle 120 LED DMX Controller supports universal power, 100 to 240 VAC and comes with a replaceable 3-prong US power cord. The controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX Mode. The White Mode features dimming from 100-1% and a tunable kelvin range from 2700 to 6500K. In the Gels/Hue Color mode the kelvin range is expanded to 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue & green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color Mode gives individual control of red, green, and blue LED's, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

  • Adjustable color temperature from 2500 to 9900K
  • 100-1% dimming without color shifts
  • Flicker-free and quiet operation
  • Gel presets include blue & green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
  • FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
  • Full-range onboard and DMX dimming
  • DMX wireless link
Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short

Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.

Kino Flo 25' Head Extension Cable for FreeStyle T44

The 25' Head Extension Cable for FreeStyle T44 from Kino Flo allows you to place the light's controller at a greater distance, from the head to hide it or prevent water damage.

Kino Flo Soft Case for FreeStyle Mini System (Black)

Store, transport, and protect your FreeStyle Mini System with the black Soft Case from Kino Flo. The case features a zippered closure, a padded shoulder strap, and a padded top handle.


Light Fixture
Item Type
1x LED Light Panel
Included Light Modifier
1x Grid/Louver
Included Filters
Soft Diffusion (Built-In)
Included Storage Case
No
Photometrics

76 fc / 828 Lux at 3.3' / 1 m
9 fc / 99 Lux at 9.8' / 3 m
3 fc / 37 Lux at 16.4' / 5 m
Color Temperature
2500 to 9900K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
TM-30 Rf 95
TM-30 Rg 103
Dimming
Built-In Dimmer
 • 1 to 100%
Cooling System
No
Beam Angle
90° with Included Grid
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Wireless DMX *Power Supply/Controller Required (Not Included)
Mobile App Compatible
No
Wireless Range
50' / 15.2 m
Power & I/O
Power Source
AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Battery (Not Included) *Requires Power Supply/Controller (Not Included)
Inputs/Outputs
1x Built-In Cable with Unspecified Power Input
Battery
1x D-Tap Rechargeable, 24 VDC (Not Included)
Input Power
18 to 36 VDC
100 to 240 VAC, 50 / 60 Hz
Inline Switch
No
Power Pass-Thru
No
Power Consumption
100 W
Mounting
Fixture Mounting
1x Lollipop Receiver
Included Adapter
1x Lollipop Mount: 5/8" Receiver to Lollipop Ball
General
Display
No
Environmental Resistance
No
Dimensions
15 x 7.5 x 3" / 38.1 x 19.1 x 7.6 cm (Fixture)
Weight
3.5 lb / 1.59 kg
Packaging Info
Package Weight
3.845 lb
Box Dimensions (LxWxH)
15.6 x 9.7 x 3"
