Kino Flo Freestyle Mini LED DMX Universal System

Name: Kino Flo Freestyle Mini LED DMX Universal System
Brand: KINO FLO
SKU: SF-2443-MTZD
Availability: InStock

Brand: KINO FLO

MFR: FE3.00118

SKU: SF-2443-MTZD

Price Available Upon Request

Mini LED Panel with Louver
DMX Controller
Gel Presets and FX Mode
2500-9900K Adjustable Color Temperature
KinoGrip K41 Mount with Baby Receiver
25' Head Extension Cable
Multi-Voltage: 100-240 VAC

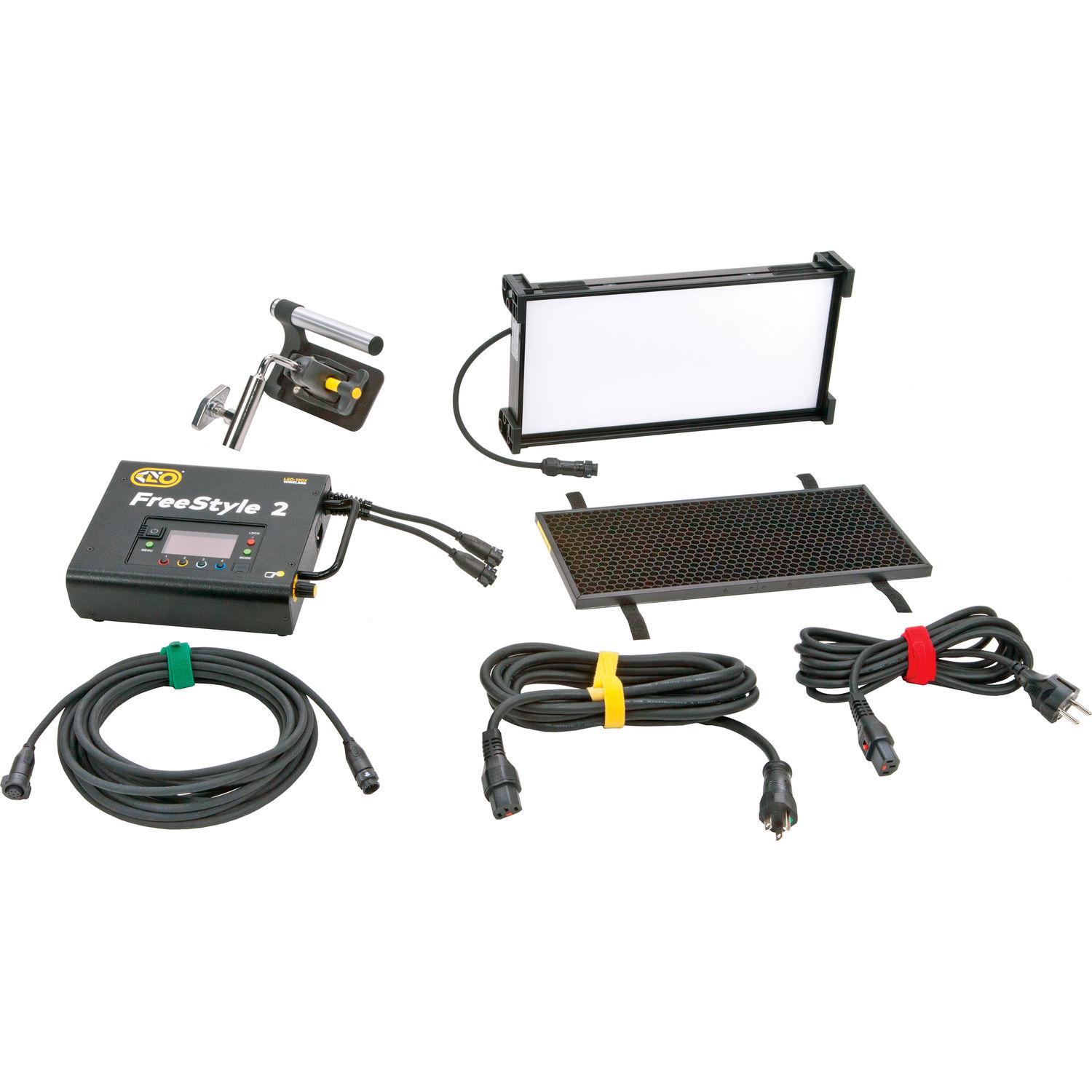

Items Included

Kino Flo Freestyle Mini LED DMX Universal System
US Power Cable
2-Pin Euro Power Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

The Freestyle Mini LED DMX Universal System from Kino Flo features the FreeStyle Mini LED Fixture and FreeStyle 120 LED DMX Controller. Also included are the KinoGrip K41 Mount with Baby Receiver, 25' Head Extension Cable, US power cable, and a 2-pin Euro power cable.

Slim and compact in size, the FreeStyle Mini LED Fixture offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight fixture can fit easily into tight locations or be handheld with the included KinoGrip 41K Mount, which also allows mounting to accessories and light stands with a 5/8" baby pin. Additionally, the back of the fixture comes with a twist-on removable KinoGrip Center Mount, which can be adapted to work with multiple Kino Flo mounting adapters.

The FreeStyle DMX Controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

Adjustable color temperature from 2500 to 9900K
1 to 100% dimming without color shifts
Flicker-free and quiet operation
Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
Full-range onboard and DMX dimming
DMX wireless link
25' Head Extension Cable for versatility in mounting and controlling fixture in hard-to-reach locations
Hand or Stand Mountable

Light Fixture

Item Type	1x LED Light Panel
Included Light Modifier	1x Grid/Louver
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	No
Photometrics	76 fc / 828 Lux at 3.3' / 1 m 9 fc / 99 Lux at 9.8' / 3 m 3 fc / 37 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96 TM-30 Rf 95 TM-30 Rg 103
Dimming	Built-In Dimmer • 1 to 100%
Cooling System	No
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Wireless DMX *Power Supply/Controller Required (Included)
Mobile App Compatible	No

Power & I/O

Power Source	AC Power (Cable Included) Requires Power Supply/Controller (Included) Battery (Not Included) Requires Power Supply/Controller (Included)
Inputs/Outputs	Light Fixture To Power Supply/Controller: 1x Built-In Cable with Proprietary Power Input (18 to 36 VDC at 10 A) Power Supply/Controller To Light Fixture: 2x Proprietary Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x IEC Power Input 1x XLR 3-Pin Power Input (18 to 36 VDC at 10 A)
Battery	1x D-Tap Rechargeable, 24 VDC (Not Included)
Input Power	18 to 36 VDC 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	Yes
Inline Switch	No
Power Pass-Thru	No
Power Consumption	100 W
