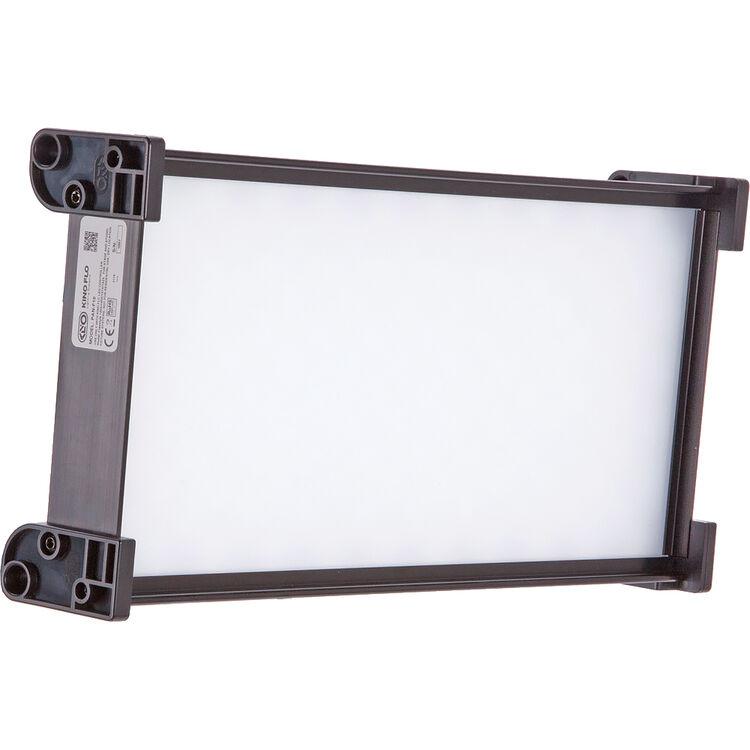

Kino Flo PAN-F10 FreeStyle Mini RGB LED Panel

Kino Flo PAN-F10 FreeStyle Mini RGB LED Panel

Name: Kino Flo PAN-F10 FreeStyle Mini RGB LED Panel
Brand: KINO FLO
SKU: SF-2443-AU5A
Availability: InStock

Brand: KINO FLO

MFR: FE1.00110

SKU: SF-2443-AU5A

Price Available Upon Request

For Film, Broadcast & Video Production
Output: 828 Lux at 3.3'
2500 to 9900K: RGB Color Control
15 x 7.5" Panel; AC/DC Operation
CRI 96 | TLCI 96
Passive Cooling for Silent Operation

Items Included

Kino Flo PAN-F10 FreeStyle Mini RGB LED Panel

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights

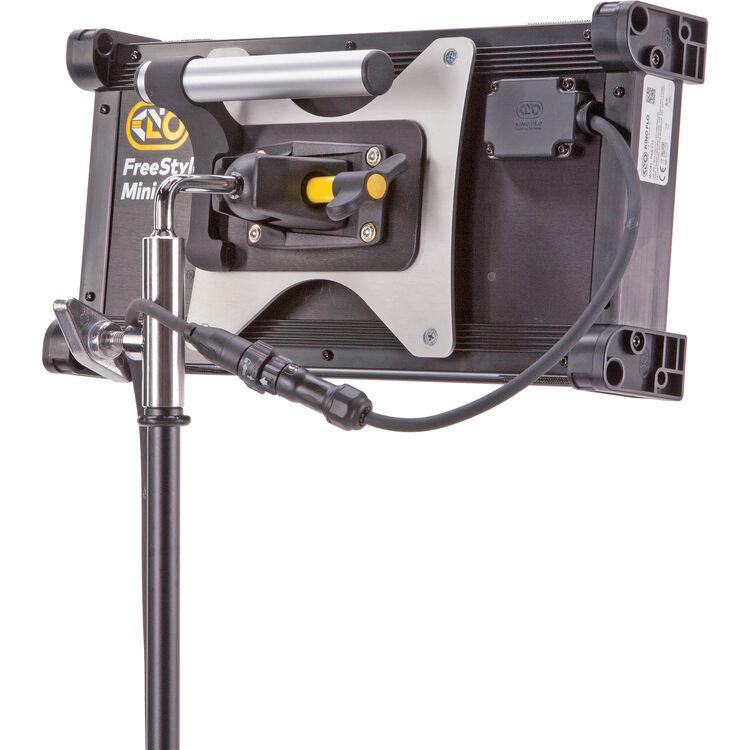

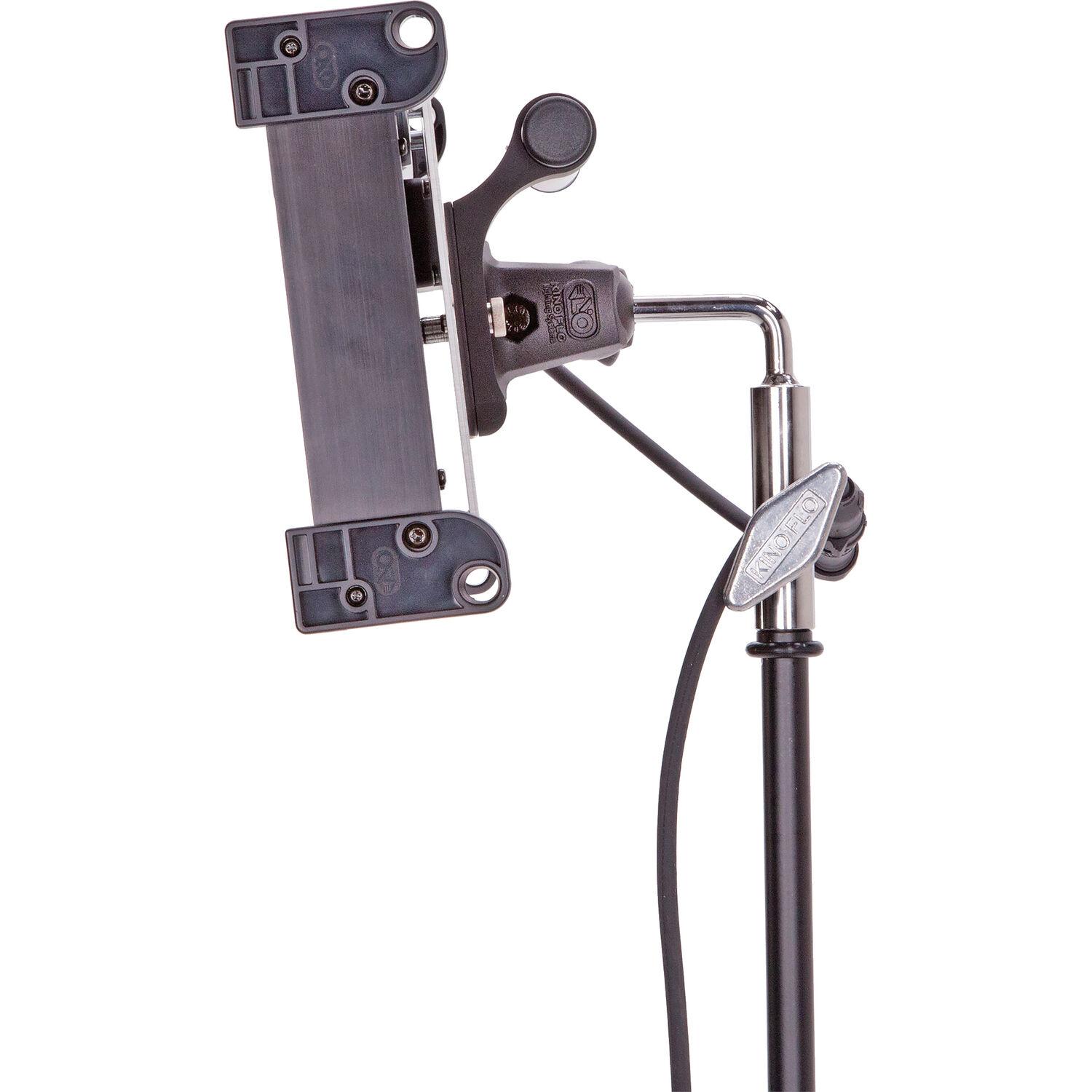

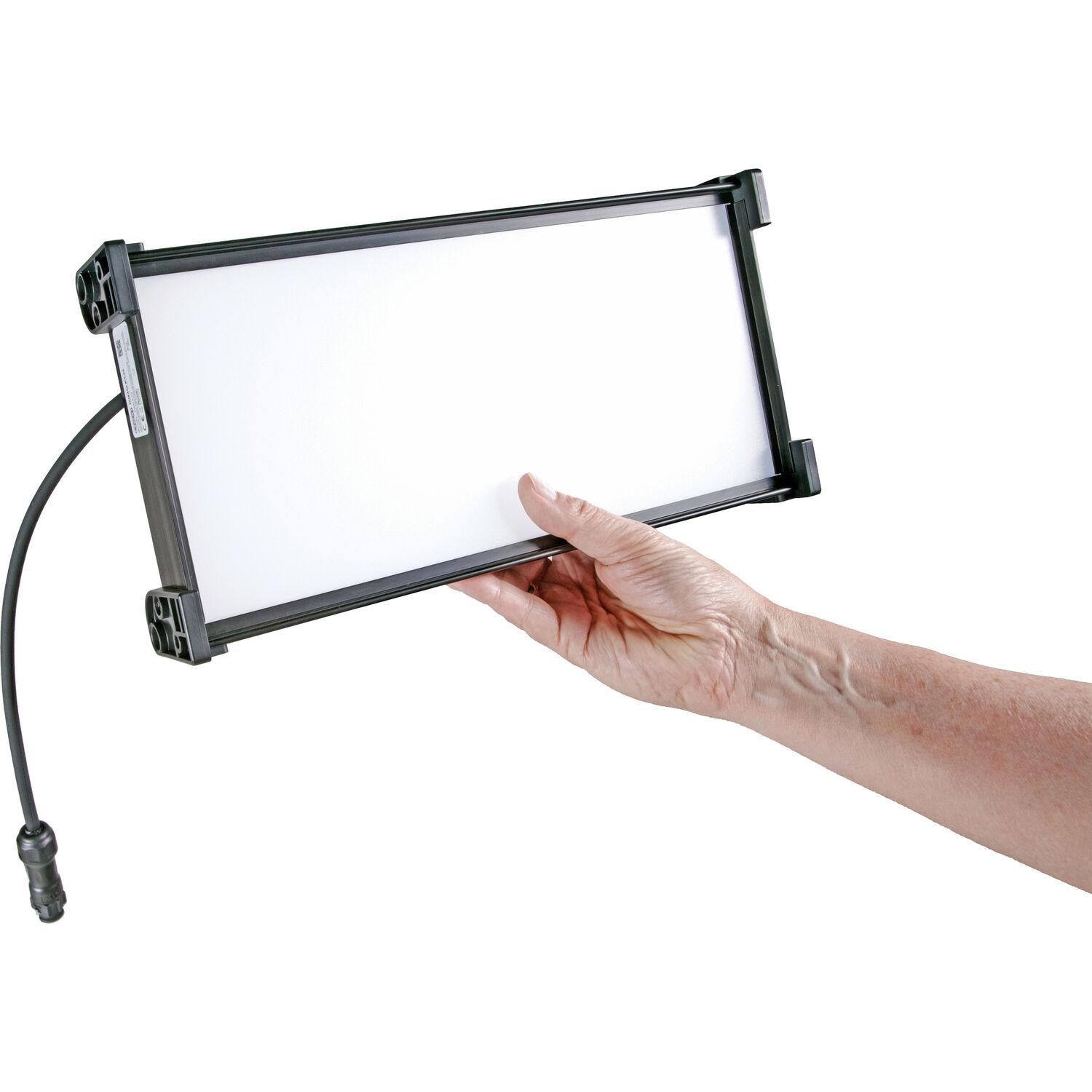

Slim and compact in size, the FreeStyle Mini RGB LED Panel from Kino Flo offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight LED panel can easily fit into tight locations or can be handheld with a separately purchased KinoGrip 41K Mount. For mounting on light stands, the back of the fixture features a twist-on removable KinoGrip Center Mount, which can be adapted to work with multiple Kino Flo mounting adapters. Additionally, molded corners offer additional rigging options.

This FreeStyle Mini panel requires a separately available head cable and DMX controller. The controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

Adjustable color temperature from 2500 to 9900K
1 to 100% dimming without color shifts
Flicker-free and quiet operation
Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
Full range onboard and DMX dimming
DMX wireless link

Light Fixture

Item Type	1x LED Light Panel
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	No
Photometrics	76 fc / 828 Lux at 3.3' / 1 m 9 fc / 99 Lux at 9.8' / 3 m 3 fc / 37 Lux at 16.4' / 5 m
Color Temperature	2500 to 9900K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 96 TM-30 Rf 95 TM-30 Rg 103
Dimming	Built-In Dimmer • 1 to 100%
Cooling System	No
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Power & I/O

Power Source	AC Power (Cable Not Included) Requires Power Supply/Controller (Not Included) Battery (Not Included) Requires Power Supply/Controller (Not Included)
Inputs/Outputs	1x Built-In Cable with Unspecified Power Input
Battery	1x D-Tap Rechargeable, 24 VDC (Not Included)
Input Power	18 to 36 VDC 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	Yes
Inline Switch	No
Power Pass-Thru	No
Power Consumption	150 W
