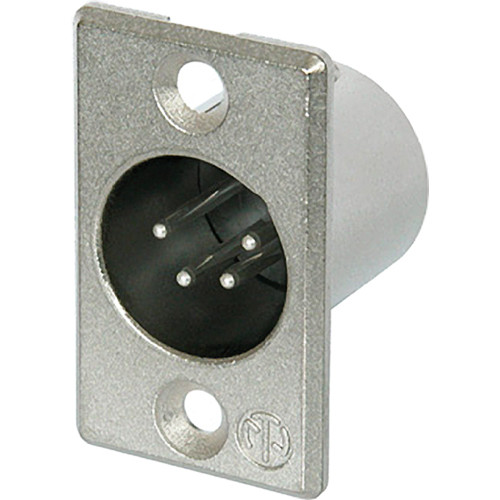

Neutrik's 4-Pole Male Receptacle with Soldered Contacts has a nickel housing with silver contacts and is a traditional style metal panel mount connector with large soldered contacts for easy hard wiring.
| Connection Type | XLR |
| Compatibility | Compatible with Switchcraft D*M/F Series and Cannon XLB2*31/32 Series |
| Electrical | Capacitance between contacts: ≤ 7 pF Contact resistance: ≤ 5 mΩ (inner) Dielectric strength: 1.5 kVdc Insulation resistance: > 10 GΩ (initial) Rated current per contact: 10 A Rated voltage: 50 V |
| Mechanical | Insertion force: ≤ 20 N Withdrawal force: ≤ 20 N Lifetime: > 1000 mating cycles Wiresize: maximum 1.5 mm² Wiresize: maximum 16 AWG Wiring: Solder contacts Locking device: latch lock Mounting direction: front Chassis shape: P |
| Material | Contact plating: 2 µm Ag over 2 µm Ni Contacts: Silver Insert: Polyamide (PA 6.6 30 % GR) Locking element: Stahl Ck67 Shell: Zinc diecast (ZnAl4Cu1) Shell plating: Nickel |
| Environmental | Flammability: UL 94 HB Standard compliance: IEC 61076-2-103 Protection class: IP 40 Solderability: Complies with IEC 68-2-20 Temperature range: -22 to 176°F (-30 to +80°C) |
Packaging Info
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 3 x 2 x 1" |
