Brand: NEUTRIK
MFR: NAC3FPX-ST-TOP

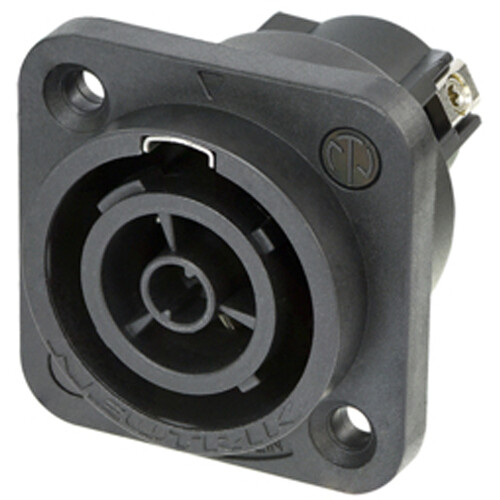

Neutrik NAC3FPX-ST-TOP powerCON TRUE1 Female Appliance Outlet Connector (Screw Terminals)
Categories: Audio Connectors
Designed as a heavy-duty outdoor solution combined with a locking device to replace appliance couplers, the NAC3FPX-ST-TOP powerCON TRUE1 Female Appliance Outlet Connector (Screw Terminals) from Neutrik assures a safe power connection. The powerCON TRUE1 TOP has breaking capacity (CBC) that allows it to be disconnected or connected live or under load.
Benefits
| Electrical | Contact Resistance: ≤ 3 mΩ Dielectric Strength: 4 kVdc / 2.8 kVac Insulation Resistance: > 0.1 GΩ (After Damp Heat Test) Number of Electronical Contacts: 2 + PE Rated Current per Contact: 16 A RMS (USA: 20 A) Rated Voltage: 250 VAC |
| Mechanical | Lifetime: > 5000 Mating Cycles Wire Size 1: 2.5 mm² Wire Size 2: 2 AWG |
| Material | Contact Plating: 2 µm Ag Locking Element: Stainless Steel Shell: Polyamide (PA 6.6) Contacts: Spring Copper (CuSn0.2) |
| Environmental | Flammability: UL 94 V-0 Protection Class: IP65, UL50E Enclosure Type 4 (Mated or in Combination with SCNAC-FPX) Temperature Range: -22 - 176°F / -30 - 80°C |
| Certification and Compliance | ENEC Certified According to IEC 60320 UL498 Certified |
Packaging Info
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 3.4 x 1.4 x 1.4" |
