Brand: NEUTRIK
MFR: NBNC75BTU11

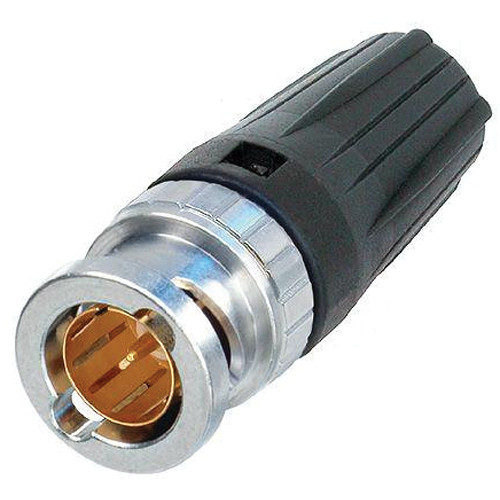

Neutrik NBNC75BTU11 rearTWIST BNC Cable Connector
Categories: Audio Connectors
The Neutrik NBNC75BTU11 rearTWIST BNC Cable Connector uses a patented rear locking system that is ideal for recessed bulkheads and other setups where it might be difficult to access the front end of the connector. This 75-ohm connector resists side-to-side warping and features a sturdy design with a lifetime of 1000 mating-cycles. The rearTWIST boot can be color-coded with separately available boots in 10 hues.
Compatible Cables
Crimp Size
Locking rearTWIST Connector
The patented rearTWIST lock turns from the back, enabling easier access to recessed bulkheads and similar setups
Resists Warping
Durable design avoids tilting side-to-side, protecting the contacts from deformation
Prevents Exposed Grounding
Shield and jacket crimp technology prevents exposed grounding problems on cable assemblies
Precision Machined
Precise Swiss-machined brass parts for high durability
Color Coding
Optional accessories include a crimp tool, color-coded boots in 10 standard colors, and dies
| Connector 1 | 1 x BNC Male |
| Connector 2 | 1 x rearTwist |
Environmental
| Certifications | IEC60352-2, IEC60803 *as per Manufacturer |
| Operating Temperature | -22 to 185°F / -30 to 85°C |
Physical
| Color | Black |
| Material of Construction | Brass, PFTE, Optalloy |
Packaging Info
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 3.4 x 1.8 x 0.6" |
