Neutrik NE8MC6-MO etherCON CAT6 Cable Plug Set
Categories: Audio Connectors

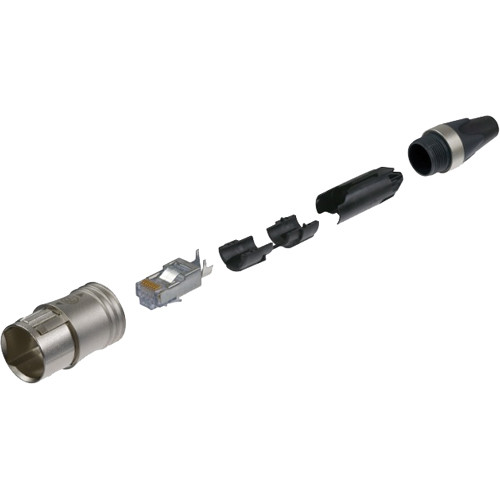

The Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Set includes a cable plug carrier, offering a robust metal shell with a push-pull locking system, proven Neutrik chuck-type strain relief, and a Cat 6 RJ45 plug. This set is compatible with STP and UTP cables having an outside diameter ranging from 5.5 to 6.5mm and a solid or stranded wire gauge of AWG 22 to 28. This self-termination version has a dustproof and waterproof rating of IP65.
Compatibility
For NE8FDY-C6-series Cat 6 receptacles only
Environmental
| Certifications | EN50173, ISO/IEC11801, EIA568B *as per Manufacturer |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
Physical
| Material of Construction | Polyurethane, Polyamide, Gold, Nickel, Bronze, Polyamide, Die-Cast Zinc, Polyacetal (POM) |
| Dimensions | 2.8 x 0.92" / 71.2 x 23.28 mm |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 3.2 x 1.6 x 0.7" |
