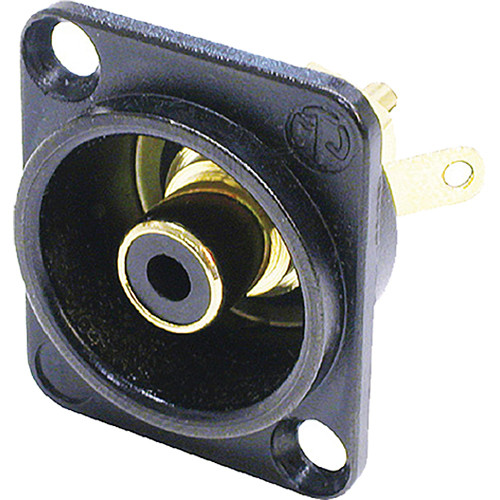

The Neutrik NF2D-B-0 Phono (RCA) Female Chassis Connector is a phono socket in a black chrome D-shaped housing.
| Connection Type | RCA female |
| Capacitance | Between Contacts: ≤9 pF |
| Contact Resistance | <5 mGΩ (inner) |
| Dielectric Strength | 0.5 kVDC |
| Insulation Resistance | <5 GΩ |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Lifetime | >2,000 mating cycles |
| Wiring | Solder contacts |
| Mounting Direction | Front |
| Chassis Shape | D |
| Contact Plating | 5 µm Au over 5 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 601-14 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 2 x 2 x 2" |
