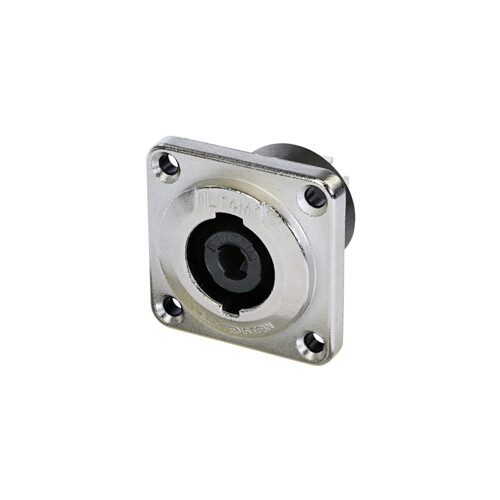

The NLT4MPXX 4-Pole Male speakON Chassis Connector from Neutrik is a rugged, mountable connector designed to allow one to mount a single speakON connector to numerous loudspeaker and amplifier chassis. This chassis connector features four countersunk thru holes for easy mounting via four machine screws, an extremely durable, tour-ready metal housing with copper alloy contacts, glass reinforced V-0 materials for flame resistance, and an IP54-rated weatherproof gasket for environmental protection. It also has a quick lock mechanism for fast and reliable cable connection and the option to terminate contacts via 1/4" flat tabs and FASTON connectors, or solder contacts directly. The connector is rated for 30A RMS of continuous current which can handle most signal loads, and features an airtight design that is ideal for speaker applications.
General
| Compatibility | Not Specified by Manufacturer |
| Connection Type | 1 x speakON Male Chassis Connector |
| Contact Resistance | <2 Megohms |
| Insulation Resistance | >0.1 Gigaohm (After Dampheat) |
| Rated Current Per Contact | 30 A RMS (Continuous) |
| Rated Voltage | 250 VAC |
| Locking Device | Quick Lock |
| Chassis Shape | Square G-Size Flange |
| Flammability | V-O Materials |
Environmental
| IP Rating | IP54 |
| Certifications | UL 94, IEC 61984 *as per Manufacturer |
| Operating Temperature | -22 to 176°F / -30 to 80°C |
Physical
| Mounting | Front: 4 x Countersunk Thru Holes |
| Color | Silver |
| Material of Construction | Polyamide (PA 66), Copper Alloy, Nickel-Plated Diecast Zinc, Gold |
| Dimensions | 1.5 x 1.5 x 1.5" / 38 x 38 x 37 mm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.13 lb |
| Box Dimensions (LxWxH) | 3.4 x 1.7 x 1" |
