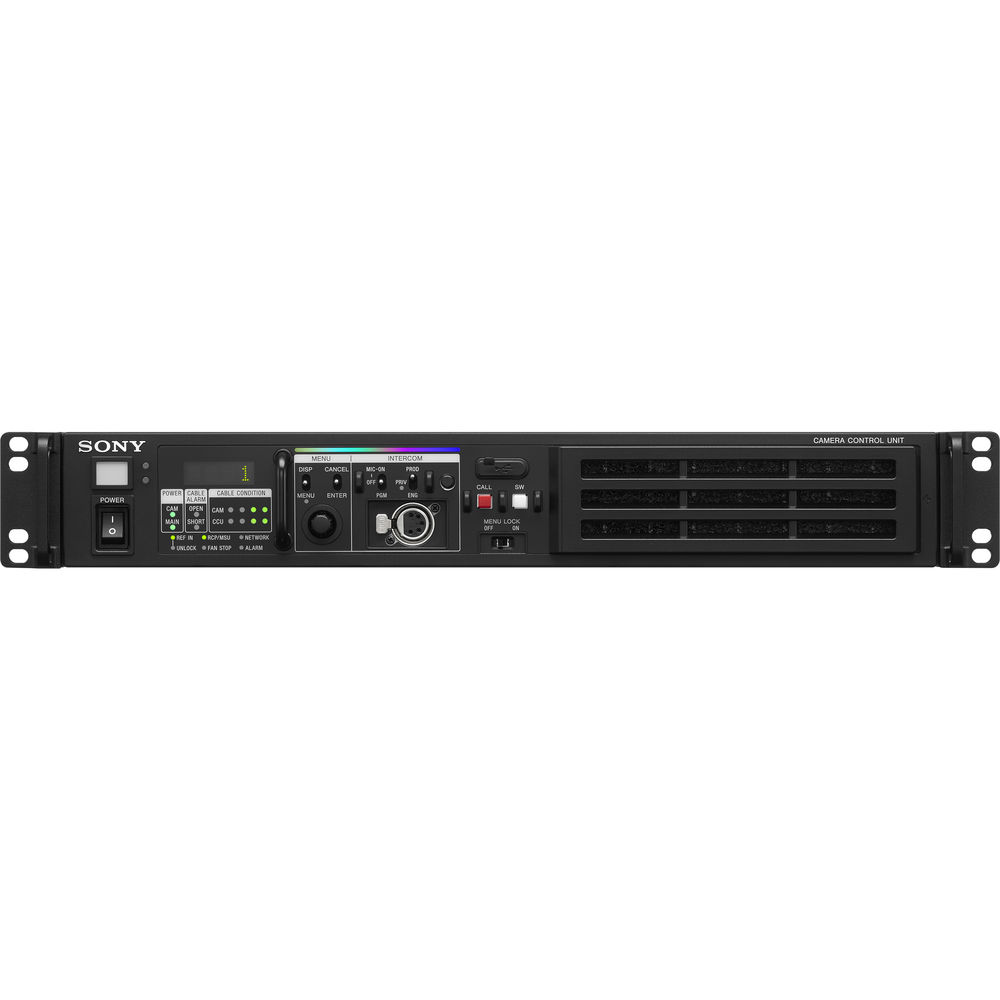

The HDCU-3100 IP-Enabled Camera Control Unit from Sony adds IP capabilities to the broadcast and studio system cameras. Connecting to compatible cameras via optical fiber cable, the compact HDCU-3100 supplies power to the camera, performs signal processing, and provides an interface with external equipment. The compact 1.5 RU unit is ideal for space-limited production areas. It is equipped with eight built-in SDI outputs, including four 3G-SDI outputs.
IP Functionality for Live Production
The optional HKCU-SFP30 interface kit adds essential functionality required for IP live production such as Tally, Intercom, and Return.
4K Output Option
By installing an optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected to an HDC-series system camera. In addition, the HDCU-3100 with an optional 12G-SDI interface kit HKCU-SDI30 can transfer 4K signals through a single BNC cable.
High-Quality, Long-Distance Signal Transmission
The optical fiber transmission system maintains high picture quality across cable runs of up to 1.2 miles. Combined with the HKCU-SM30 interface kit, the compact HDCU-3100 can be directly connected on Single Mode Fiber (SMF) for long-distance transmission up to 6.2 miles, making it ideal for space-limited operations like OB trucks.
| Connectors | 1 x Optical camera fiber 1 x 50-pin sub-D intercom/tally 1 x 8-pin RCP/CNU 1 x 12-pin trunk 1 x 8-pin LAN-com 1 x 8-pin network trunk 4 x BNC 3G/HD/SD SDI input 4 x BNC 3G/HD/SD SDI output 2 x BNC loop-thru reference output 4 x BNC 3G/HD/SD SDI Return 2 x BNC loop-thru Prompter output 1 x BNC AES/EBU 2 x 3-pin XLR audio output 1 x AC input |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Current Consumption | 4.5 A |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 19.0 x 3.0 x 15.6" / 48.2 x 6.6 x 39.5 cm |
| Weight | 16.1 lb / 7.3 kg |
